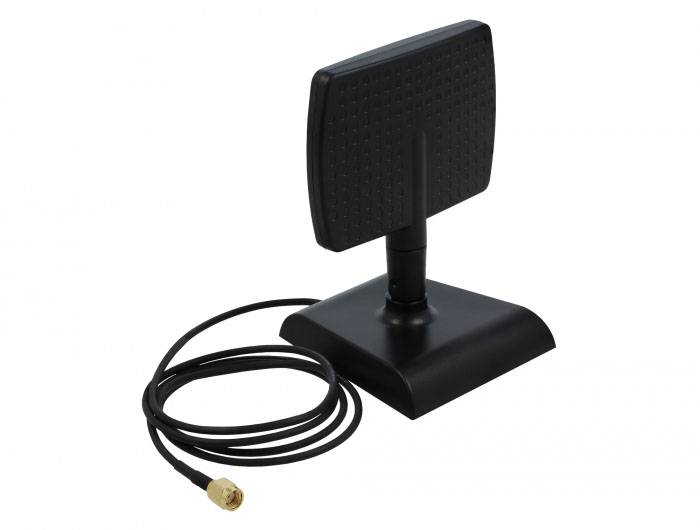

Delock 90297 90297 Wi-Fi antenna 6 dBi 2.4 GHz
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Delock WLAN WiFi 6 antenna RP-SMA plug 4 - 6 dBi directional with magnetic stand with tilt joint
- Directional antenna RP-SMA black
- 6 dBi
- 2.4 - 2.5/5.15 - 5,875 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- Frequency range 2.4 - 2.5/5.15 - 5,875 GHz
- Impedance: 50 ohm
- Cable type: RG-174
- Product type
Wi-Fi antenna
- Gain
6 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
RPSMA plug
- Weight
0.16
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Mounting type
Magnetic base
- Polarisation
Linear
Vertical
- Width
90 mm
- Height
80 mm
- Length
250 cm
- Cable design
Round
- Cable length
1 m
- Version
Cable
- Factory colour
Black
- Depth
115.5 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Antenna gain (2.4 GHz)
4 dBi
- Antenna gain (5 GHz)
6 dBi
Documents & Downloads
Datasheet
Datasheet 3382094 Delock 90297 90297 Wi-Fi antenna 6 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382094 Delock 90297 90297 Wi-Fi antenna 6 dBi 2.4 GHz
Description
This wireless antenna from Delock can be connected to a wireless device with RP-SMA connection, in order to receive and send signals. With the help of the variable inclination of the antenna and by the magnetic base the antenna can be positioned individually.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x RP-SMA plug

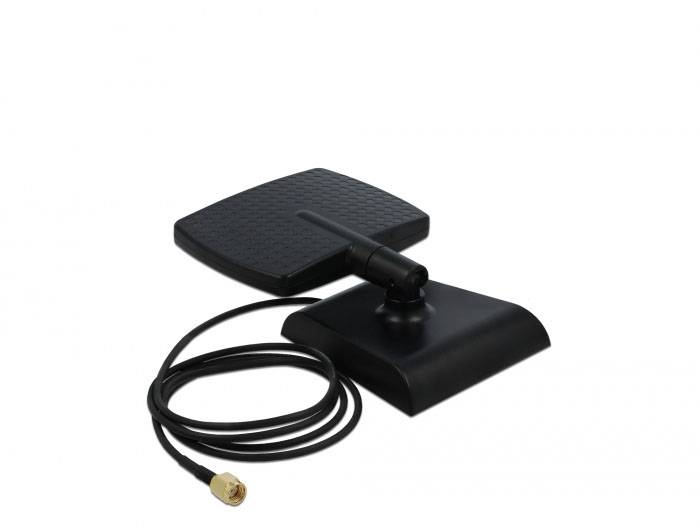

- Can be rotated with hinge
- Frequency range:
- 2.400 - 2.500 GHz
- 5.150 - 5.875 GHz
- Antenna gain:
- 4 dBi @ 2.5 GHz
- 6 dBi @ 5.7 GHz
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: linear, vertical
- HBW horizontal opening angle: 80°
- VBW vertical aperture angle: 70°
- Operating temperature: -10 °C ~ 55 °C
- Case material: ABS UV-protected
- Cable type: RG-174
- Cable color: Black
- Cable length: approx. 1 m
- Dim. (LxWxH): Approx. 115.5 x 90.0 x 80.0 mm
System requirements
- Device with a free RP-SMA socket
