Delock Laptop docking station 87728
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Delock 87728 Laptop docking station
- Connection A (or inputs): 2x USB-A
- Connecton B (or outputs): Jack socket 3.5 mm, USB 3.2 1st Gen, DisplayPort, LAN (10/100/1000 Mbps), USB-B socket
- No. of supported monitors: 2
- Maximum resolution: 3840 x 2160 p
- Key features:
Technical specifications
- Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type A + Type-C.
- Product type
Laptop docking station
- Type A
2x USB-A
- Type B
Jack socket 3.5 mm
USB 3.2 1st Gen
DisplayPort
LAN (10/100/1000 Mbps)
USB-B socket
- Interfaces
2x USB 3.2 1st Gen (USB 3.0)
1x 2.5 mm headphone jack
4x USB 3.2 1st Gen (USB 3.0)
2x DisplayPort
1x LAN (10/100/1000 Mbps)
- Supported monitors
2
- Resolution (max.)
3840 x 2160 p
- Cable length
1 m
- Factory colour
Black
- Width
78 mm
- Height
38 mm
- Depth
190 mm
- Weight
1070 g
- Dim
(W x H x D) 78 x 38 x 190 mm
- Cable design
Round
- Version
Cable
- Frame rate
60 Hz
- No. of DisplayPort
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
6 x
- Cable use
C13/C14 appliances
- Max. output current
2.25 A
- Output voltage
20 V
- 10/100/1000 Mbps ports
1 x
- Power supply (details)
100 - 240 V
- UKCA
yes
- Ethernet LAN
yes
- Quantity per pack
1 Stück(e)
- Headphone outputs
1
- Microphone in
yes
- DC-in jack
yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
- Card reader integrated
no
- Manual
yes
- Maximum digital resolution
3840 x 2160 p
- On/off switch
yes
- Plug and Play
yes
- Charging function
yes
Documents & Downloads
Datasheet
Datasheet 3382022 Delock Laptop docking station 87728
User & Safety Instructions
User & Safety Instructions 3382022 Delock Laptop docking station 87728
Description

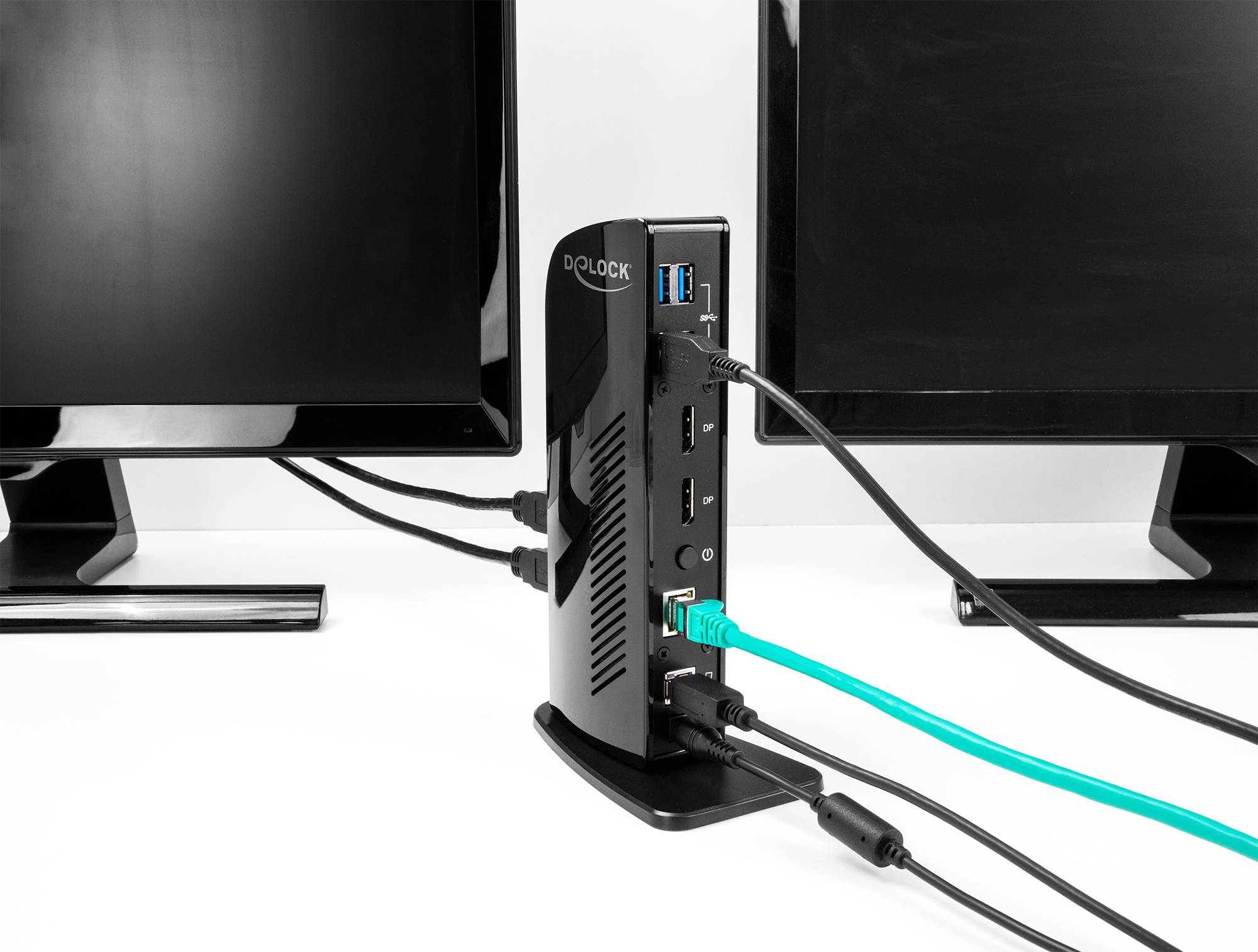

This Delock docking station can be connected to a computer with a USB-C™ or USB type A port and provides a variety of interfaces. Two monitors can be simultaneously operated at the display port outputs. Six integrated USB 3.2 Gen 1 ports allow peripheral devices to be used, and ports for a microphone and speaker and gigabit network complete the configuration.
4K 60 Hz UHD resolution
Ultra HD (4K) resolution is possible when using only one monitor and also when simultaneously output at both DisplayPort outputs. No DisplayPort alternate mode support is required.
Expanded screen through DisplayLink
Owing to the DisplayLink Graphic Chipsets it is possible to use mirrored and extended screen functions under Windows and Mac OS operating systems.
This text is machine translated.
4K 60 Hz UHD resolution
Ultra HD (4K) resolution is possible when using only one monitor and also when simultaneously output at both DisplayPort outputs. No DisplayPort alternate mode support is required.
Expanded screen through DisplayLink
Owing to the DisplayLink Graphic Chipsets it is possible to use mirrored and extended screen functions under Windows and Mac OS operating systems.
This text is machine translated.
Features
- Connections:

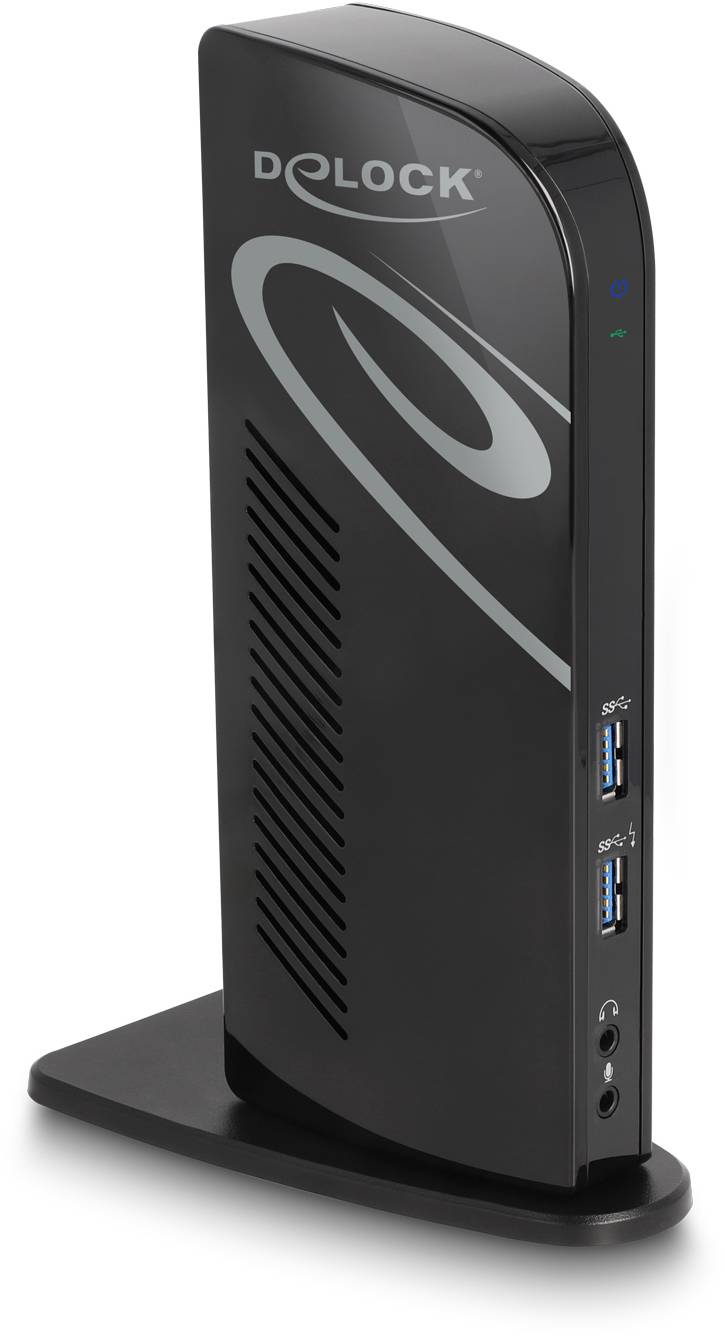

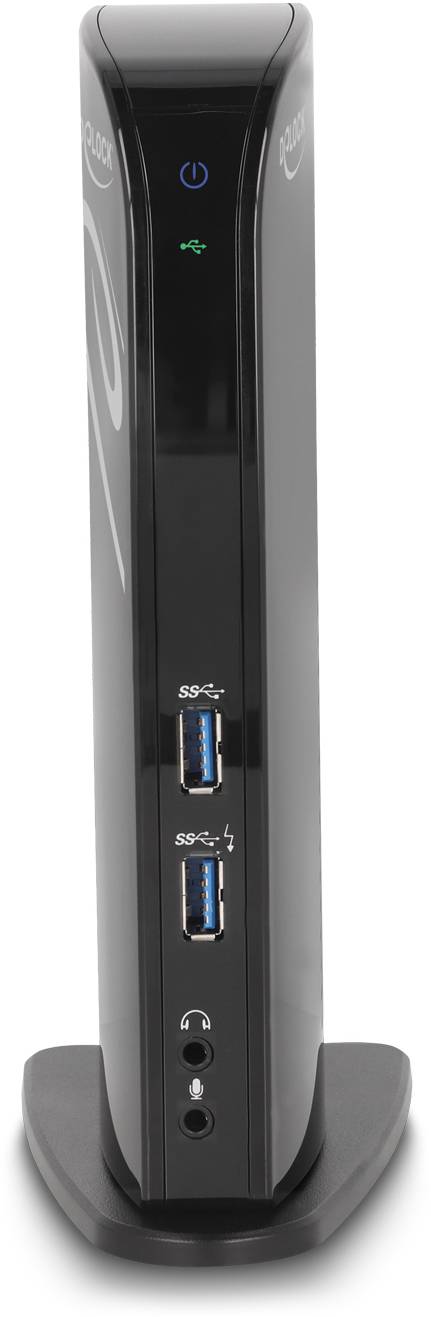

- Front side:
- 1 x SuperSpeed USB 5 Gbps (USB 3.2 1st Gen 1) Type A socket
- 1 x SuperSpeed USB 5 Gbps (USB 3.2 1st Gen 1) Type A socket - battery charging
- Specification BC1.2
- 1 x microphone 3.5 mm jack
- 1 x Loudspeaker 3.5 mm jack

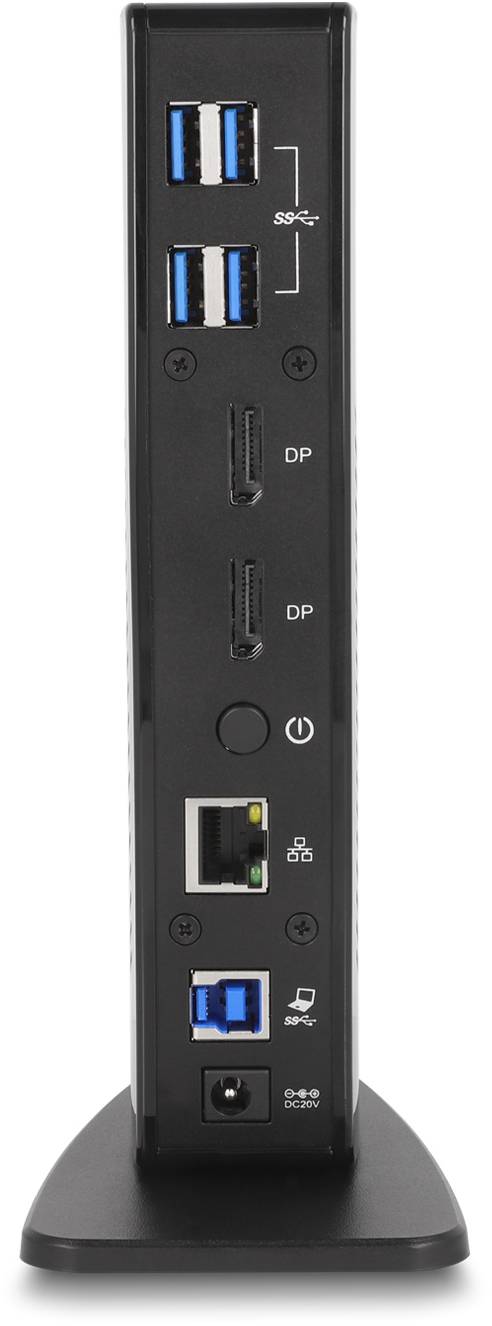

- Rear:
- 4 x SuperSpeed USB 5 Gbps (USB 3.2 1st Gen 1) Type A socket
- 2 x DisplayPort socket
- 1 x Gigabit LAN 10/100/1000 Mbps RJ45 socket
- 1 x SuperSpeed USB 5 Gbps (USB 3.2 1st Gen 1) Type B socket
- 1 x DC 20 V power connection
- Maximum resolution (depending on system and connected hardware):
- Single display: Up to 3840 x 2160 @ 60 Hz
- Dual display: Up to 3840 x 2160 @ 60 Hz
- Transmission of audio and video signals
- Functions: Mirror or expand
- 1 x on/off switch
- Colour, black
- Dimensions without stand (LxWxH): Approx. 190 x 78 x 38 mm
System requirements
- Mac OS X 12.0.1 or higher
Windows 8.1/8.1-64/10/10-64/11
PC or notebook with a free USB type A port or
PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
