Delock Laptop docking station 87771
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Delock 87771 Laptop docking station
- Connection A (or inputs): 2x USB-A
- Connecton B (or outputs): Jack socket 3.5 mm, USB 3.2 1st Gen, DisplayPort, LAN (10/100/1000 Mbps), USB-B socket, HDMI®, LAN (10/100/1000 Mbps), USB 2.0
- No. of supported monitors:
- Maximum resolution: 2048 x 1152 p
- Key features:
Technical specifications
- Product type
Laptop docking station
- Type A
2x USB-A
- Type B
Jack socket 3.5 mm
USB 3.2 1st Gen
DisplayPort
LAN (10/100/1000 Mbps)
USB-B socket
HDMI®
LAN (10/100/1000 Mbps)
USB 2.0
- Interfaces
2x USB 3.2 1st Gen (USB 3.0)
1x 2.5 mm headphone jack
2x HDMI
1x LAN (10/100/1000 Mbps)
4x USB 2.0
- Resolution (max.)
2048 x 1152 p
- Cable length
0 cm
- Factory colour
Black
White
- Width
38 mm
- Height
190 mm
- Depth
78 mm
- Weight
0.825 kg
- Dim
(W x H x D) 38 x 190 x 78 mm
- Cable design
Round
- Version
Cable
- No. of HDMI ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Cable use
C13/C14 appliances
- Max. output current
4 A
- Output voltage
5 V
- 10/100/1000 Mbps ports
1 x
- Power supply (details)
100 - 240 V
- UKCA
yes

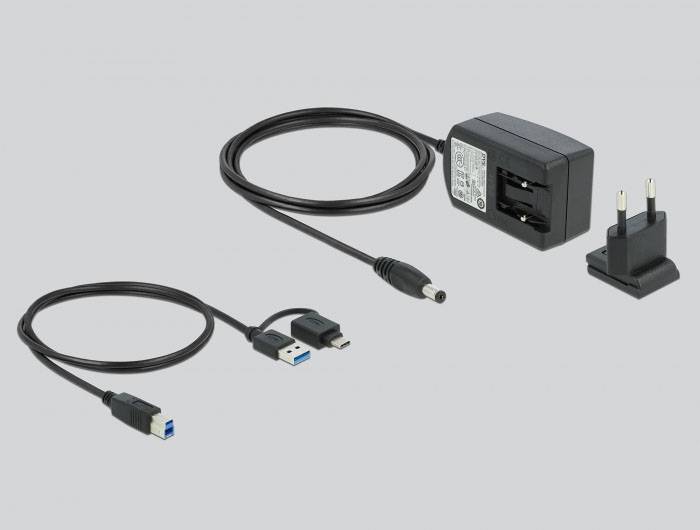

- AC adapter included
yes
- Ethernet LAN
yes
- USB 2.0 ports quantity
4
- Headphone outputs
1
- Microphone in
yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
- Card reader integrated
no
- Manual
yes
- Maximum digital resolution
2560 x 1440 p
Documents & Downloads
Datasheet
Datasheet 3381660 Delock Laptop docking station 87771
User & Safety Instructions
User & Safety Instructions 3381660 Delock Laptop docking station 87771
Description
This Delock docking station can be connected to a computer with a USB-C™ or USB type A port and provides a variety of interfaces. Simultaneously, two monitors can be operated at the HDMI outputs. Four integrated USB 2.0 ports and two USB 3.2 Gen 1 ports enable the use of peripherals, and connections for a microphone and loudspeaker and gigabit network complete the equipment.
Full HD resolution
Full HD (1080p) resolution is possible when using only one monitor and also with the simultaneous output on both HDMI outputs. Owing to the DisplayLink Graphic Chipsets it is possible to use mirrored and extended screen functions under Windows and Mac OS operating systems.
This text is machine translated.
Full HD resolution
Full HD (1080p) resolution is possible when using only one monitor and also with the simultaneous output on both HDMI outputs. Owing to the DisplayLink Graphic Chipsets it is possible to use mirrored and extended screen functions under Windows and Mac OS operating systems.
This text is machine translated.
Features

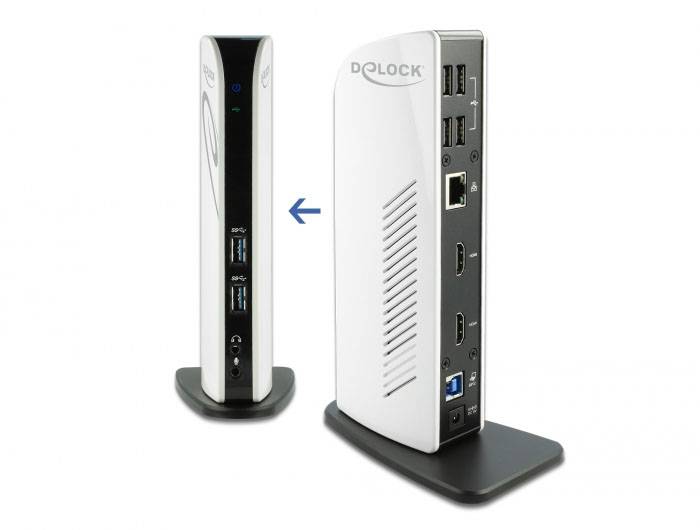

- Connections:

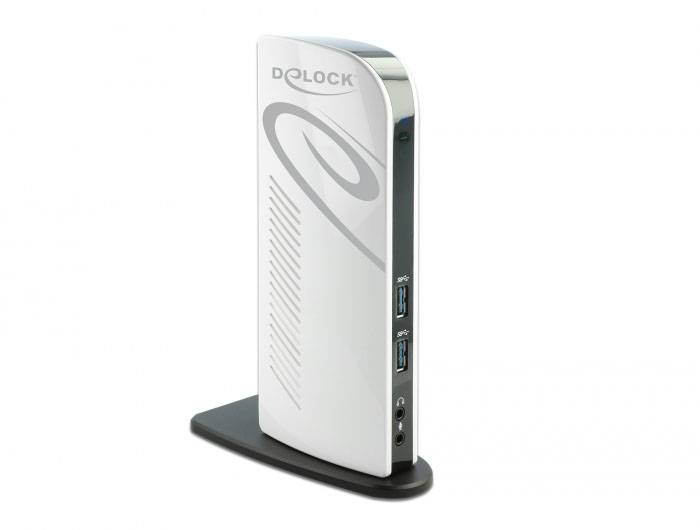

- Front side:
- 1 x SuperSpeed USB (USB 3.2 1st Gen 1) Type A socket
- 1 x SuperSpeed USB (USB 3.2 1st Gen 1) Type A socket - battery charging specification
- BC1.2
- 1 x microphone 3.5 mm jack
- 1 x Loudspeaker 3.5 mm jack

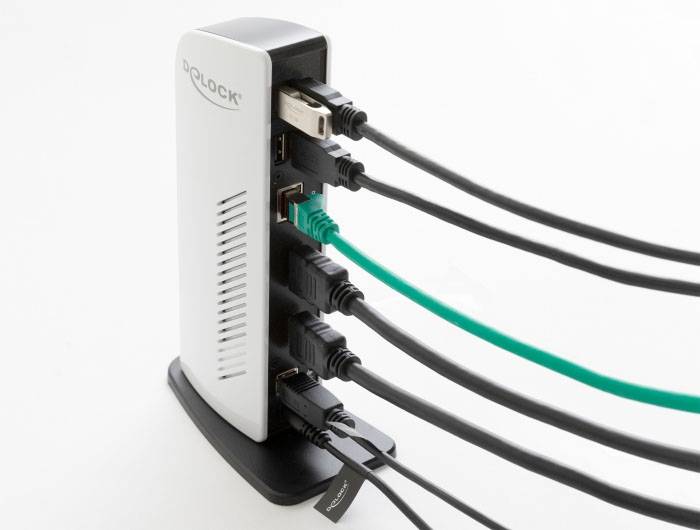

- Rear:
- 1 x SuperSpeed USB (USB 3.2 1st Gen 1) Type B socket
- 1 x DC 5 V power connection
- 2 x HDMI-A socket
- 1 x Gigabit LAN 10/100/1000 Mbps RJ45 socket
- 4 x USB 2.0 type A socket
- Maximum resolution (depending on system and connected hardware):
- Single display: Up to 2560 x 1440 @ 50 Hz
- Dual display: Up to 2048 x 1152 @ 60 Hz
- Transmission of audio and video signals
- Features: Mirror or Expand (Windows can only display one
- mirror, the second one is expanded)
- Colour: Black/white
- Dimensions without stand (LxWxH): Approx. 190 x 78 x 38 mm
System requirements
- Mac OS X 10.15.5 or higher
Windows 8.1/8.1-64/10/10-64/11
PC or notebook with a free USB type A port or
PC or laptop with a free USB Type-C™ port
