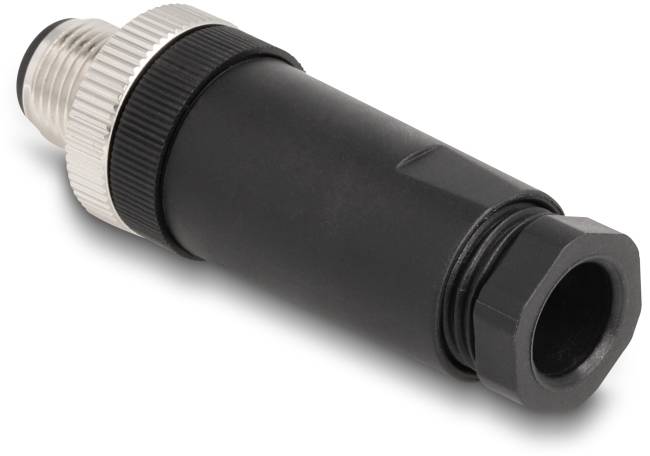

Delock M12 Networks Adapter Cable [1x M12 plug - 3x Screw terminals] Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

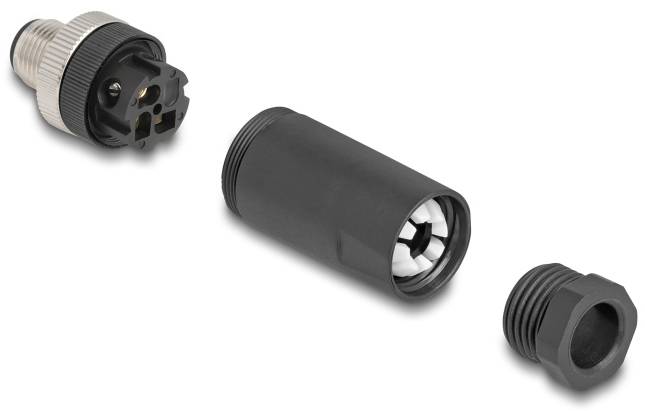

M12 plug connector A-coded 3 pin plug for mounting with screw connection
- M12 Straight Male
- Straight Female
- Black
- 1 pieces(s)
Technical specifications
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Product type
Networks Adapter
Cable
- Connection type
M12
- No. of A connectors
1 x
- Type A
M12 plug
- No. of B connections
3 x
- Type B
Screw terminals
- Factory colour
Black
- Connector version
straight
- Cable use
Networks
- Version
Adapter
- Cable design
Round
- Depth
20 mm
- Width
57 mm
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3383024 Delock M12 Networks Adapter Cable [1x M12 plug - 3x Screw terminals] Black
User & Safety Instructions
User & Safety Instructions 3383024 Delock M12 Networks Adapter Cable [1x M12 plug - 3x Screw terminals] Black
Description
This connector from Delock can be used to connect a cable to an M12 connector via a screw terminal connector, e.g. for machine control or automation.
This text is machine translated.
This text is machine translated.
Features
- Connections:

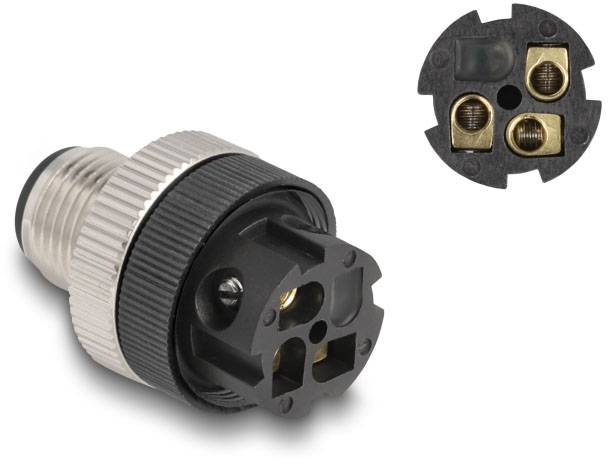

- 1 x M12 connector A-coded 3 pin
- 3 x screw terminal
- Can be used for a wire cross-section range from 26 to 20 AWG (0.13 - 0.52 mm²)
- Operating voltage max. 250 V
- Current strength max. 4 A
- Operating temperature: -25 °C - 85 °C
- Protection class IP67
- Cable bushing max. 3.0 - 8 mm
- Thread size M12 x 1.0 mm
- Housing material PA66
- Colour, black
- Dimensions (LxD): Approx. 57 x 20 mm
Hints
Please check the adapter pin layout. Depending on use, required pin layouts may differ.
System requirements
- A free M12 socket
