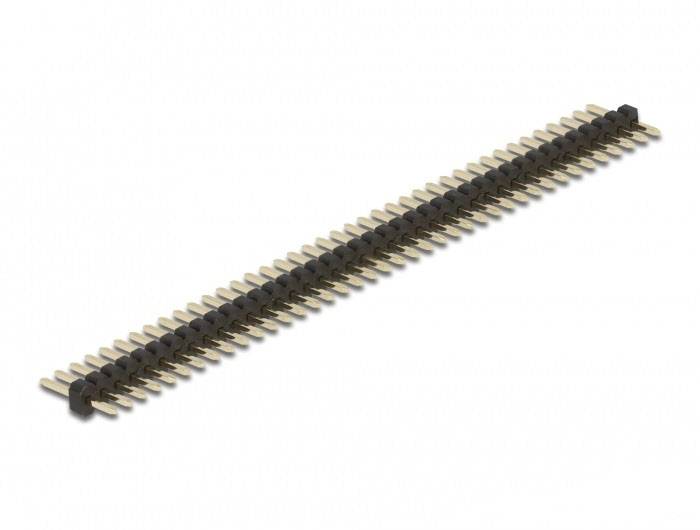

Delock Pin strip (standard) No. of rows: 1 Pins per row: 40 66688 1 Set Bag
Packaging type
Bag
Product type
Pin strip (standard)
No. of rows
1
Total number of pins
40
CS
1.27 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Delock connector strip 40 pin, pitch 1.27 mm, 1-row, straight, 5 pieces
- Content 1 Set
- No. of rows 1
- Pins per row 40
Technical specifications
- Product type: Pin strip
- Product color: Black, metallic
- Material: Metal, plastic
- Packaging type
Bag
- Product type
Pin strip (standard)
- No. of rows
1
- Pins per row
40
- Total number of pins
40
- CS
1.27 mm
- Connection
Pin strip
- Factory colour
Black
- Contact surface
Gold-plated silver alloy
- Contact material
Gold plated
- Case material
Polyester UL 94V-O
- Dim
(L x W x H) 50.8 x 50.8 x 2 mm
- Manufacturer part #
66688
- Content
1 Set
- Dimensions
50.8 x 6.3 x 2.0 mm
- Width
50.8 mm
- Height
2 mm
- Length
50.8 mm
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
66688
- Depth
6.3 mm
- Operating temperature (T-T)
-40 - 105 °C
- Number of pins
40
- Quantity per pack
5 Stück(e)
- Number of rows
1
- Withstanding voltage
500 V
- Soldering temperature (for 3 seconds)
230 °C
- Pitch distance
1.27 mm
- Insulation resistance
1000 MΩ
Documents & Downloads
Datasheet
Datasheet 3384006 Delock Pin strip (standard) No. of rows: 1 Pins per row: 40 66688 1 Set Bag
User & Safety Instructions
User & Safety Instructions 3384006 Delock Pin strip (standard) No. of rows: 1 Pins per row: 40 66688 1 Set Bag
Description
These pin headers from Delock are used on circuit boards to establish a connection between individual boards.
