Delock USB-C® docking station 87789
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Delock 87789 USB-C® docking station
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): USB 3.2 2nd Gen (USB 3.1), DisplayPort, HDMI®, LAN (10/100/1000 Mbps), Jack socket 3.5 mm, USB-C®
- No. of supported monitors:
- Maximum resolution: 3840 x 2160 p
- Key features:
Technical specifications
- HD type 8K Ultra HD
- High Dynamic Range 10 (HDR10): Yes
- Sustainability Compliance: Yes
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
USB 3.2 2nd Gen (USB 3.1)
DisplayPort
HDMI®
LAN (10/100/1000 Mbps)
Jack socket 3.5 mm
USB-C®
- Interfaces
1x Thunderbolt 3
2x USB 3.2 2nd Gen (USB 3.1)
1x DisplayPort
1x HDMI
1x LAN (10/100/1000 Mbps)
1x 2.5 mm headphone jack
- Resolution (max.)
3840 x 2160 p
- Cable length
20 cm
- Factory colour
Black
- Width
100 mm
- Height
25 mm
- Depth
100 mm
- Weight
320 g
- Dim
(W x H x D) 100 x 25 x 100 mm
- Cable design
Round
- Version
Cable
- Frame rate
60 Hz
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- Cable use
C13/C14 appliances
- HDR support
Yes
- 10/100/1000 Mbps ports
1 x
- UKCA
yes
- Ethernet LAN
yes
- Quantity per pack
1 Stück(e)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
- Headphone outputs
1
- Microphone in
no
- Card reader integrated
no
- USB Power Delivery (USB PD)
yes
- USB Power Delivery up to
60 W
- Manual
yes
- HDCP
yes
- Maximum digital resolution
7680 x 4320 p
- Plug and Play
yes
- Charging function
yes
- Combo headphone/mic port
yes
Documents & Downloads
Datasheet
Datasheet 3382024 Delock USB-C® docking station 87789
User & Safety Instructions
User & Safety Instructions 3382024 Delock USB-C® docking station 87789
Description

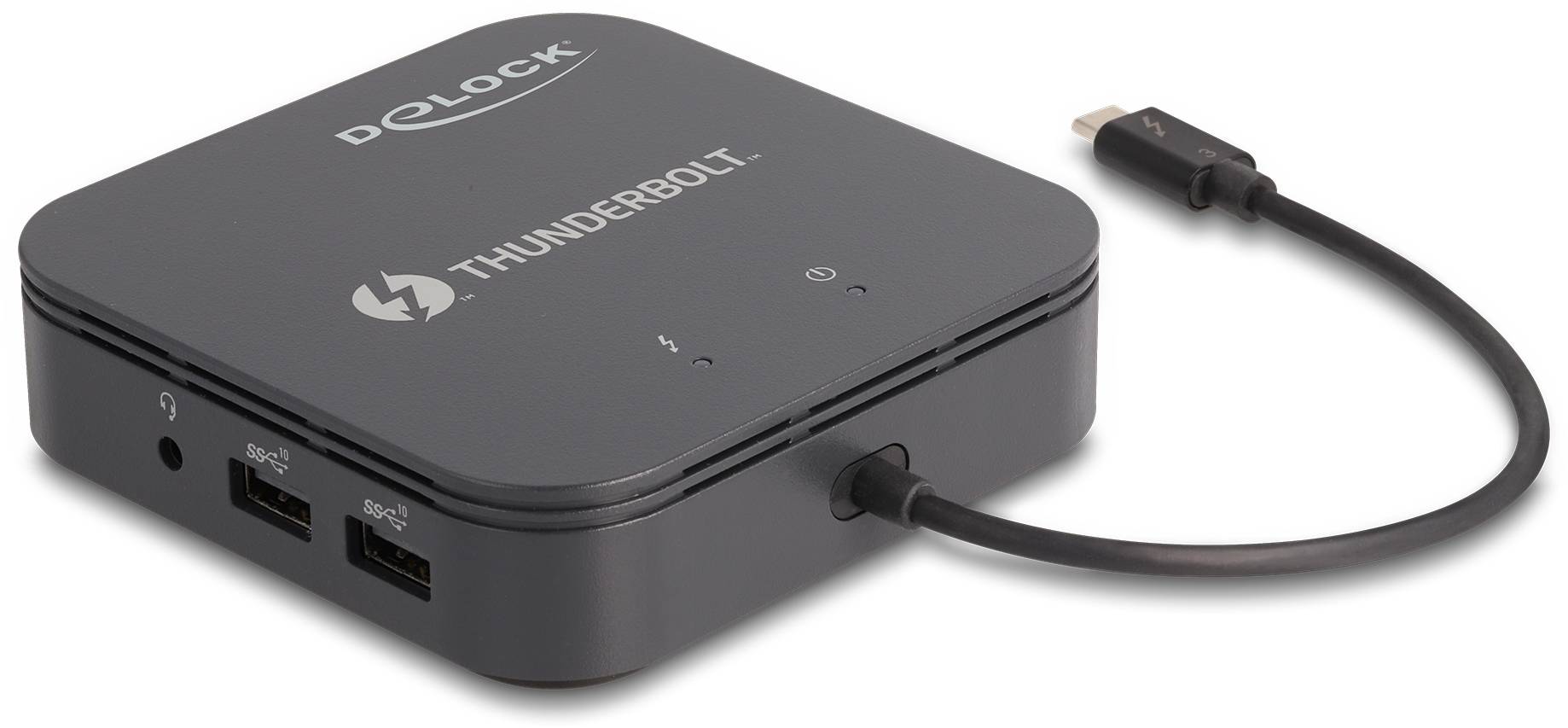

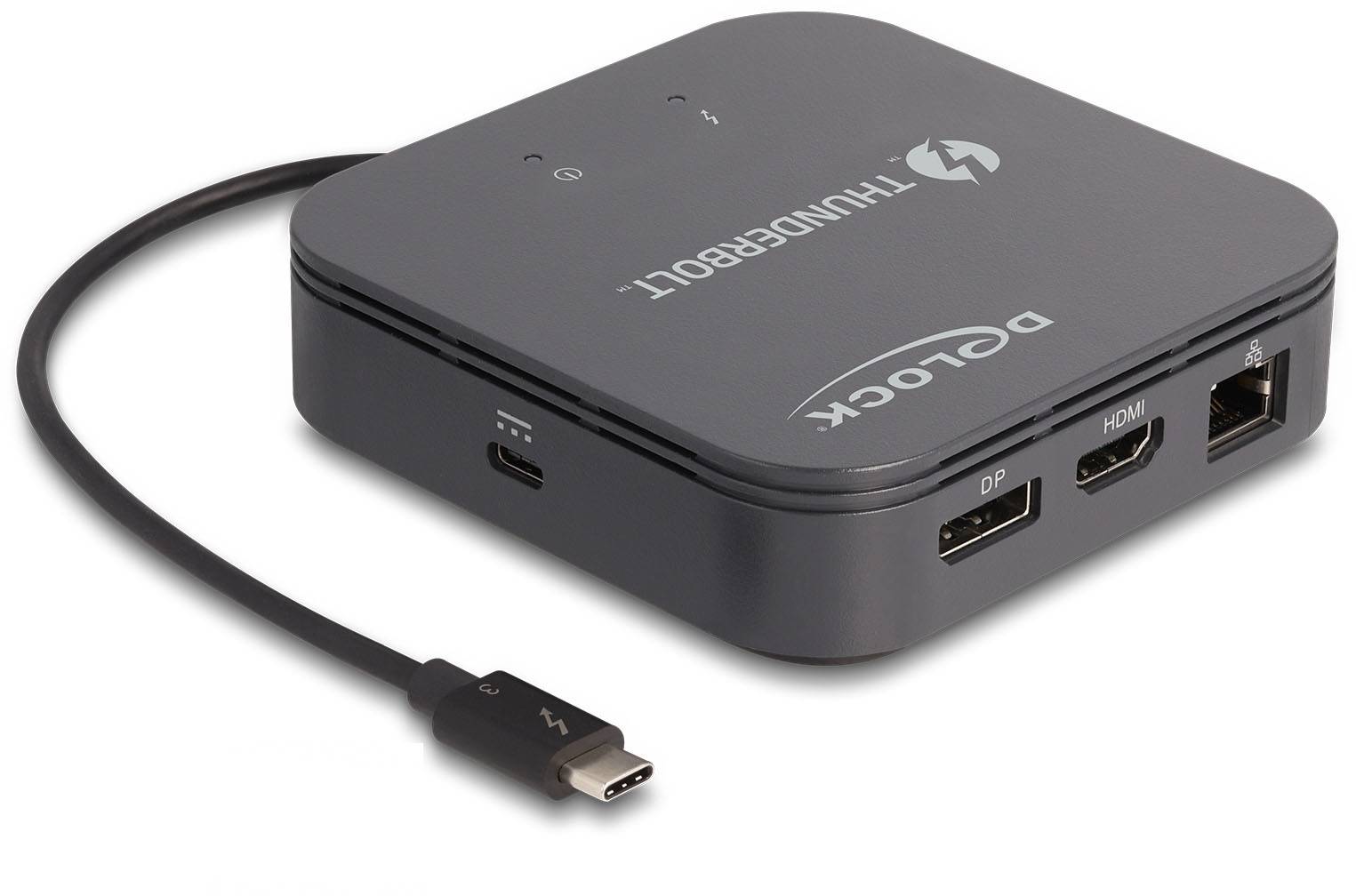

This Delock Thunderbolt™ 3 mini docking station can be connected to a computer with Thunderbolt™ 3 port and provides a variety of interfaces. The display port output enables the connection of an 8K display, the HDMI output can be connected to a 4K display and two monitors can be operated at the same time with 4K resolution. Two integrated USB ports allow the use of peripherals, connections for a headset and gigabit network complete the equipment.
Certified
Multi-stream Transport (MST)
The product is an MST hub and supports the advanced desktop configuration of DisplayPort. This allows several monitors to be combined to one large display. The docking station supports a maximum resolution per monitor up to 4K 60 Hz.
USB Power delivery (USB PD 3.0) support up to 60 watt
The docking station has a USB Type-C™ Power delivery port, which can be used to connect the notebook or tablet power supply to charge it.
Plug & Play
The device can simply be plugged in and is immediately ready for operation. No extra power supply is needed when using the docking station.
Small stable helper
Due to its small size and sturdy housing, this Delock docking station is especially suitable for traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
Certified
Multi-stream Transport (MST)
The product is an MST hub and supports the advanced desktop configuration of DisplayPort. This allows several monitors to be combined to one large display. The docking station supports a maximum resolution per monitor up to 4K 60 Hz.
USB Power delivery (USB PD 3.0) support up to 60 watt
The docking station has a USB Type-C™ Power delivery port, which can be used to connect the notebook or tablet power supply to charge it.
Plug & Play
The device can simply be plugged in and is immediately ready for operation. No extra power supply is needed when using the docking station.
Small stable helper
Due to its small size and sturdy housing, this Delock docking station is especially suitable for traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.

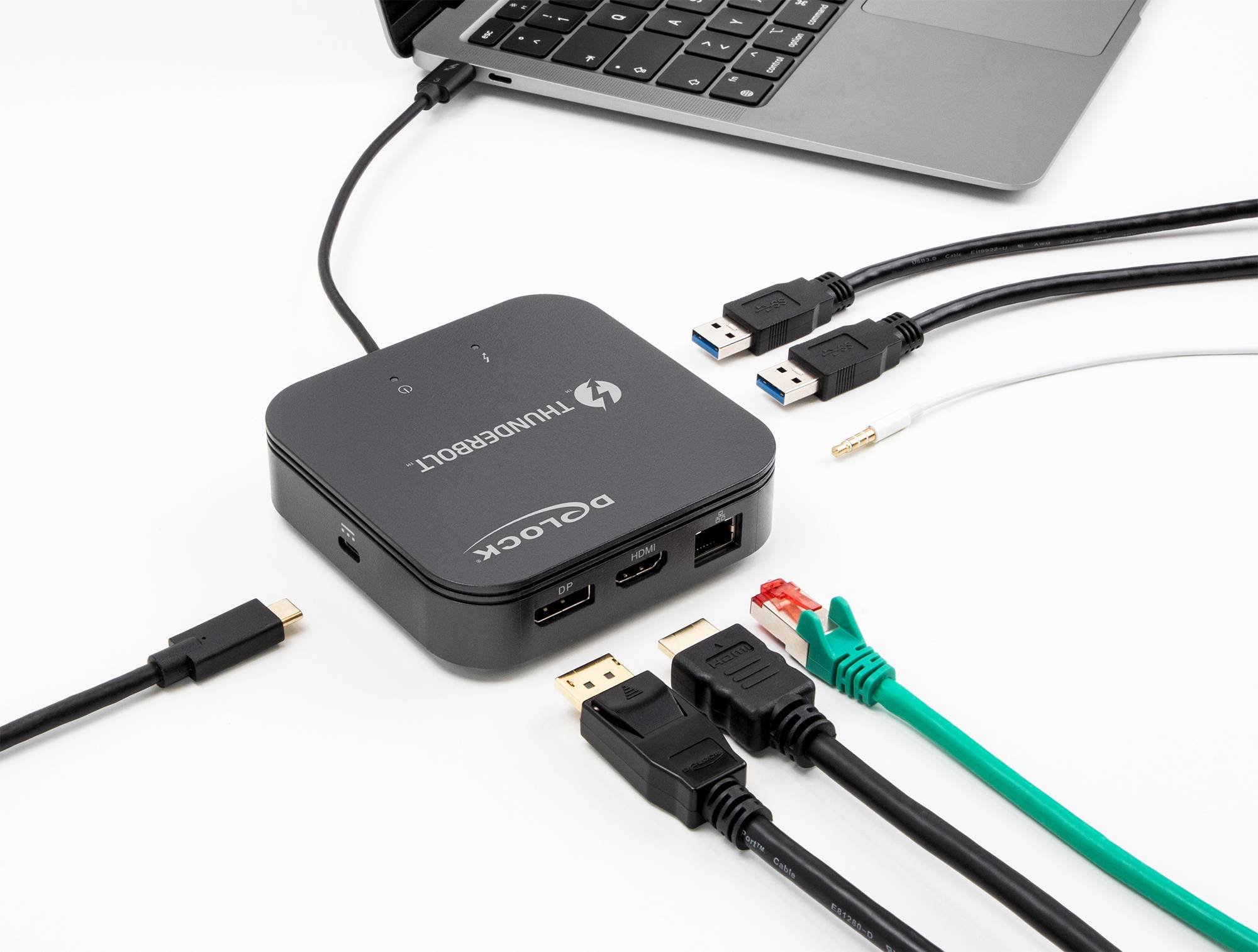

Features

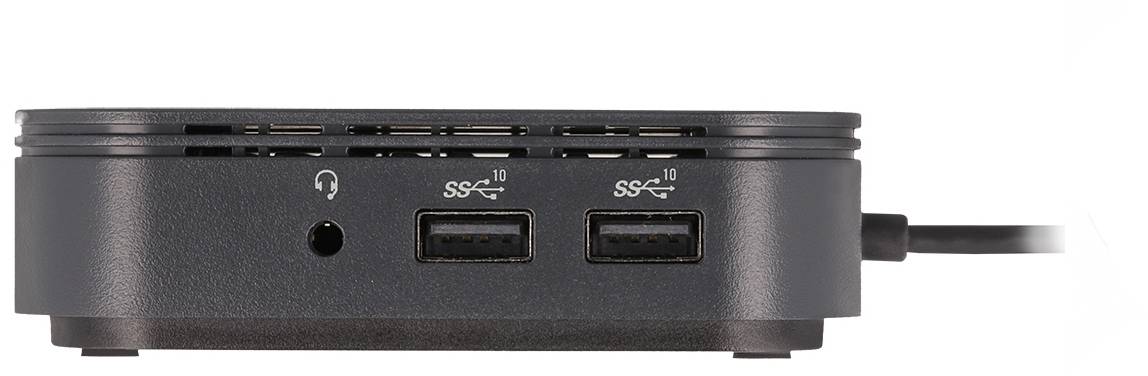

- Connections:
- 1 x Thunderbolt 3 connector
- 2 x USB 10 Gbps Type-A socket
- 1 x DisplayPort socket
- 1 x HDMI-A socket
- 1 x Gigabit LAN 10/100/1000 Mbps RJ45 socket
- 1 x Headset 3.5 mm 4 pin jack socket
- 1 x USB Type-C™ connector (power supply)
- Intel titanium ridge chipset
- Maximum resolution (depending on system and connected hardware):
- DisplayPort up to 7680 x 4320 @ 30 Hz
- HDMI up to 3840 x 2160 @ 60 Hz
- DisplayPort + HDMI up to 3840 x 2160 @ 60 Hz
- Transmission of audio and video signals
- Functions: Mirror or expand
- Supports HDCP 2.2
- Supports HDR
- Jack socket: Automatic detection of OMTP or CTIA standard
- Plug & Play
- Power output for host: Max. 60 W.
- 2 x LED display
- Colour, black
- Cable length without connections: Approx. 20 cm
- Dim. (LxWxH): Approx. 100 x 100 x 25 mm
System requirements
- Mac OS X 11.2.3 or higher
Windows 10/10-64/11
PC or laptop with a free Thunderbolt™ 3 or Thunderbolt™ 4 port
