Delock USB-C® docking station 87804
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

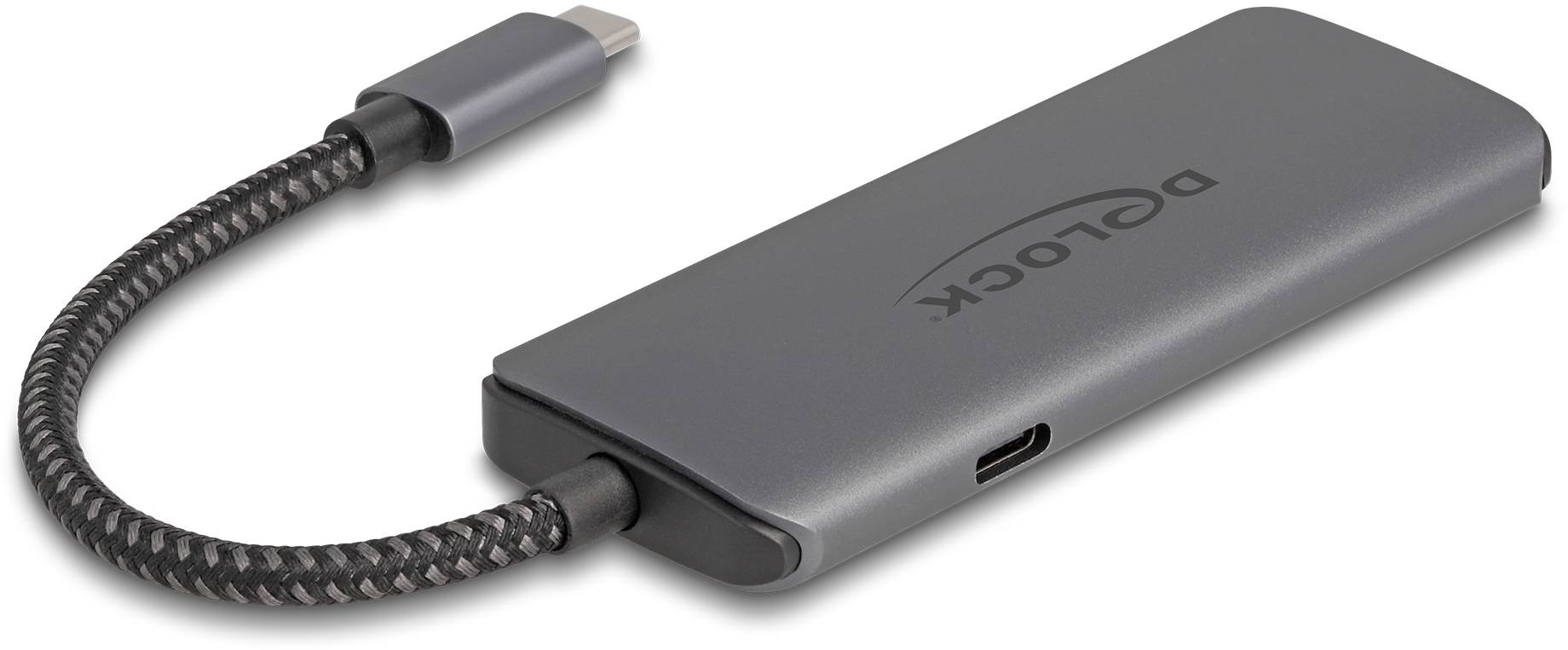

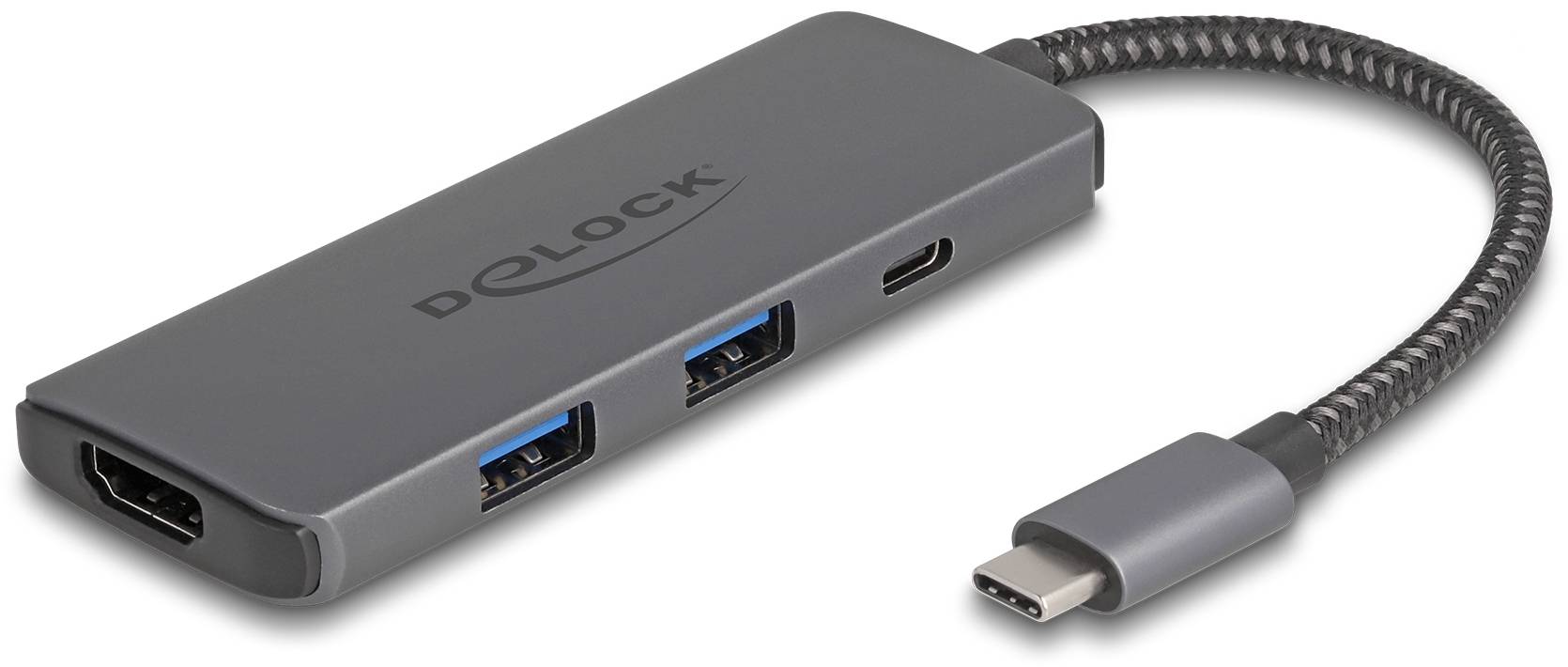

Delock 87804 USB-C® docking station
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): USB 3.2 1st Gen, USB-C®, HDMI®
- No. of supported monitors:
- Maximum resolution: 7680 x 4320 p
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- Data transfer rate 5 Gbps
- HD type 8K Ultra HD
- Other operating systems support: ChromeOS
- Sustainability Compliance: Yes
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
USB 3.2 1st Gen
USB-C®
HDMI®
- Interfaces
1x USB-C®
2x USB 3.2 1st Gen (USB 3.0)
1x HDMI
1x USB-C®
- Resolution (max.)
7680 x 4320 p
- Cable length
15 cm
- Factory colour
Grey
- Width
37 mm
- Height
10 mm
- Depth
97 mm
- Weight
0.066 kg
- Dim
(W x H x D) 37 x 10 x 97 mm
- Cable design
Round
- Version
Cable
- Frame rate
30 Hz
- No. of HDMI ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Cable use
C13/C14 appliances
- HDR support
Yes
- UKCA
yes
- Ethernet LAN
no
- Quantity per pack
1 Stück(e)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
- Microphone in
no
- USB Type-C DisplayPort Alternate Mode
yes
- Card reader integrated
no
- USB Power Delivery (USB PD)
yes
- USB Power Delivery up to
100 W
- Manual
yes
- HDCP
yes
- Maximum digital resolution
7680 x 4320 p
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3382025 Delock USB-C® docking station 87804
User & Safety Instructions
User & Safety Instructions 3382025 Delock USB-C® docking station 87804
Description

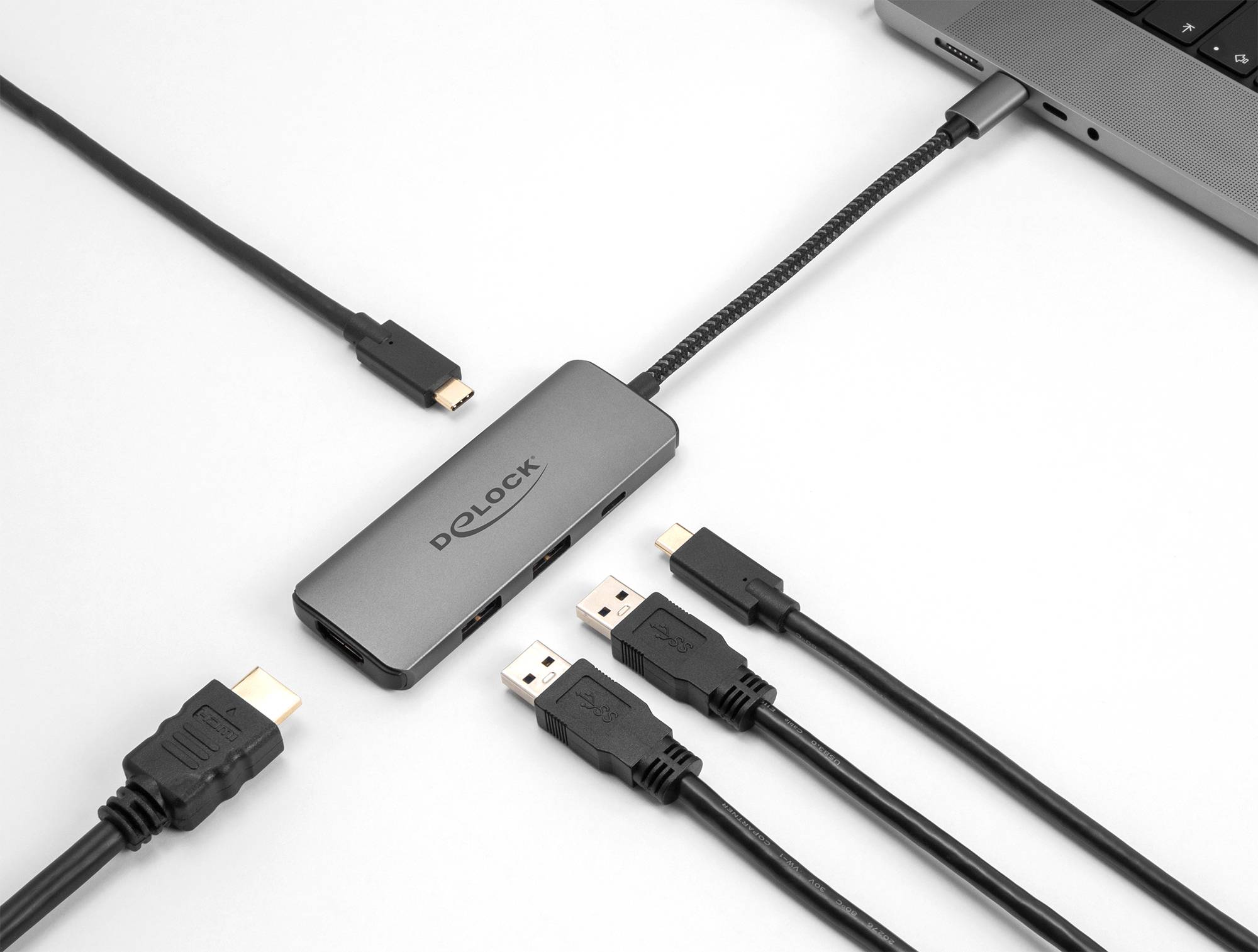

This Delock docking station can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 or Thunderbolt™ 4 port and provides a variety of interfaces. A monitor with a maximum resolution of 8K Ultra HD (7680 x 4320 @ 30 Hz) can be operated at HDMI output. Two built-in USB Type-A and one USB-C™ port allow peripheral devices to be used.
USB Power delivery (USB PD 3.0) support up to 100 watt
The docking station has a USB Type-C™ Power delivery port. If this port is connected with the power supply of the laptop or tablet, the host device is charged with up to 100 watt during operation.
Small stable helper
Due to its small size and sturdy housing, this Delock docking station is especially suitable for traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
USB Power delivery (USB PD 3.0) support up to 100 watt
The docking station has a USB Type-C™ Power delivery port. If this port is connected with the power supply of the laptop or tablet, the host device is charged with up to 100 watt during operation.
Small stable helper
Due to its small size and sturdy housing, this Delock docking station is especially suitable for traveling. It can easily be packed in the case together with a notebook or tablet and used if required.
This text is machine translated.
Features
- Connections:
- 1 x USB Type-C™ connector
- 2 x USB 5 Gbps Type-A socket
- 1 x USB 5 Gbps USB Type-C™ jack
- 1 x HDMI-A socket
- 1 x USB Type-C™ PD socket (power supply)
- Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected hardware)
- Transmission of audio and video signals
- Supports HDCP 1.4 and 2.2
- Supports HDR
- Power output for host: Max. 100 W.
- Metal housing
- Cable length without connections: Approx. 15 cm
- Colour: grey
- Dim. (LxWxH): Approx. 97 x 37 x 10 mm
System requirements
- Android 11.0 or higher
Chrome OS
Linux Kernel 5.11 or later
Mac OS X 12.2.1 or higher
Windows 8.1/8.1-64/10/10-64/11
IPad Air (4. Next generation) or higher
IPad Pro (3) Next generation) or higher
Surface Pro 7
Device with a free USB Type-C™ port and DisplayPort Alternate Mode or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port
