Delock USB-C® docking station 88040 Compatible with (brand): Universal
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

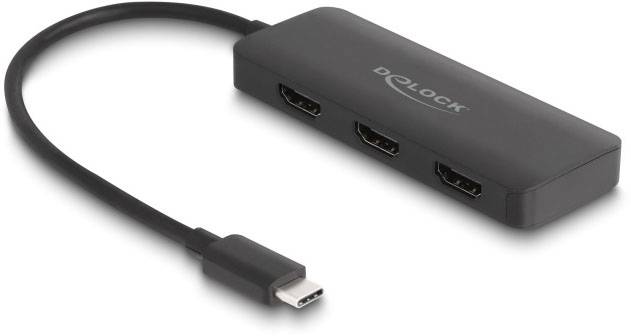

Delock 88040 USB-C® docking station
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): HDMI®, HDMI®, HDMI®
- No. of supported monitors: 3
- Maximum resolution:
- Key features:
Technical specifications
- HD type 4K Ultra HD
- Cable type: Round cable
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
HDMI®
HDMI®
HDMI®
- Suitable for
PC
Notebook
- Supported monitors
3
- Cable length
15 cm
- Factory colour
Black
- Width
36 mm
- Height
12 mm
- Depth
98 mm
- Weight
0.105 kg
- Dim
(W x H x D) 36 x 12 x 98 mm
- Compatible with (brand)
Universal
- Cable design
Round
- Version
Cable
- No. of HDMI ports
3 x
- Cable use
C13/C14 appliances
- HDR support
Yes
- Interfaces (output)
HDMI™
- Connection type
USB
- No. of outputs
3 x
- UKCA
yes
- Ports quantity
3
- Quantity per pack
1 Stück(e)
- USB Type-C DisplayPort Alternate Mode
yes
- HDCP
yes
- Plug and Play
yes
Documents & Downloads
Datasheet
Datasheet 3383744 Delock USB-C® docking station 88040 Compatible with (brand): Universal
User & Safety Instructions
User & Safety Instructions 3383744 Delock USB-C® docking station 88040 Compatible with (brand): Universal
Description
This splitter from Delock is designed to connect three HDMI monitors to a computer with a USB-C™ interface and DisplayPort alternate mode support. Three monitors can be simultaneously operated at the outputs.
Multi-stream Transport (MST)

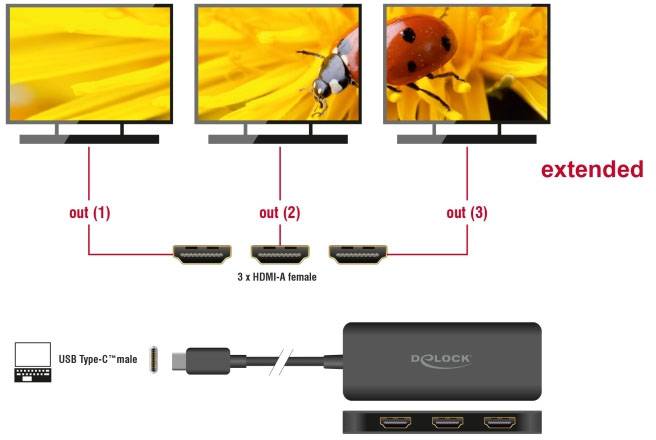

The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are individually controlled and can be combined to form a large display.
High resolution:
Due to the higher bandwidth of DisplayPort 1.4, a total of three monitors with 4K resolution (3840 x 2160) are supported.
This text is machine translated.
Multi-stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are individually controlled and can be combined to form a large display.
High resolution:
Due to the higher bandwidth of DisplayPort 1.4, a total of three monitors with 4K resolution (3840 x 2160) are supported.
This text is machine translated.
Features
- Connections:
- 1 x USB Type-C™ connector
- Output 3 x HDMI type A socket
- VMM5310 chipset
- DisplayPort 1.4 specification
- Active converter, single / multi-stream transport hub (SST / MST)
- Supports HDR
- Supports HDCP 1.4 and 2.2
- Supports Display Stream Compression 1.2 (DSC)
- Maximum resolution (depending on system and connected hardware):
- DisplayPort 1.4 Multi-Stream Transport (MST):
- 2 displays: Up to 3840 x 2160 @ 60 Hz
- 3 displays: 2 x up to 3840 x 2160 @ 30 Hz + 1 x up to 3840 x 2160 @ 60 Hz
- DisplayPort 1.4 Multi-Stream Transport (MST) + DSC:
- 3 displays: Up to 3840 x 2160 @ 60 Hz
- Features: Mirror or Expand (Windows only)
- Transmission of audio and video signals
- USB bus Power
- Colour, black
- Cable length without connections: Approx. 15 cm
- Dimensions without cable (LxWxH): Approx. 98 x 36 x 12 mm
Scope of delivery
- USB-C™ Splitter (DP Alt Mode),
- User manual
System requirements
- Windows 10/10-64/11
PC or laptop with a free USB Type-C™ port and DisplayPort Alternate Mode or
PC or laptop with a free Thunderbolt™ 3 port
