Name: DEWALT 3-speed-Cordless impact driver
Brand: DEWALT
SKU: 3763575

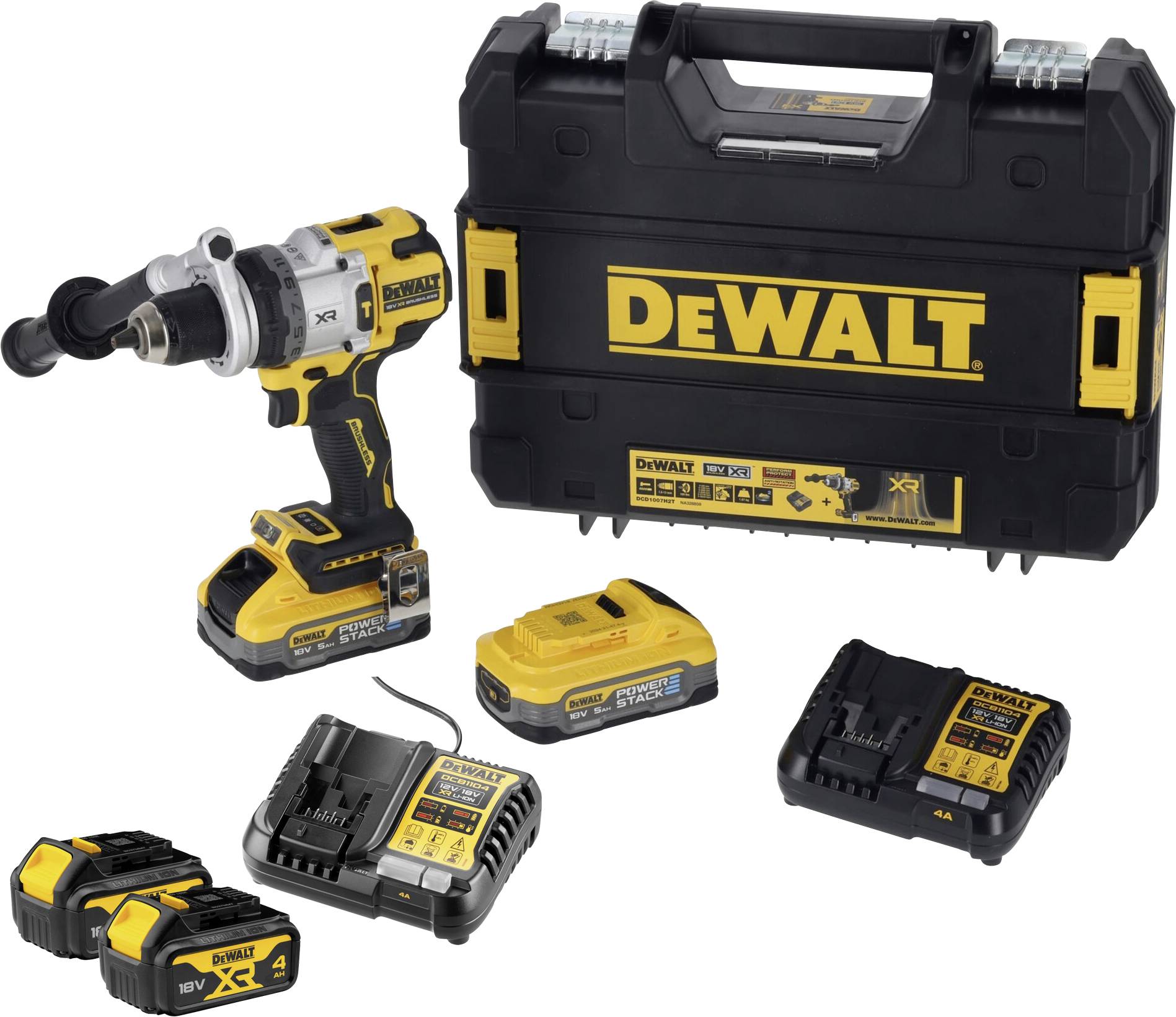

DeWalt cordless drill/driver kit with carrying case, two batteries, charger, and accessory attachment on white background.

Yellow and black cordless drill with side handle and robust design, suitable for DIY projects.

DeWalt electric drill, black and yellow, with ergonomic handle and battery, suitable for construction and DIY work.

Cordless drill in black and yellow design with auxiliary handle, 18V battery and various settings for drilling and screwing.

Yellow and black cordless drill with 18V, brushless motor and ergonomic handle, suitable for construction and DIY work.

DeWalt cordless drill driver with 18V battery and brushless motor, black and yellow colour scheme, robust design for professional applications.

A DeWalt battery charger with two 18V XR 4.0AH batteries, showcasing compatibility with cordless power tools.

1/9

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Set comprising of Dewalt battery-operated impact screwdriver DCD1007H2T-QW and battery-kit DCB1104M2-QW

Max. drill bit Ø 28.5 mm

Technical specifications

Battery technology:18 volt XR and XR-Flexvolt batteries of all Ah-classes
Idling speed 0 - 450 / 1,200 / 2,000 min-1
Idling speed 0 - 8,500 / 22,100 / 38,250 min-1
max. Torque (h / w) 169 Nm
max. Drilling performance in wood / metal / stone: 28.5 / 12.7 / 12.7 mm
Drill chuck clamping width 1.5 - 13 mm
Weight (when using a 5 Ah Powerstack battery): 2.47 kg
Sound pressure level (LPA) 96 (db(A)
Sound power level (LWA): 104 (db(A)
K-value (acoustic power): 3.0 (dB(A)
Vibrations (when drilling into metal): 2.5 m/s2;K-value (vibrations): 1.5 m/s2

Product type: Cordless impact driver

Operating voltage: 18 V

Max. drill diameter: 28.5 mm

Transmission type: 3-speed

Weight: 2470 g

Drill chuck clamping range: 1,5 - 13 mm

Torque (max.): 169 Nm

No. of power packs included: 4

Technology: Li-ion

Capacity (mAh, Ah): 5 Ah

Power supply (LOV): rechargeable

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3763575 DEWALT 3-speed-Cordless impact driver

Features

Battery-operated impact screw driller 18V / 5 Ah
Powerful 3-speed battery-operated impact drill/screwdriver
Over 20% more power and 33% higher torque as compared to DCD999
Brushless motor technology ensures longer running times per battery charge and longer service life
High work progress through optimally tuned 3-speed full metal gear drive
Perform Protect: Electronic clutch automatically switches off the unit when blocked to protect the user and machine
Problem-free long-term use through safety electronics, permanent checking of battery temperature, current collection and discharge protection
Electronic speed and impact regulation as well as right/left-handed rotation
Innovative, electronic torque coupling as well as precise 11-stage torque module with reliable switch-off torque
Robust 13 mm full metal quick-release chuck and automatic spindle locking
Three-stage LED-lamp with up to 70 lumen adjustable in 3-positions, including 20-minute torch mode for longer working times in dimly lit rooms
Very compact dimensions, with a length of only 193mm, it is 20mm shorter than DCD999
Ergonomic rubberized handle for an Maximum to safety and working comfort
Extended additional hand grip for better control of increased torque
Metal belt hook
2 x 18 Volt / 5 Ah Powerstack batteries as standard
Very compact dimensions and lower weight through the use of innovative pouch battery technology
Lower internal resistance of the cells enables more efficient current flow and thus significantly higher power delivery of the machine in certain applications
Longer service life and thus higher number of charging cycles as a result of better heat dissipation thanks to the large, even outer shape of the cells
Universally compatible with all 18 Volt XR-machines and chargers
2x 18 Volt / 4 Ah starter set incl. system quick charger DCB 1104
Product strengths: DCB 182: 18 Volt / 4.0 Ah Li-Ion XR battery
Robust and powerful Li-Ion slide batteries with 18 Volt / 4.0 Ah
No Memory-Effect and no Self stent loading
Effective protection against overload, overheating and deep discharge through special electronics in the battery device
Very low weight and ultra-compact dimensions
Optimally suitable for use in hard construction sites - thanks to robust housing and impact-resistant soldered battery cells
Charging status display with 3 LEDs (at the touch of a button)
Suitable for all 18 Volt XR battery-operated from Dewalt
DCB 1104: System quick charger
Charges all Dewalt XR slide batteries (1.3 - 5.0 Ah) from 10.8 to 18 volts as well as XR Flex volt batteries
Dewalt 2-stage charging process prevents the batteries from overheating and allows a high number of charge cycles at maximum storage capacity
LED display informs about the battery and charging status
Also suitable for wall mounting
Due to its very compact dimensions it is optimally suitable for installation

Scope of delivery

2x 18 Volt / 5 Ah Powerstack batteries (DCBP518), System quick charger, additional handle with extension, Magnetic bit holder, Metal belt hook, T STAK box
2x battery DCB182, rapid charger DCB1104
