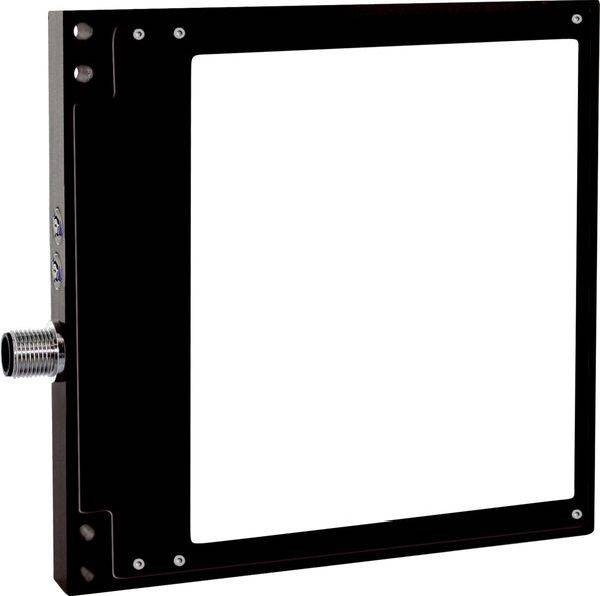

di-soric 206714 LED area lighting
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Light color: Red
- Product type
LED area lighting
- Protection class
III
IP67
- Dim
(L x W) 200 mm x 18 mm
n.rel.
- Width
18 mm
- Length
200 mm
III
18 mm
DC
200 mm
230 mm
LED not exchangeable
IP67
TRUE
12.7 W
Red
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3815463 di-soric 206714 LED area lighting
User & Safety Instructions
User & Safety Instructions 3815463 di-soric 206714 LED area lighting
Description
Area lighting Transmitter light source: LED Light color: Red, 625 nm Light surface: 200 x 200 mm Operating voltage: 15 . 35 V DC (Supply Class 2) Idle current (max.): 530 mA (24 V DC) Housing material: Aluminium, black (anodized) Size: 230 x 260 x 18 mm Ambient temperature Operation: 0 . +40 °C Protection class: IP 67 Risk group (DIN EN 62471): Free group Protection class: III, operation at protective extra low voltage Connection: Plug, M12, 3-pin
