Name: Digitus DK-1644-A-010-R-10 RJ45 Patch cable CAT 6A S/FTP 1.00 m Red 10 pc(s)
Brand: Digitus
SKU: 2751194

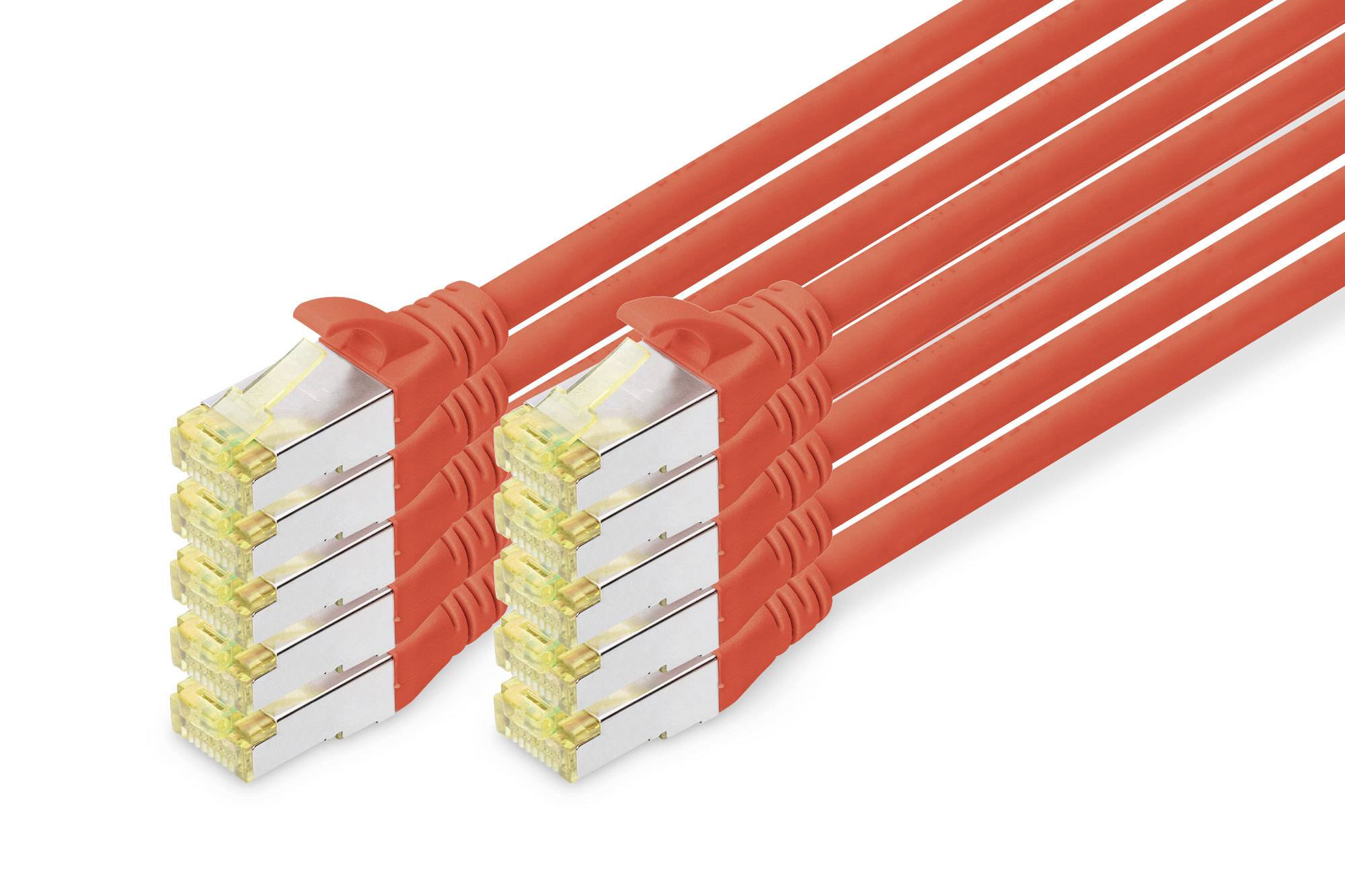

Eight red network cables with RJ-45 plugs, arranged in parallel, showing a close-up of the connector ends.

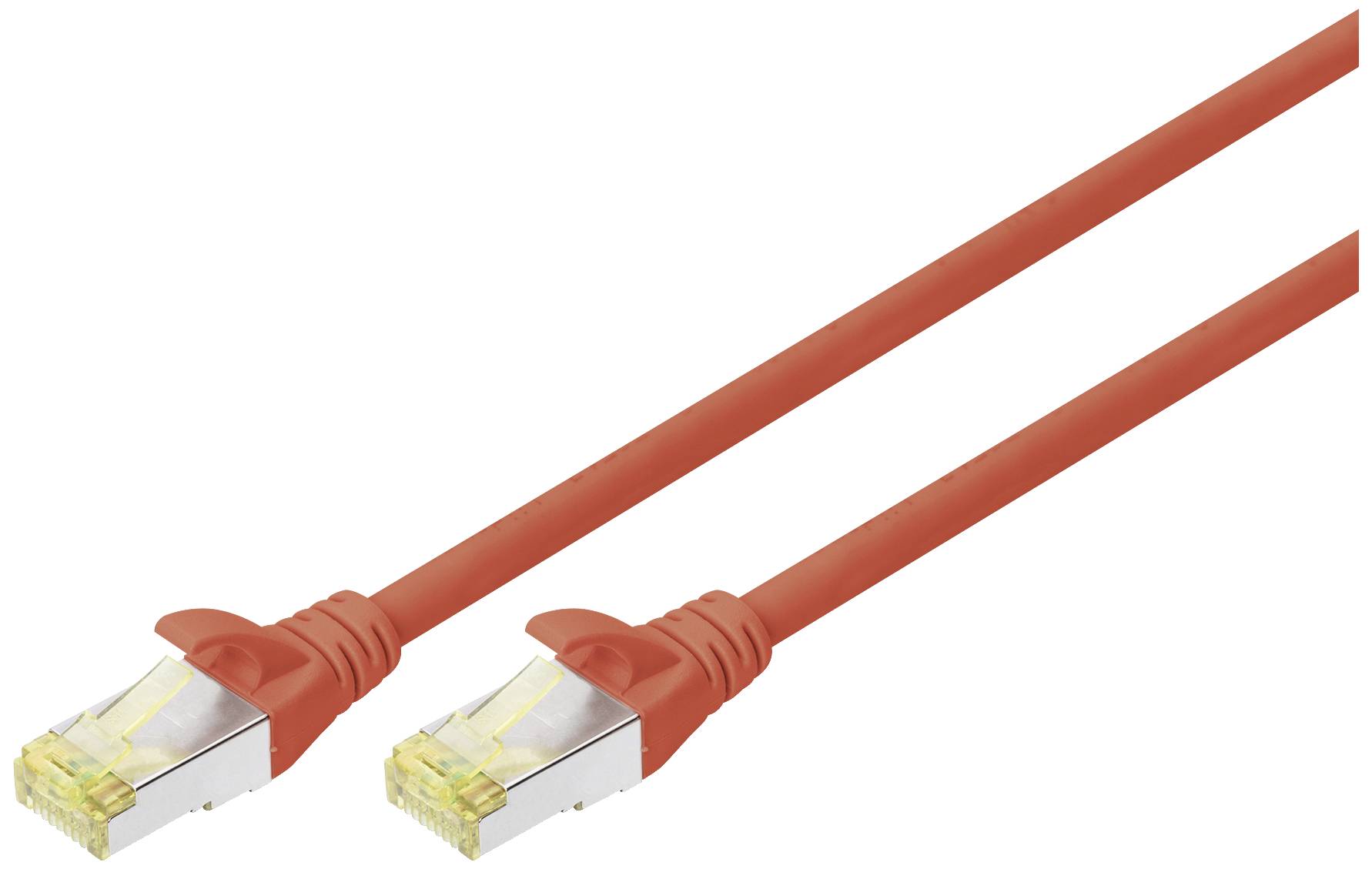

Red Ethernet cable with RJ45 connectors at both ends. Suitable for network connections, commonly used in home and office networks.

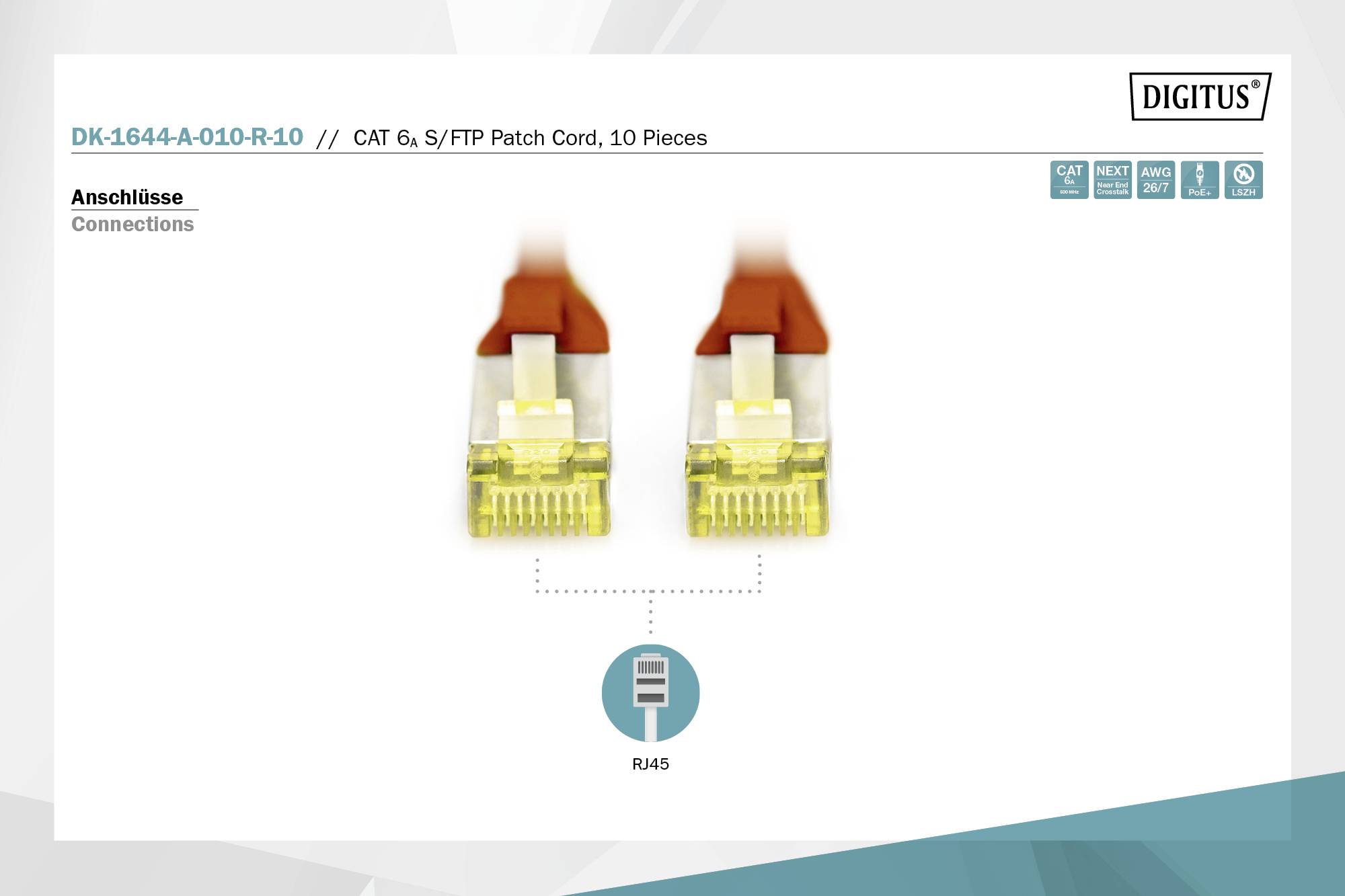

'Two RJ45 plugs with red housing and yellow plug. Labelling: RJ45. Product name: CAT 6, S/FTP Patch Cord, Pack of 10.'

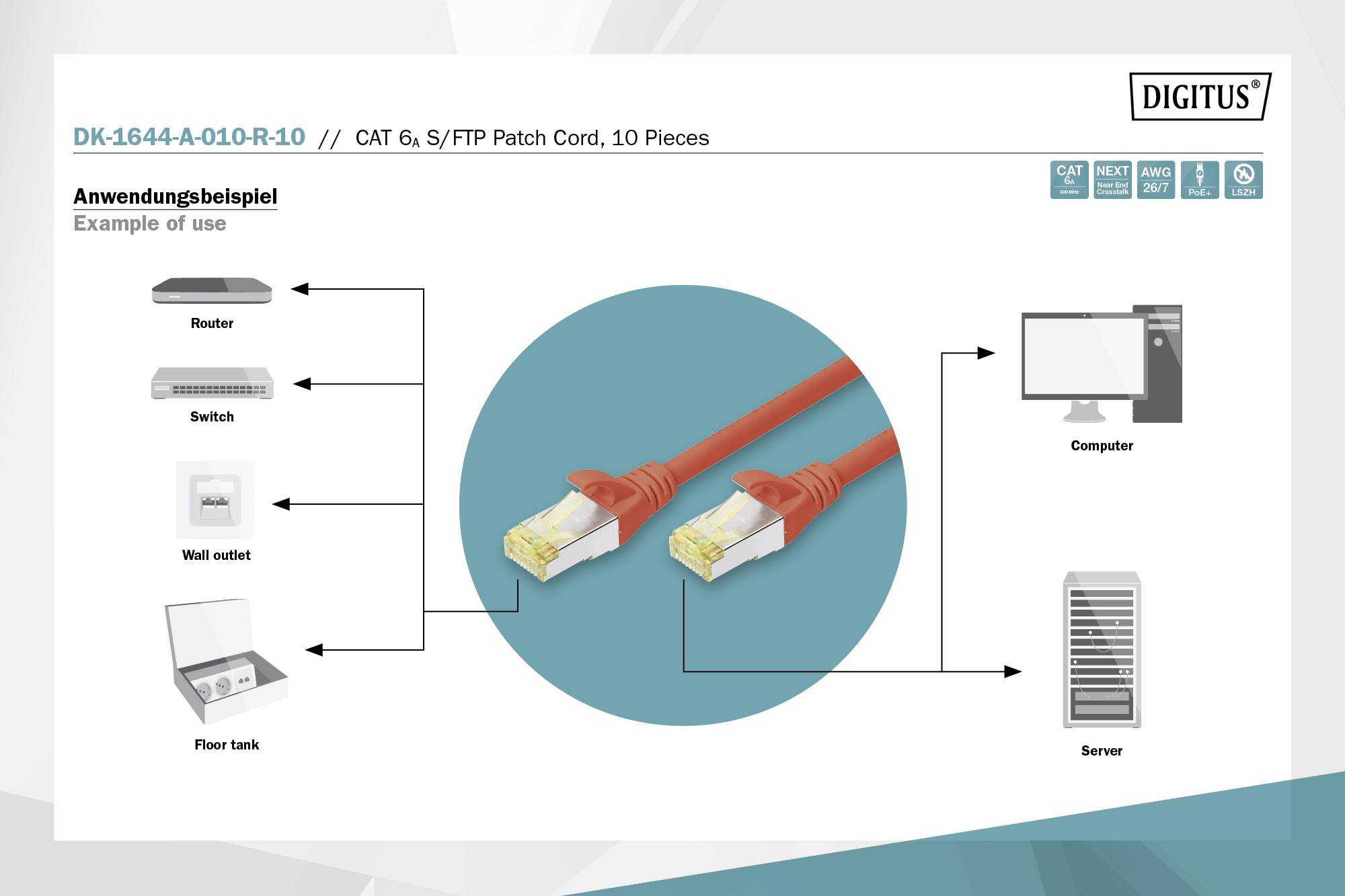

Example application of a Cat 6 patch cable: Connecting router, switch, and wall socket with computer and server.

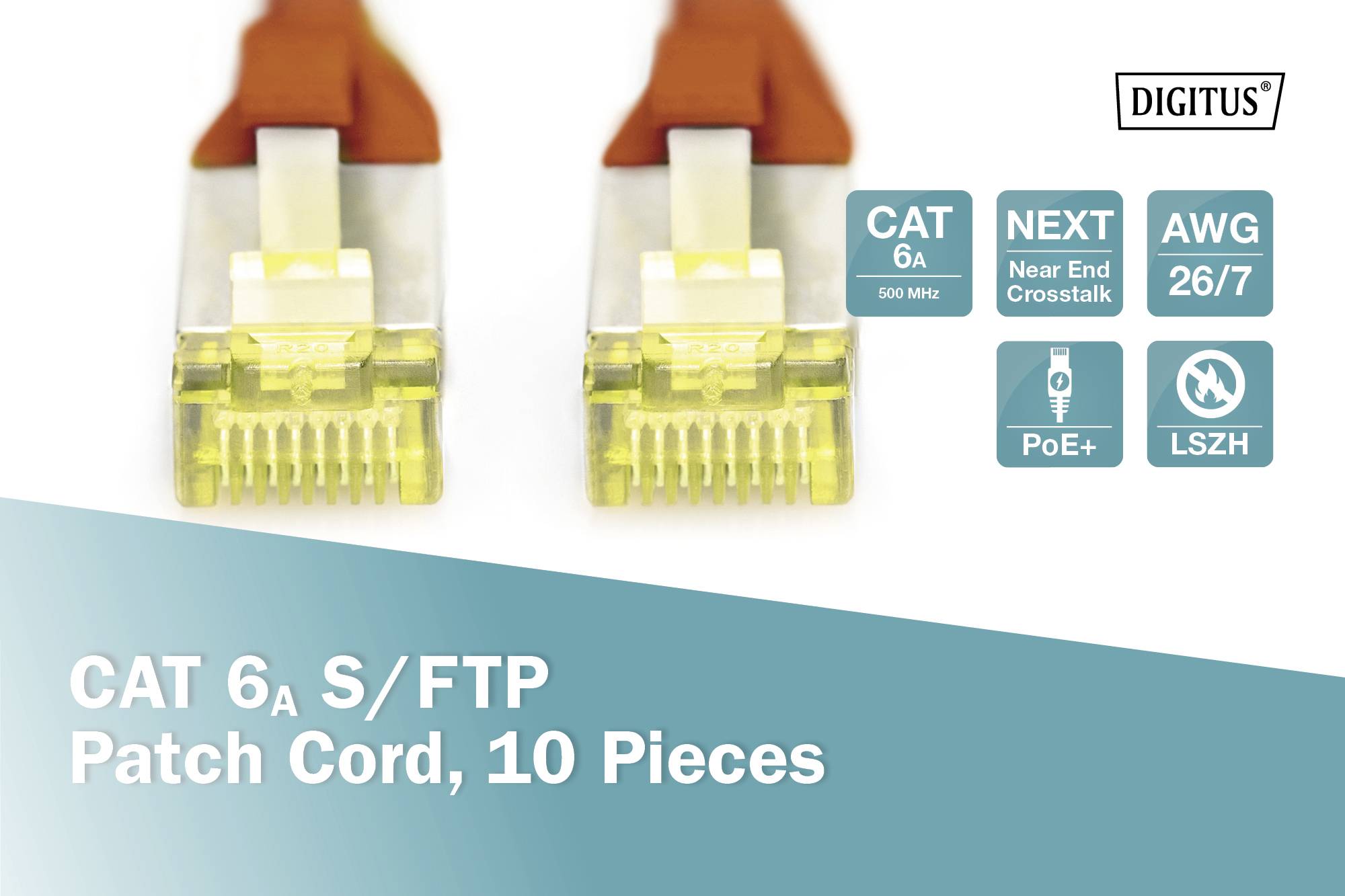

Two yellow CAT 6a S/FTP network cable plugs side by side. Text: 'CAT 6a S/FTP Patch Cord, Pack of 10' with specifications such as PoE+ and LSZH.

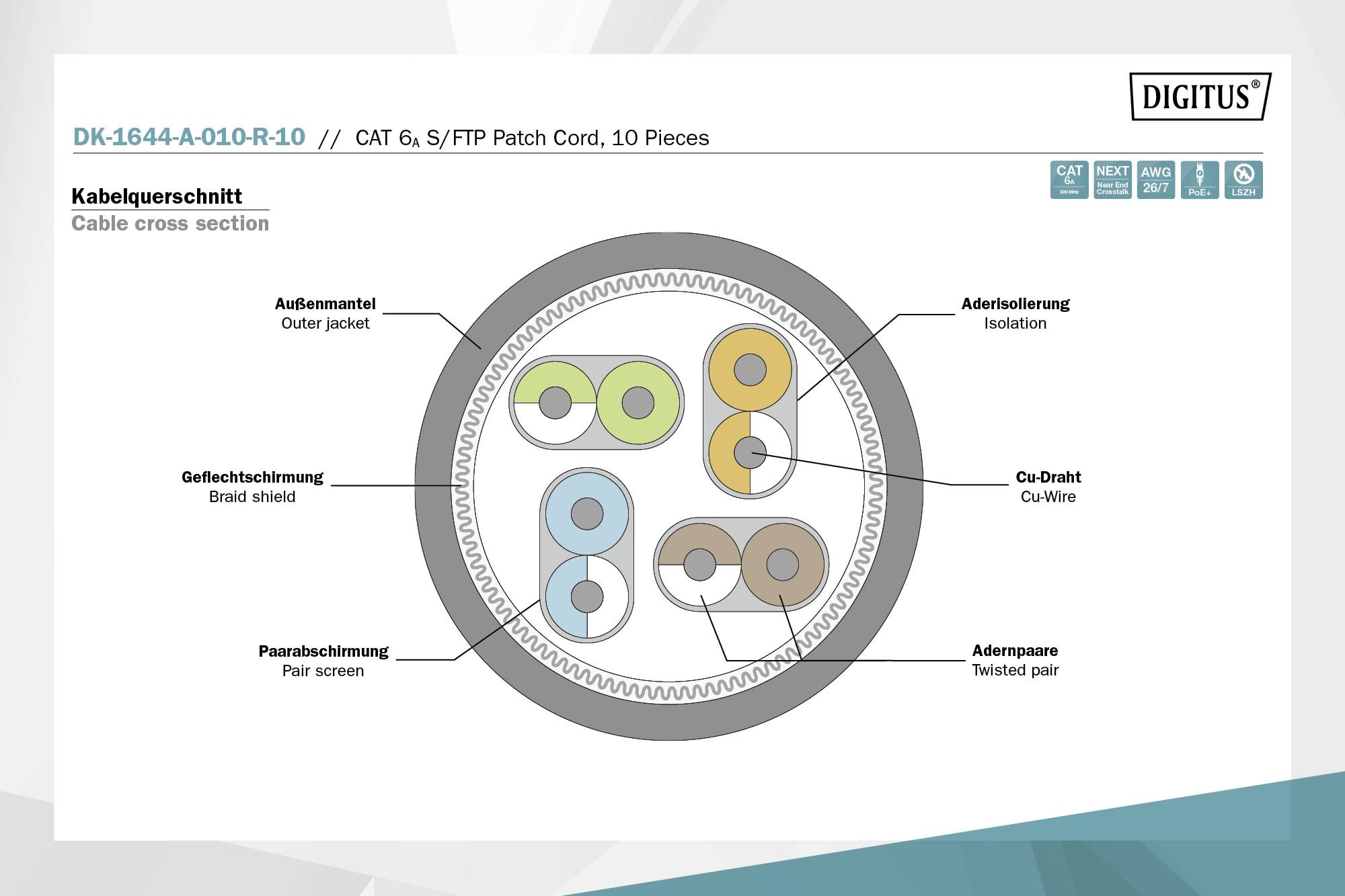

'Diagram of a CAT 6 S/FTP patch cable with cross-section of cable structure. Shows outer sheath, insulation, Cu wire, braided shield, separation, and pair shield.'

1/6

Product type

Patch cable

Specification

CAT 6A

Shielding

S/FTP

Connection type

RJ45

Cable length

1.00 m

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus CAT 6A S/FTP Patch cord, 10 pcs

The 1-meter (100-inch) Category 6A Ethernet cable transmits data at speeds of up to 10000 Mbps (10 Gbps), for example, for fiber-optic Internet speeds in your home networkCAT.6A LAN cables (class EA) with a maximum bandwidth of 500 MHz offer excellent connection properties for gigabit networks in private and corporate networksThrough the RJ45 connector compatible with networks with CAT.5(e), CAT.6, CAT.7 & CAT.8 cables - device compatible e.g. with: FritzBox, gaming consoles like Xbox & Playstation, computers, televisions, printers, etc.

Technical specifications

Conductor: Cu10 piecesAllocation 1:1Category: CAT 6AShielding: S-FTP, pairs in metal film and braid shieldedLength: 1 mColour: RedCable setup 4 x 2 AWG 26/7, Twisted pairSheath LSOHSlim Version: No.

Product type: Patch cable

: CAT 6A

: S/FTP

Connection type: RJ45

No. of A connectors: 1 x

Type A: RJ45 plug

No. of B connections: 1 x

Type B: RJ45 plug

Cable length: 1.00 m

Factory colour: Red

Connector version: straight

: 26/7

Cable use: Networks

Version: Cable

Cable design: Round

: Copper

Max. frequency: 500 MHz

LAN transfer rate: 100 MBit/s
1000 MBit/s
2500 MBit/s
10000 MBit/s

Halogen-free: Yes

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2751194 Digitus DK-1644-A-010-R-10 RJ45 Patch cable CAT 6A S/FTP 1.00 m Red 10 pc(s)

Description

The Digitus® Category 6A Class EA patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 6A standard. They guarantee that the cable installation meets the ISO & EN channel specification and offer excellent performance in the Digitus® CAT 6A cabling. The power has been tested up to 500 MHz, including performance features such as close-up crosstalk ("NEXT"). The Digitus® patch cables have been specially developed to meet all requirements in the various application areas. Each cable is equipped with a molded kink protection sleeve with strain relief. The bushing also has a locking lever protection, which prevents the cable from getting caught and the break of the locking lever from the plug. Category 6A can be easily identified by the yellow color of the connectors.

This text is machine translated.

Features

Patch cable, etc. Modem, DSL-router, switches and patch panel in the server room via network socket or Power-Line with WLAN access points, PC & notebook, wireless repeater & surveillance camerasWith LSZH outer sheath for low fire behavior & low smoke emission - inner conductor made of copper (Cu) - Compatible with Power over Ethernet (PoE+) - hoods with strain relief, bend and rest lever protection2x RJ45 connectors (8P8C)Hoods with bend protection, strain relief and rest lever protectionLength designation on the hoods

Description

Features

Patch cable, etc. Modem, DSL-router, switches and patch panel in the server room via network socket or Power-Line with WLAN access points, PC & notebook, wireless repeater & surveillance camerasWith LSZH outer sheath for low fire behavior & low smoke emission - inner conductor made of copper (Cu) - Compatible with Power over Ethernet (PoE+) - hoods with strain relief, bend and rest lever protection2x RJ45 connectors (8P8C)Hoods with bend protection, strain relief and rest lever protectionLength designation on the hoods
