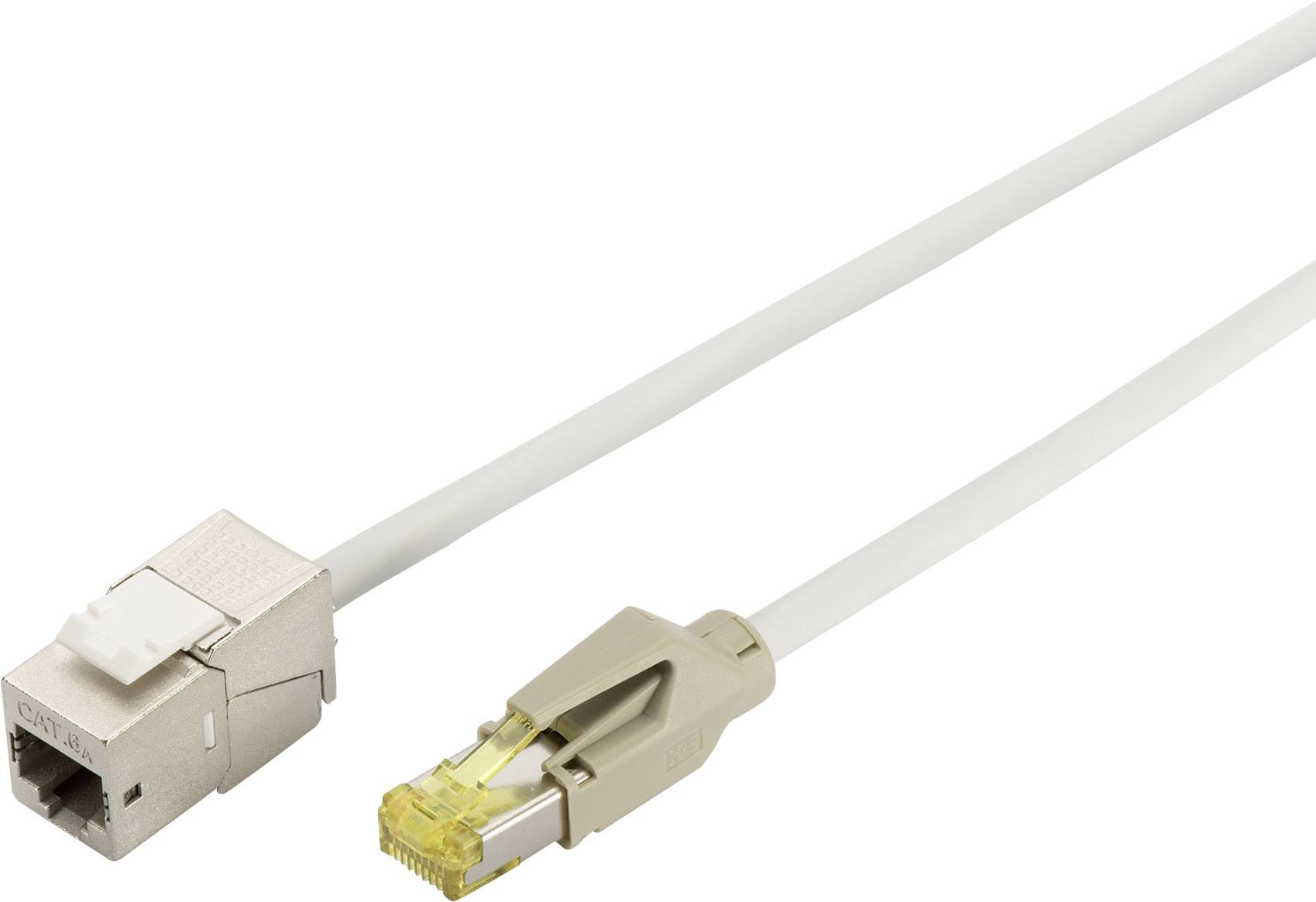

Name: Digitus DK-1741-CP-020 RJ45 Patch cable CAT 6A S/FTP 2.00 m Grey Flame-retardant, Metal foil shield, Braided shield, Shi
Brand: Digitus
SKU: 1604422

Digitus DK-1741-CP-020 RJ45 Patch cable CAT 6A S/FTP 2.00 m Grey Flame-retardant, Metal foil shield, Braided shield, Shi-0

Product type

Patch cable

Specification

CAT 6A

Shielding

S/FTP

Connection type

RJ45

Cable length

2.00 m

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Consolidation Point Cable, DRAKA UC900, Hirose TM31, AWG 27/7, length 2 m, CAT 6A Keystone module, color gray

DRAKA UC900 WHITE CAT 7 S/FTP flex Rohkabel
Suitable for the wiring in the false floor, sill-type trunking and between the ceiling
Flexible installation due to reduced wire cross-section
360° shield contacting

Technical specifications

Transfer property: Category 6 A, class EA
Areas of application: up to 500 MHz, 10GBase-T
Standards: ISO/IEC 11801 2nd ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
RJ45 sockets, 8P8C
RJ45 plug, 8P8C
Technical specifications - flexible patch cables, by the meter:
Article Number: DK-1741-PH
Cable type: DRAKA UC900 WHITE CAT 7 S/FTP flex
Shielding: S/FTP, pairs in metal foil and braid shielding
Sheath material: LSZH-1 (FRNC-B), halogen-free sheath
Wire cross-section: AWG 27/7
Technical specifications - Keystone module:
Article Number: DN -93617
Case material: die-cast zinc, nickel-plated
Material RJ45 socket: ABS UL 94 V-0
Contact RJ45 socket: nickel-plated phosphor bronze, 0.5 μ gold-plated contact
RJ-45-shielding: nickel-plated bronze
LSA-Cutting clamp: Crown LSA+, UL 94 V-2, zinc-plated phosphor bronze
Pcb: FR4, UL 94 V-0
Technical specifications - RJ45 connector:
Article number: A-MO 6A 8/8 HRS
Plug type: Hirose HRS TM31 RJ45 plug
Contact material: Phosphorbronze
Coating Contacts: Nickel, gold-plated 0,8µ
Material: nickel-plated brass 0.5 mm, 2 μ shield plate.
Flammability: UL 94V-2
Physical properties:
Plug-in power: 30 N max. (IEC 60603-7-5)
Tensile strain: 7.7 kg between socket and plug
Operating temperature: -20°C to +70°C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568C)
Plug-in cycle socket: large 750 in accordance with ISO/IEC 11801, IEC 60603-7-5
Terminal: large 200 in accordance with ISO/IEC 11801, IEC 60603-7-5
Wire consumption: 22-26 AWG solid and stranded conductor
Insulation resistance: grusser 500 MOhm
Contact resistance: small 20 milli-ohm
Voltage strength: 1000VDC (contact/contact), 1500 VDC (Contact/ground)

Product type: Patch cable

: CAT 6A

: S/FTP

Connection type: RJ45

No. of A connectors: 1 x

Type A: RJ45 plug

No. of B connections: 1 x

Type B: RJ45 8p8c socket

Cable length: 2.00 m

Factory colour: Grey

Connector version: straight

Cable features: Flame-retardant
Metal foil shield
Braided shield
Shielded
Halogen-free
twisted pairs

: 27/7

Cable use: Networks

Version: Cable extension

Cable design: Round

: Copper

Max. frequency: 500 MHz

LAN transfer rate: 100 MBit/s
1000 MBit/s
2500 MBit/s
10000 MBit/s

Halogen-free: Yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1604422 Digitus DK-1741-CP-020 RJ45 Patch cable CAT 6A S/FTP 2.00 m Grey Flame-retardant, Metal foil shield, Braided shield, Shi

Description

The DIGITUS ® Kategoire CAT 6A S-FTP consolidation point cable are manufactured and tested according to EN -50173-1; EN -80288-4-2 and ISO/IEC 11801, IEC 61156-6 standard. The DIGITUS ® Consolidation Point cable guarantees that the cable installation of ISO and EN channel specification and offer a welds are very strong genes power in the DIGITUS ® CAT 6E cabling. The DIGITUS ® CAT 6A Consolidation Point Cable series consists of different lengths, so that all your needs are covered. Every plug is equipped with a length specification. The cables are optimized for installation in the bottom tank, double floors and cable channel.
