Name: Digitus DK-35041/4-U FO cable A/I-DQ (ZN) BH 50/125 µ Multimode OM4 Black Sold per metre
Brand: Digitus
SKU: 2235113

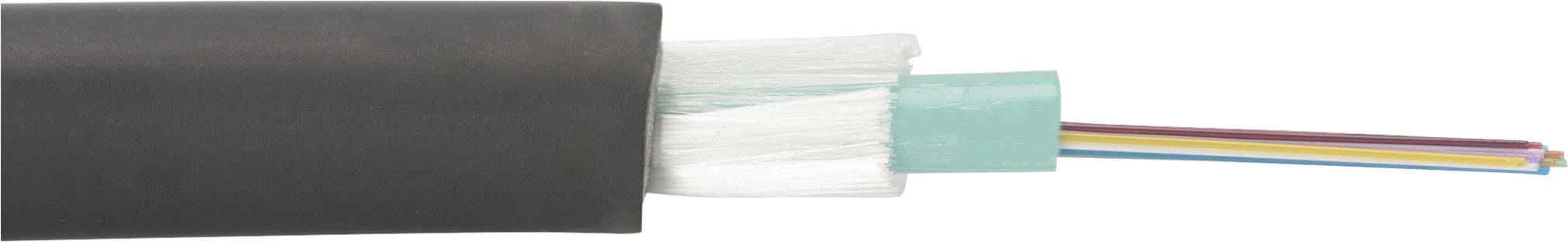

Digitus DK-35041/4-U FO cable A/I-DQ (ZN) BH 50/125 µ Multimode OM4 Black Sold per metre-0

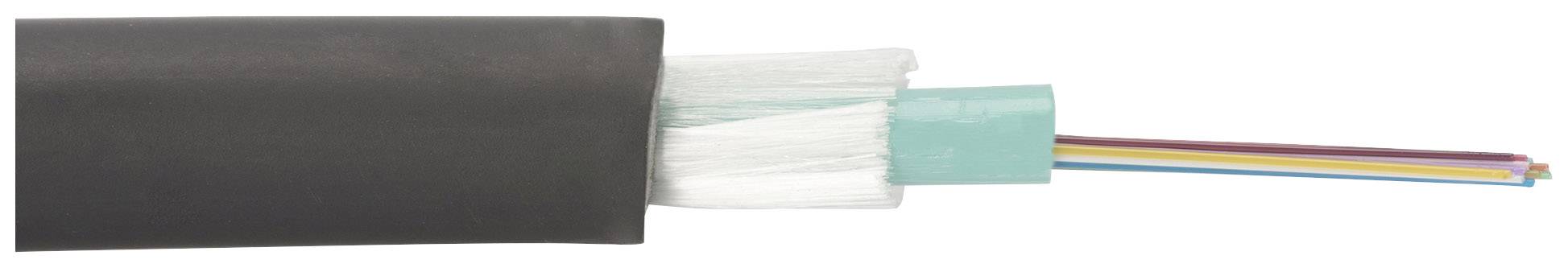

A cross-section of a fibre optic cable shows the black outer protective sheath, underneath which is filling material, and several coloured optical fibres.

1/2

Product type

FO cable

Cable type

A/I-DQ (ZN) BH

Fibre type

50/125 µ

Content

Sold per metre

No. of fibres

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Fiber optic cable A-I-DQ(ZN)BH 4G50/125µ, MM, OM4, 4 fibers inside/outside, LSZH, DCA, black, length 1 m.

LSZH - low smoke zero halogen
UV-resistant
Longitudinal and cross-water resistant
Glass-yarn reinforcement

Technical specifications

LSZH - low smoke zero halogen
UV-resistant
Longitudinal and cross-water resistant
Glass-yarn reinforcement
Non-metallic rodent protection
Metal-free
Core diameter : 50.0 ± 2.5 µm
Sheath diameter : 124.8 ± 1.0 µm
Core rounding : ≤ 5.0%
Shell rounding : ≤ 1.0 %
Core sheath run error : ≤ 1.0 µm
Coating diameter : 245 ± 7 µm
Coating rounding : ≤ 6.0%
OFL broadband performance : at 850nm : ≥ 3500 MHz x km ; at 1300nm : ≥ 500 MHz x km.
Effective modal bandwidth : at 850nm : ≥ 4700 MHz x km ; at 1300nm : ≥ 500 MHz x km.
Number of fibers (OM4) : 2-12 pcs.
Max. Number of bundle strands: 1 off
Number of fibers per bundle load : 2-12 pcs.
Bundle ties : 2.0 ± 0.2 mm
Outer sheath material : LSZH, BauPVO DCA, EN 50575: 2014+A1: 2016
Cable outer diameter : 6.5 ± 0.5 mm
Max. Permissible tensile force : 1400 N.
Dust resistance : 1000/200 N/100mm
Temperature range : Transport and storage : - 40°C to + 70°C ; Installation : - 40°C to + 60°C ; in operation : - 40°C to + 70°C.
Min Bending radius : Installation : 20 x OD ; in operation : 10 x OD
Temperature range : Transport and storage : - 40°C to + 70°C ; Installation : - 40°C to + 60°C ; in operation : - 40°C to + 70°C.
Application: Inside/outside
Fiber type: Multimode 50/125
Number of fibers: 4
Strain relief: Yes
Reinforcement: no.
Chemical resistant: no.
Sheath color: turquoise
Sheath material: PE
Wire type: Hohoof charger
Metal-free cable: Yes
Cable longitudinally watertight: Yes
Cable cross-resistant: Yes
Inflatable: no.
With rodent protection: no.
Low smoke in accordance with EN 61034-2: no.
Fiber category: OM3
Halogen-free according to EN 60754-1/2: Yes
Oil resistant according to EN 60811-404: no.

Product type: FO cable

Cable type: A/I-DQ (ZN) BH

No. of fibres: 4

Fibre type: 50/125 µ

: Multimode OM4

Cable features: Round
UV-resistant
incl. anti-rodent protection

Factory colour: Black

Content: Sold per metre

Halogen-free: Yes

Manufacturer part #: DK-35041/4-U

Type: DK-35041/4-U

Max. length sold by the metre: 41 m

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2235113 Digitus DK-35041/4-U FO cable A/I-DQ (ZN) BH 50/125 µ Multimode OM4 Black Sold per metre

Description

With the central bundle loader a design is offered, which has a high tensile strength and flexibility in a compact cable size. Our central bundle loader offers fiber optic data transmission and excellent technical performance. Through our regular quality control programs in accordance with ISO90001, REACH and RoHS, we selected a high quality level. We guarantee a high level of reliability through a thorough qualification test of each of our products from the portfolio. Both quality processes are designed to ensure the longevity in the interior and exterior as well as the performance of our cables.

This text is machine translated.
