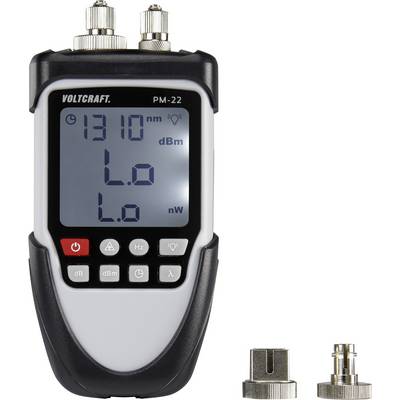

Glass fibre tester PM-22 VOLTCRAFT PM-22 Suitable for FC, ST, SC
EAN:
Part number:
Item no:
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Highlights & Details
Fiber-optic power meter PM-22
- Absolute and relative performance measurement
- Visual continuity test
- Integrated laser source
Technical specifications
- Measuring range: -70 to +6 dBm
- Accuracy ±0.3 dB or 5%
- Adjustable wave length: 850 mm, 980 nm, 1300 nm, 1310 nm, 1490nm, 1550 nm, 1620 nm
- Connection: FC 2.5 mm
- Product type
Glass fibre tester
- Function
Continuity
- Display
Digital
- Optical display
Yes
- Test sockets
FC
- Dim
(L x W x H) 32 x 65 x 120 mm
Manufacturer's standards (no certificate)
- Weight
205 g
- Range
Telecom
- Width
65 mm
- Height
120 mm
- Length
32 mm
- Type
PM-22
- Suitable for
FC, ST, SC
- Power supply (details)
3 x AA battery
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1377527 Glass fibre tester PM-22 VOLTCRAFT PM-22 Suitable for FC, ST, SC
Warranty Terms
Warranty Terms 1377527 Glass fibre tester PM-22 VOLTCRAFT PM-22 Suitable for FC, ST, SC
Description
This text is machine translated.
The PM-22 enables the optical measurement of performance of optical fiber systems with different wavelengths. An integrated laser source is used for optical continuity testing of individual fiber-optic cables. The PM-22 enables the qualitative evaluation of glass fiber lines.
The PM-22 enables the optical measurement of performance of optical fiber systems with different wavelengths. An integrated laser source is used for optical continuity testing of individual fiber-optic cables. The PM-22 enables the qualitative evaluation of glass fiber lines.
Features
- Adjustable wave length in measuring operation.
- Red laser diode can be activated (continuous light/blinking light)
- Dual display
- Auto power-off
- Battery change indicator.
Scope of delivery
- Adapter SC
- Adapter ST
- Batteries
- User manual.
