VOLTCRAFT VC-1320 Clamp meter Digital Display (counts): 6000

Accuracy and safety in case of leakage current measurements
The VOLTCRAFT VC-1320 Leakage current clamp was designed for the precise measurement of the smallest leakage currents: With an ultra high resolution of 1 μA to 6,000 mA it enables diagnoses even the smallest error and AC-current measurement from 0 to 100 A. There are six value ranges available: 6.000 mA, 60.00 mA, 600.0 mA, 6.000 A. 60.00 A, 100 A. The True RMS measurement always provides reliable values, even with non-sinusoidal signal forms. The safety category CAT III 300 V according to EN61010 ensures the safe use in the low-voltage range.
Clever features
Thanks to the data-hold function, measured values can be read easily even after removing the clamp. Area violations are signaled with the display "OL". The transformer arms of the VC-1320 are shielded to reduce interference from external stray magnetic fields. The opening width of the pliers is 32 mm. To preserve the batteries, the device switches off after approximately 15 minutes of inactivity.
Detectable and bright

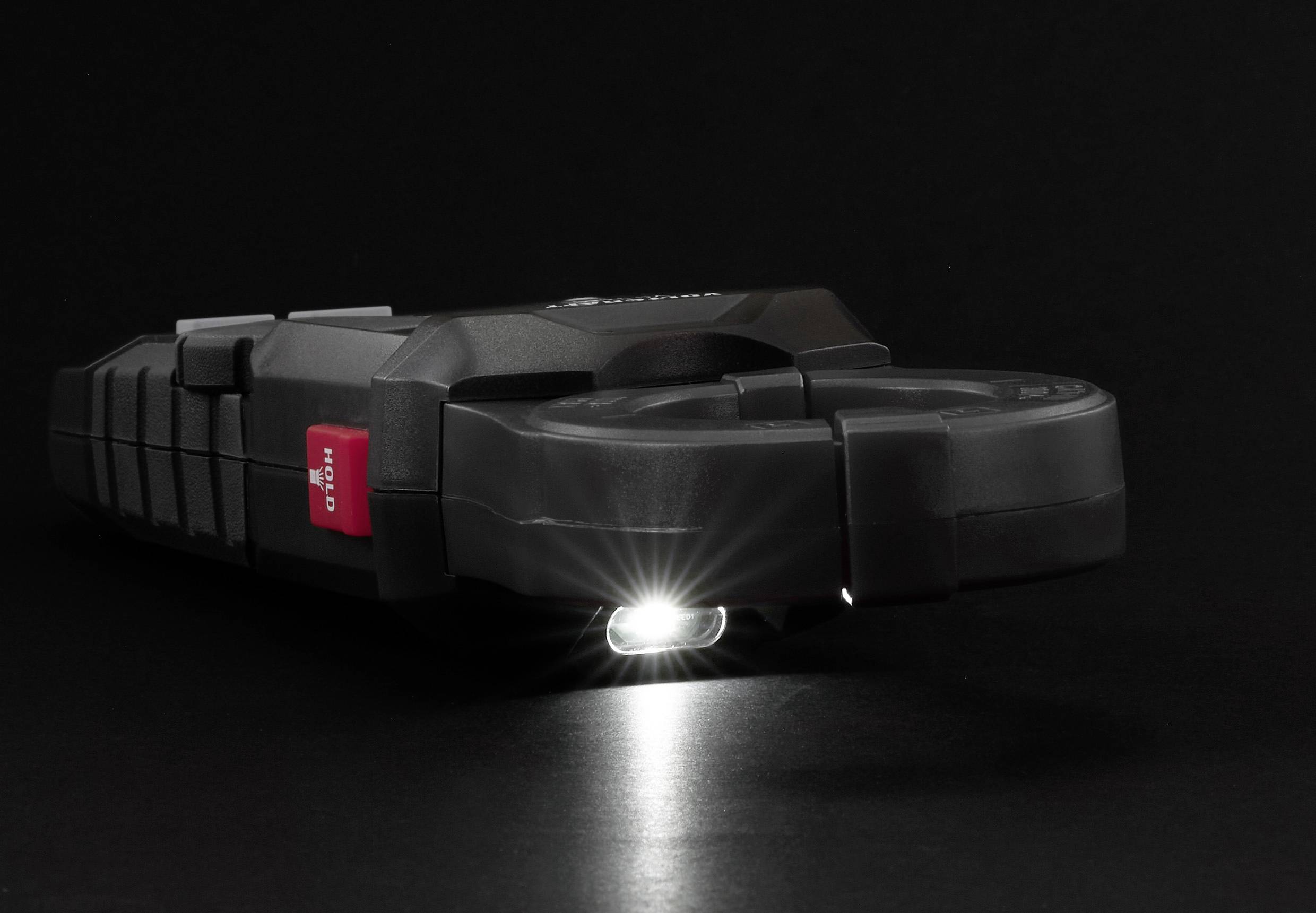

The display shows the results with a resolution of 6000 counts and has a negative display of the values. In poorly illuminated work areas, the background lighting on buttons and switches ensures better usability and the integrated torch illuminates the environment.
Ready to use

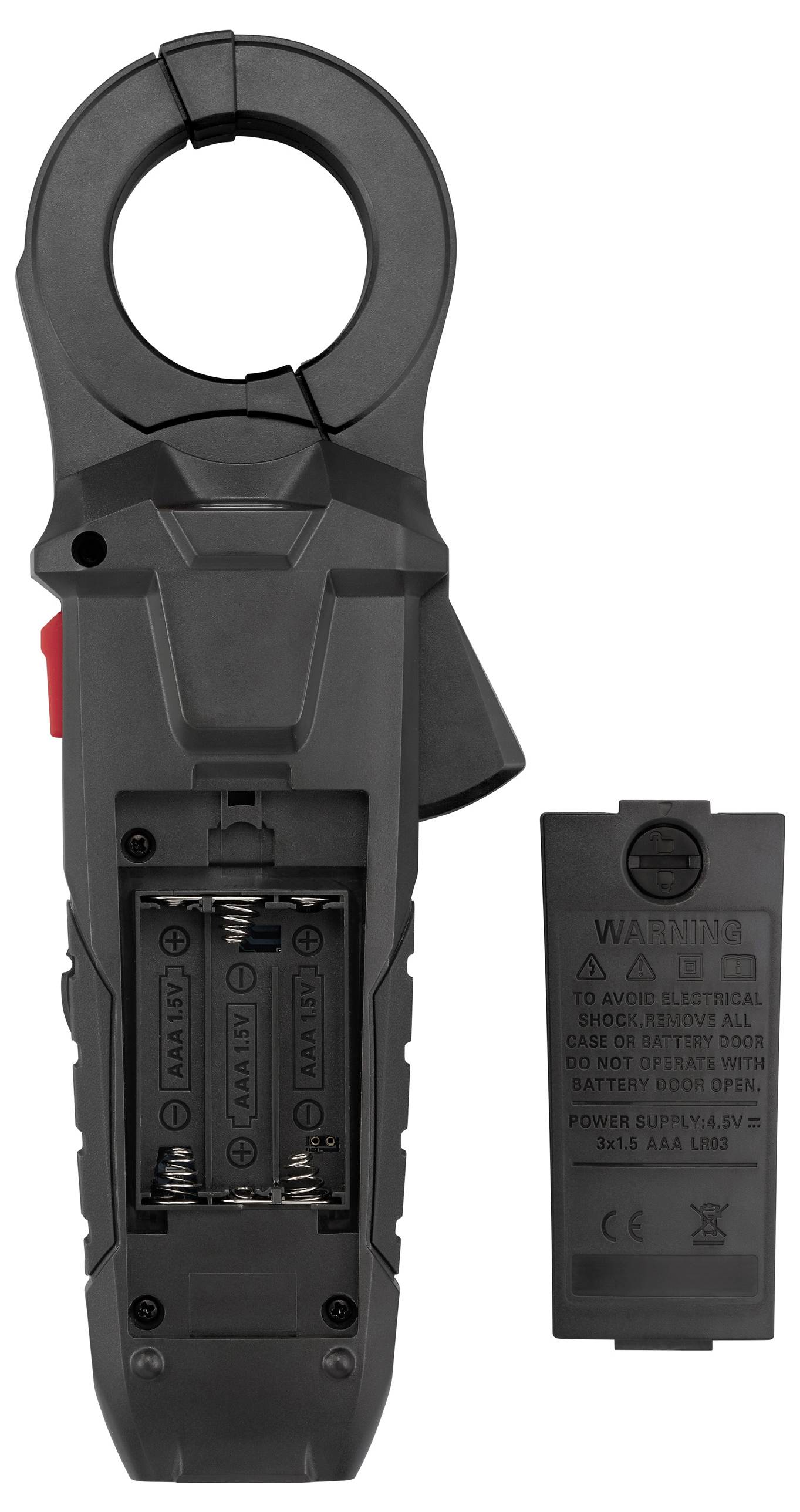

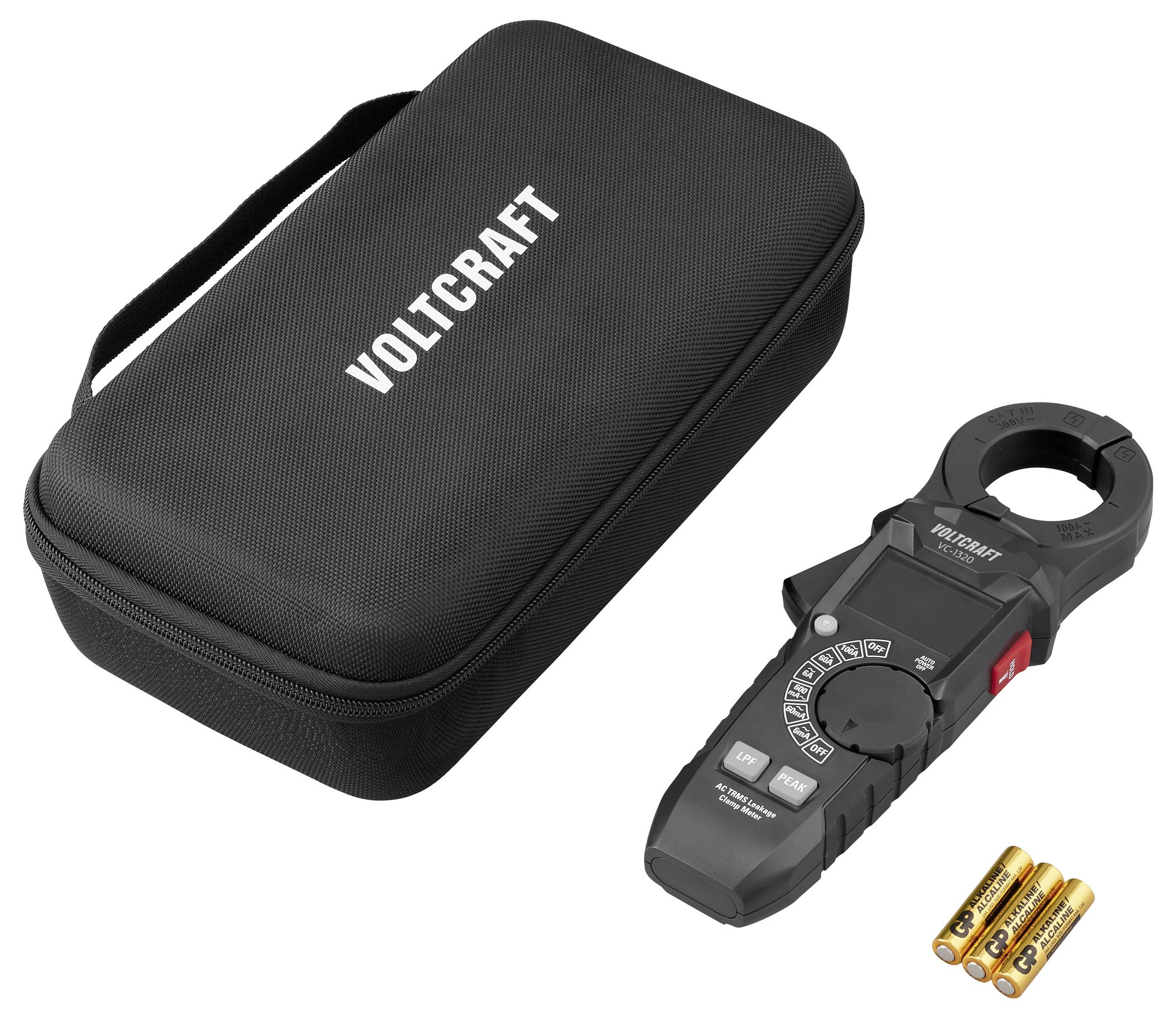

The VOLTCRAFT VC-1320 Leakage Clamp meter comes with three AAA batteries for immediate use, a practical case for safe storage and a detailed user manual.

This text is machine translated.
