Buy VOLTCRAFT PMM 3005-20 Digital multimeter and PSU Digital CAT II 600 V Display (counts): 20000

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

A digital voltmeter device with a display shows '0.00V' and '0.00A'. It has various control buttons and connections.

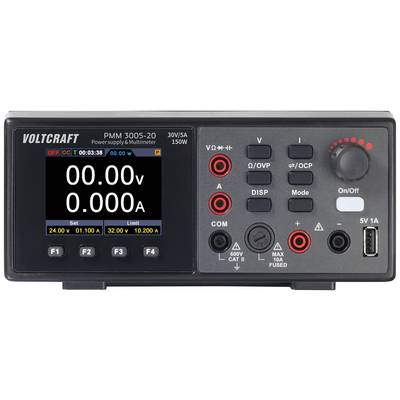

'Voltcraft PMM 3005-20' Laboratory Power Supply with Digital Display for Voltage and Current, Operational Buttons, USB Port on Right.

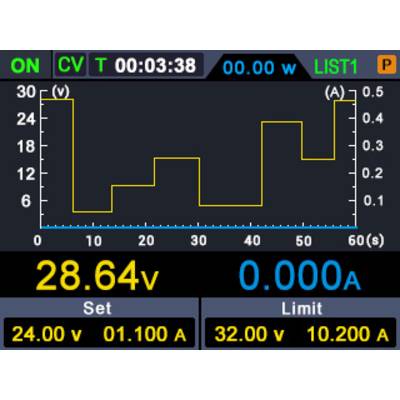

An oscilloscope image shows a voltage curve (yellow line) and current curve (blue line) over 60 seconds. Settings: Set 24.00 V, 01.100 A; Limit 32.00 V, 10.200 A.

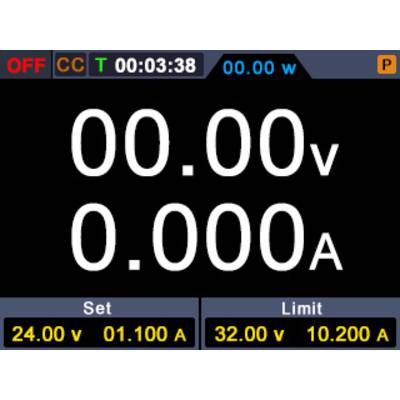

Screen of power supply: Voltage 0.00V, Current 0.000A. Settings: 24.00V, 1.100A. Limit: 32.00V, 10.200A. Runtime 3:38.

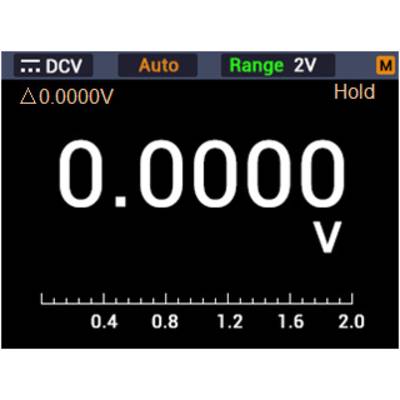

Digital multimeter display showing '0.0000 V'. Range set to 2 volts. 'Hold' function active. Scale from 0 to 2 volts visible.

Image of a digital voltmeter displaying '0.0000 V' for direct current voltage. At the top are settings including DCV, Auto, and Range 2V.

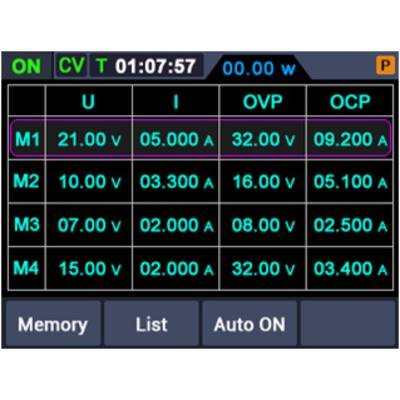

Measuring device with four channels (M1-M4). M1 shows 21 V, 5 A, 32 V OVP, 9.2 A OCP. Other channels display different current and voltage values.

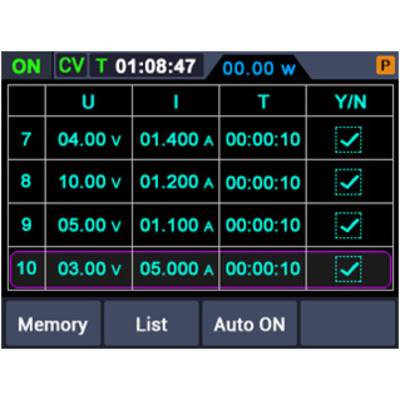

Image of an electronic device with measurement values. The table shows Voltage 'U', Current 'I', Time 'T', and Status 'Y/N'. Rows 7-10 with different values.

A digital display shows a diagram of voltage and current over 60 seconds. Key measurement values: 28.64V and 0.000A. Target values: 24.00V, 32.00V, 01.100A, 10.200A.

Display showing the values: 'Set', '24.00 V', '01.100 A', representing the voltage and current of a device.

'Limit: 32.00 V and 10.200 A' in yellow text on a black background.<br><br>Note: I've adjusted the decimal separator from a comma to a full stop, which is standard in British English, while maintaining the original meaning.

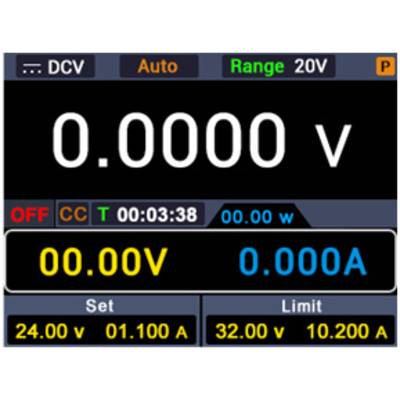

Image of a digital multimeter in DCV mode showing 0.0000 V and 0.000 A. Settings: Set 24.00 V, 1.11 A; Limit 32.00 V, 10.20 A. Time: 00:03:38.

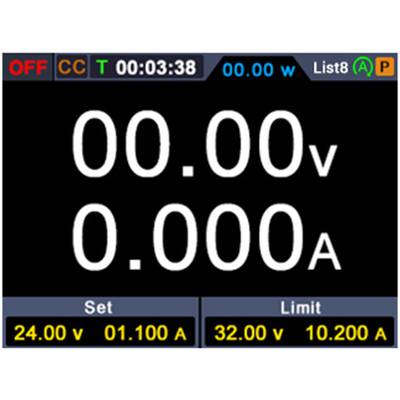

Electronic measuring device with display: '00.00 V', '0.000 A'. Value range: Voltage set to 24.00 V, current 01.100 A. Limit: 32.00 V, 10.200 A.

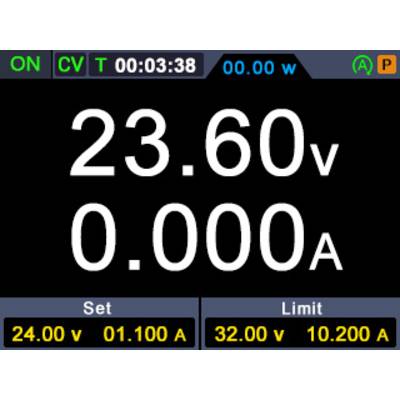

Digital display of a power supply unit: Voltage 23.60 Volts, Current 0.000 Amperes. Set values: 24.00 Volts, 1.100 Amperes. Limit: 32.00 Volts, 10.200 Amperes. Timer: 00:03:38.

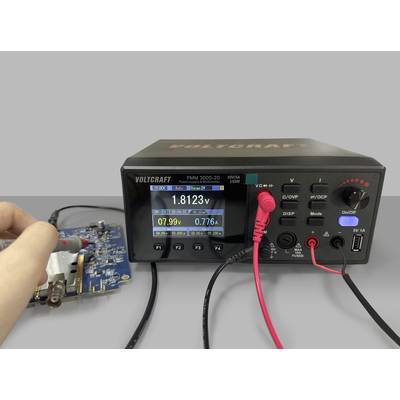

A measuring device shows '1.8123 V' and '0.776 A' on a digital display, while a hand tests the voltage on a circuit board.

1/17

Our service for you

Fast track dispatch on Wed, 5 Aug

99 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 155.45 / piece)

€ 155.45

plus VAT.

Report legal concerns

Highlights & Details

VOLTCRAFT PMM 3005-20 DMM and Power supply combined device

2-in-1 function for DMM and power supply
DMM with 20000 count
CAT II 600 V
Number of outputs: 1
Output voltage: 0 - 30 V
Output current: 0 - 5 A
Resolution: 10 mV, 1mA
Max. power: 150 W
Interface: USB 2.0

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3089083 VOLTCRAFT PMM 3005-20 Digital multimeter and PSU Digital CAT II 600 V Display (counts): 20000

Warranty Terms

Warranty Terms 3089083 VOLTCRAFT PMM 3005-20 Digital multimeter and PSU Digital CAT II 600 V Display (counts): 20000

Download

Download 3089083 VOLTCRAFT PMM 3005-20 Digital multimeter and PSU Digital CAT II 600 V Display (counts): 20000

Description

Two-in-one: Multimeter and power supply in one
The "VOLTCRAFT PMM 3005-20 DMM and power supply combo" measures not only different electrical units, it also supplies external consumers with the right voltage.
Adjustable power supply
Up to 30 V output voltage and 5 A output current at a maximum power of 150 W may be present at the "VOLTCRAFT PMM 3005-20 DMM and power supply combo" output.
Exact measurement results
The VOLTCRAFT multimeter is suitable for voltage and current measurements at DC and AC as well as for measuring resistance and capacity. The resolution is 10 mV / 1 mA and the results are clearly displayed on the 7.11 cm (2.8 inch) TFT LCD with 20,000 counts. USB communication, compatible with SCPI.
Always on the safe side
The "VOLTCRAFT PMM 3005-20 DMM and power supply unit combi-device" corresponds to the specification CAT II 600 V and is equipped with over-voltage, over-current and short-circuit protection. An intelligent fan with temperature-dependent speed control prevents overheating of the device.
Ready to use immediately

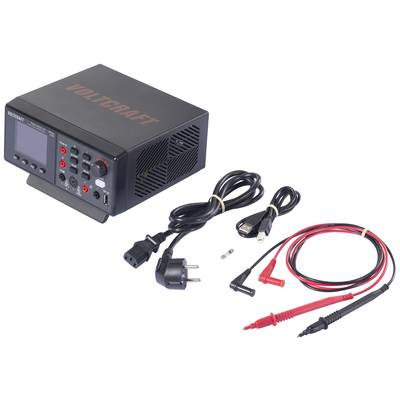

The extensive delivery package includes in addition to the "VOLTCRAFT PMM 3005-20 DMM and power supply combi-device" USB and mains cable as well as a pair of test leads, a 250 V fuse, a software-CD, the operating instructions as well as a safety data sheet.

This text is machine translated.

Features

7.11 cm (2.8") TFT LCD screen, 480 x 320 pixels
Interface: USB 2.0
Functions: DC voltage and current, AC voltage and current, Resistance, Capacitance
USB communication, compatible with SCPI communication protocol
Over voltage protection
Over current protection
Over temperature protection
Fan cooling, temperature intelligent speed control
