Buy VOLTCRAFT TC-150 Calibrator Temperature

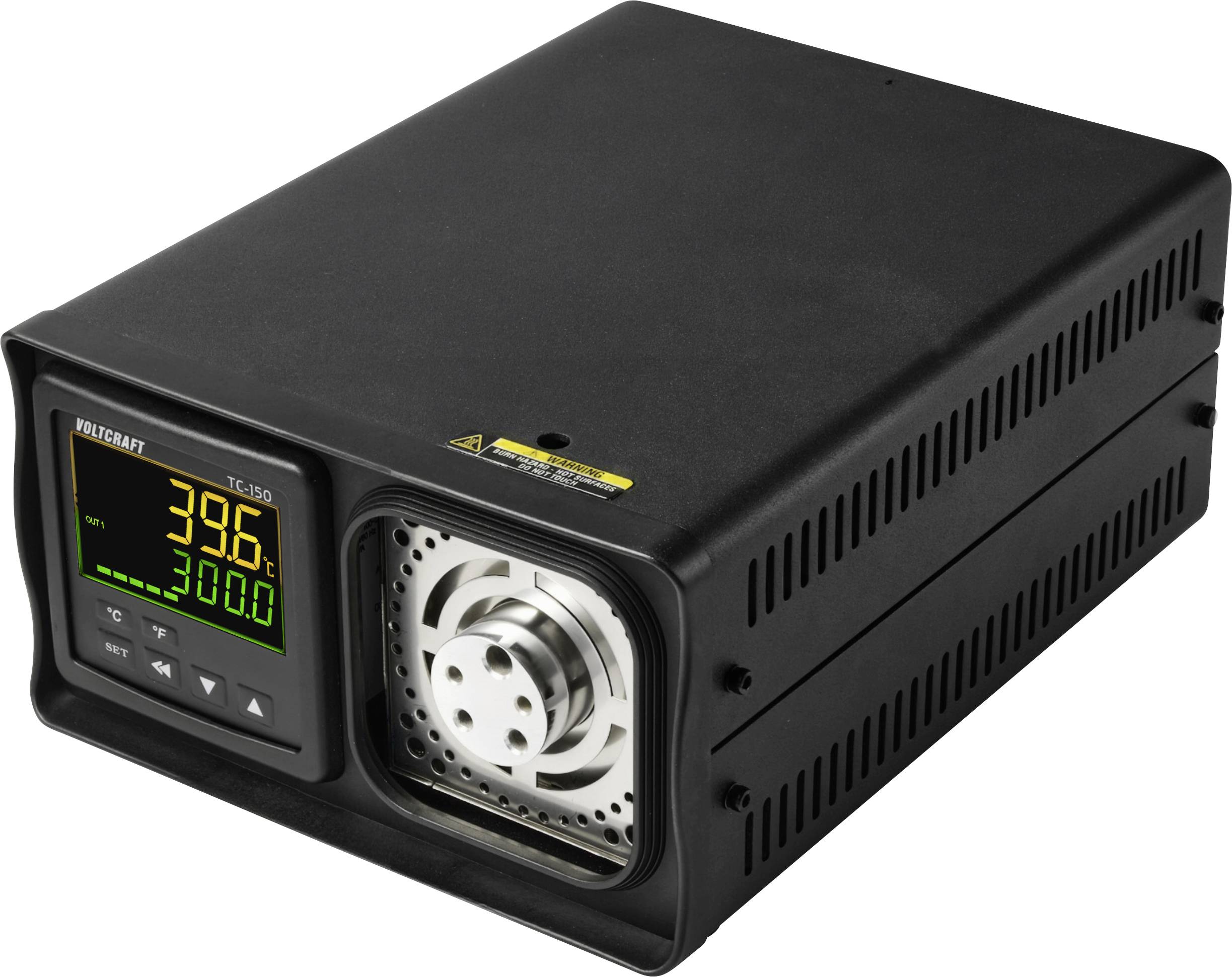

Black Voltcraft TC-150 device with digital display showing 39.6 and 30.0, front circular connector, on white background.

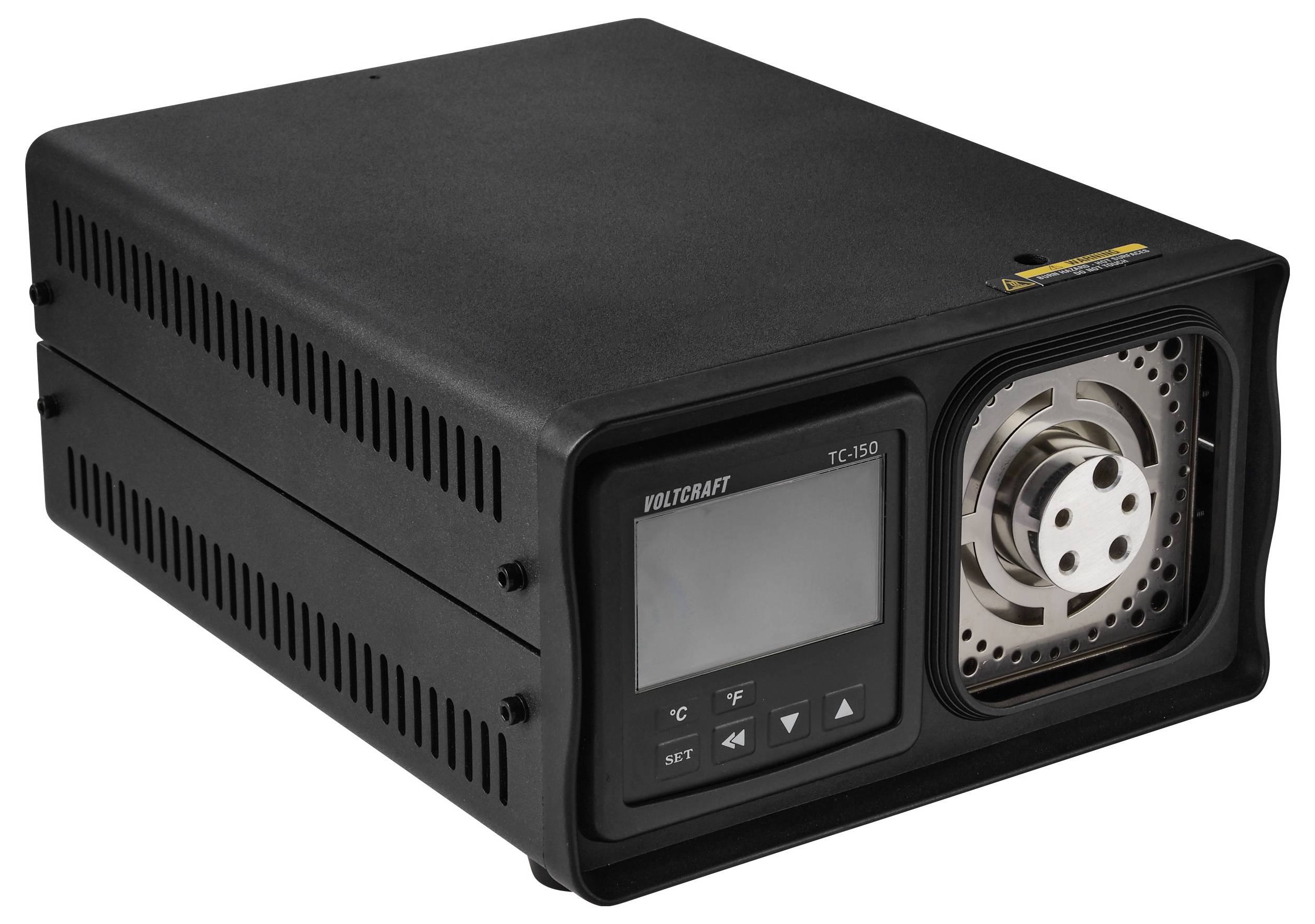

Black Benchcraft TC-150 benchtop unit with digital display and front ventilation fan, shown on a white background.

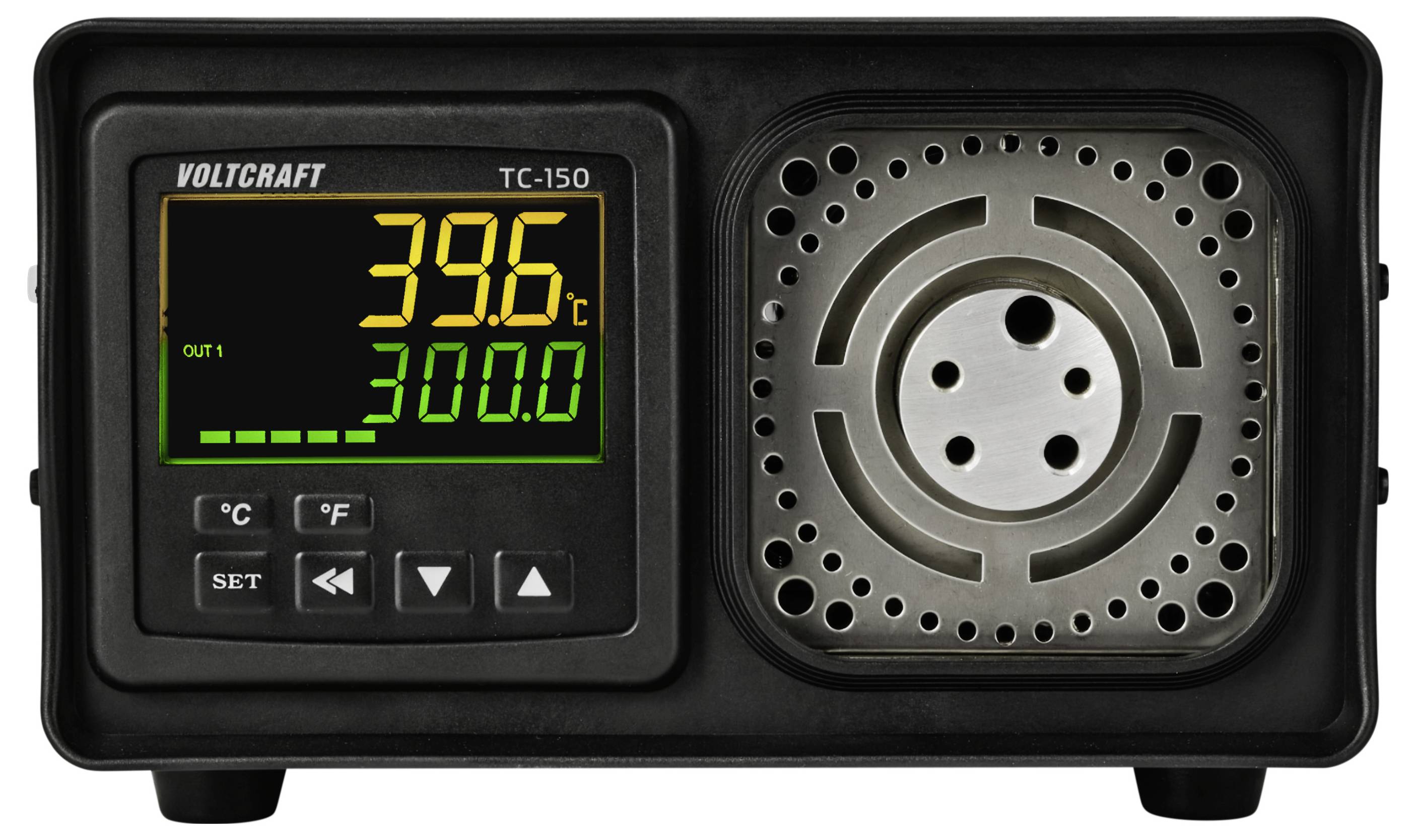

VOLTCRAFT TC-150 temperature controller showing 39.6°C and 300.0 on a digital display with control buttons and a vented fan grille.

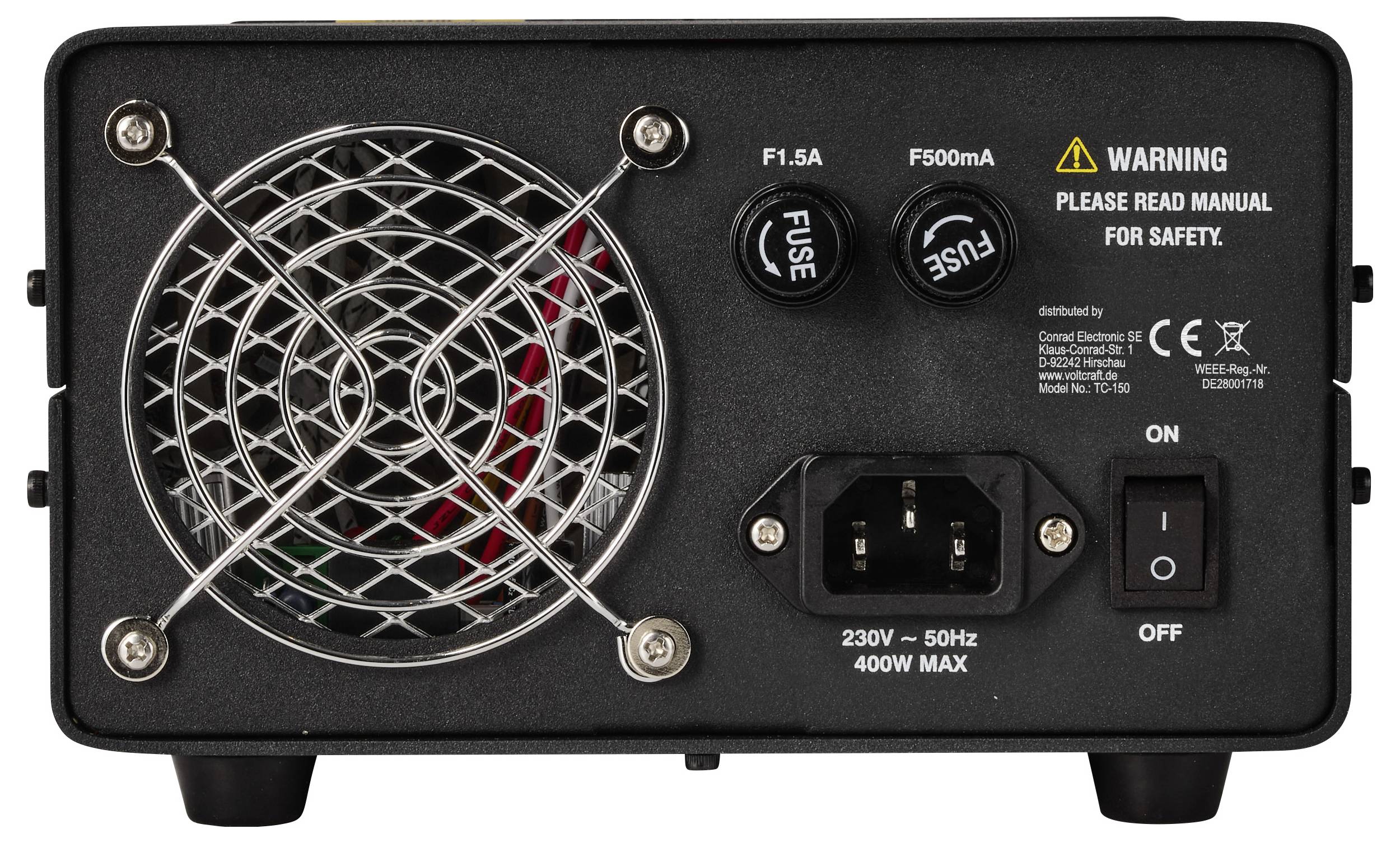

Back of a black electronic device with a large cooling fan, fuse holders, power inlet, and ON/OFF switch, labeled with warning and 230V 50Hz 400W max.

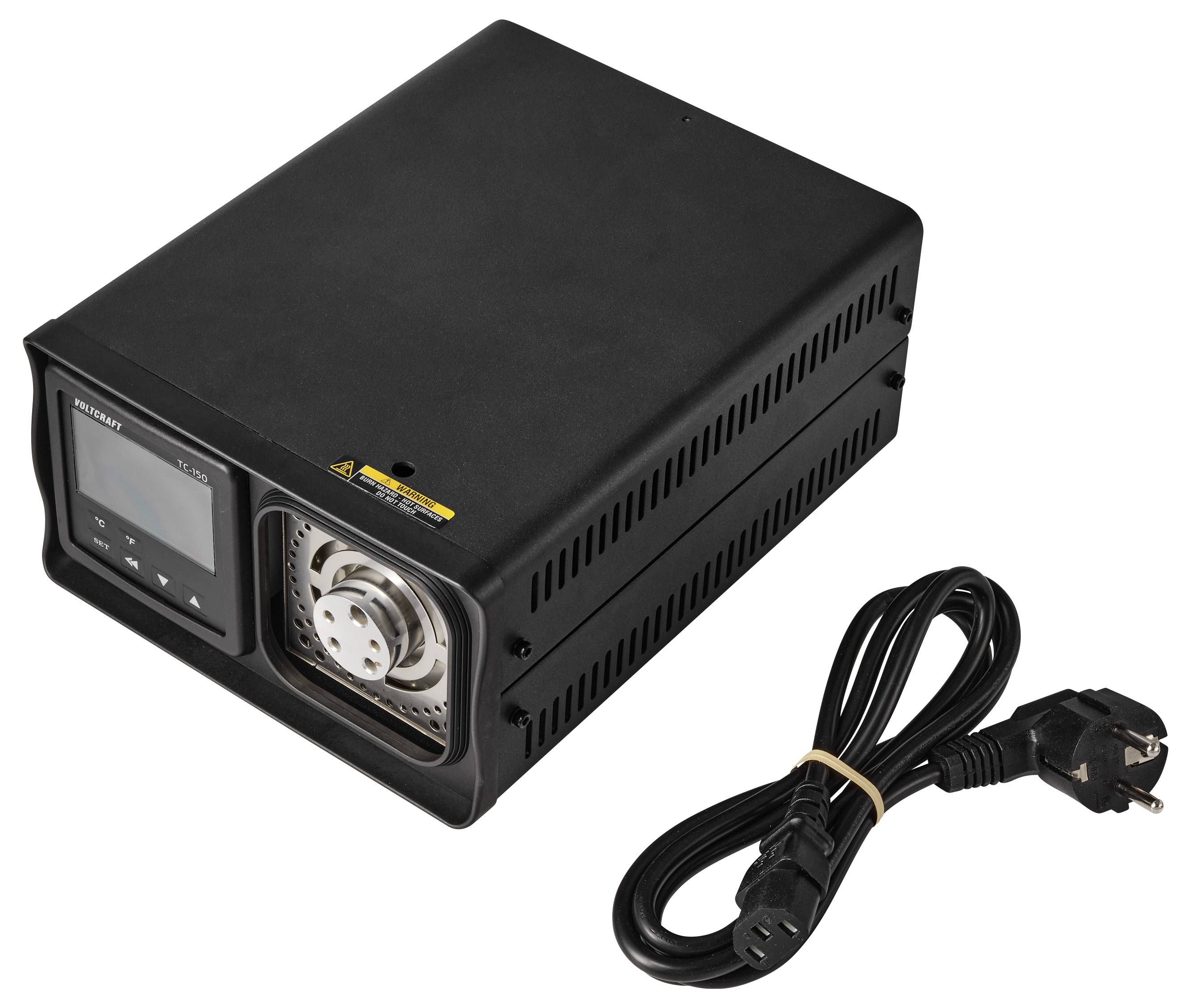

Black uninterruptible power supply unit with display panel and included power cord on a white background.

A black device with a digital display shows '93.3'. It has a round metal area with ventilation slots on the right side.

Black temperature calibrator with digital display. Red display shows '93.3', green display shows '95.0'. Device by VOLTCRAFT.

1/7

Our service for you

Fast track dispatch on Tue, 29 Sep

22 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 668.07 / piece)

€ 668.07

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Temperature calibrator TC-150

Digitally adjustable reference temperature
Fast heating and cooling function
Connection terminal for contact sensor

Technical specifications

6 Measuring openings for contact thermometer: approx. 3 mm diameter, 3.5 mm, 3.7 mm, 4.2 mm, 5 mm, 6.8 mm
Basic stability: ±0.1 °C
Operating temperature: +5 to +35 °C
Basic accuracy: ±0.8 °C
Temperature resolution: 0.1 °C

: Manufacturer's standards (no certificate)

Product type: Calibrator

Unit of measurement: Temperature

Calibration range (thermometer): +33 to +300 °C

Dim: (L x W x H) 248 x 190 x 113 mm

Weight: 2.1 kg

Operating voltage: 230 V AC

Width: 190 mm

Height: 113 mm

Length: 248 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 409213 VOLTCRAFT TC-150 Calibrator Temperature

Conformity certificate

Conformity certificate 409213 VOLTCRAFT TC-150 Calibrator Temperature

Warranty Terms

Warranty Terms 409213 VOLTCRAFT TC-150 Calibrator Temperature

Description

This text is machine translated.

The TC-150 enables the temperature balancing of contact thermometers. The temperature is set via the plastic foil keyboard. In the double display the actual and the reference temperature values are shown. The temperature radiator contains different holes to the various sensor diameter contact positive.

Features

Double display
Micro-controller driven temperature regulation
Balancing possibility for contact sensor approx. 3 mm diameter, 3.5 mm, 3.7 mm, 4.2 mm, 5 mm, 6.8 mm.

Scope of delivery

Power cord
User manual.
