Gossen Metrawatt METRAHIT MULTICAL Calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Temperature
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,483.19 / piece)
€ 2,483.19
plus VAT.
Only 10 Piece(s) available
Highlights & Details

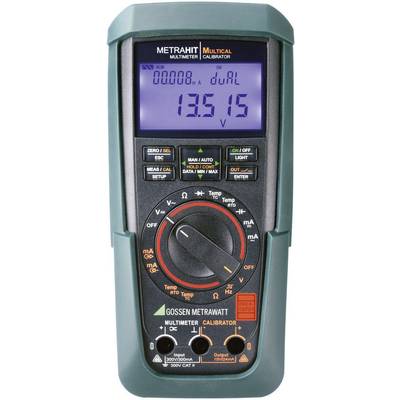

Calibrator Multimeter METRAHIT MULTICAL
- Calibrator, Simulator and Multimeter all in one
- Dualmode - Signal output and measurements
- Ramp and stepping function
Technical specifications
- Direct current measuring range: 10 nA - 300 mA
- 0.05 % basic accuracy
- Dc Supply, Range: 0 - 24 mV
- Dc source, Range: 1 ΜV - 15 V
- Temperature resolution: 0.1 K
- Display (details): LCD, 30000 counts.
- Resolution
0.001 mA
- Calibration range (thermometer)
-270 to +1820 °C
- Temperature accuarcy (details)
0.2 %
- Dim
(L x W x H) 200 x 87 x 45 mm
- Weight
430 g
- Height
45 mm
- Length
200 mm
- Width
87 mm
DAkkS standards
- Unit of measurement
Voltage
Amperage
Temperature
- Power supply
2 x AA battery (included)
- Display (details)
LCD, 30000 counts
- Basic accuracy
0.05 %
- Temperature
-270 to +1820 °C
- Operating voltage
2 Mignon batteries (AA)
- UKCA
not relevant
- Product type
Calibrator
Documents & Downloads
Datasheet
Datasheet 123093 Gossen Metrawatt METRAHIT MULTICAL Calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Temperature
User & Safety Instructions
User & Safety Instructions 123093 Gossen Metrawatt METRAHIT MULTICAL Calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Temperature
Description
Allows reference signal output even during measurement. Ideal for checking control circuit. The device generates mV, V and mA signals as well as thermal voltages of thermal elements as well as values of different Pt and Ni thermal sensors.
Features
- Multipurpose calibration source
- Frequency and pulse generator for testing at SPS or power and flow meter
- Simulation of a two-wire transmitter (current drain)
- Data memory (16 MBit) for 46000 measured values
- Temperature sensor simulation: Pt100/1000, Ni100/1000, Type J, L, T, U, K, E, S, R, B, N, 30 - 2000 Ω
- Three-way LC Display
- True RMS Multimeters
- Real-time clock
Scope of delivery
- 3 test leads with probes
- Rubber protective cover
- Batteries
- Quick instructions
- CD with user manual
- DKD calibration certificate
