Fluke 705 Calibrator Amperage
EAN:
Part number:
Item no:
Number
Total (€ 1,234.45 / piece)
€ 1,234.45
plus VAT.
Only 1 Piece(s) available
Highlights & Details

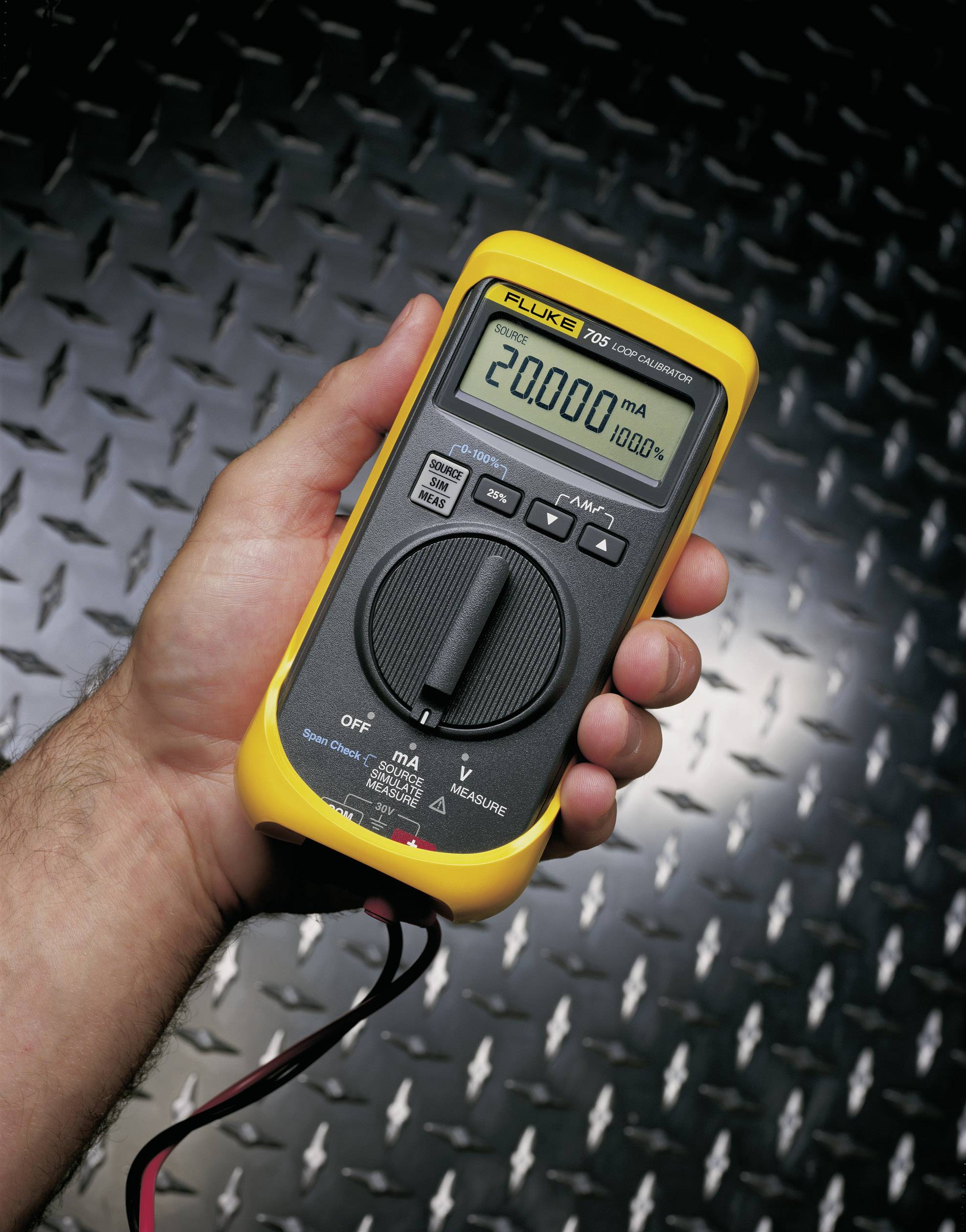

Current loop calibrator Fluke 705
- MA source
- SIMULATION
- Metering
Technical specifications
- Display: LCD
- Dc Supply, Range: 0,001 mA 24 mA
- Direct current measuring range: 0,001 mA 24 mA
- 0.02 % basic accuracy
Manufacturer's standards (no certificate)
- Product type
Calibrator
- Unit of measurement
Amperage
- Resolution
0.001 mA
- Dim
(L x W x H) 41 x 70 x 152 mm
- Weight
340 g
- Width
70 mm
- Height
152 mm
- Length
41 mm
- Power supply
1 x 9 V PP3 battery (included)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1372949 Fluke 705 Calibrator Amperage
Description
The current loop calibrator is a cost-effective, integrated solution for all tasks such as calibration, repair or maintenance of current loops.
This text is machine translated.
This text is machine translated.
Features
- • 0.02% accuracy and 0,001 mA resolution
- • Simultaneous mA and % indication
- • Selectable steps or ramp output
- • 24 V Schleifenversrgung with mA measuring function
- • 0-28 VDC measuring range for loop voltage measurement
- • Simple battery replacement without having to completely open the housing
- • Compact casing with removable protective holster
