Name: Digitus DK-39081-U FO cable A/I-DQ (ZN) BH 9/125 µ Singlemode OS2 Black Sold per metre
Brand: Digitus
SKU: 2235116

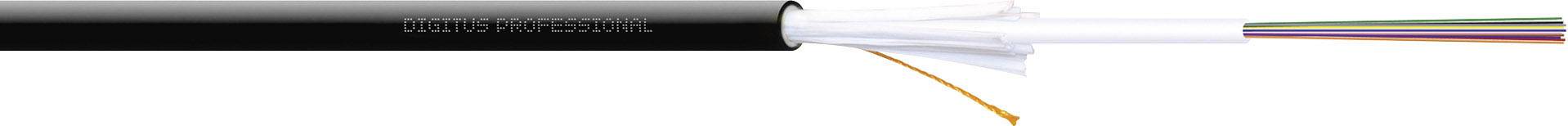

A black cable showing optical fibres protruding from a white sheath.

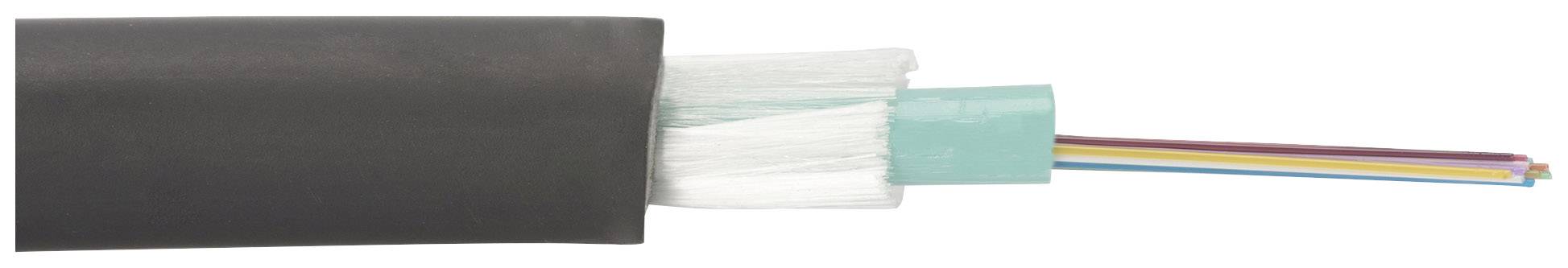

Digitus DK-39081-U FO cable A/I-DQ (ZN) BH 9/125 µ Singlemode OS2 Black Sold per metre-1

1/2

Product type

FO cable

Cable type

A/I-DQ (ZN) BH

Fibre type

9/125 µ

Content

Sold per metre

No. of fibres

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Fiber optic cable A-I-DQ(ZN)BH 8E9/125µ, SM, OS2, 8 fibers inside/outside, LSZH, DCA, black, length 1 m.

LSZH - low smoke zero halogen
UV-resistant
Longitudinal and cross-water resistant
Glass-yarn reinforcement

Technical specifications

LSZH - low smoke zero halogen
UV-resistant
Longitudinal and cross-water resistant
Glass-yarn reinforcement
Non-metallic rodent protection
Metal-free
Damping at 1310nm : ≤ max. 0.34 dB/km (before wiring) ; ≤ max. 0.36 dB/km (after wiring)
Attenuation at 1550nm: ≤ max. 0.21 dB/km (before wiring) ; ≤ max. 0.22 dB/km (after wiring)
Damping at 1625nm : ≤ max. 0.23 dB/km (before wiring) ; ≤ max. 0.25 dB/km (after wiring)
Dispersion zero point : 1302 ~ 1324 nm
Dispersion increase : ≤ 0.092 ps/nm 2 x km.
PMD link value (M=20 cable Q= 0.01%) max. PMDQ : 0.2 ps/√km.
Limit wavelength (λcc) : ≤ 1260 nm
Makro bend loss (100 rotations ; Φ50nm) at 1550 nm : ≤ 0.05 dB
Makro bend loss (100 rotations ; Φ50nm) at 1625 nm : ≤ 0.10 dB
Mode field diameter at 1310nm : 9.2 ± 0.4 µm
Sheath diameter : 125 ± 1 µm
Core sheath run error : ≤ 0.6 µm
Shell rounding : ≤ 1.0 %
Elongation limit : ≥ 0.69 GPA
Number of fibers (OS2 G.
Max. Number of bundle strands: 1 off
Number of fibers per bundle load : 2-12 pcs.
Bundle ties : 2.0 ± 0.2 mm
Outer sheath material : LSZH, BauPVO DCA, EN 50575: 2014+A1: 2016
Cable outer diameter : 6.5 ± 0.5 mm
Max. Permissible tensile force : 1400 N.
Dust resistance : 1000/200 N/100mm
Temperature range : Transport and storage : - 40°C to + 70°C ; Installation : - 40°C to + 60°C ; in operation : - 40°C to + 70°C.
Min Bending radius : Installation : 20 x OD ; in operation : 10 x OD
Application: Inside/outside
Fiber type: Multimode 50/125
Number of fibers: 4
Strain relief: Yes
Reinforcement: no.
Chemical resistant: no.
Sheath color: turquoise
Sheath material: PE
Wire type: Hohoof charger
Metal-free cable: Yes
Cable longitudinally watertight: Yes
Cable cross-resistant: Yes
Inflatable: no.
With rodent protection: no.
Low smoke in accordance with EN 61034-2: no.
Fiber category: OM3
Halogen-free according to EN 60754-1/2: Yes
Oil resistant according to EN 60811-404: no.

Product type: FO cable

Cable type: A/I-DQ (ZN) BH

No. of fibres: 8

Fibre type: 9/125 µ

: Singlemode OS2

Cable features: Round
UV-resistant
incl. anti-rodent protection

Factory colour: Black

Content: Sold per metre

Halogen-free: Yes

Manufacturer part #: DK-39081-U

Type: DK-39081-U

Max. length sold by the metre: 850 m

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2235116 Digitus DK-39081-U FO cable A/I-DQ (ZN) BH 9/125 µ Singlemode OS2 Black Sold per metre

Description

With the central bundle loader a design is offered, which has a high tensile strength and flexibility in a compact cable size. Our central bundle loader offers fiber optic data transmission and excellent technical performance. Through our regular quality control programs in accordance with ISO90001, REACH and RoHS, we selected a high quality level. We guarantee a high level of reliability through a thorough qualification test of each of our products from the portfolio. Both quality processes are designed to ensure the longevity in the interior and exterior as well as the performance of our cables.

This text is machine translated.
