Name: Digitus DN-10-SET-2 10" server rack cabinet (W x H x D) 312 x 464 x 300 mm 9 U Grey-white (RAL 7035)
Brand: Digitus
SKU: 2298582

A blank, grey metal cabinet with a glass door and lock, suitable for network or server storage in office spaces.

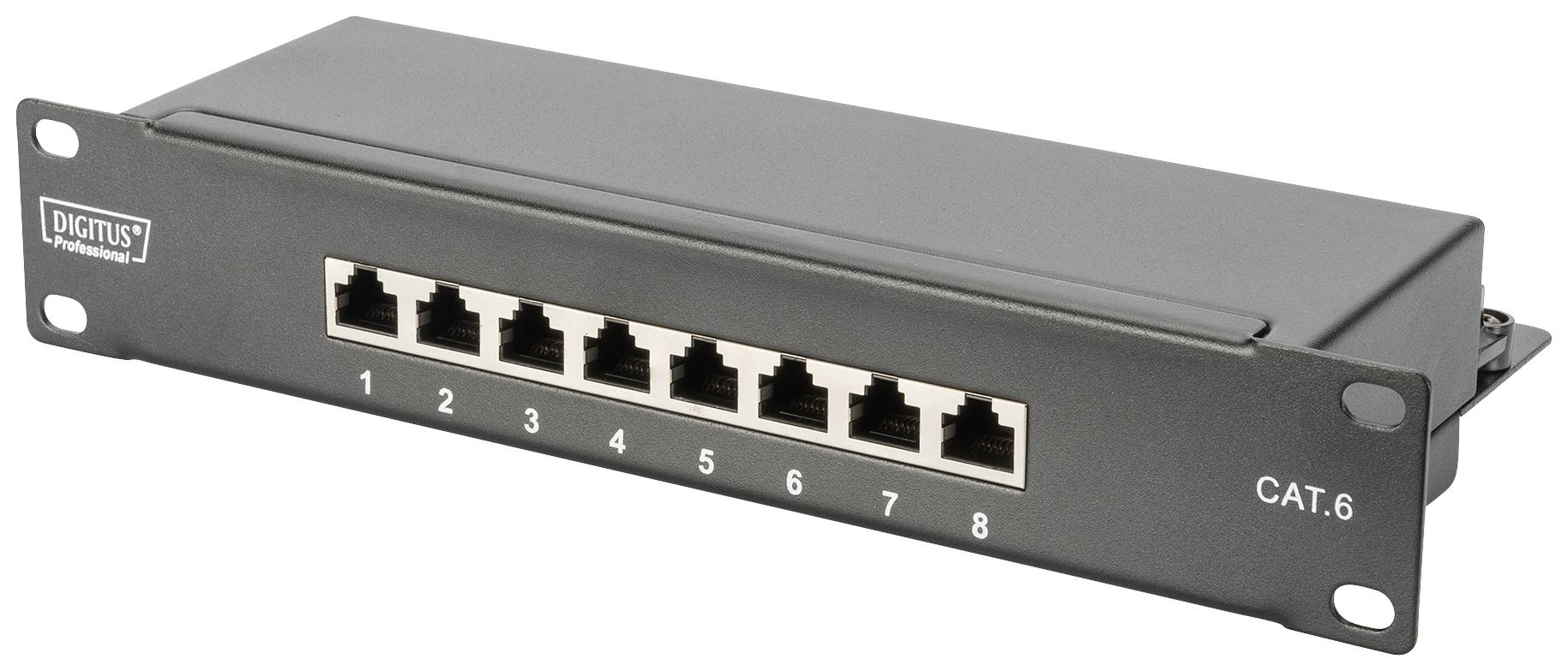

Patch panel with eight RJ45 ports, labelled from 1 to 8, as part of a network system, suitable for CAT.6 Ethernet connections.

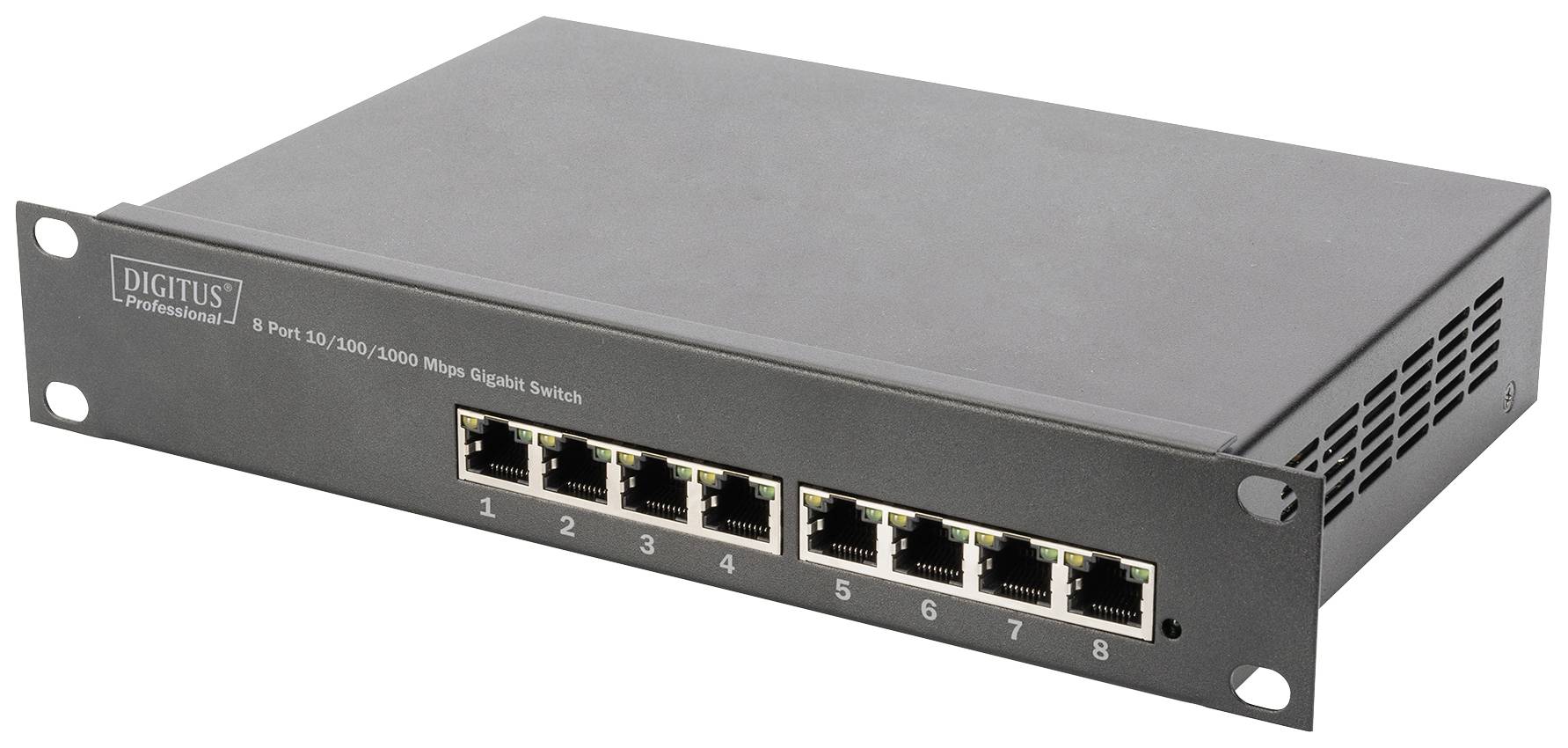

Eight-Port Gigabit Ethernet Switch for network connections, suitable for mounting in a server rack.

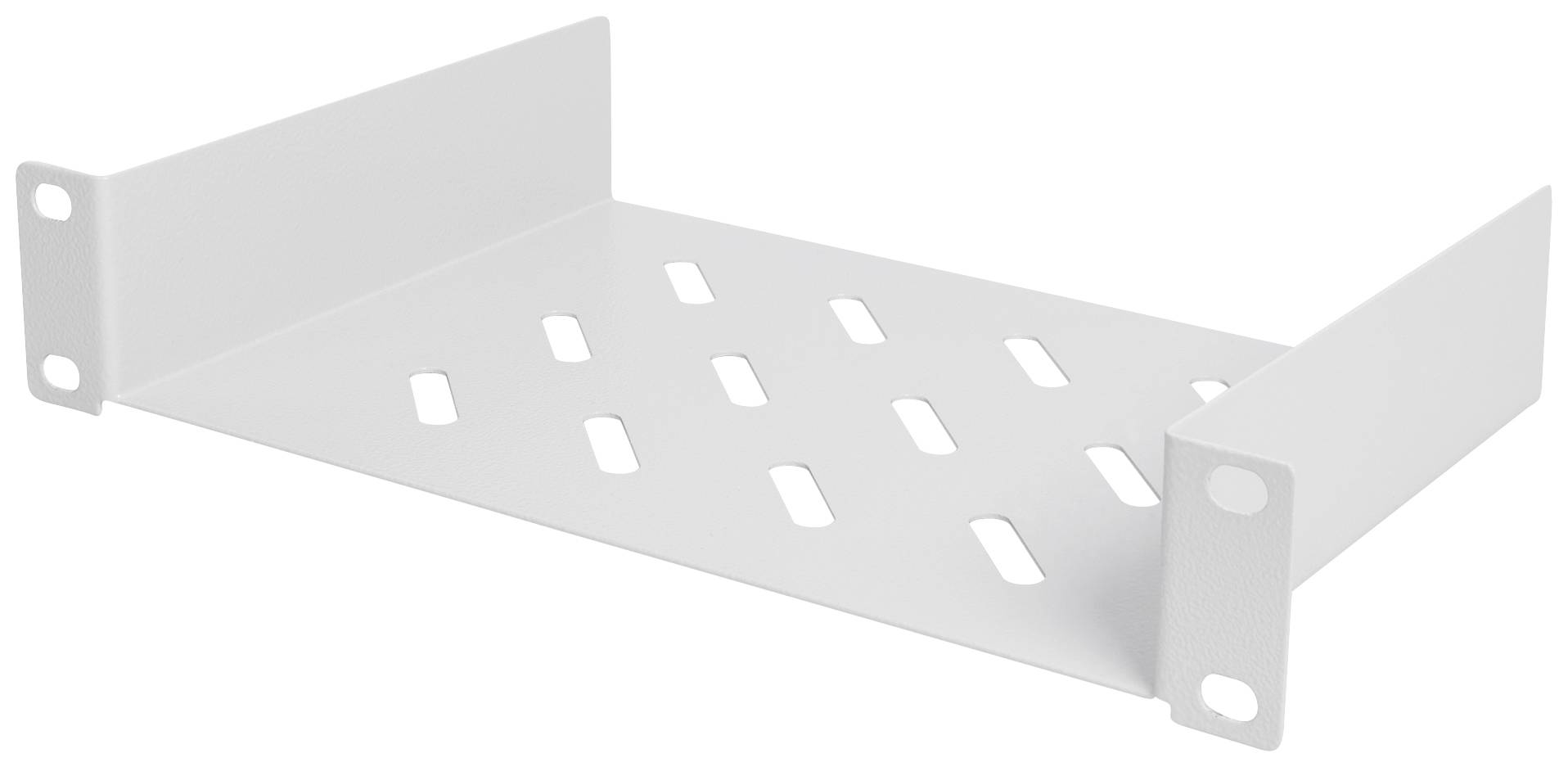

White metal shelving unit with slots, suitable for mounting in a 19-inch rack, showing a functional rack component.

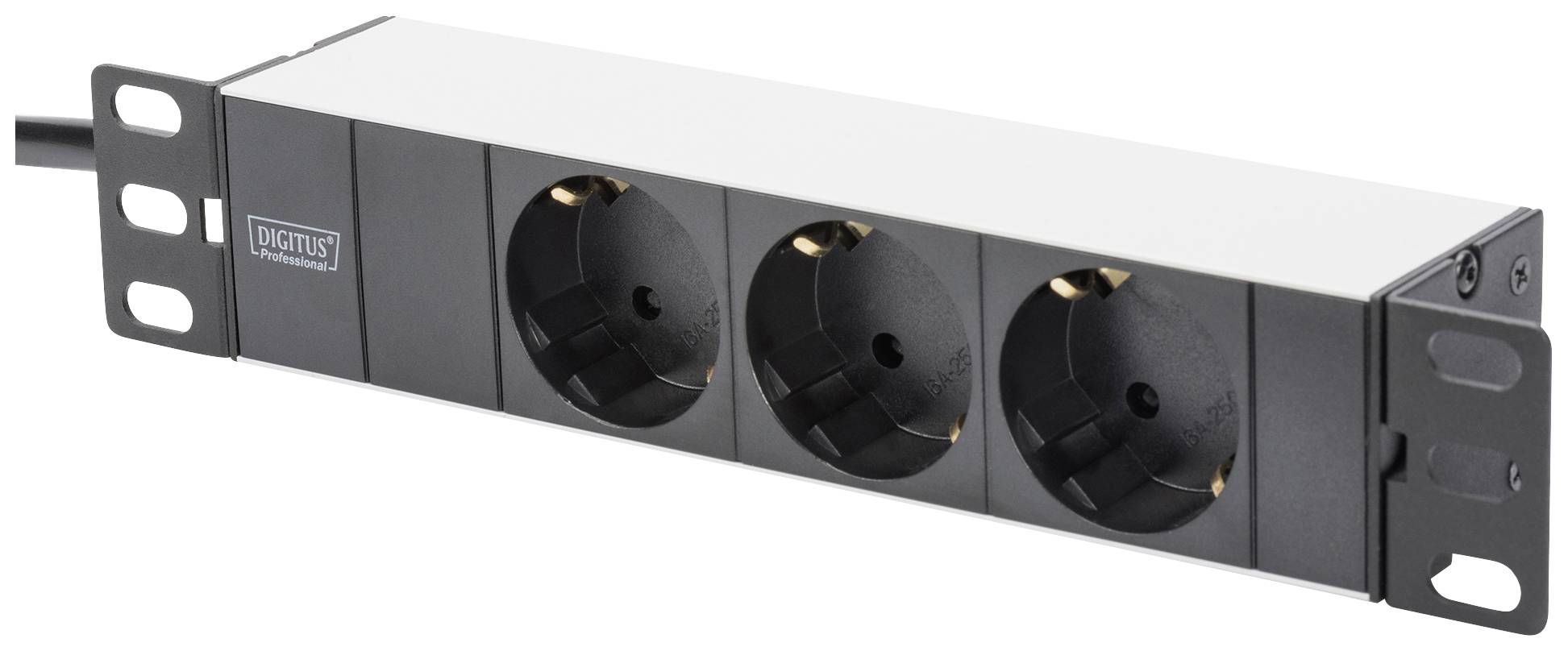

A triple socket strip for mounting in a rack, horizontally oriented.

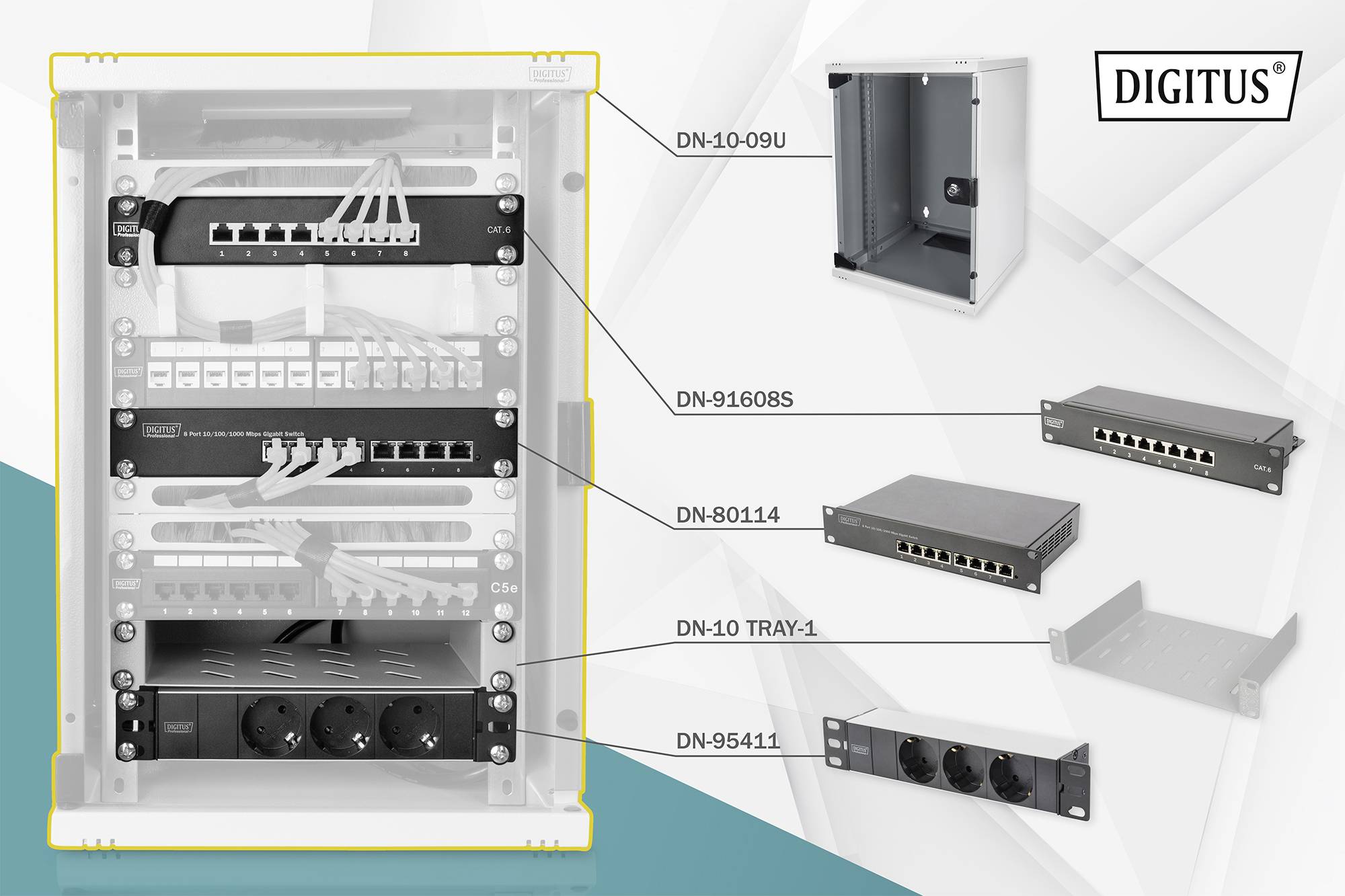

'Digitus' network cabinet displays network and power distribution components with model numbers. Cabling and connection options highlighted.

Image of a network equipment unit with multiple components: cabling, connections, and power supply. Models: DN-10-09U, DN-91608S, DN-80114, Tray-1, DN-95411. Used for organising and managing network cables and connections.

1/7

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DIGITUS 10 inch network set, incl. 9HE wall housing shelf, PDU, 8-port switch, cat 6 patch panel

The small 10" network wall housing stands out with its compact dimensions Fully operational for structured IT cabling - ideal for home Or small office environments
With the E-Class patch panel (Cat-6), the set has a central connection point for your home network, where all network cables will meet together in a bundle
The modem, router, NAS server or other small devices can be placed on the supplied shelf and the accompanying power supplies can be stowed away properly
The Gigabit Ethernet network switch has 8 RJ45 ports and is currently busy Once 1HE - it is ideal for small to medium-sized Networks in the private as well as in the business environment

Technical specifications

Product type: 10" server rack cabinet

Rack unit: 9 U

Width: 312 mm

Height: 464 mm

Depth: 300 mm

Material: Steel
Safety glass

Dim: (W x H x D) 312 x 464 x 300 mm

Weight: 1670 g

Factory colour: Grey-white (RAL 7035)

Rack size: 254 mm (10")

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2298582 Digitus DN-10-SET-2 10" server rack cabinet (W x H x D) 312 x 464 x 300 mm 9 U Grey-white (RAL 7035)

Description

The 254 mm (10") network set from DIGITUS is the ideal complete solution for building a compact network, for example, for Digitus home or small office environments. The Digitus

This text is machine translated.

Features

Power strip with 3 earthing contact socket outlets 250VAC 50/60Hz / 16A / 4000W
Power strip with 2 m cable H05VV-F 35 1.5 mm² with earthing contact plug
Switch fulfills the network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
patch panel for application areas up to 250 MHz, 1GBase-T
cable installation on patch panel via LSA-strips, Color-coded according to EIA/TIA 568 A & B.

Scope of delivery

1x wall housing
1x shelf
1x socket strip
1x network switch
1x patch panel
