Name: Digitus DN-10136 Network card 2.5 GBit/s PCI-Express
Brand: Digitus
SKU: 2903270

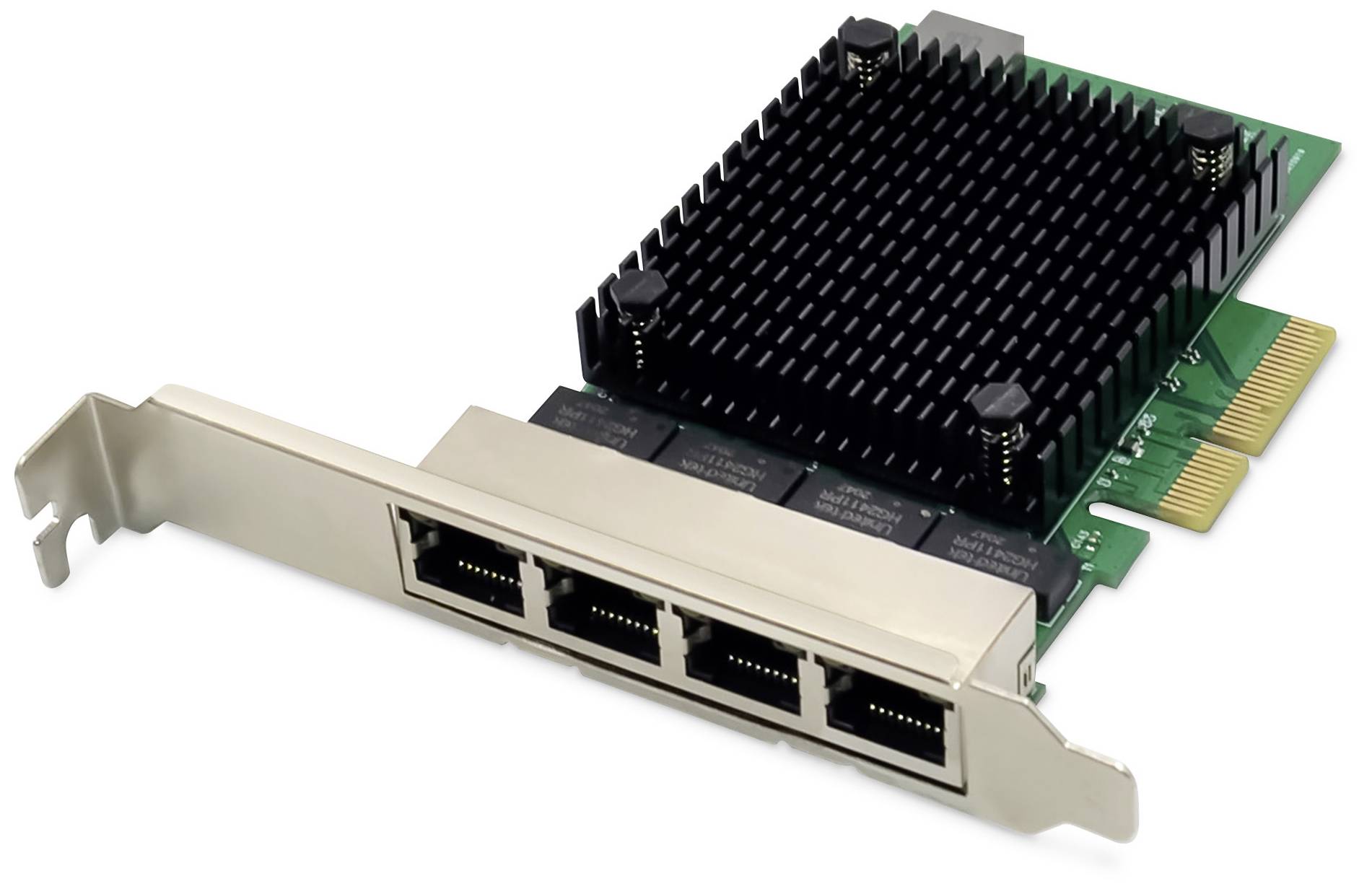

Network card with four Ethernet ports and heatsink, installed in a PCIe slot.

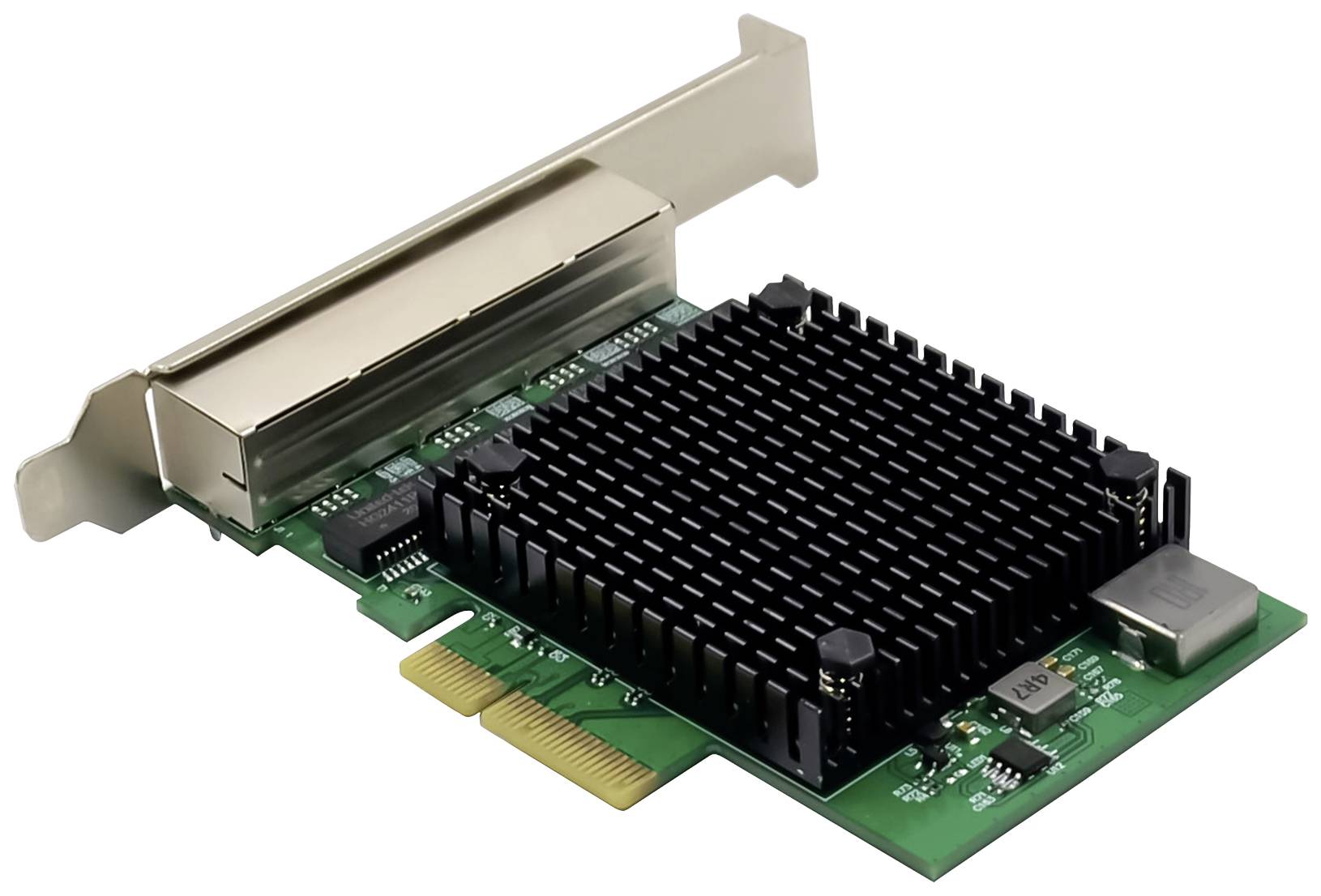

A computer expansion card with a heatsink, suitable for improving network connectivity in a desktop computer.

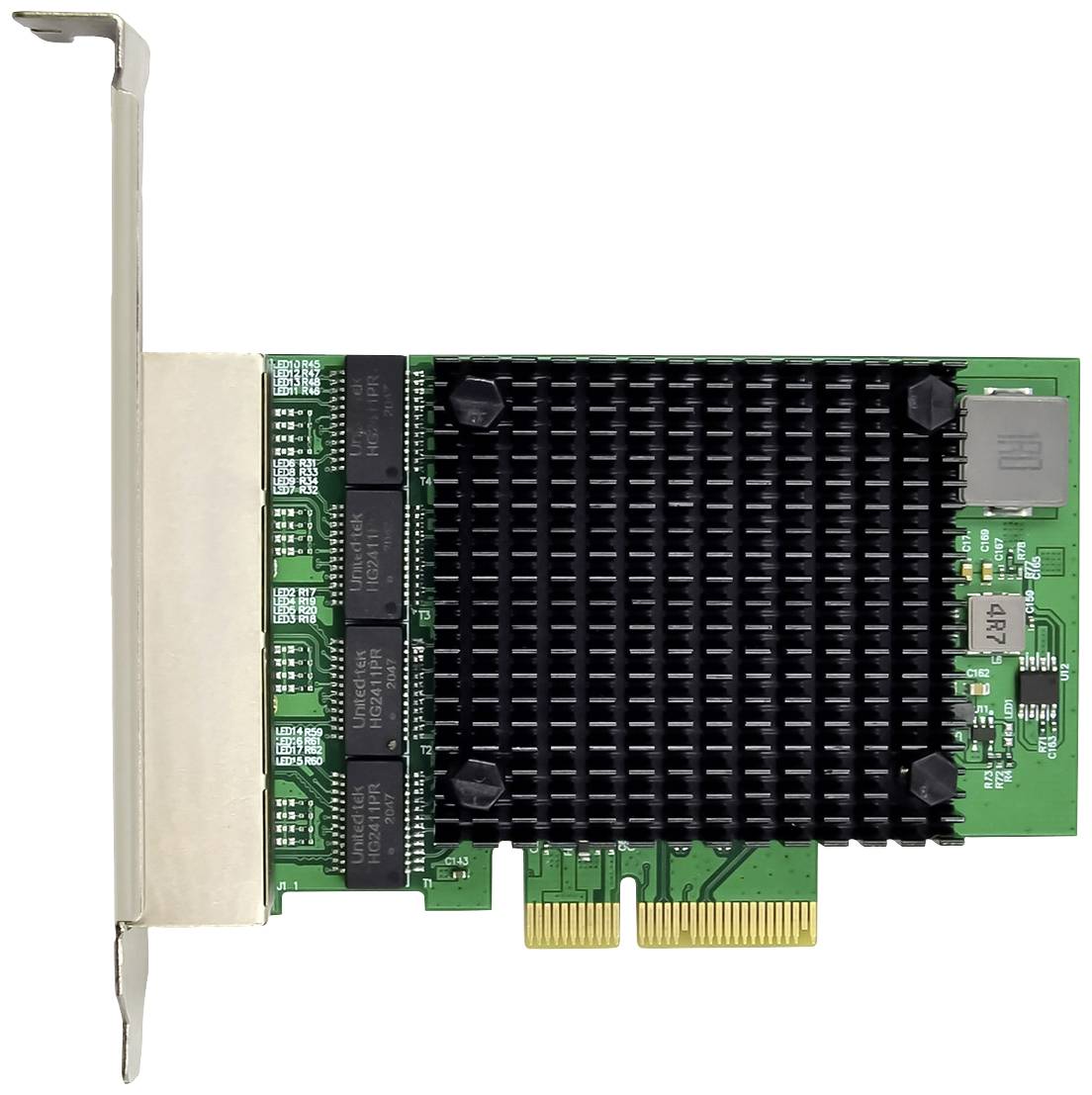

A network card with a green circuit board and black heatsink. Three PCIe slots are visible along the bottom edge.

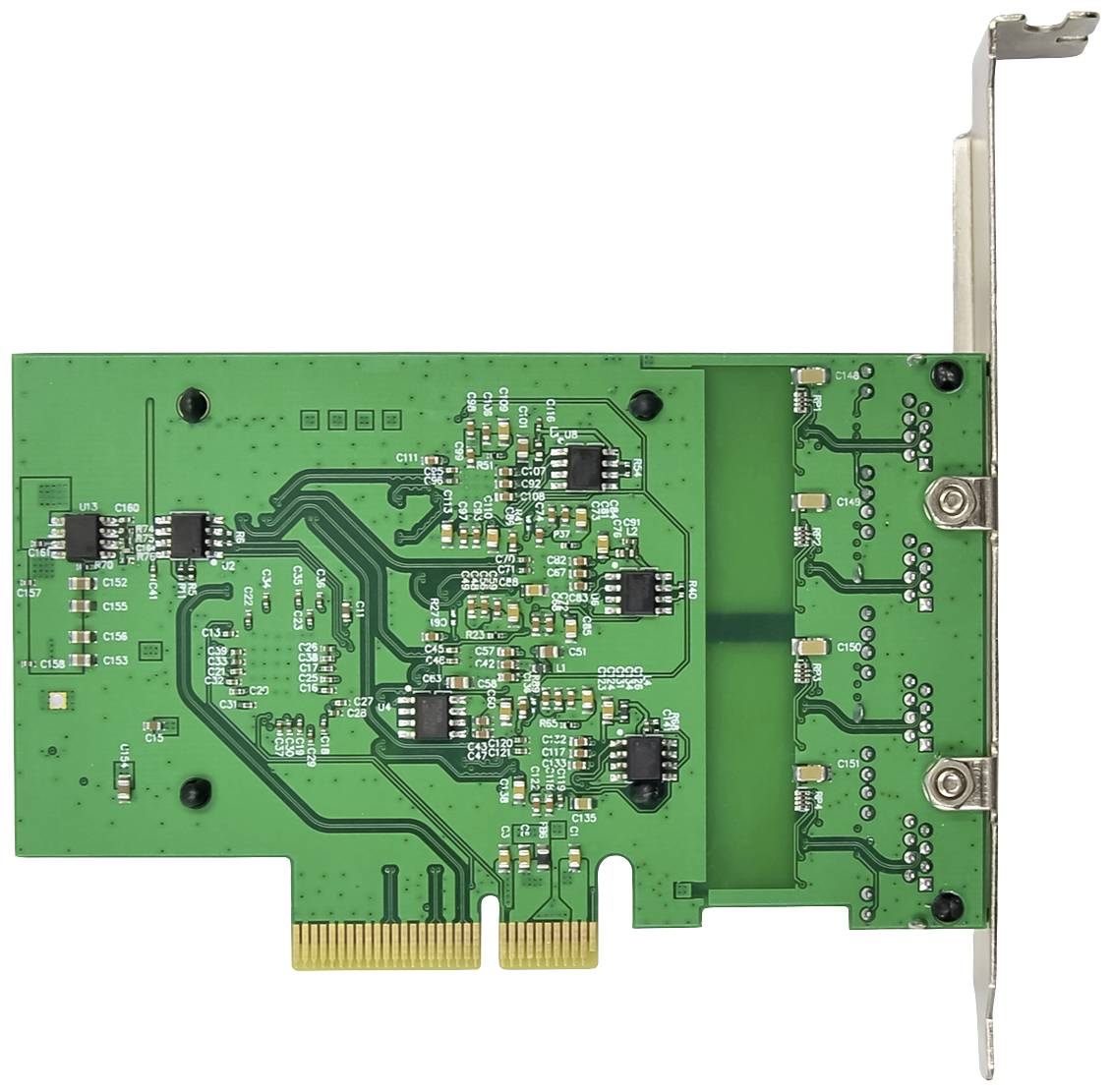

A green PCIe expansion card with visible circuit boards and connectors, viewed from above.

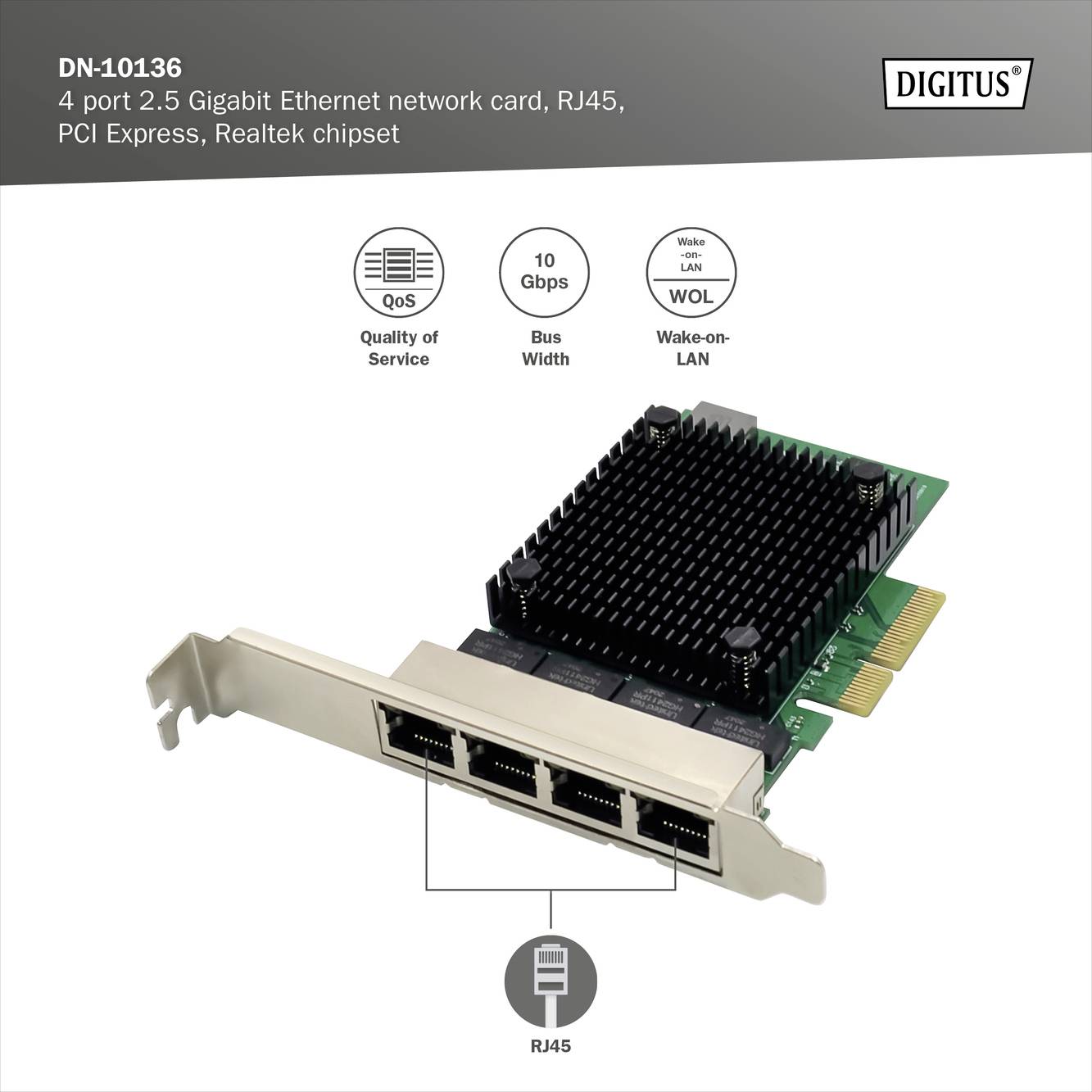

'Ethernet network card with 4 ports, RJ45, supports up to 10 Gbps, PCI Express, Realtek chipset, features: QoS, Wake-on-LAN.'

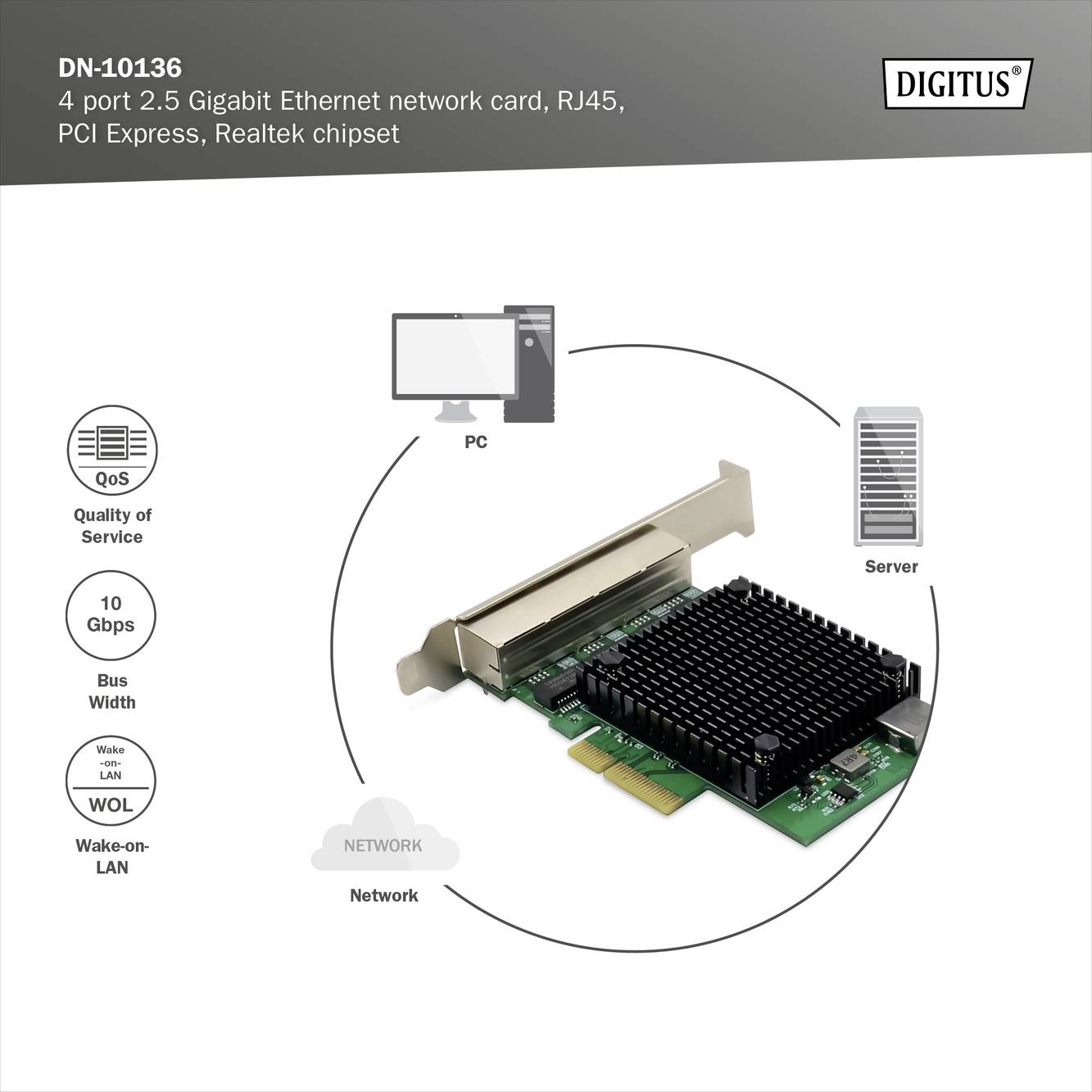

Network card with 4 RJ45 ports and Realtek chip. Suitable for PC and server applications with 10 Gbps speed and Wake-on-LAN support.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus 4 port 2.5 Gigabit Ethernet network card, RJ45, PCI Express, Realtek chip-set

2-lane PCI Express bus connection with up to 10 Gbps bus width
PCI Express interface x4
Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver

Technical specifications

Supports PCI Express Specification Revision 2.1
2-lane PCI Express bus connection with up to 10 Gbps bus width
PCI Express interface x4
Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
Supports 2.5G and 1G Lite mode
Auto-negotiation with Extended Next Page capability (XNP)
Supports pair swap/polarity/skew correction
Crossover detection and auto-correction
Supports 1-Lane 2.5/5Gbps PCI Express Bus
Supports hardware ECC (Error correction code) function
Supports hardware CRC (cyclic redundancy check) function
It supports PCI MSI (message-signaled interrupt) and MSI-X.
Support for on-chip buffer for sending/receiving
Supports ECMA-393 ProxZzzy standard for sleeping hosts
Supports Wake On LAN and RealWow! Technology (remote wake-up)
Compatible with IEEE802.3, IEEE802.3u, IEEE802.3ab
Supports IEEE1588v1, IEEE1588v2, IEEE80.2AS time synchronization
Supports IEEE802.1Qav credit-based shaper algorithm
Supports IEEE802.1P layer 2 priority coding
Supports IEEE802.1Q VLAN tagging
Supports IEEE802.1ad Double VLAN
Supports IEEE 802.3az (energy-efficient Ethernet)
Supports IEEE802.3bz(2.5GBase-T)
Supports full duplex flow control (IEEE802.3x)
Supports Jumbo frame up to 16K bytes
Supports Virtual Machine Queue (VMQ)
Supports Quad Core Receive Side Scaling (RSS)
Supports protocol offload (ARP&NS)
Drivers for Vista /Win7 / Win8 / Win10 /Win11/ Sever2008 / Server 2012 / Linux / DOS
RTL8125B+ASM1806 chipset

Product type: Network card

Interfaces: PCI-Express

No. of Gigabit LANs: 4 x

Transfer rate: 2.5 GBit/s

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s
2500 MBit/s

Factory colour: Black

Height: 50 mm

Length: 100 cm

Width: 150 mm

Weight: 1000 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2903270 Digitus DN-10136 Network card 2.5 GBit/s PCI-Express

Description

The DN-10136 is a PCIe quad port 2.5G network adapter combines a media access controller, which is IEEE802.3 compatible, with a four-speed Ethernet transceiver. The adapter fulfills the specifications IEEE802.3u for 10/100Mbps Ethernet, IEEE802.3ab for 1000Mbps Ethernet and IEEE802.3bz for 2500 Mbps Ethernet. It supports high-speed transmission via CAT5e UTP-cable as well as CAT3 UTP-cable (only for 10 Mbit/s). The DN-10136 is suitable for various market segments and applications such as desktop, workstation, server, communication platforms and embedded applications.
