Name: Digitus DN-19 09U-6/6-I-OD 19" wall cabinet (W x H x D) 600 x 579 x 600 mm 9 U Grey-white (RAL 7035)
Brand: Digitus
SKU: 1604464

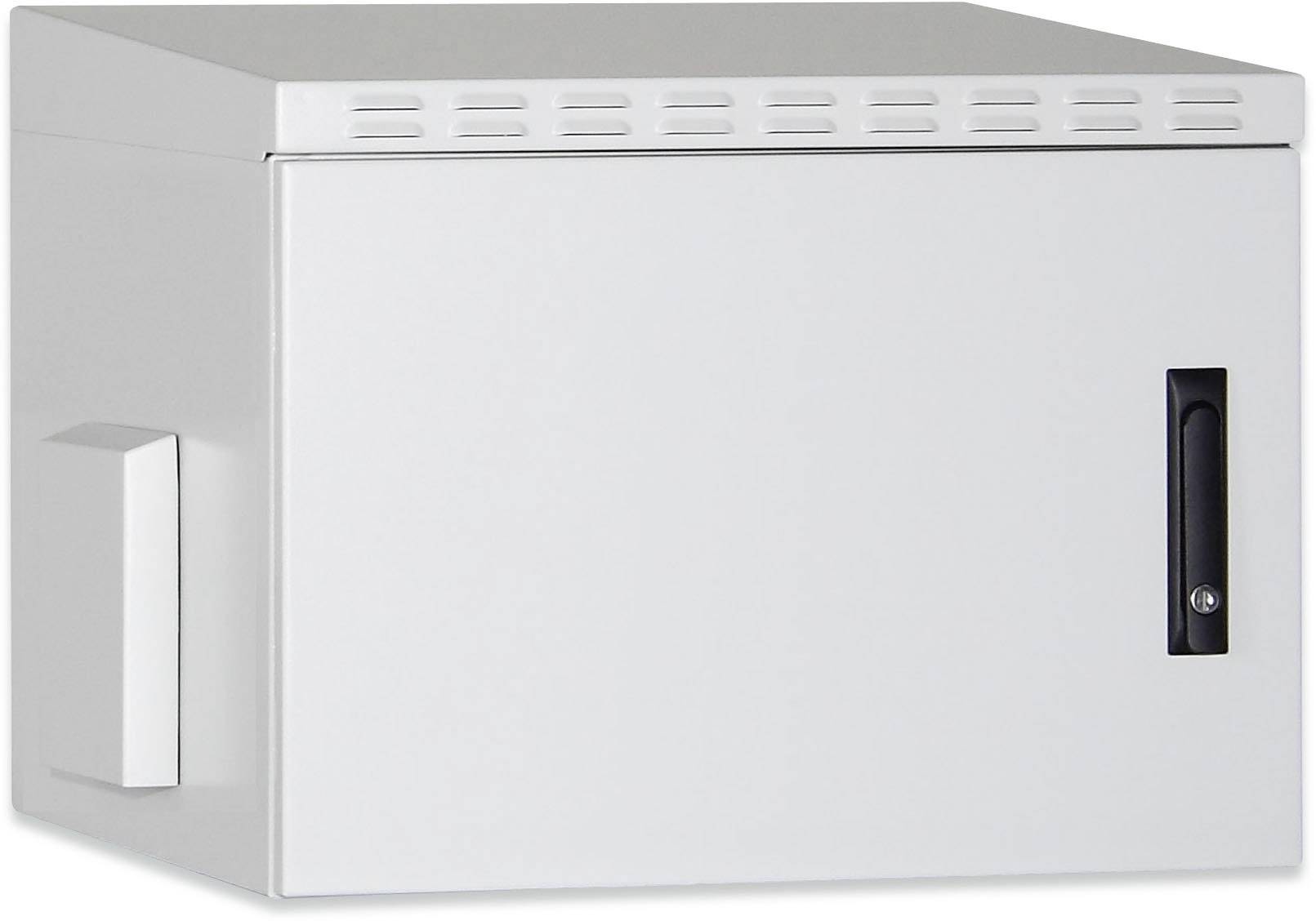

A white, metallic wall cabinet with a ventilated top and a black handle on the right side. Used for secure storage.

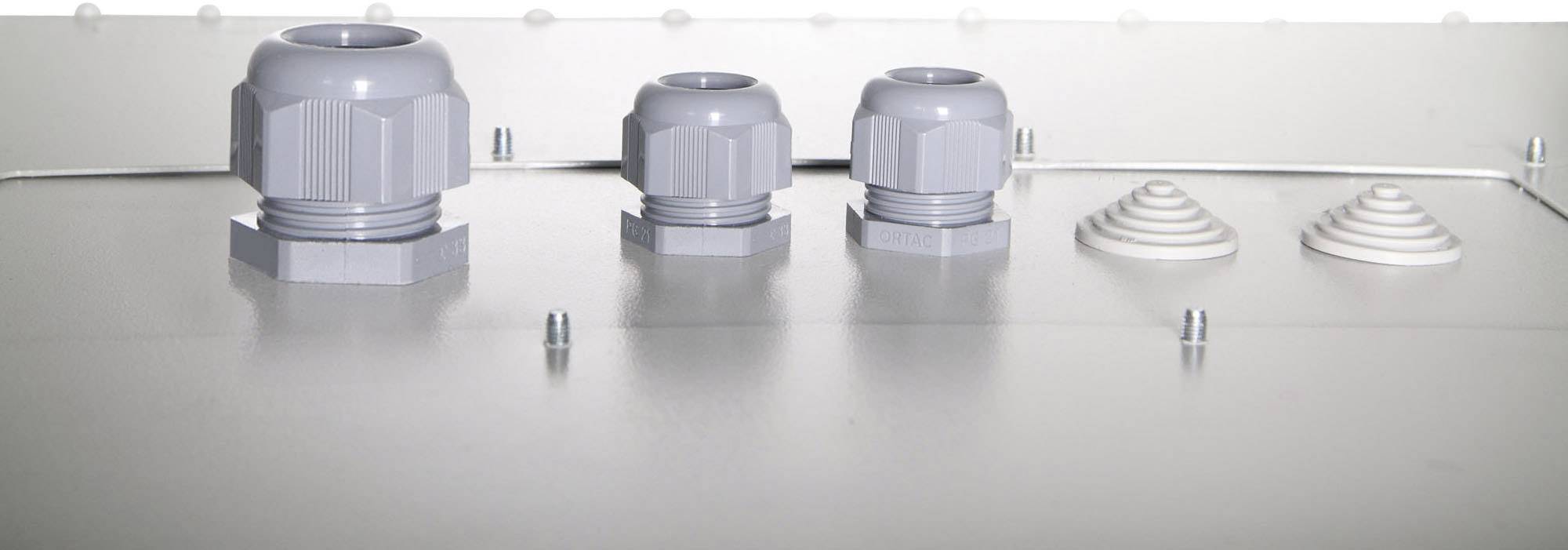

Three grey cable glands in different sizes are fastened to a metallic surface, alongside three round, stepped protrusions.

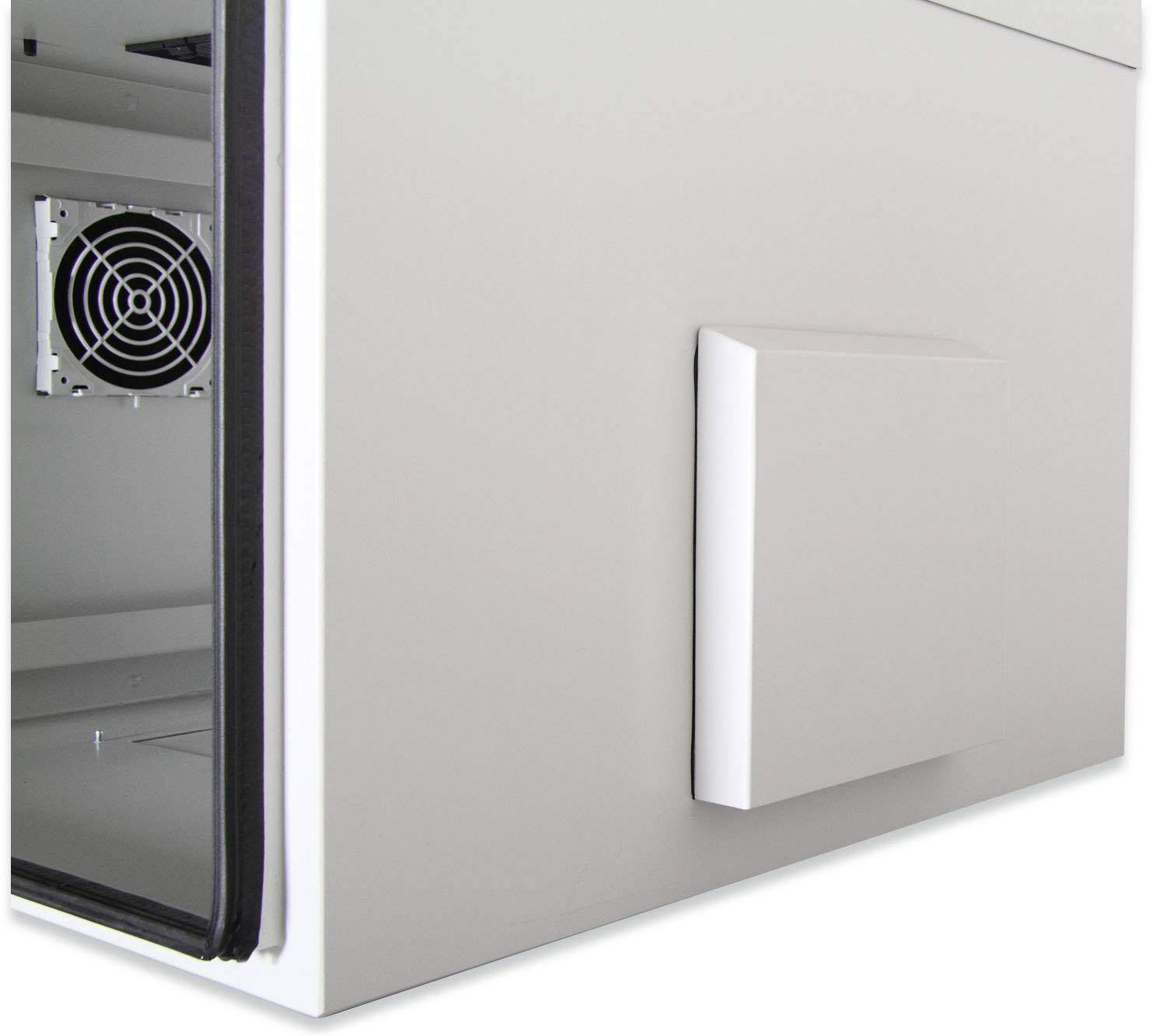

A grey, partially open casing that reveals a cooling device, with a fan visible inside.

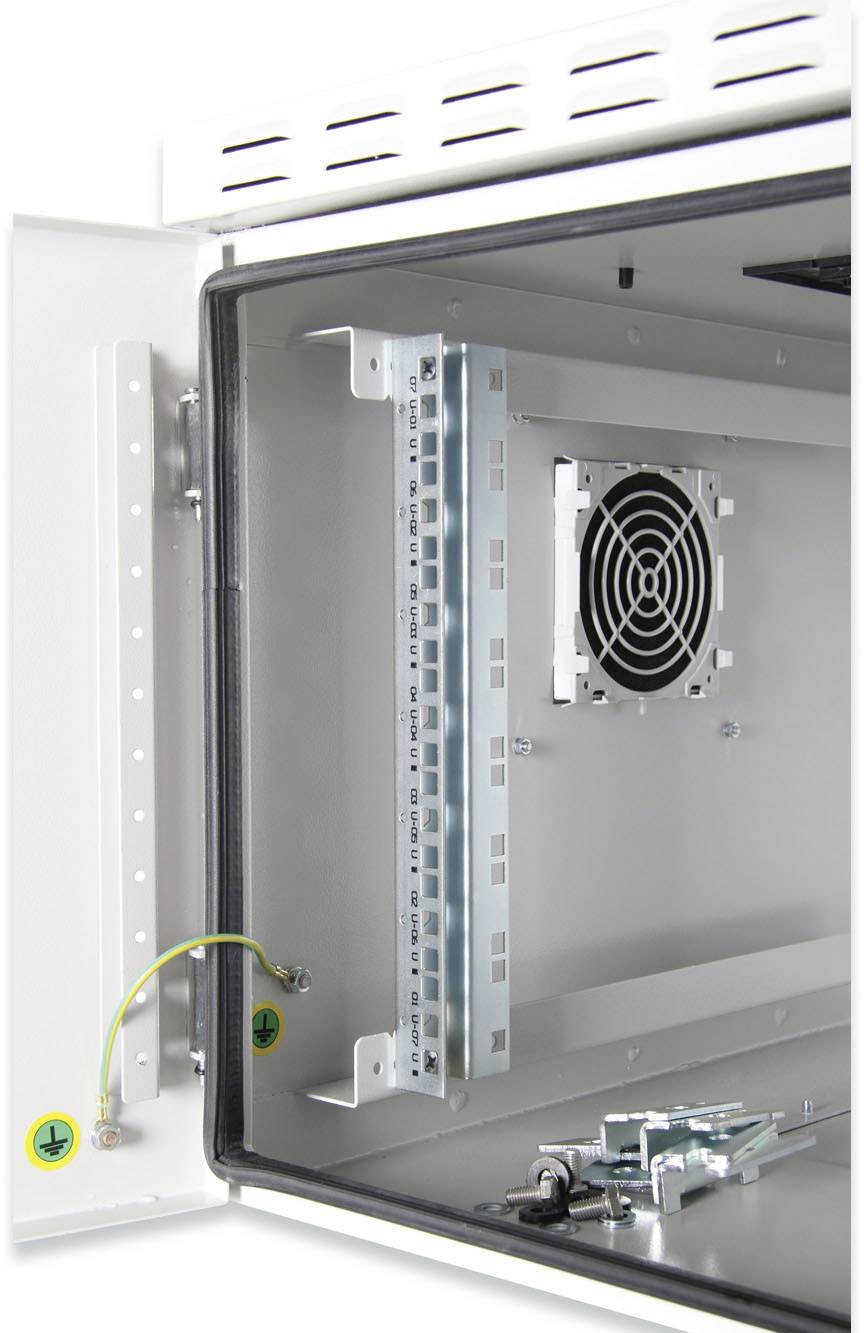

An open cupboard with a fan at the back wall and a metal rail on the side; earthing cable visible.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

9 HE wall housing, outdoor, IP55 579 x 600 x 600 mm, color gray (RAL 7035)

Protected against dust and water in harmful quantity (IP55)
Abschliessbarem steel front door with pivot lever handle and 3-point lock system
Front door with earth and two welded, the bar in U-shape as well as seal

Technical specifications

Product type: 19" wall cabinet

Rack unit: 9 U

Width: 600 mm

Height: 579 mm

Depth: 600 mm

Material: Steel plate

Dim: (W x H x D) 600 x 579 x 600 mm

Weight: 40 kg

Factory colour: Grey-white (RAL 7035)

Rack size: 483 mm (19")

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1604464 Digitus DN-19 09U-6/6-I-OD 19" wall cabinet (W x H x D) 600 x 579 x 600 mm 9 U Grey-white (RAL 7035)

Description

The 483 mm (19") IP55 outdoor wall housing for industrial applications. They are based on the EN 60529 compliant IP55 protection class and are therefore protected against water and dust penetration. The ventilation units and filter installations are based on the protection class IP54. Best performance offers the wall housing by, among other things, the 3-point locking system with abschliessbarem pivot lever grip and insulated cable inputs. Integrated ventilation filter housing provides fresh air inlet (protection against water and dust penetration in accordance with IP54). Application areas are outdoor areas that are exposed to environmental effects (rain, dust, hail, snow, water).

This text is machine translated.

Features

Protection class IP55
Lockable steel front door with pivot lever handle
140° door opening angle
3-point four fraternity of the front door
Front door with earth and two welded, the bar in U-shape as well as seal
483 mm (19") profile rails mounted on the front side within the cabinet, galvanised
483 mm (19") profile rails are adjustable in depth and with marking the height unit fitted
1.5 mm robust steel sheet with high load capacity, powder-coated
Individually welded housing for more stability
Cable inputs in the floor: 2 x M32, 1 x M63, 2 x PVC blanking cap (28 mm diameter)
Porch offers hot air discharge from the casing fan modules to be installed
Integrated ventilation filter housing provides fresh air inlet
Includes 4 piece mounting bracket with 3 mm thickness for wall mounting as well as matching bolts and washers
The mounting level: front
Design of the profile rail: ended
Ventilation type: passive
With Roof sheet: yes
With Grounding: yes
With Front Door: yes
With side walls: yes
Design the surface: powder-coated
Design: with hard frame
