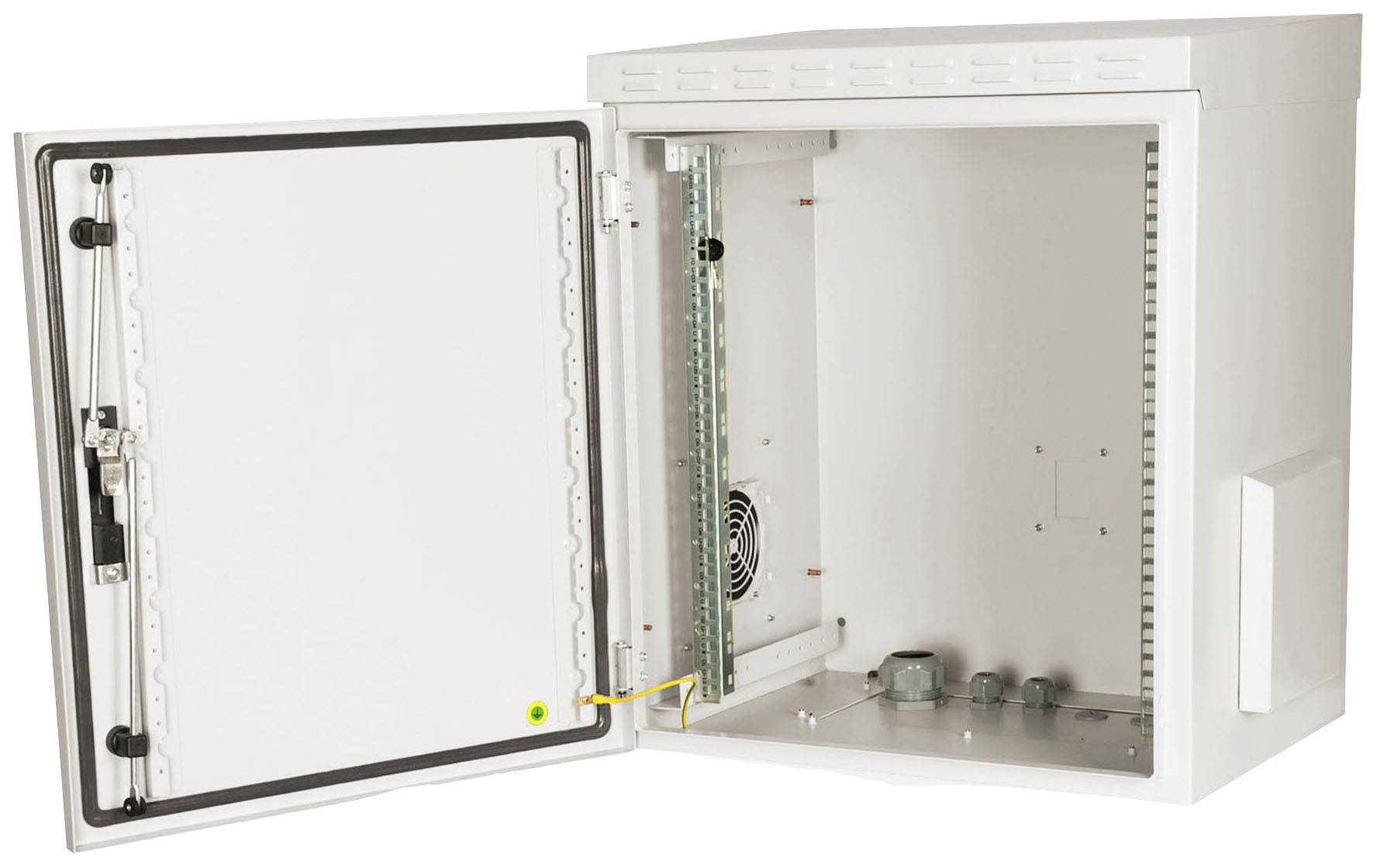

Digitus DN-19 12U-I-OD 19" wall cabinet (W x H x D) 600 x 714 x 450 mm 12 U Grey-white (RAL 7035)

The 19" IP55 Outdoor Wall Mounting Cabinets from DIGITUS® are designed for industrial applications. They are based on the IP55 safety class which is conform to the EN 60529 and are therefore protected against water-and dirt ingress. The fan and filter components are based on safety class IP54. Best performance is provided e.g. via the 3-point-locking system with lockable swing handle and isloated cable entries. Integrated air ventilation inlets ensure the entry of fresh air (protection against water and dust acc. to IP54). Application areas are open areas which are under the effect of the environment (Rain, dust, sleet, snow, splashing water).

· 1.5 mm strong sheet steel with high loading capacity, powder coated
· Loading capacity: 100 kg
· 3-Point-Locking system with lockable swing handle
· Numbered 19" profile rails on the front, variable in depth

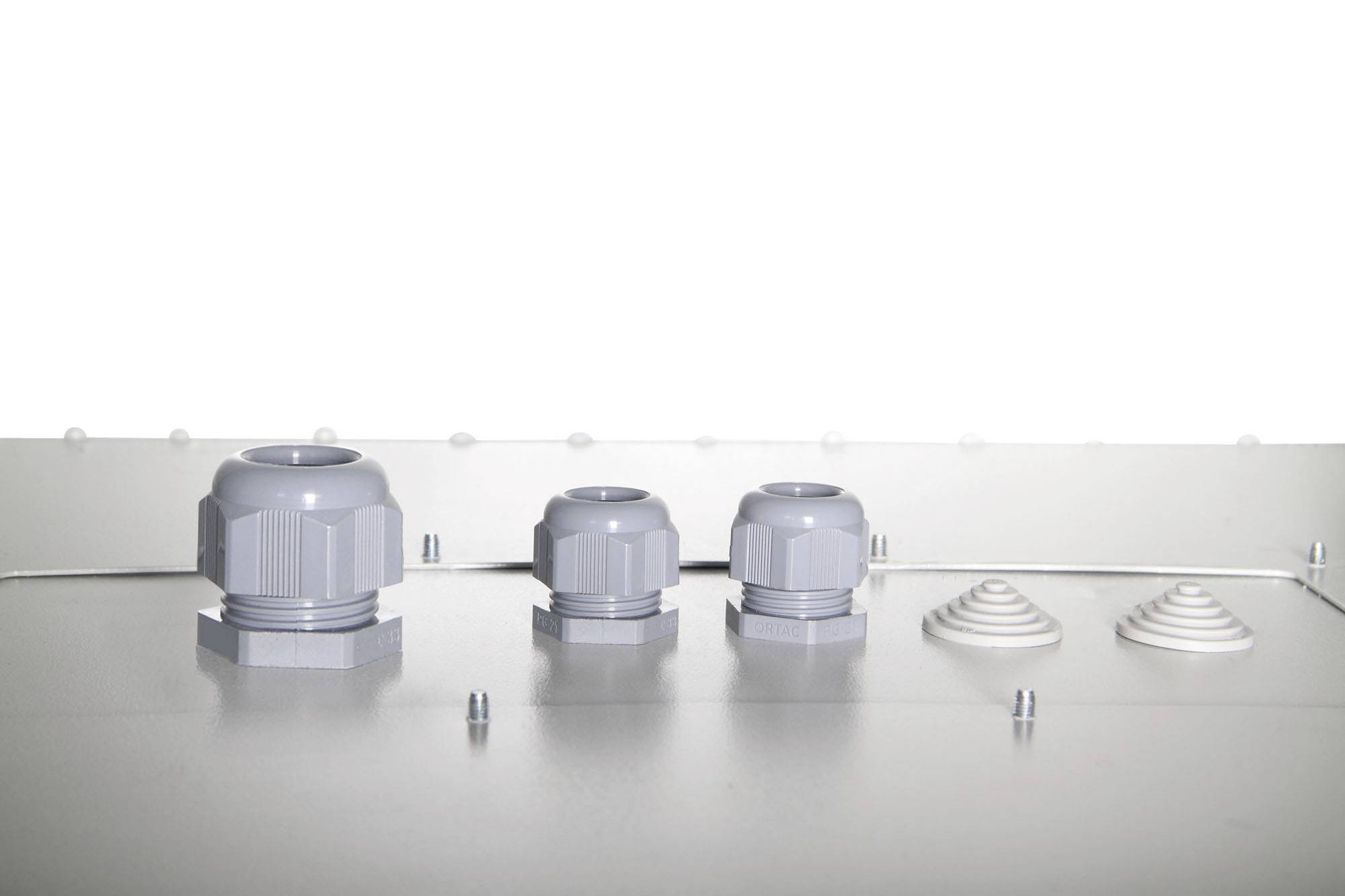

· Cable entries: 2x M32, 1x M63, 2x PVC blind cap (with diameter of 28 mm)

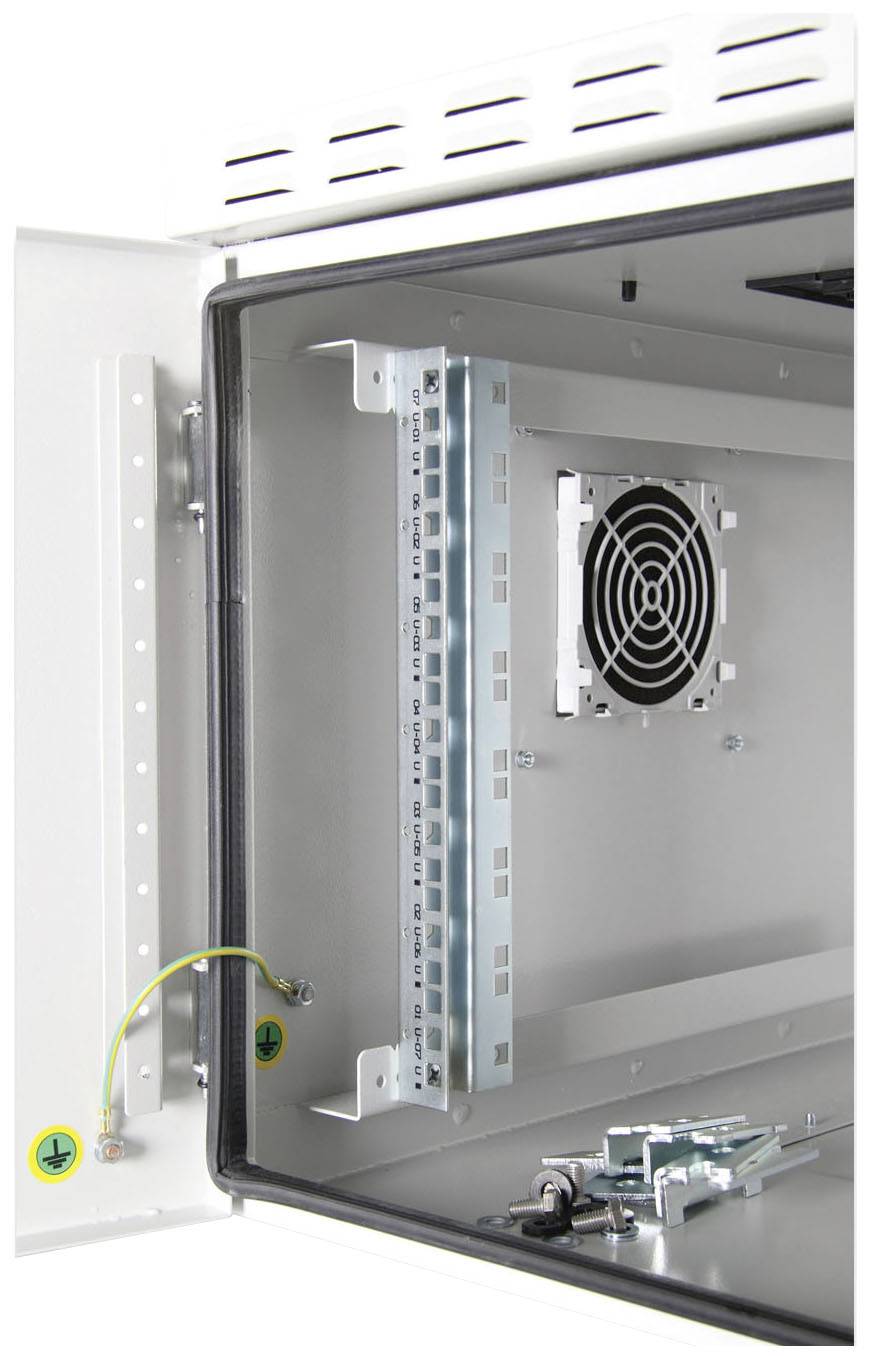

· Integrated air ventilation inlets ensure the entry of fresh air
· Front door with earthing lead and two welded, strenthening bars in U-shape
· Incl. mounting material
· Large range of equipment available
