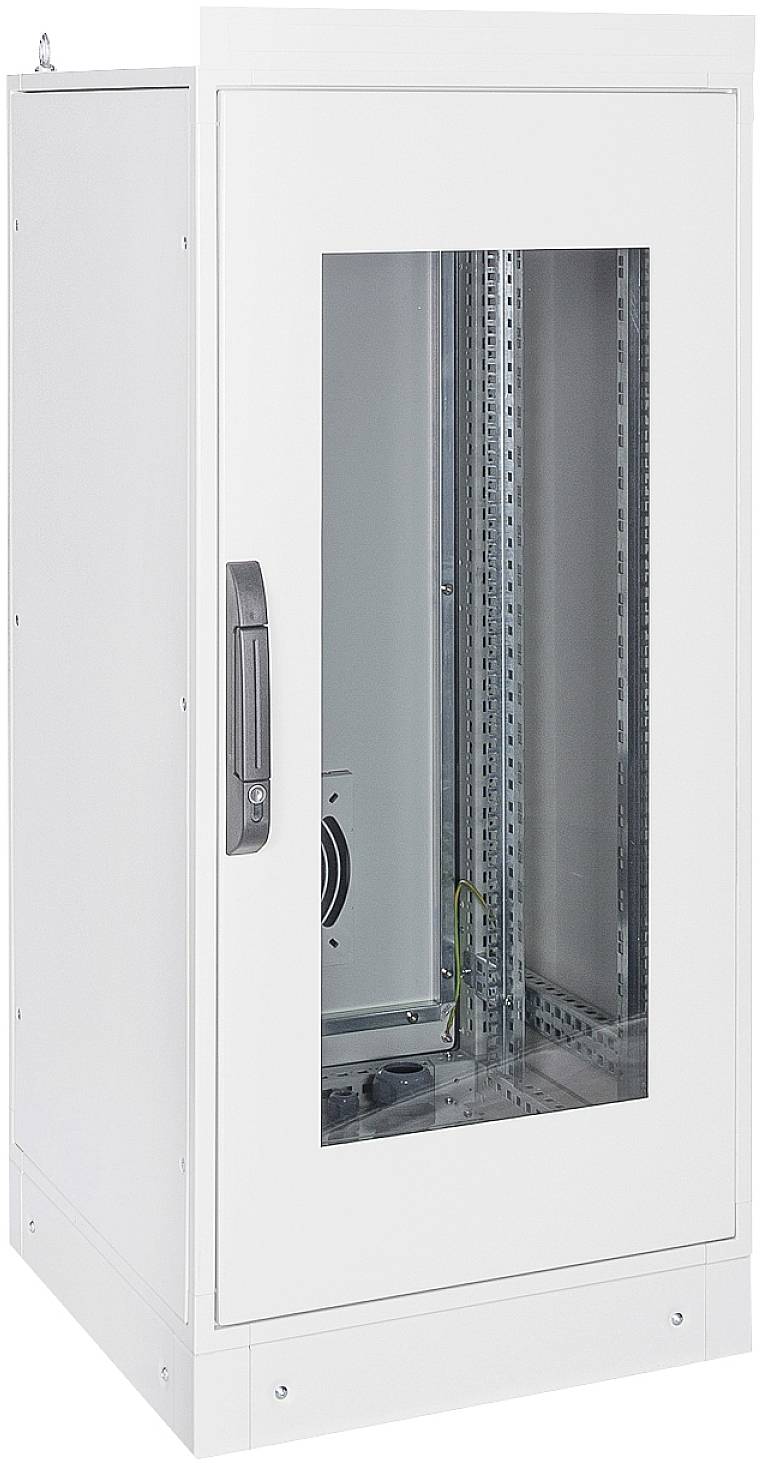

Digitus DN-19 42U-I-8/8-1 19" server rack cabinet (W x H x D) 2100 x 800 x 800 mm 42 U Grey, Grey (RAL 7035)

The 483 mm (19”) industrial network cabinets are protected against dust and water penetration according to the protection level IP55 (IEC EN 60529) and thus offer optimum conditions for the user-friendly installation of active and passive network components along with a clean cabling in the industrial environment. The coloring is done by a 70-90 µ strong powder coating in the color gray (RAL 7035) with a adhesion according to EN ISO 2409: Class 0 to 1. An additional 500-hour resistance test against salt spray confirms a possible operating temperature of -25 °C up to + 70 °C. The 483 mm (19") profile rails (two pairs = 4 pieces) installed inside are galvanized and marked with a height unit (can be counted in both directions). They can be adjusted in depth and are additionally connected with deep struts in the cabinet to enable intensive removal with 483 mm (19") components. A circumferential profile hole structure also supports this. Each cabinet is equipped with a 100 mm high base, which offers additional space for cable overlengths. There is a sliding cable inlet with foam rubber seal and five PG cable inlets (4x PG21 + 1x PG48) in the bottom of each cabinet. A widely available portfolio of accessories for cable routing, shelves, etc. helps to meet many requirements of daily practice.

This text is machine translated.
