Name: Digitus DN-49104-SET 10" server rack cabinet (W x H x D) 315 x 595 x 300 mm 12 U Grey
Brand: Digitus
SKU: 3462097

A network equipment setup including an open rack mount cabinet, an Ethernet switch, cable management panel, power strip, and mounting accessories.

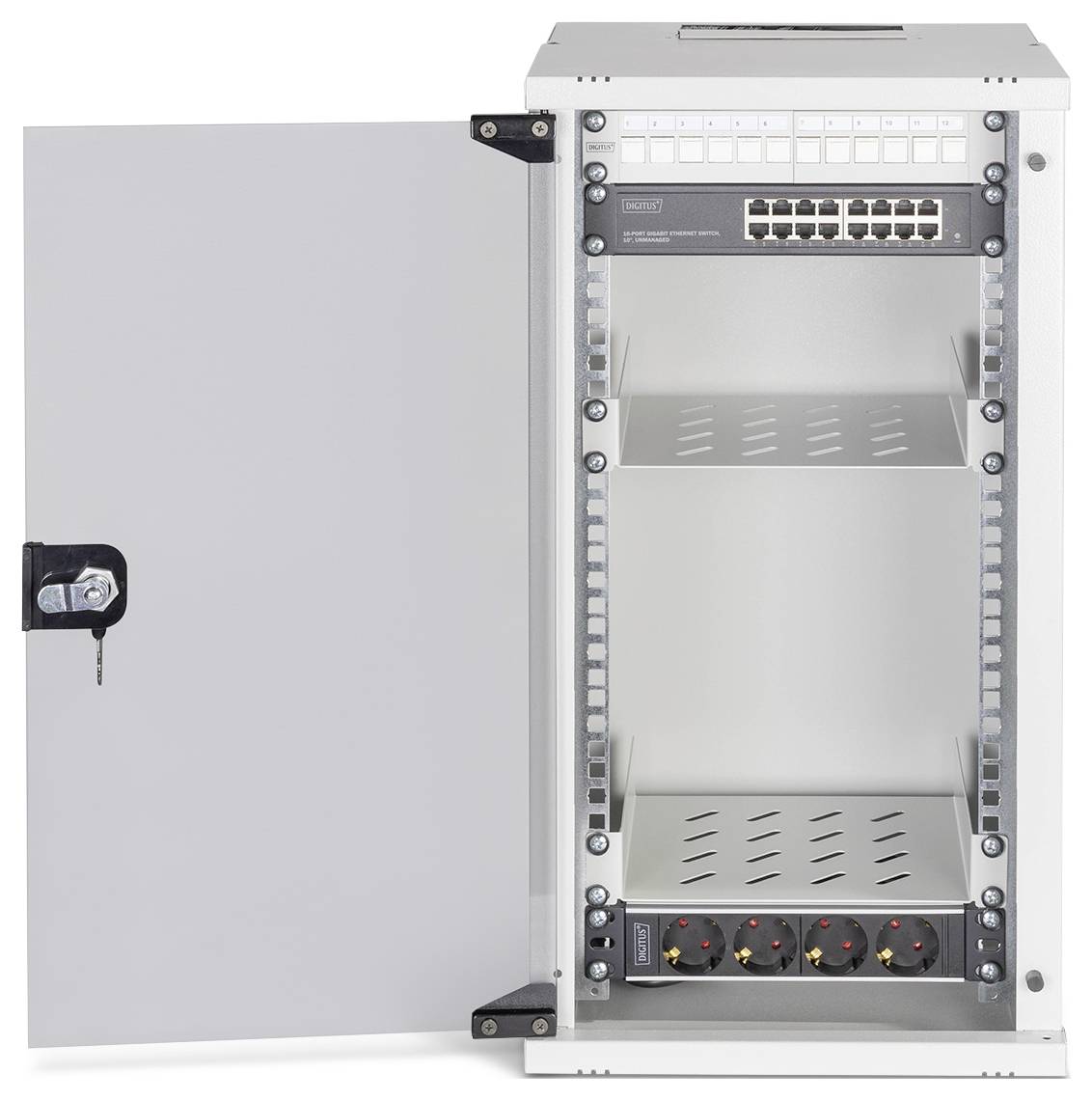

An open electrical cabinet with shelves, network ports, and switches visible inside. The cabinet door is secured with a key lock.

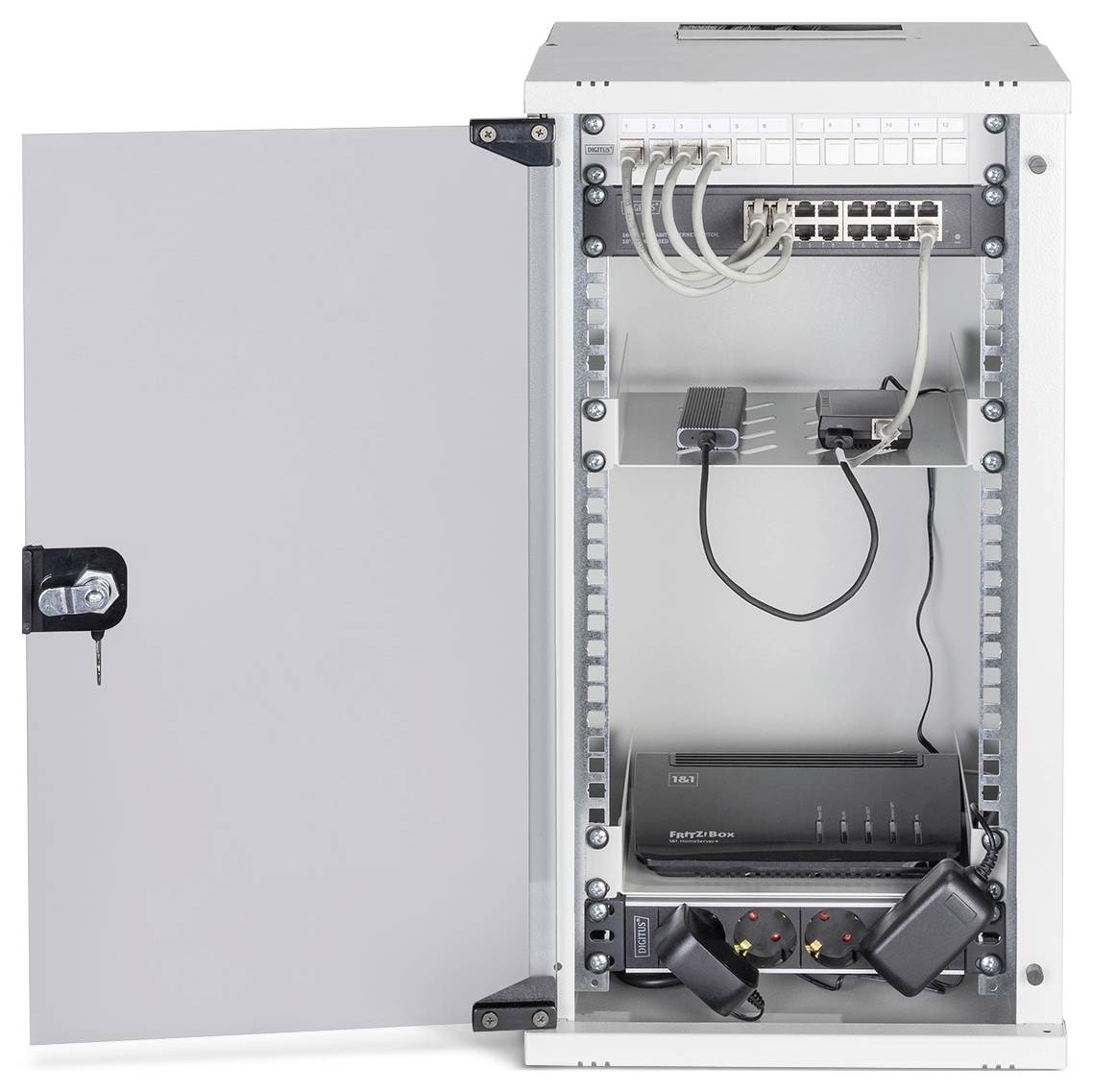

'Open server rack showing networking equipment, cables connected at the top, and various electronic devices organized on shelves.'

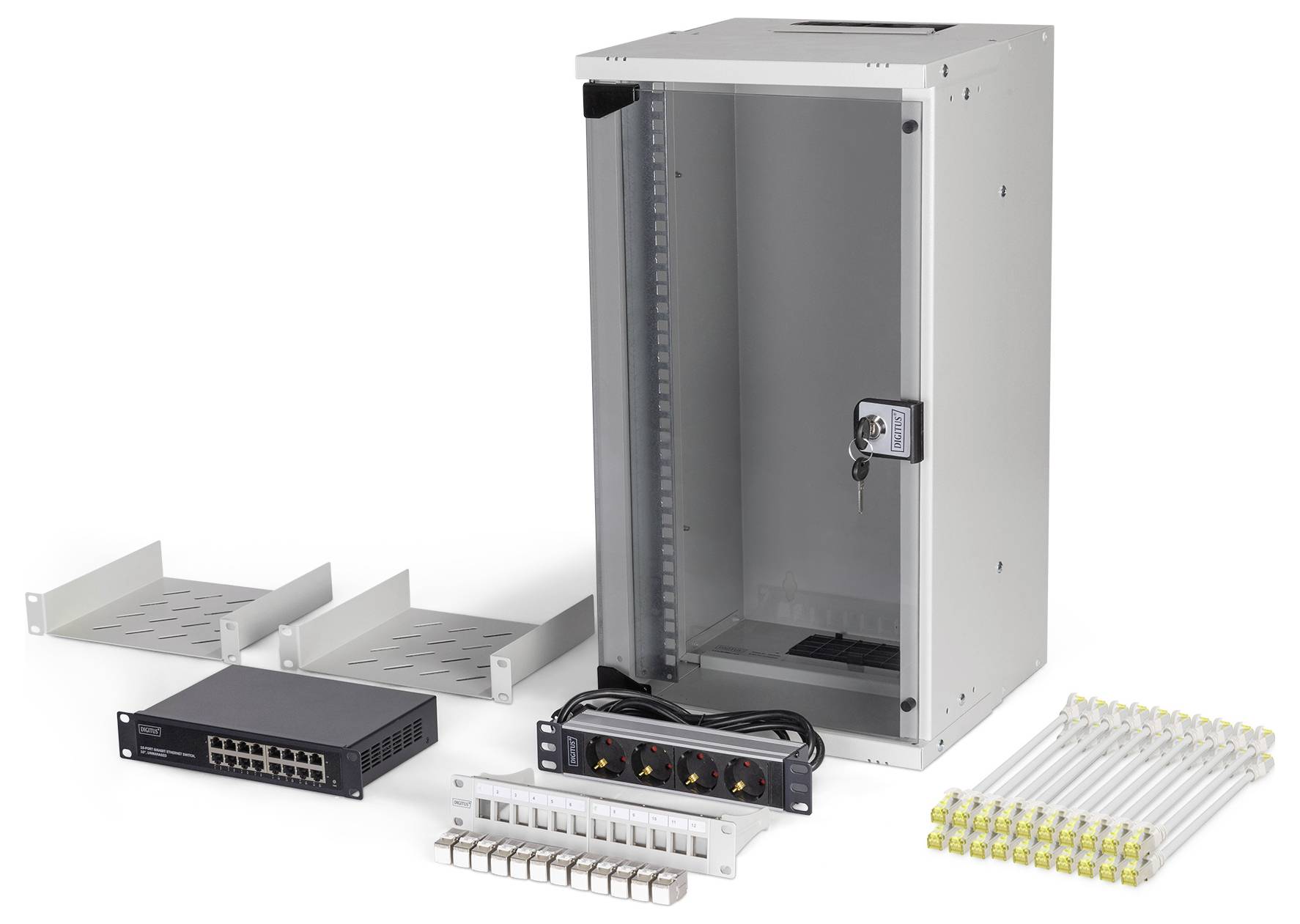

Networking cabinet setup including a metal enclosure with lock, Ethernet switch, patch panel, cable organizers, and mounting brackets.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus Network-Set SOHO Pro, 254 mm (10") - 12HE, 315 x 300 mm (W x D)

Maximum design freedom: Thanks to unassembled delivery, individual positioning of all 10" components is possible.
Including wall housing SOHO PRO, 12HE, 595 x 315 x 300 mm, unmounted (DN-49104)
Including 2 x shelf, 1HE (DN-10-TRAY-2)
Including power strip, 1HE, 4 x earthing contact (DN-95418)
Including Gigabit Ethernet switch, 16-port (DN-80115)
Including modular patch panel, 12-port (DN-91419)
Including 12 x Keystone module, CAT 6A, shielded (DN-93615)
Inclusive 20 x Patch cable, CAT 6A, S/FTP, 0.25 m

Technical specifications

Power strip 4 safety contact sockets
Voltage 250 V/AC, 50/60 Hz
Load capacity 16 A / 4000 W
Cable: 2 m (H05VV-F 3G1.5 mm²)
Switch standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Keystone module CAT 6A, 500 MHz
Patch cable CAT 6A, length 0.25 m, AWG 26/7

Product type: 10" server rack cabinet

Rack unit: 12 U

Width: 315 mm

Height: 595 mm

Depth: 300 mm

Material: Steel plate

Dim: (W x H x D) 315 x 595 x 300 mm

Weight: 13.65 kg

Factory colour: Grey

Rack size: 254 mm (10")

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3462097 Digitus DN-49104-SET 10" server rack cabinet (W x H x D) 315 x 595 x 300 mm 12 U Grey

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 254 mm (10") solutions of the SOHO Pro series. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions. Available in three designs of rack units (6HE, 9HE, 12HE) in these network sets perfectly tuned Digitus components are supplemented with one another in order to ensure a fast and easy functioning IT-cabling. The network cabinet as well as the respective accessories (e.g. Switch, Patch Panel, Socket connector, shelf, Cable management panel, Patch cables, etc.) are supplied in a compact box.

This text is machine translated.

Features

Supplied unassembled
With earthing contact plug
Keystone module: Suitable for PoE / PoE+ / 4-pin (IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt)
Patch cable S-FTP, Cu, LSZH, color gray

Scope of delivery

1 x wall housing, unassembled (incl. 2 x keys)
2 x lower compartment
1 x socket strip
1 x switch
1 x Patch Panel
12 x Keystone Module
20 x Patch cable

Hints
