Name: Digitus DN-49202-SET 19" server rack cabinet (W x H x D) 540 x 7 x 400 mm 7 U Grey
Brand: Digitus
SKU: 3462101

A wall-mounted server rack enclosure with open front door, including a power strip, shelf, patch panel, cable management, and screws.

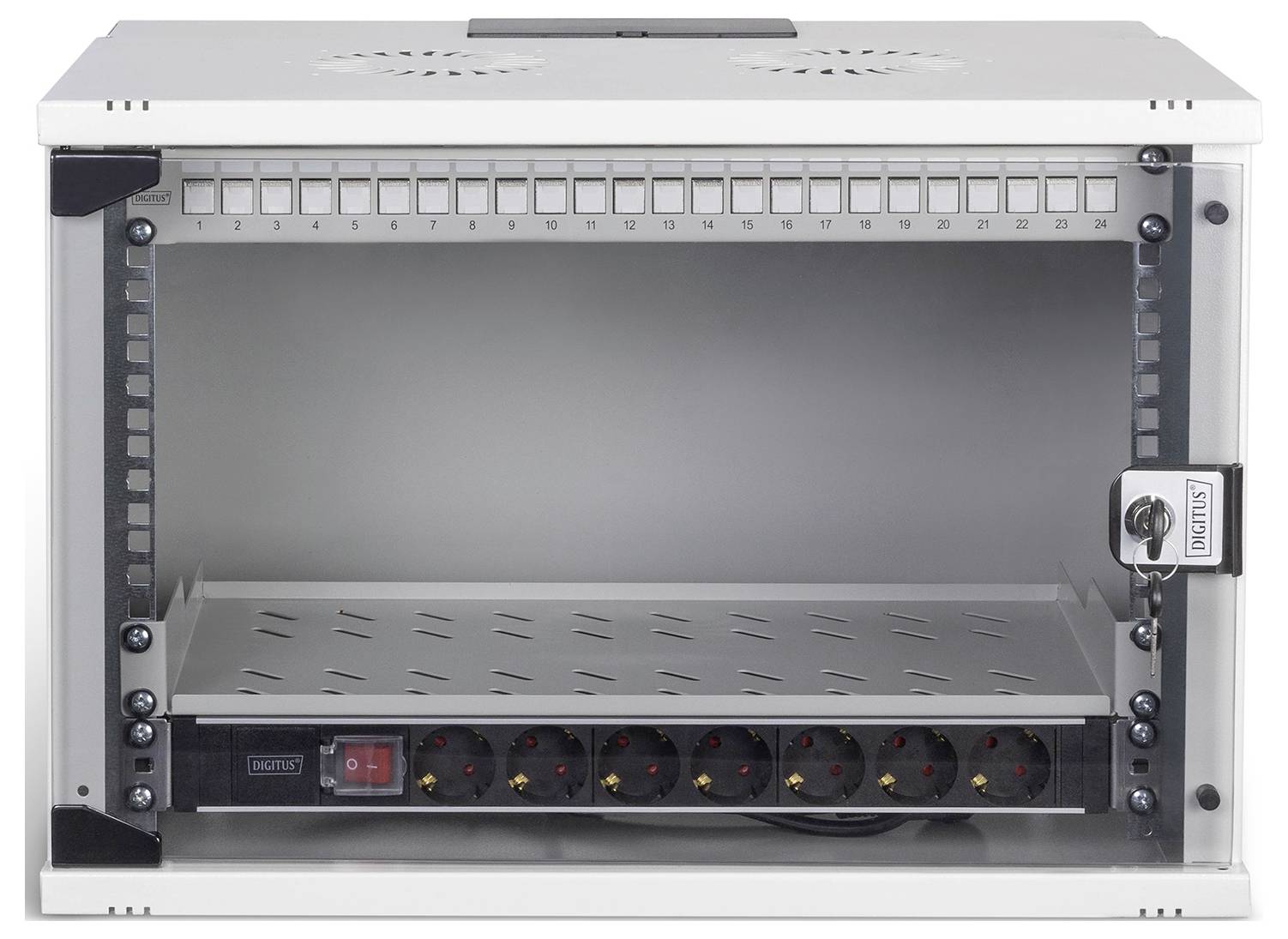

Rack-mounted metal enclosure with ventilation holes, key lock on the right, and a switched power distribution unit with multiple outlets at the bottom.

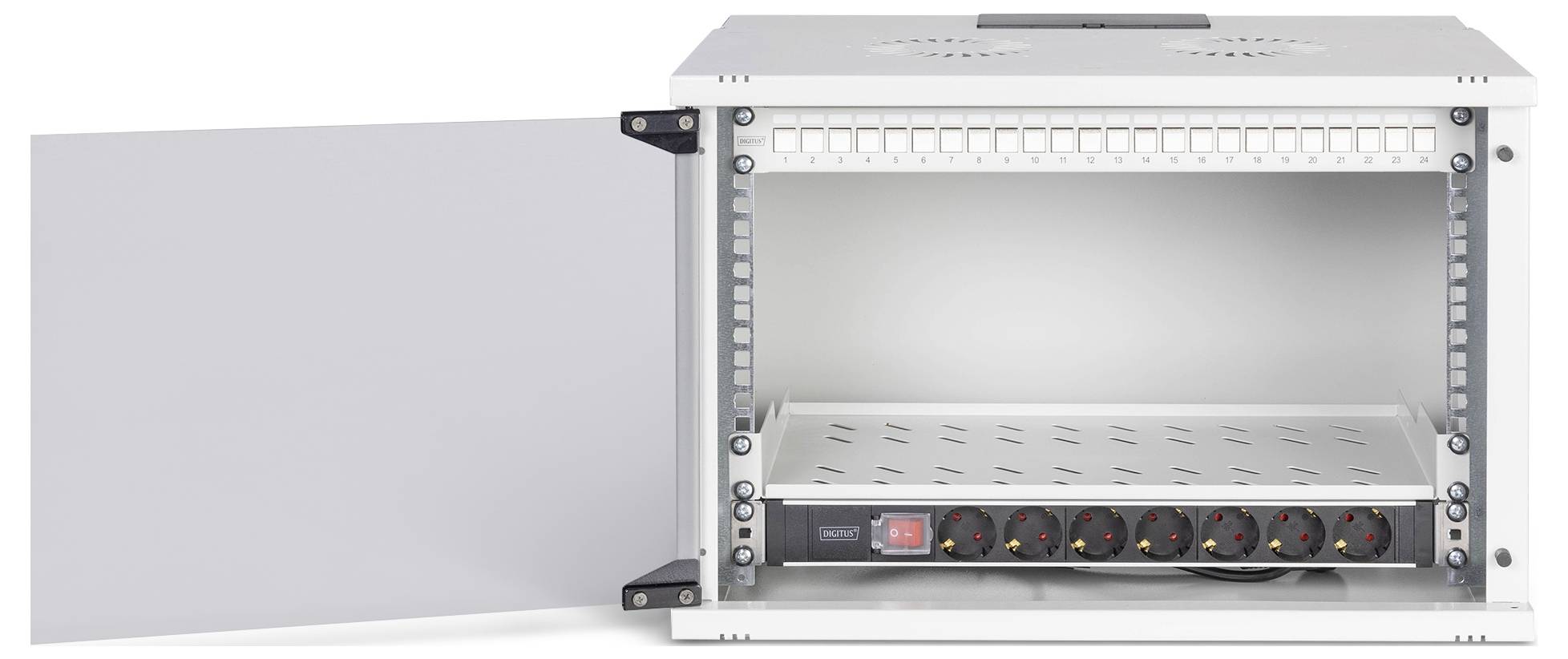

Open metal server rack cabinet with a front door ajar, showing empty slots and power sockets at the bottom.

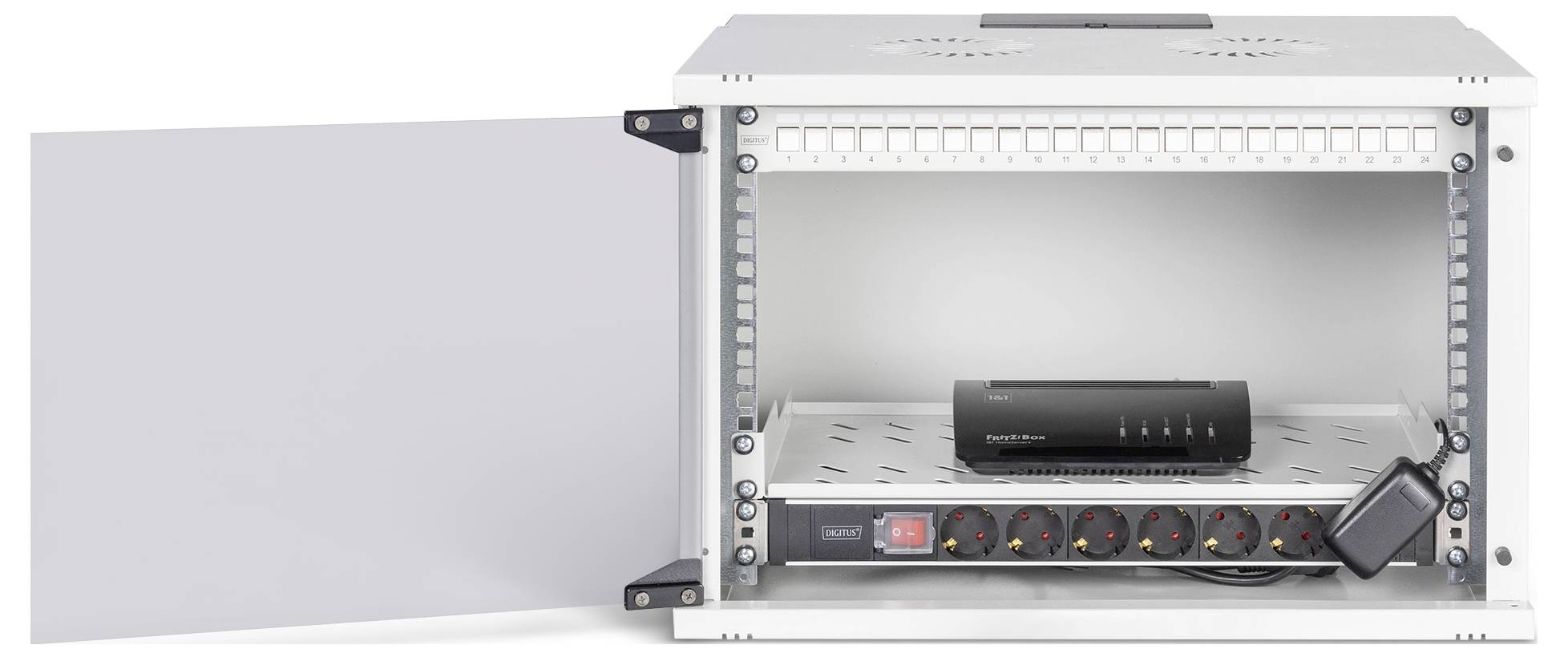

A white open server rack with a network switch inside, connected to a power strip and surge protector, indicating server setup.

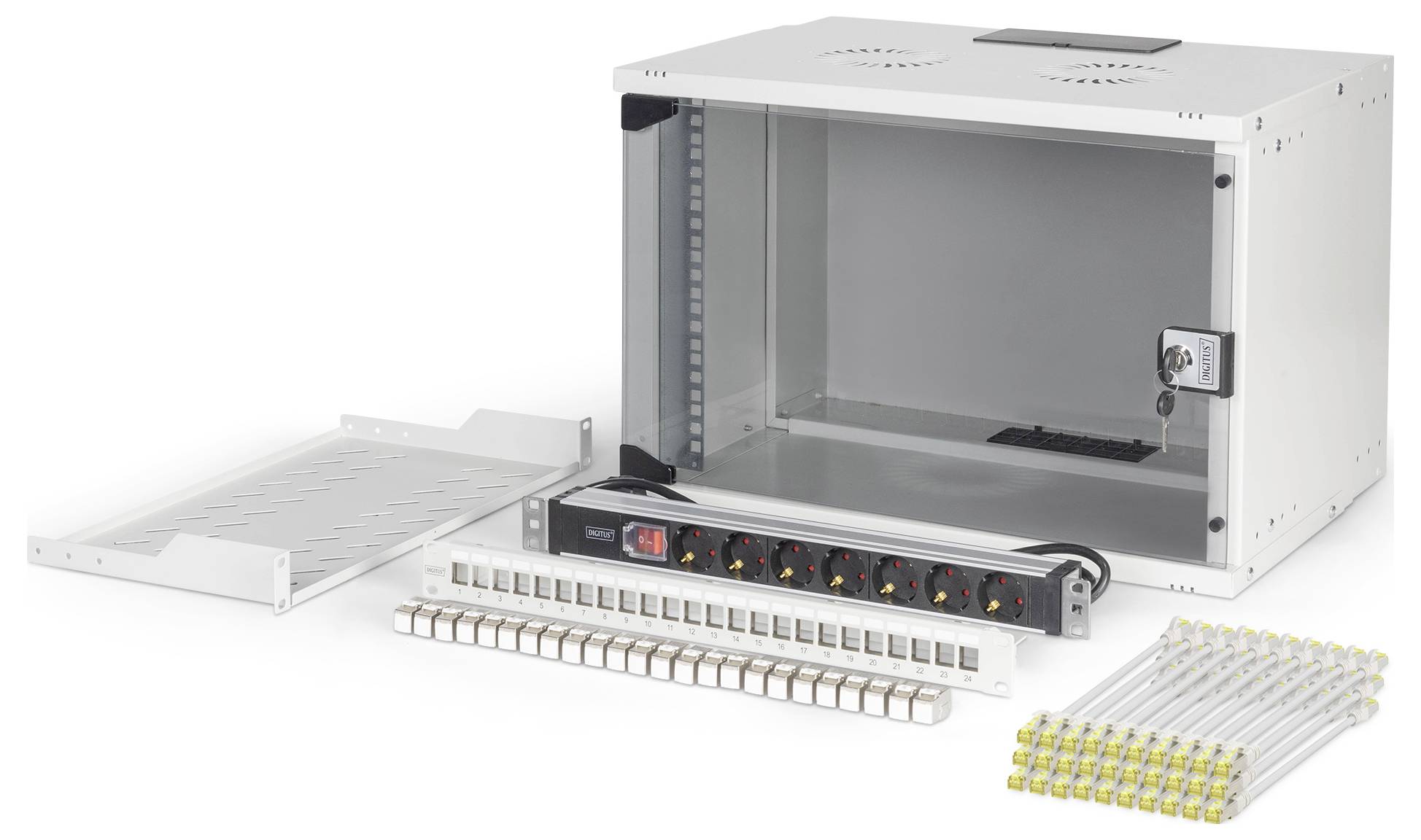

A gray metal network rack with an attached lock, a power strip with multiple sockets, cable organizers, and a stack of yellow cables.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus Network-Set SOHO Pro, 483 mm (19") - 7HE, 540 x 400 mm (W x D)

Maximum design freedom: Thanks to unassembled delivery, individual positioning of all 19" components is possible.
Including SOHO PRO, 7HE, 370 x 540 x 400 mm wall housing, unmounted (DN-49202)
Including shelf, 1HE (DN-97609)
Including power strip, 1He, 7 x earthing contact, with switch (DN-95402)
Including modular patch panel, 24-port (DN-91410)
Includes 24 x Keystone module, CAT 6A, shielded (DN-93615-24)
Inclusive 30 x Patch cable, CAT 6A, S/FTP, 0.25 m

Technical specifications

Dimensions of wall-mounted housing (H × W × D): 370 × 540 × 400 mm
Socket strip:7 earthing contact socket outlets 250 VAC, 50/60 Hz, 16 A, 4000 W
Power strip feed line: 2 m H05VV-F 3G1.5 mm²
Keystone Module: Category 6A, 10GBase-T, 500 MHz
CAT 6A S-FTP, Cu, LSZH, AWG 26/7, length 0.25 m
Width 540 mm
HE 7
Depth: 400 mm
60 kg load capacity
IP protection class IP20

Product type: 19" server rack cabinet

Rack unit: 7 U

Width: 540 mm

Height: 7 U

Depth: 400 mm

Material: Steel plate

Dim: (W x H x D) 540 x 7 x 400 mm

Factory colour: Grey

Rack size: 483 mm (19")

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3462101 Digitus DN-49202-SET 19" server rack cabinet (W x H x D) 540 x 7 x 400 mm 7 U Grey

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 483 mm (19") solutions of the SOHO Pro series. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions. Available in four rack units (4HE, 7HE, 9HE, 12HE) in these network sets perfectly tuned Digitus components are supplemented with one another in order to ensure a fast and easy functioning IT-cabling. The network cabinet as well as the respective accessories (e.g. Switch, Patch Panel, Socket connector, shelf, Cable management panel, Patch cables, etc.) are supplied in a compact box.

This text is machine translated.

Features

Supplied unassembled
Keystone module: Suitable for PoE/PoE+/4-pin (IEEE 802.3af, 802.3at, 802.3at), GHMT certified
Patch cable Colour: Grey
Housing color: Light gray, RAL 7035
Front door: Glass door, single-leaf
Cabinet type: Wall housing
Side walls: Both sides
Mounted: No.

Scope of delivery

1 x wall housing, unassembled (incl. 2 x keys)
1 x lower compartment
1 x socket strip
1 x Patch Panel
24 x Keystone Module
30 x Patch cable
