Name: Digitus DN-49206-SET 19" server rack cabinet (W x H x D) 540 x 595 x 400 mm 12 U Grey
Brand: Digitus
SKU: 3462105

A metal server rack cabinet with a glass door, ventilated shelves, power strip, cable management panel, and a pack of screws labeled 'x 30'.

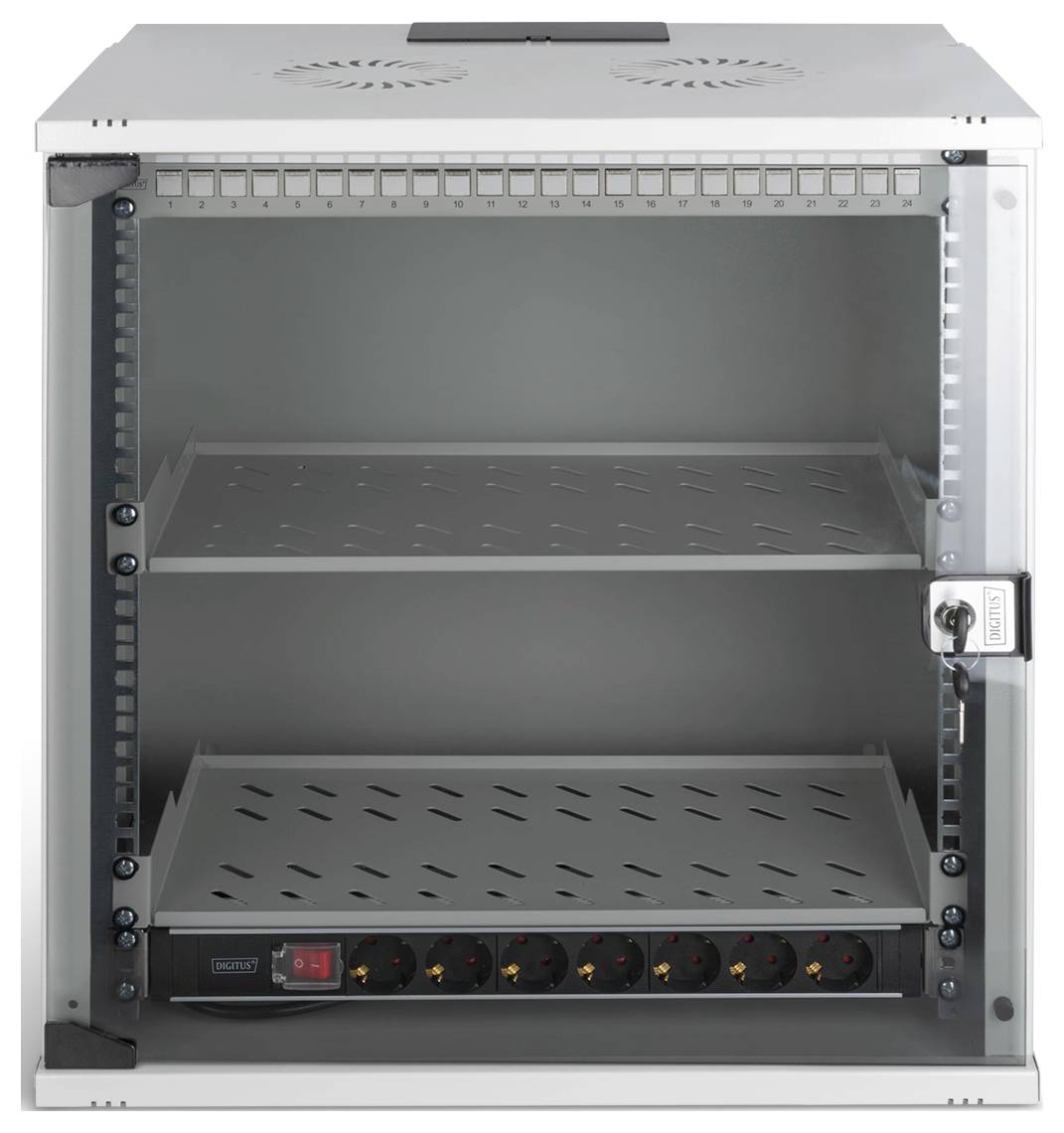

A metal cabinet with a transparent door contains two shelves and a power strip with multiple outlets. Suitable for organizing electronic equipment.

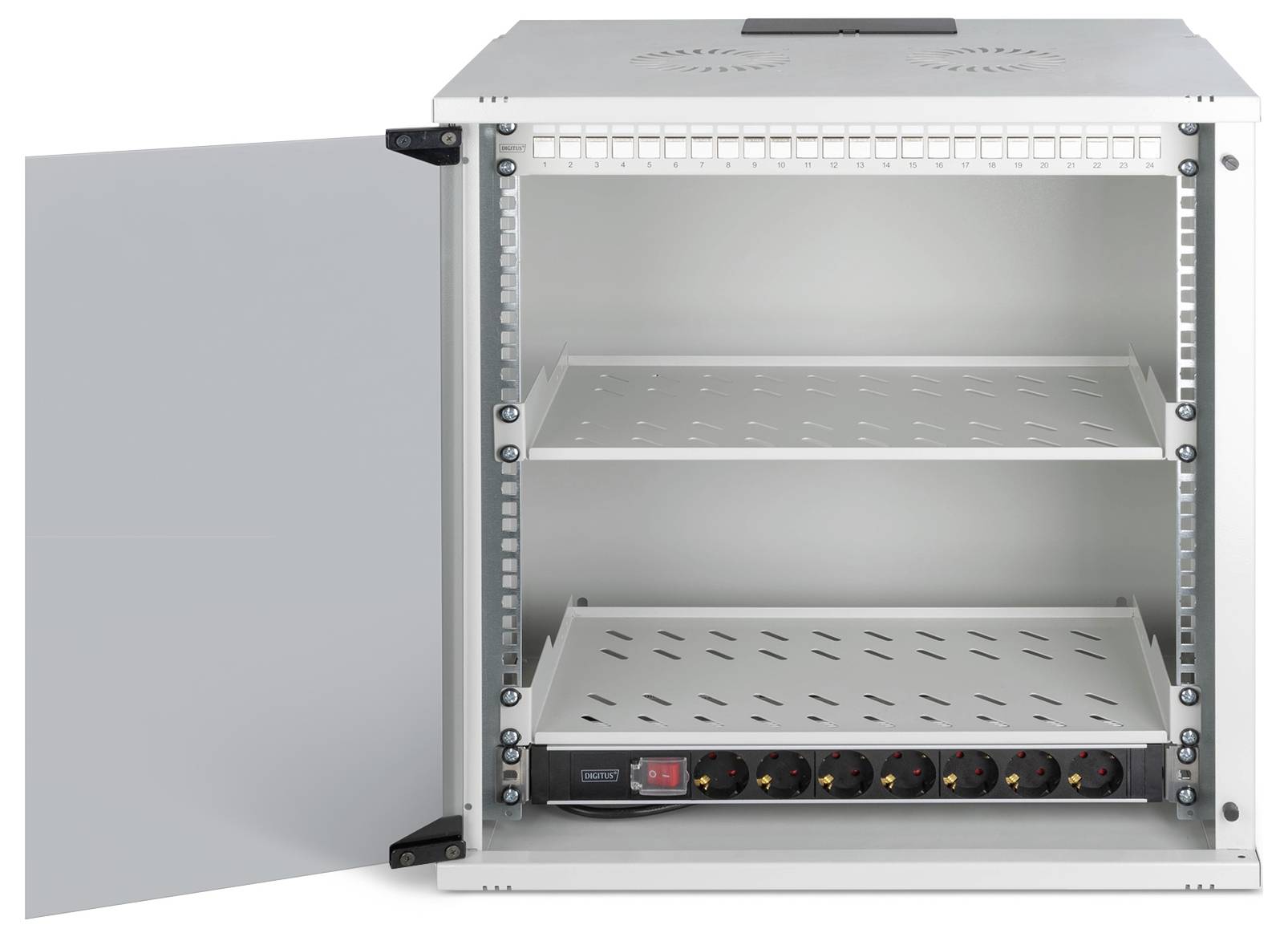

An open cabinet with a perforated shelf and power strip inside, designed for organizing and managing electronic devices or servers.

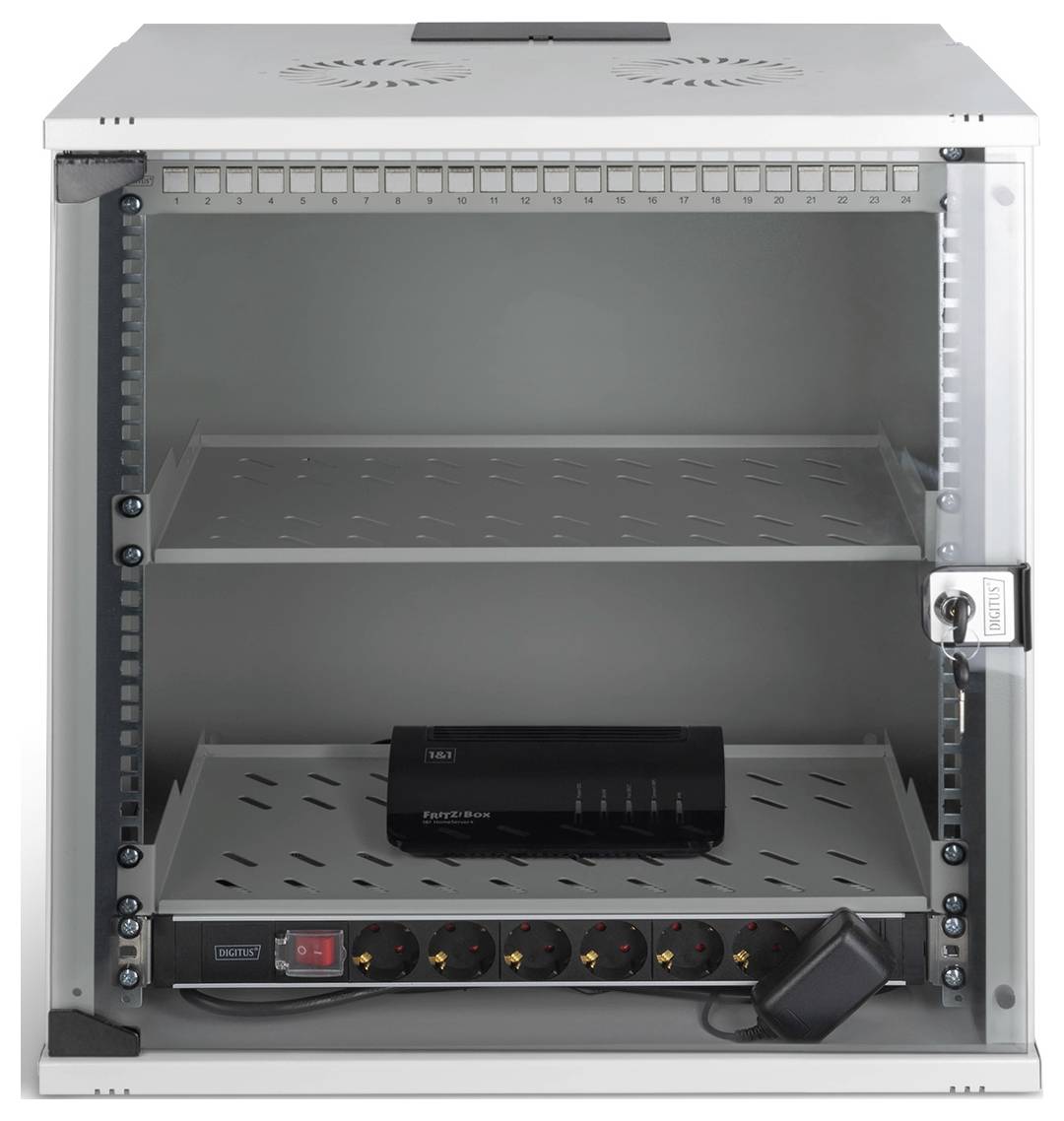

A metal server rack with a glass door showing an internet router on a middle shelf and a power strip on the bottom shelf.

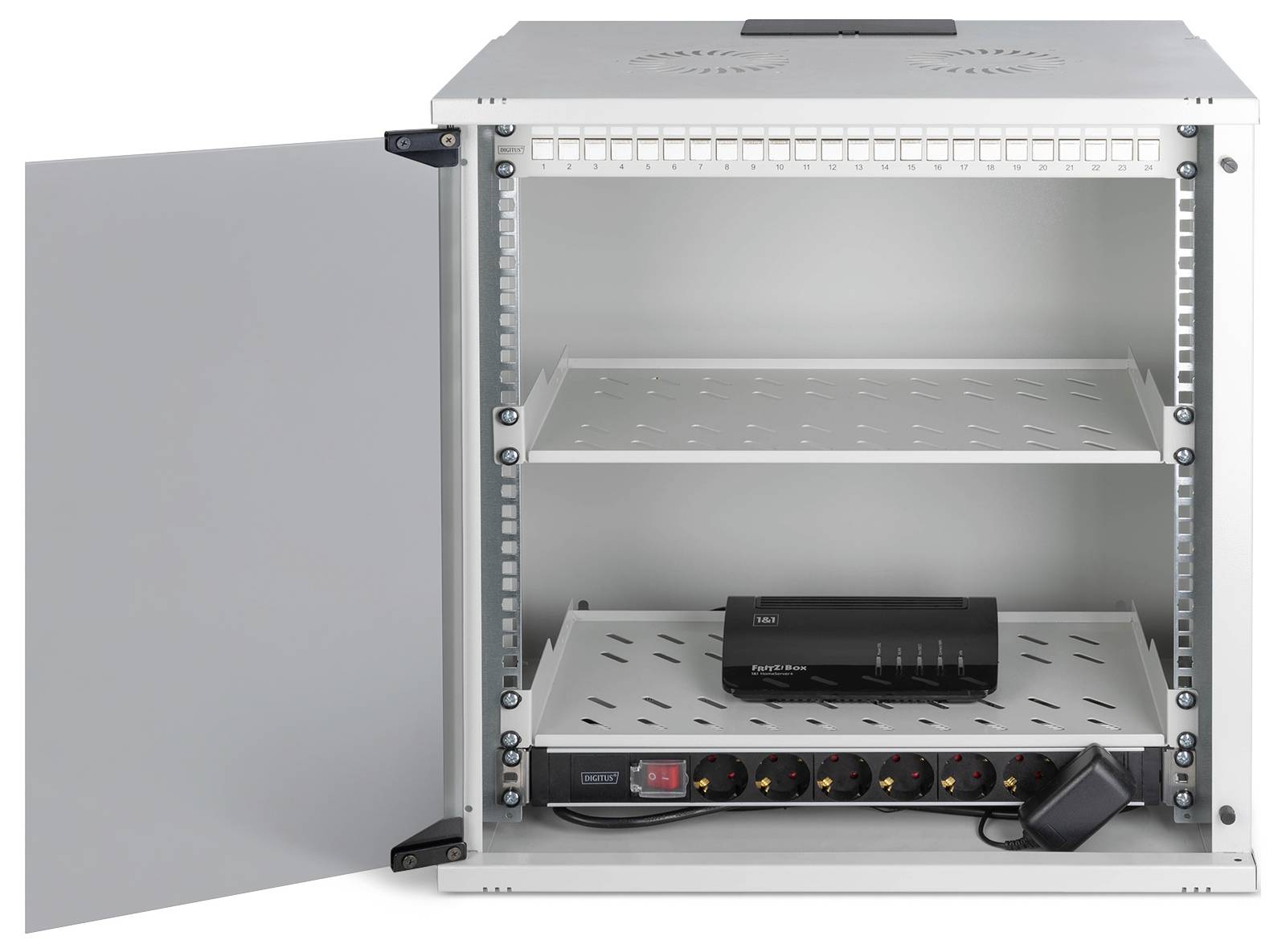

A wall-mounted network cabinet with an open door, revealing a switch and power distributor inside, designed for organizing network equipment.

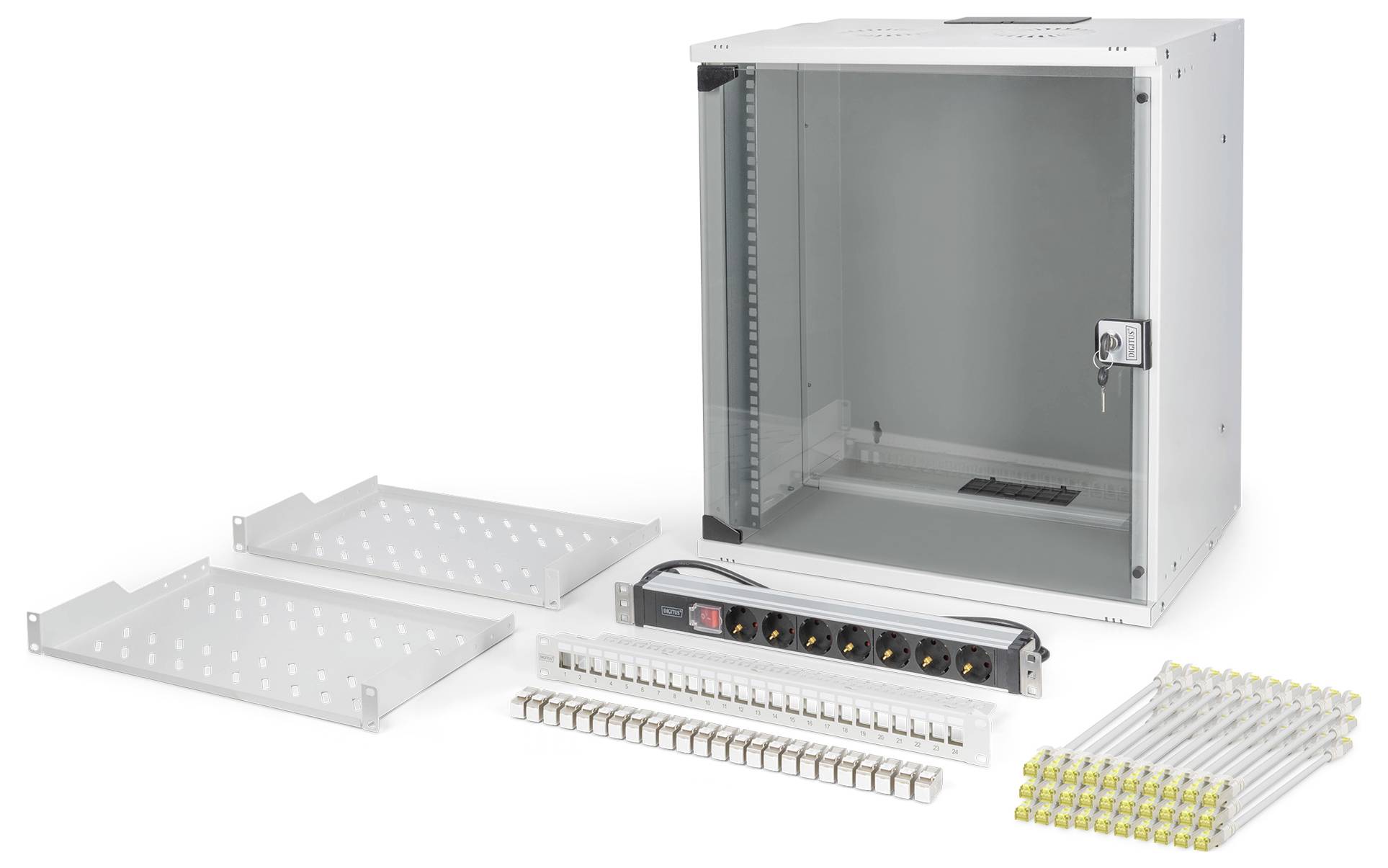

Network rack cabinet set: Includes a lockable cabinet, power strip, two ventilated shelves, cable management panel, and mounting hardware.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus Network-Set SOHO Pro, 483 mm (19") - 12HE, 540 x 400 mm (W x D)

Maximum design freedom: Thanks to unassembled delivery, individual positioning of all 19" components is possible.
Including wall housing SOHO PRO, 12HE, 595 x 540 x 400, mm, unmounted (DN-49206)
Including 2 x shelf, 1HE (DN-97609)
Including power strip, 1He, 7 x earthing contact, with switch (DN-95402)
Including modular patch panel, 24-port (DN-91410)
Includes 24 x Keystone module, CAT 6A, shielded (DN-93615-24)
Inclusive 30 x Patch cable, CAT 6A, S/FTP, 0.25 m

Technical specifications

Dimensions of wall-mounted housing (H × W × D): 595 × 540 × 400 mm
Power strip 7 safety contact sockets
Voltage 250 V/AC, 50/60 Hz
Load capacity 16 A / 4000 W
Cable: 2 m (H05VV-F 3G1.5 mm²)
Keystone Module: Category 6A, 500 MHz
Patch cable CAT 6A, length 0.25 m, AWG 26/7

Product type: 19" server rack cabinet

Rack unit: 12 U

Width: 540 mm

Height: 595 mm

Depth: 400 mm

Material: Steel plate

Dim: (W x H x D) 540 x 595 x 400 mm

Weight: 21.4 kg

Factory colour: Grey

Rack size: 483 mm (19")

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3462105 Digitus DN-49206-SET 19" server rack cabinet (W x H x D) 540 x 595 x 400 mm 12 U Grey

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 483 mm (19") solutions of the SOHO Pro series. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions. Available in four rack units (4HE, 7HE, 9HE, 12HE) in these network sets perfectly tuned Digitus components are supplemented with one another in order to ensure a fast and easy functioning IT-cabling. The network cabinet as well as the respective accessories (e.g. Switch, Patch Panel, Socket connector, shelf, Cable management panel, Patch cables, etc.) are supplied in a compact box.

This text is machine translated.
