Name: Digitus DN-49207-SET 19" server rack cabinet (W x H x D) 540 x 595 x 400 mm 12 U Black
Brand: Digitus
SKU: 3462106

A black IT server rack with an open front door is shown with components including shelves, a power strip, and cable management accessories.

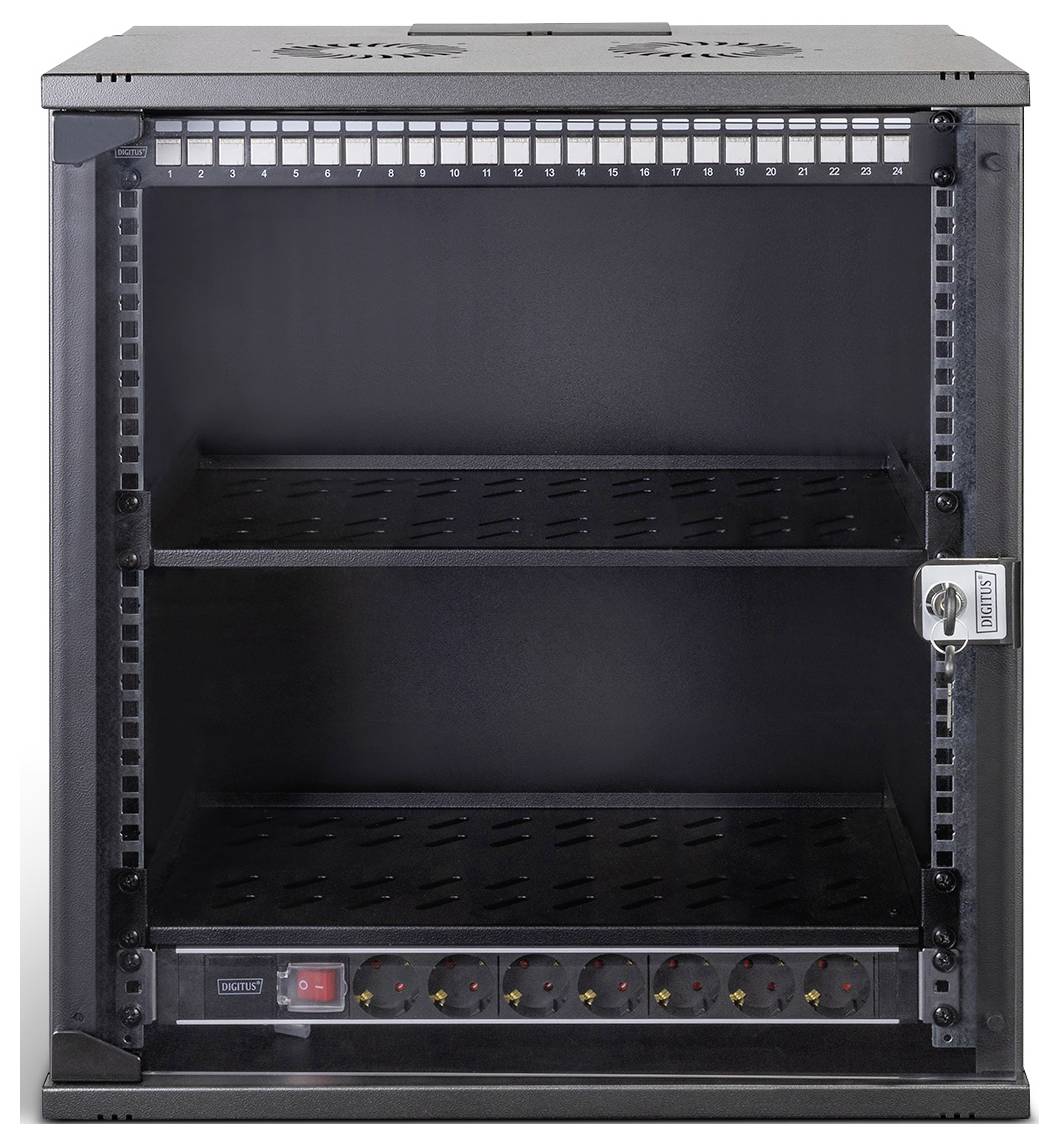

A black, wall-mounted server rack with two shelves and a lockable glass door. Below, a power distribution unit is visible.

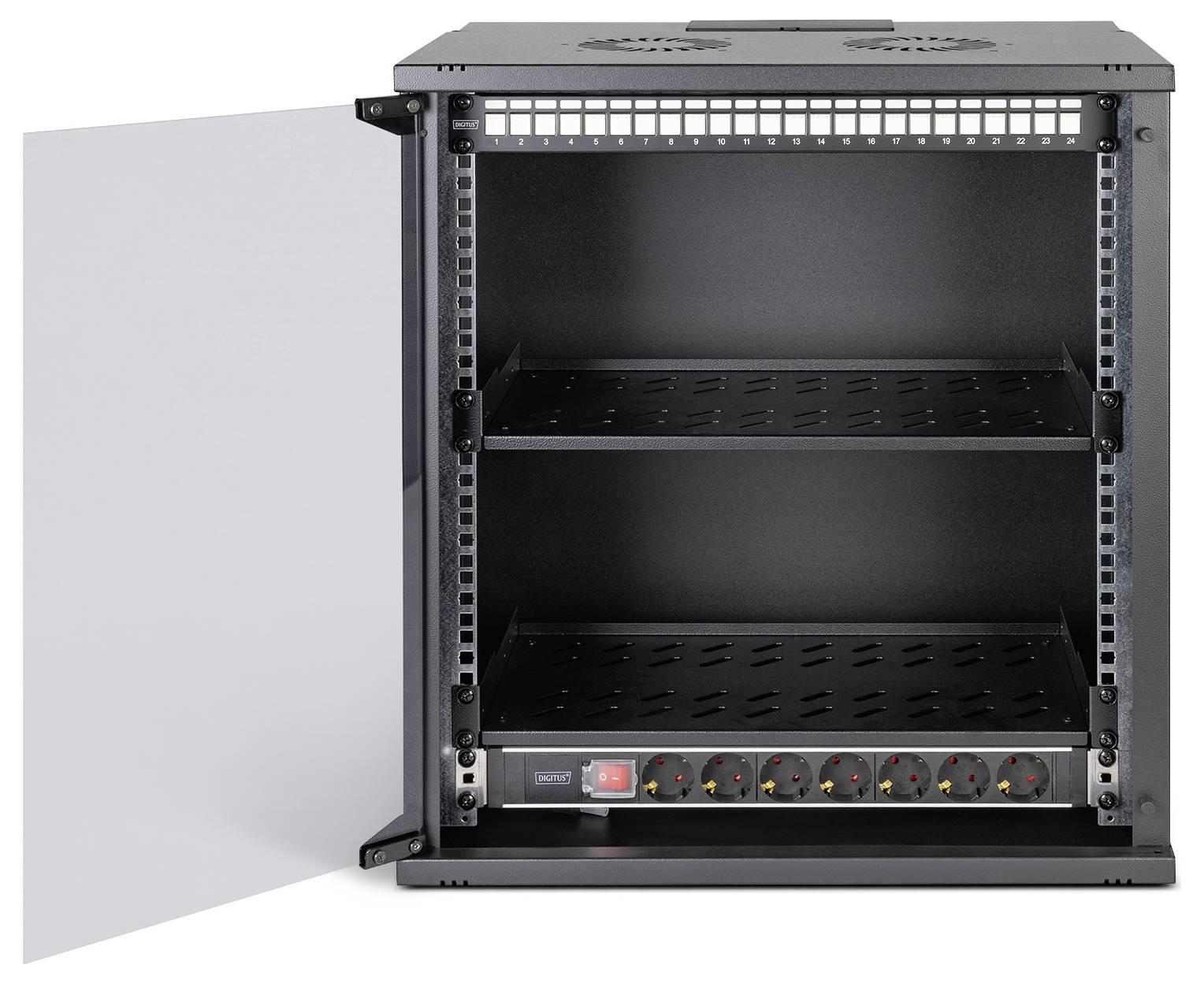

A black networking equipment rack with an open front door, two empty shelves, and a six-outlet power strip at the bottom.

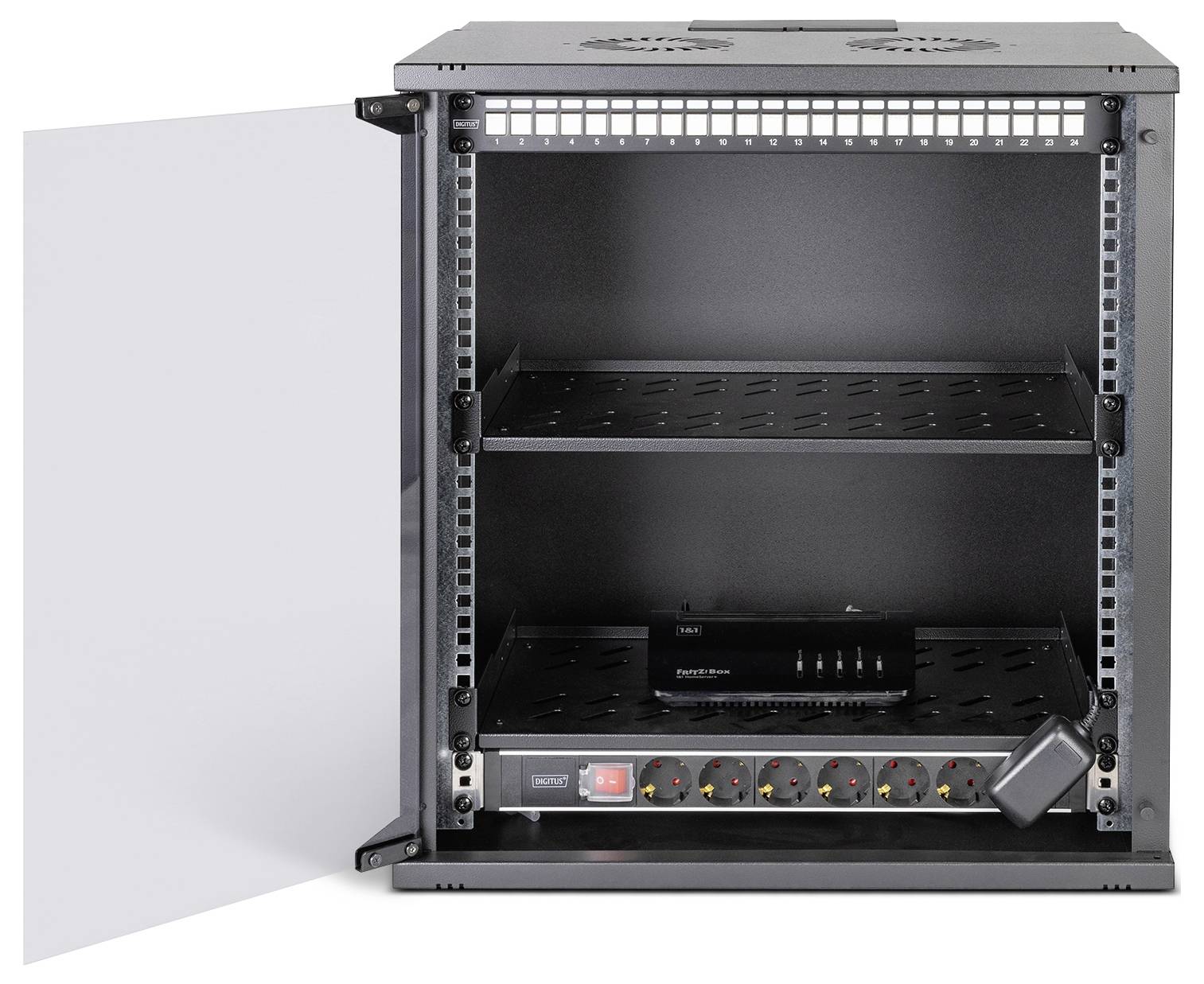

An open black metal server rack cabinet with a glass door, two shelves, a network switch, and a multiple socket power strip.

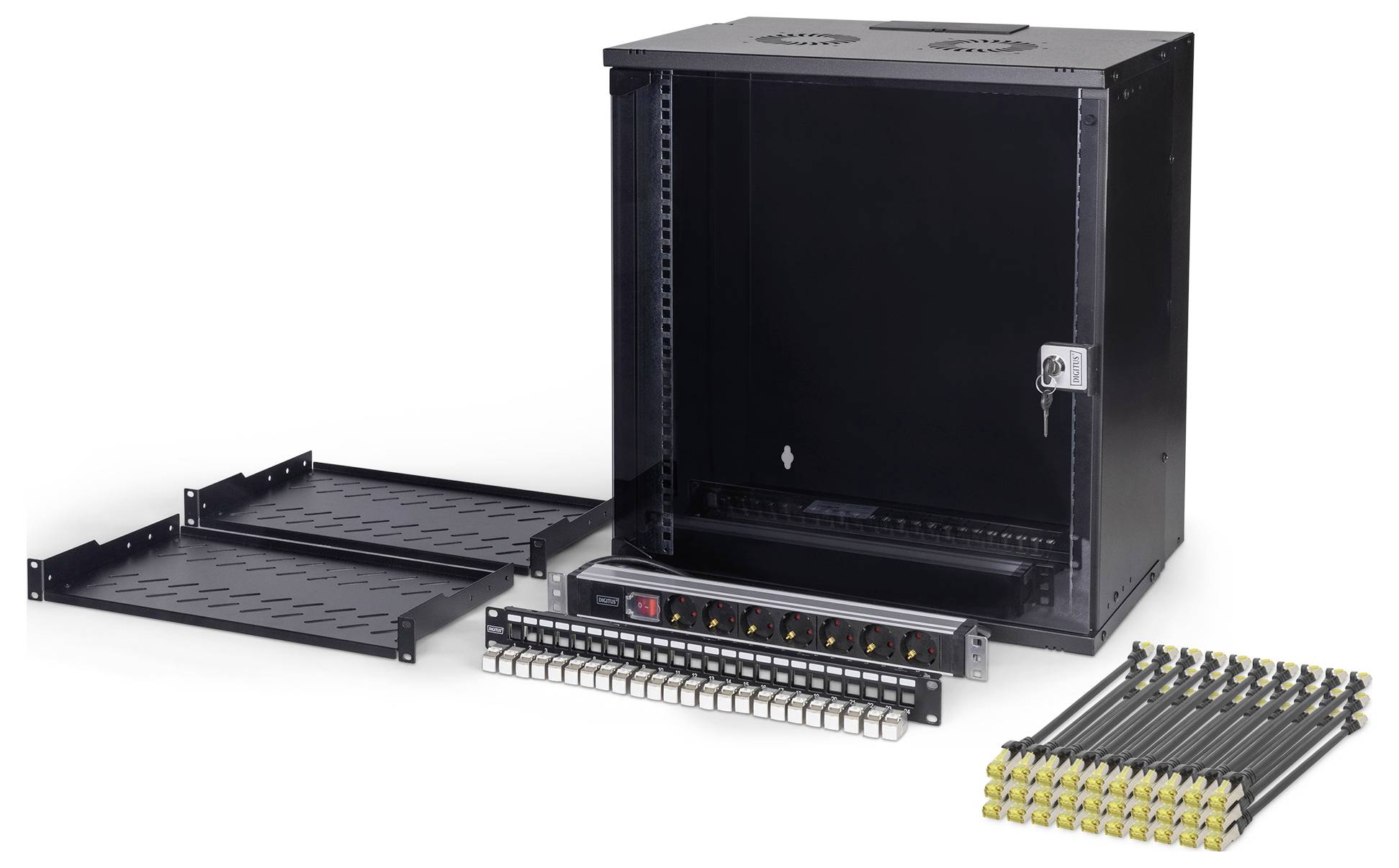

A black wall-mounted server rack with accessories, including vented shelves, a power strip, a patch panel, and a bundle of cables.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus Network-Set SOHO Pro, 483 mm (19") - 12HE, 540 x 400 mm (W x D)

Maximum design freedom: Thanks to unassembled delivery, individual positioning of all 19" components is possible.
Including wall housing SOHO PRO, 12HE, 595 x 540 x 400 mm, unmounted (DN-49207)
Including 2 x shelf, 1HE (DN-19 TRAY-1-SW)
Including power strip, 1He, 7 x earthing contact, with switch (DN-95402)
Including modular patch panel, 24-port (DN-91411)
Includes 24 x Keystone module, CAT 6A, shielded (DN-93615-24)
Inclusive 30 x Patch cable, CAT 6A, S/FTP, 0.25 m

Technical specifications

Dimensions of wall-mounted housing (H × W × D): 595 × 540 × 400 mm
Power strip 7 safety contact sockets
Voltage 250 V/AC, 50/60 Hz
Load capacity 16 A / 4000 W
Cable: 2 m (H05VV-F 3G1.5 mm²)
Keystone Module: Category 6A, 500 MHz
Patch cable CAT 6A, length 0.25 m, AWG 26/7

Product type: 19" server rack cabinet

Rack unit: 12 U

Width: 540 mm

Height: 595 mm

Depth: 400 mm

Material: Steel plate

Dim: (W x H x D) 540 x 595 x 400 mm

Factory colour: Black

Rack size: 483 mm (19")

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3462106 Digitus DN-49207-SET 19" server rack cabinet (W x H x D) 540 x 595 x 400 mm 12 U Black

Description

Whether you are working in the home, office or sub-distribution systems with limited space, you can install your network where you want with the compact 483 mm (19") solutions of the SOHO Pro series. The installation takes place in a few steps and is very easy thanks to the accompanying step-by-step instructions. Available in four rack units (4HE, 7HE, 9HE, 12HE) in these network sets perfectly tuned Digitus components are supplemented with one another in order to ensure a fast and easy functioning IT-cabling. The network cabinet as well as the respective accessories (e.g. Switch, Patch Panel, Socket connector, shelf, Cable management panel, Patch cables, etc.) are supplied in a compact box.

This text is machine translated.

Features

Supplied unassembled
PG plug
Keystone module: Suitable for PoE / PoE+ / 4-pin (IEEE 802.3af, 802.3at, 802.3at)
GHMT certified
Patch cable S-FTP, Cu, LSZH, color black

Scope of delivery

1 x wall housing, unassembled (incl. 2 x keys)
2 x lower compartment
1 x socket strip
1 x Patch Panel
24 x Keystone Module
30 x Patch cable

Hints

Please provide a phone number when placing your order, to allow us to arrange for a delivery date.
