Digitus DN-651131 DN-651131 Industrial Ethernet switch 4+1 ports 10 / 100 MBit/s PoE
EAN:
Part number:
Item no:
Highlights & Details
Digitus DN-651131 4+1-Port Industrial PoE Fast Ethernet Switch, 10/100Base-TX to 100Base-FX, unmanaged, rail mounting, redundant power supply
- The use of a high-quality photoelectric integration module ensures good transfer rates for optical and electrical connections.4 ports 10/100 Base-Tx RJ45 with auto negotiation and auto-MDI/MDI-X function, PoE IEEE 802.3af/at (up to 30W)1-Port 100Base-Fx interface SFP48V to 57V DC, redundant power connection possibleSupports full-duplex or half-duplex mode, with automatic negotiationNetwork connection supports automatic cross-identification
Technical specifications

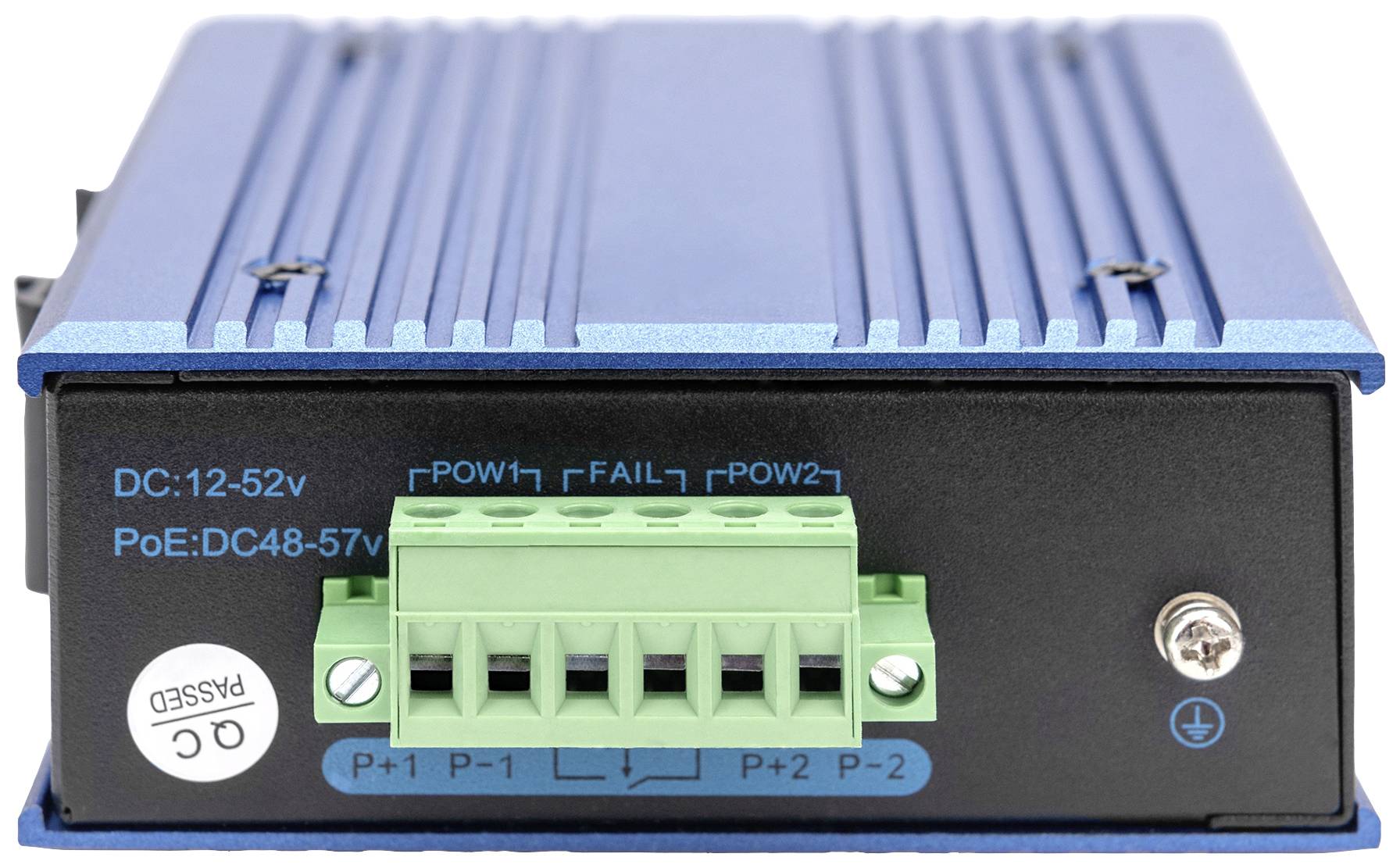

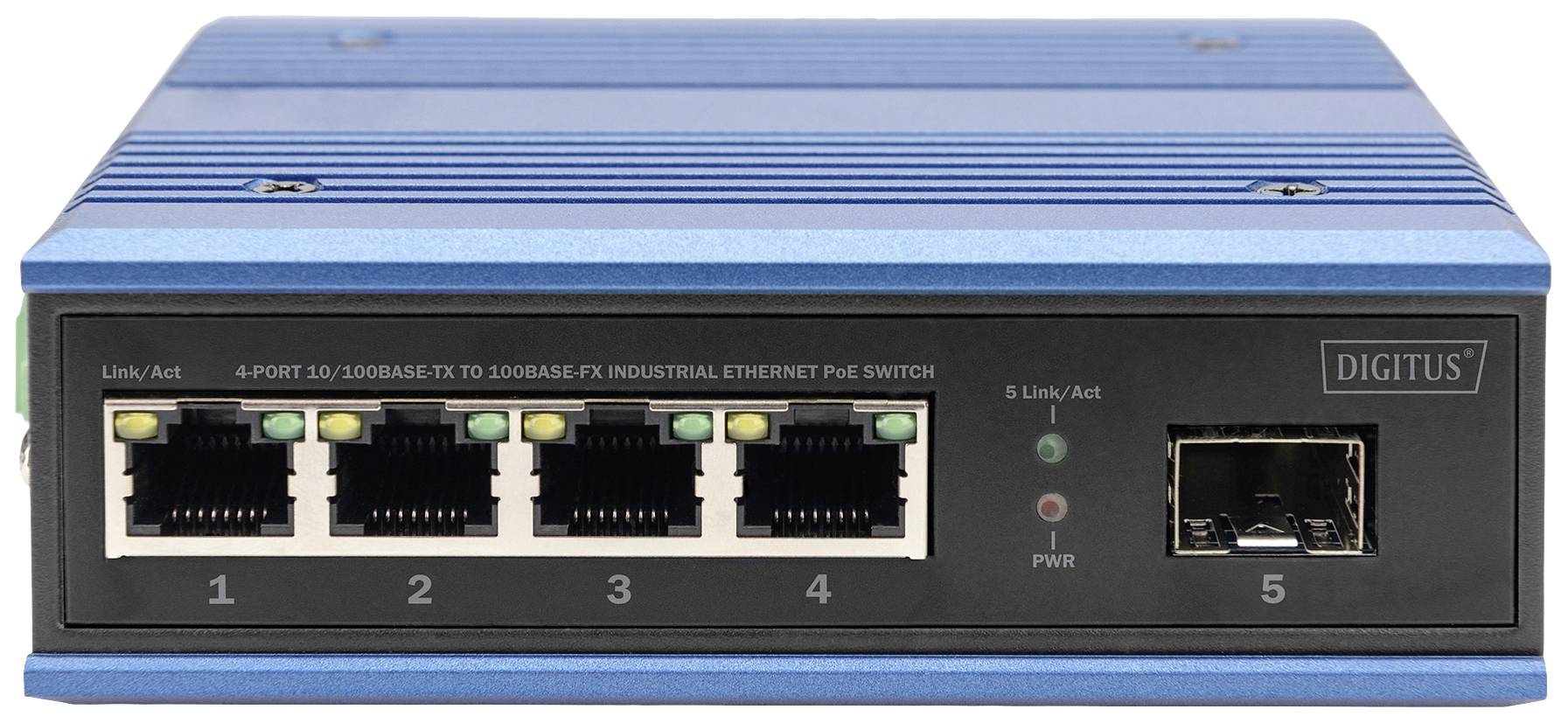

- Operating temperature 40℃ to 80℃IP40-Aluminium casingPerformance Specification: Bandwidth: 1.6Gbps; Packet Buffer Memory: 1Mbit; Packet Forwarding Rate: 1.2MppsFlow control: Uses the back pressure technology for half duplex, uses the pause frame technology in full-duplex modeHousing: Aluminium housing of the protection class IP40LED display: Power: Red; Fiber: Link 2(Green); Ethernet: YellowPower input: 48 to 57VDC - It is possible to install a redundant power supplyPower consumption : Less than 3 wattNetwork protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u; 100Base-TX/FX;FCC CFR47 Part 15, EN55022/CISPR22, Class A, IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air), IEC61000-4-3 (RS): 10V/m (80~1000MHz), IEC61000-4-4 (EFT): Power supply: ±4kV; data connection: ±2kV, IEC61000-4-5 (overvoltage)Working environment: Operating temperature: -40 to max 80℃; storage temperature: -40 to max. 80℃Relative humidity: 5% to 95% max (no condensation)PoE standard ; IEEE802.3at (PoE+)Ethernet speed: Fast EthernetIndustrial use: YesManaged: No.Suitable for outdoor use: No.Power over Ethernet (PoE ): No.Protection against vandalism: No.VLAN: No.
- Product type
Industrial Ethernet switch
- LAN transfer rate
10 MBit/s
100 MBit/s
- Transfer rate
10 / 100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
4
- IEEE 802.3af PoE
4
- PoE ports
4
- SFP ports
1 x
- 10/100 Mbps ports
4 x
- Fibre-optic ports
1
- Port type
RJ45
- Auto-uplink at each port
No
- Router features
PoE
- Power supply (LOV)
mains-powered
mains-powered (redundant)
via DC in
via DIN rail PSU
- MAC addresses
2000
- Weight
450 g
- Width
128 mm
- Height
34 mm
- Depth
86 mm
- Type
DN-651131
- Interfaces
RJ45
SFP
IP40
- Factory colour
Blue
- Operating voltage
52 V
- Current consumption
3 W
- Max. ambient temperature
80 °C
- Min. ambient temperature
-40 °C
- Port
4+1 ports
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2794222 Digitus DN-651131 DN-651131 Industrial Ethernet switch 4+1 ports 10 / 100 MBit/s PoE
Description

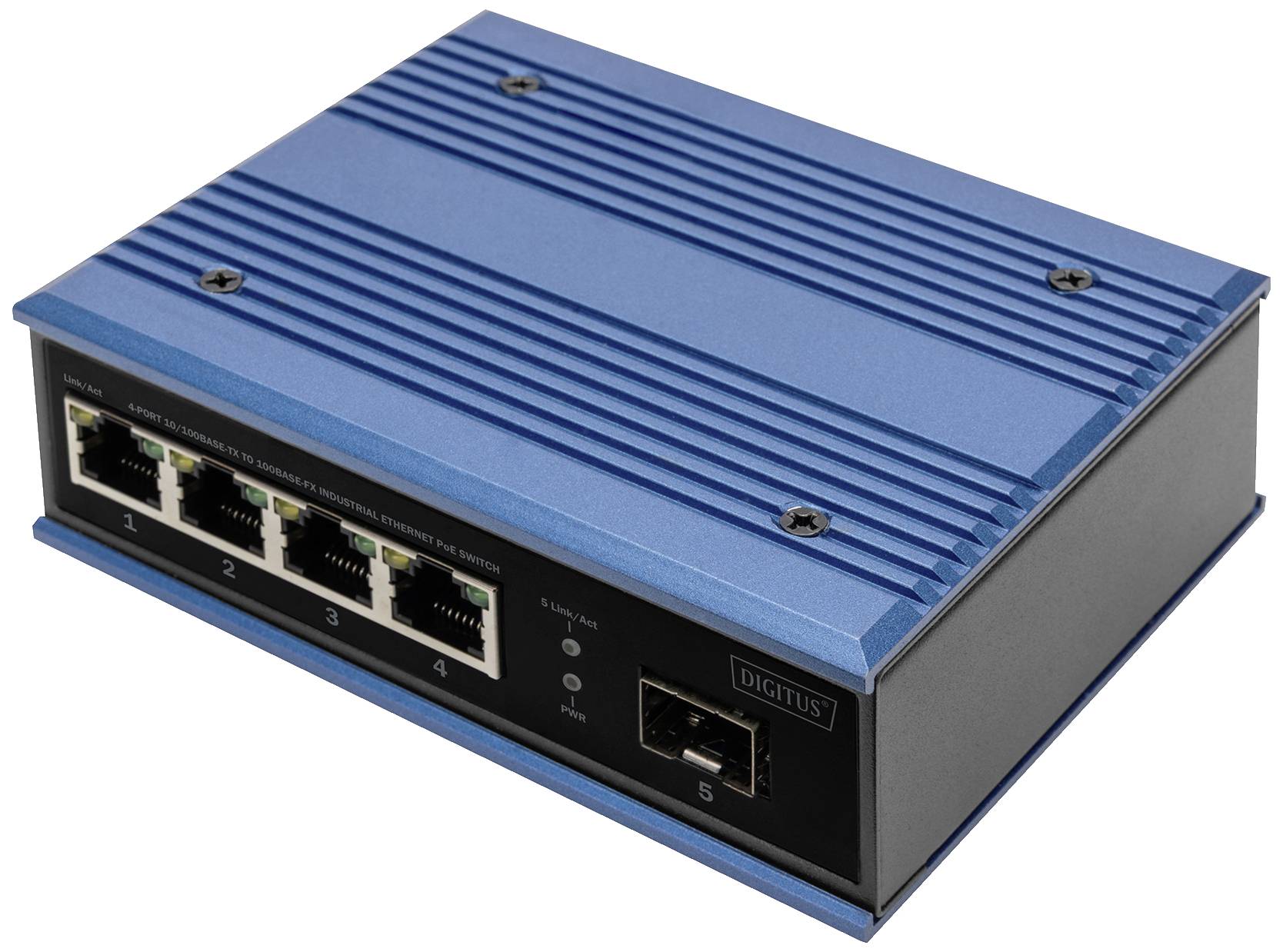

DN-651131 is an industrial fast Ethernet PoE switch with 4 port 10/100 Mbps RJ45 +1 port 100Mbps base-FX. The industrial switch has the operating temperature of -40℃ ~ 80℃, has been manufactured robust and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, housing of protection class IP40 and LED display make the DN-651131 a plug-and-play device in industrial quality, which offers the users a reliable and comfortable solution for networking their Ethernet devices.
This text is machine translated.
This text is machine translated.
Features

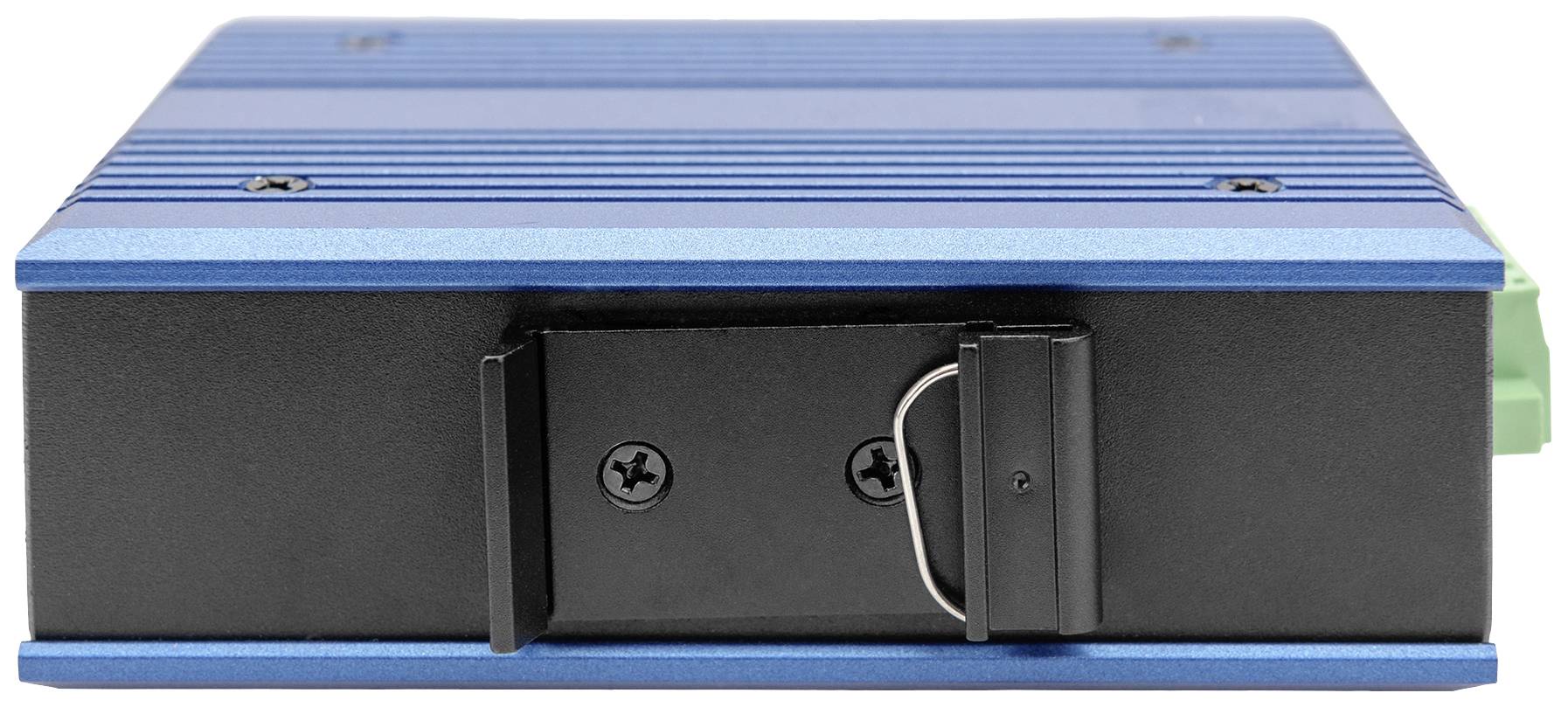

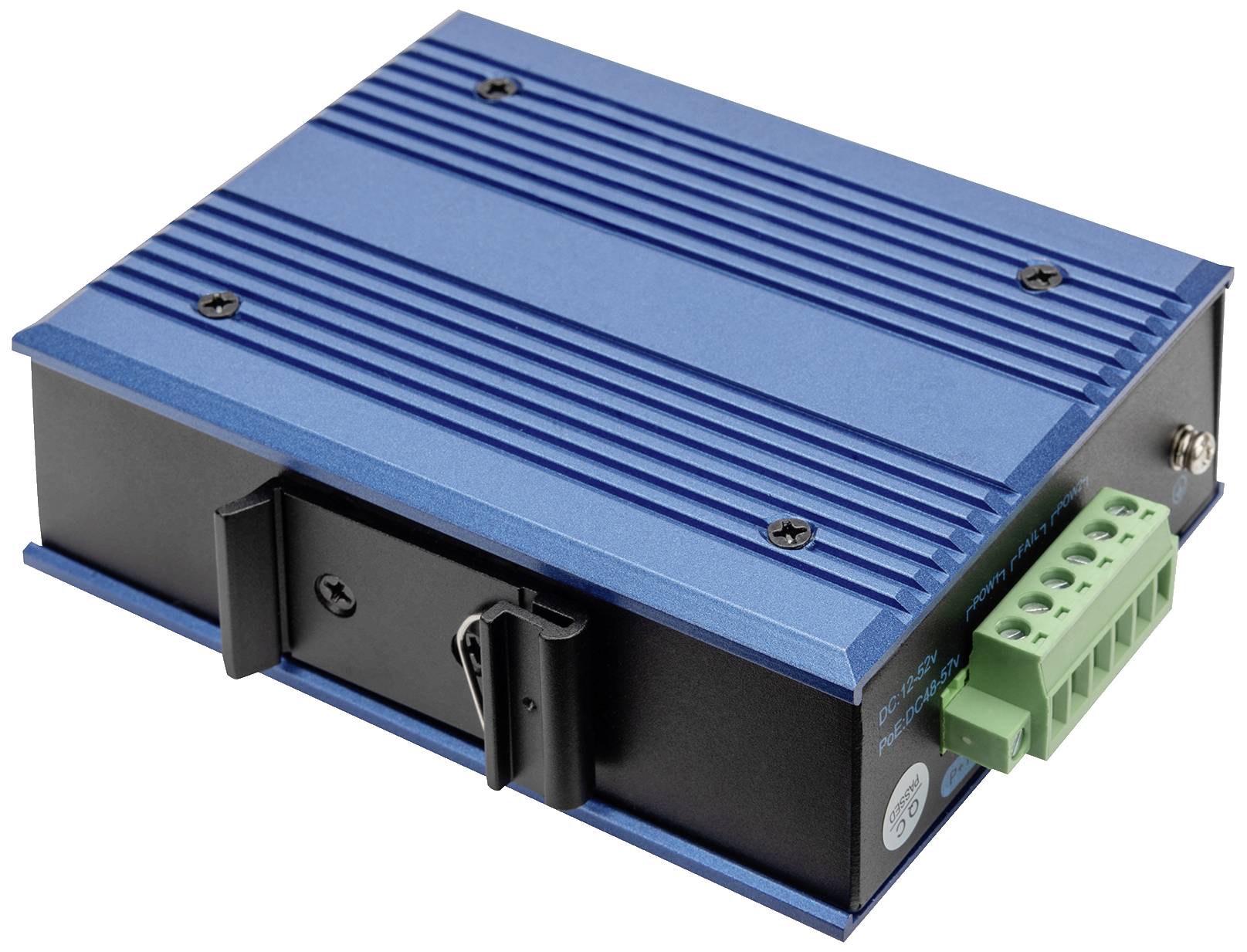

- Uses 'Store and Forward' technology The switch supports a variety of protocolsMeets industrial operating standardsOperating voltage DC 48 VSurge Protection (Power) 5000A(8/20μs) Supports 6KV DC Ethernet ESD protectionSupports 6KV DC EFT protection for the power lineProtection in case of vibration, shock and fallEasy installation on DIN rail
Scope of delivery
- User manual
