Digitus DN-81621 DN-81621 Cable 100 GBit/s 1 m
EAN:
Part number:
Item no:
Highlights & Details

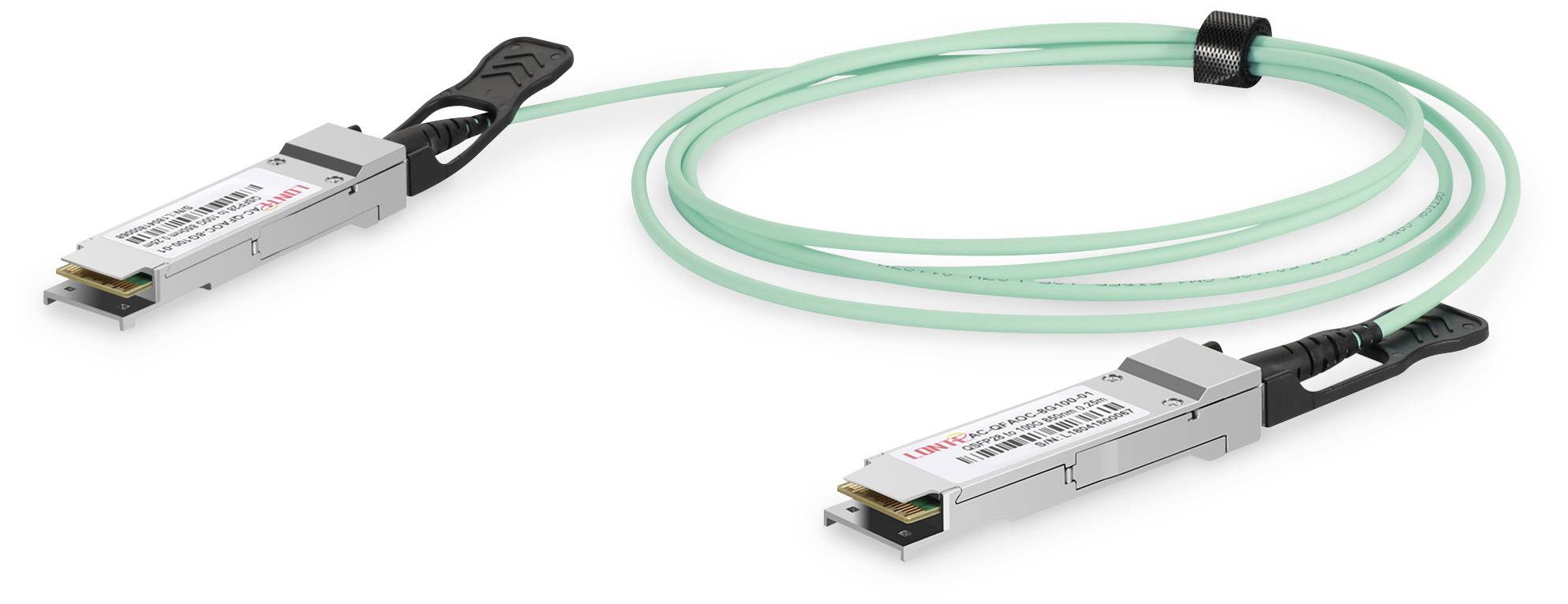

Digitus 100g QSFP28to QSFP28 active optical cable 1m
- 4 channels full-duplex transceiver modules
- 4 channels 850nm VCSEL array
- 4 channels PIN photo detector array
- Transmission data rate up to 28.05 Gbps per channel (100 Gbps total)
- Maximum connection length of 70 m for OM3 MMF and 100 m for OM4 MMF
- Hot pluggable QSFP-form factor
- Single MPO socket
- Built-in digital diagnostics
Technical specifications
- Colour: Turquoise
- 120 PCs. In color turquoise
- Product type
Cable
- Transfer rate
100 GBit/s
- Interfaces
LAN (10/100 Mbps)
Gigabit LAN (1 Gbps)
QSFP28
QSFP
QSFP+
- Distances up to
1 m
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
10000 MBit/s
100000 MBit/s
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3129084 Digitus DN-81621 DN-81621 Cable 100 GBit/s 1 m
Description
" The active Digitus® 100G QSFP28 AOC cables are a powerful, power-saving near-range connection solution. They comply with the SFF-8431 SFP+ Electrical MSA, SFF-8432 SFP+ Mechanical MSA and QSFP28 MSA. 4 full duplex channels are used, each channel is capable of transmitting data at speeds of up to 25Gb/s, while WAS produces an aggregate rate of up to 103.1Gb/s. The active Digitus® 100G QSFP+ AOC cables offer increased port density and cost savings in the overall system. The specific programming of each QSFP28 cable makes it possible to adapt it to the requirements of any IT environment."
This text is machine translated.
This text is machine translated.
Features
- 1 m maximum distance
- 3.3 V supply voltage
- Low power consumption: Max. 3.5 W.
- Operating temperature of the casing 0 °C to +70 °C
- RoHS 6 compliant (lead-free)
- SFF-8431 SFP+ ELECTRIC MSA
- SFF-8432 SFP+ MECHANICAL MSA
- Storage temperature -40 to 85 °C.
- Compatible brands: Allnet, Cisco, 3COM, D-Link, Dell, EDIMAX, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, Linksys, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZyXEL
- DDM support: No.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
