Digitus DN-81626 DN-81626 SFP cable 100 GBit/s 10 m
EAN:
Part number:
Item no:
Highlights & Details

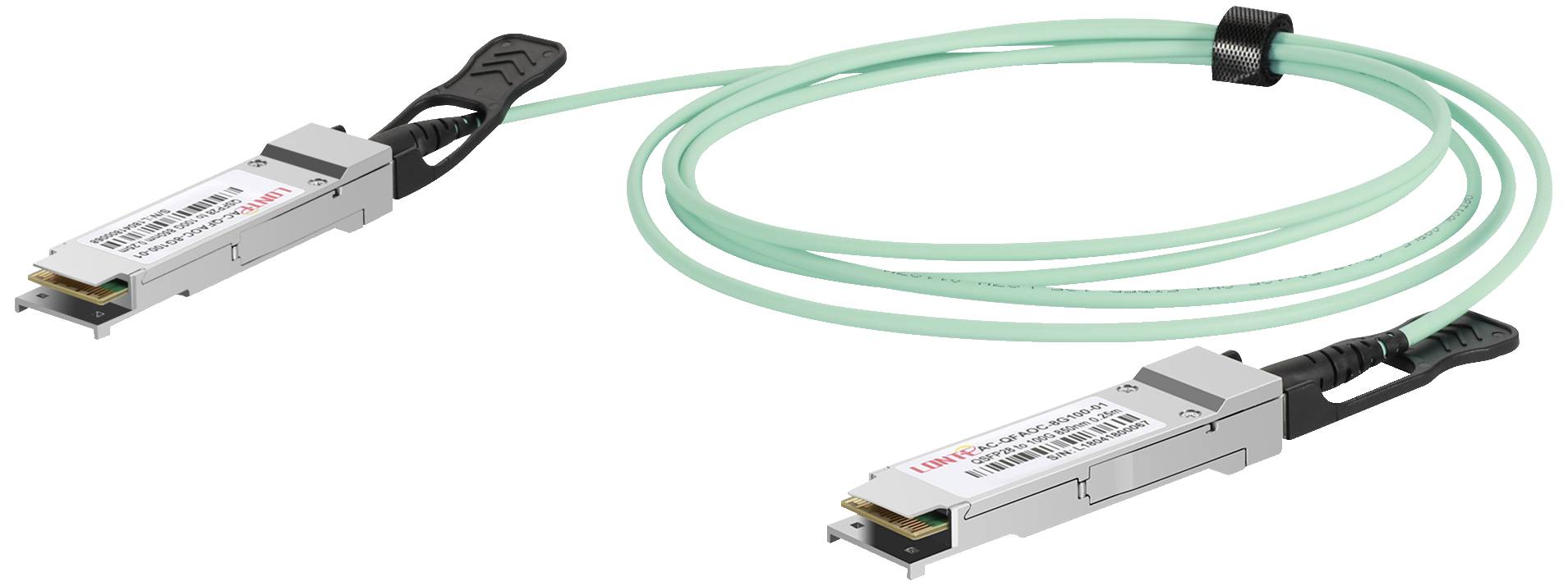

100G QSFP28 optical cable, active, fiber optic cable, MMF, 850nm, 10m
- 4 channels full-duplex transceiver modules4 channels 850nm VCSEL array, 4 channels PIN photo detector arrayTransmission data rate up to 28.05 Gbps per channel, 100 Gbps in totalHot pluggable QSFP-form factor, single-MPO-connection socket
Technical specifications
- Transmission data rate: Up to 28.05 Gbps per channel, 100 Gbps in totalMaximum connecting length: 70 m for OM3 MMF, 100 m for OM4 MMFBuilt-in digital diagnosticsSupply voltage 3.3 VPower consumption: Less than 3.5 W.Operating temperature: 0°C to + +70°C.Storage temperature -40 to 85 °C.Compatible brands: Allnet, Cisco, 3COM, D-Link, Dell, EDIMAX, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, Linksys, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZyXELDDM support: No.
- Product type
SFP cable
- Transfer rate
100 GBit/s
- Interfaces
QSFP28
- Distances up to
10 m
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
10000 MBit/s
2500 MBit/s
25000 MBit/s
- Factory colour
Blue
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2757432 Digitus DN-81626 DN-81626 SFP cable 100 GBit/s 10 m
Description
The active Digitus® 100G QSFP28 AOC cables are a powerful, power-saving near-range connection solution. They comply with the SFF-8431 SFP+ Electrical MSA, SFF-8432 SFP+ Mechanical MSA and QSFP28 MSA. 4 full duplex channels are used, each channel is capable of transmitting data at speeds of up to 25Gb/s, while WAS produces an aggregate rate of up to 103.1Gb/s. The active Digitus® 100G QSFP+ AOC cables offer increased port density and cost savings in the overall system. By the specific programming of each QSFP28 cable a adaptation to the requirements of every IT environment can be ensured
This text is machine translated.
This text is machine translated.
Features
- Built-in digital diagnostics3.3 V supply voltageLow power consumption less than 3.5 WOperating temperature of housing 0°C to +70°C.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
