Name: Digitus DN-82120-1 LAN, SC Duplex Network media converter 1 GBit/s
Brand: Digitus
SKU: 1345741
Availability: InStock

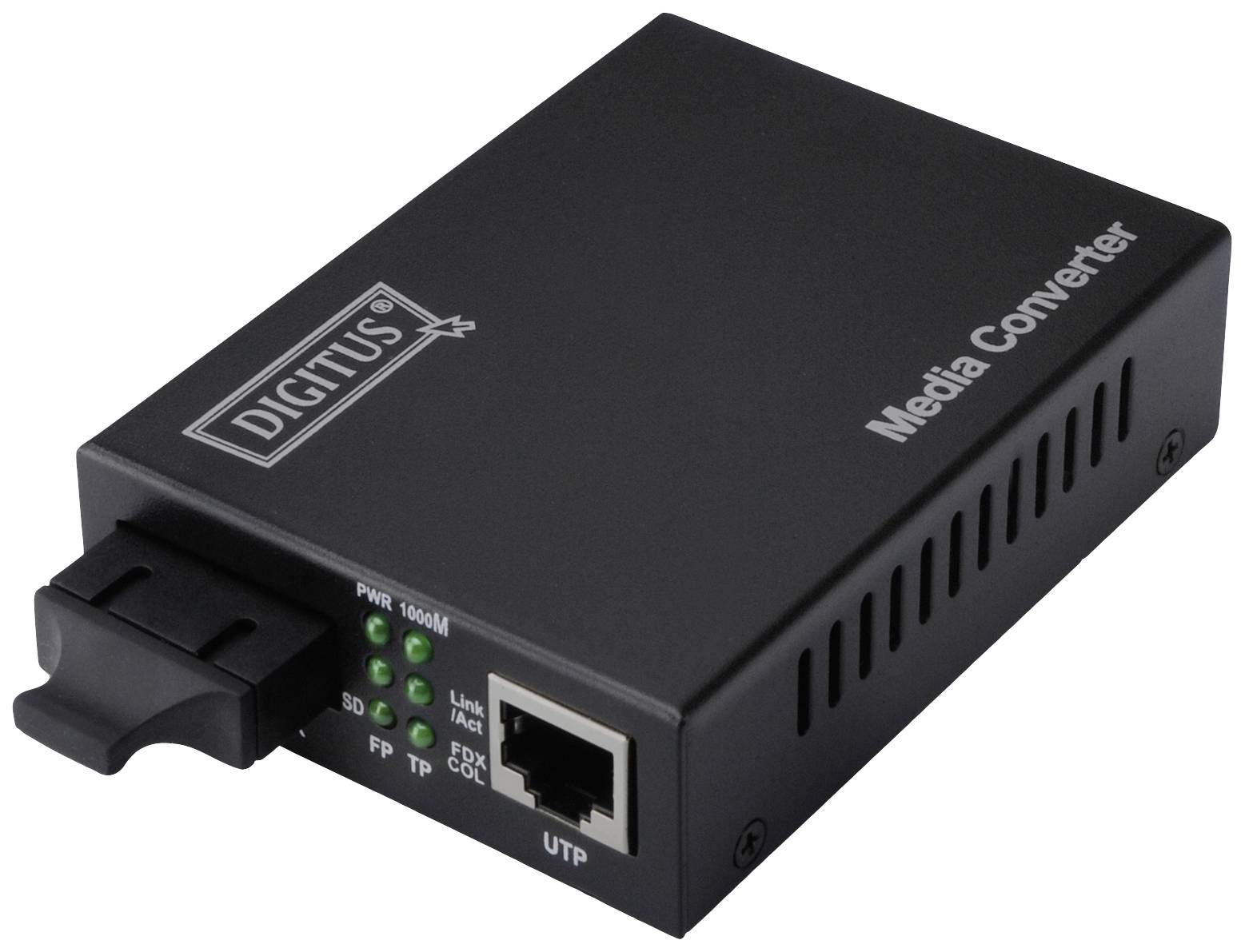

Black media converter with an Ethernet and fibre optic connection socket, featuring activity and status LEDs on the front panel.

'Media converter front view with TX, RX ports, UTP port and LEDs for PWR, SD, FP, TP, Link/Act, FDX, COL. Gigabit connection.'

Black Media Converter, showing power supply connection and switch. Used for converting network media, typical office equipment.

Black electronic device with DC 5V connection and four DIP switches marked from positions 1 to 4, identified by 'ON'.

1/4

Datasheet (PDF)

Fast track dispatch on Tue 20 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

DIGITUS media converter, Multi mode, 10/100/1000Base-T to 1000Base-SX, includes power supply SC socket, up to 0,5km

Converts wire-based network signals in fiber-optic signals
High quality and maximum reliability
10/100/1000 Base-TX to 1000Base-SX
Connections: 1 x RJ45, 1 x SC Duplex

Technical specifications

Product type: Network media converter

Interfaces: 1x LAN (10/100/1000 Mbps)
1x SC Duplex

Link: LAN
SC Duplex

Transfer rate: 1 GBit/s

Length: 120 mm

Width: 70 mm

Height: 26 mm

Weight: 180 g

Version: Cable

Factory colour: Black

Cable use: Networks

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1345741 Digitus DN-82120-1 LAN, SC Duplex Network media converter 1 GBit/s

User & Safety Instructions

User & Safety Instructions 1345741 Digitus DN-82120-1 LAN, SC Duplex Network media converter 1 GBit/s

Conformity certificate

Conformity certificate 1345741 Digitus DN-82120-1 LAN, SC Duplex Network media converter 1 GBit/s

Description

The media converter from DIGITUS® is a perfect solution for migration of copper and fiber optic signals. From now on, you can click on the fiber optics technology access and several kilometers to the bridge, without your entire network cabling must be replaced. With our extensive range of products, you can respond to your individual requirements. The intuitive operation guarantees a quick and easy installation. Years of experience and a varied range make it a reliable partner for your network DIGITUS® technology.

This text is machine translated.

Features

Converts wire-based network signals in fiber-optic signals
High quality and maximum reliability
10/100/1000 Base-TX to 1000Base-SX
Connections: 1 x RJ45, 1 x SC Duplex
Range up to 0.5km
Wavelength 850 nm.
Multi-mode Dual Fiber
Automatic cable detection - Auto-MDI/MDI-X function
Auto detection of full- and half-duplex
Diagnostic LEDs for status and activity monitoring
Suitable for 50/125 µm and 62.5/125 μm fiber-optic cable
Transmission power: Minimum -17 dBm, Maximum -12 dBm
Reception sensitivity: Minimum -20 dBm
Supported standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
2 MB data buffer
Operating temperature: 0 to 60°
Dimensions (L x W x H): 95 mm x 70 mm x 26 mm
Weight: 200 g
Standalone converter with external power supply unit
Input voltage 5V/DC

Scope of delivery

Media converter
Quick start guide
Power supply unit

Description

Features

Converts wire-based network signals in fiber-optic signals
High quality and maximum reliability
10/100/1000 Base-TX to 1000Base-SX
Connections: 1 x RJ45, 1 x SC Duplex
Range up to 0.5km
Wavelength 850 nm.
Multi-mode Dual Fiber
Automatic cable detection - Auto-MDI/MDI-X function
Auto detection of full- and half-duplex
Diagnostic LEDs for status and activity monitoring
Suitable for 50/125 µm and 62.5/125 μm fiber-optic cable
Transmission power: Minimum -17 dBm, Maximum -12 dBm
Reception sensitivity: Minimum -20 dBm
Supported standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
2 MB data buffer
Operating temperature: 0 to 60°
Dimensions (L x W x H): 95 mm x 70 mm x 26 mm
Weight: 200 g
Standalone converter with external power supply unit
Input voltage 5V/DC
