Digitus DN-93615-48 RJ45 module Keystone CAT 6A 48 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

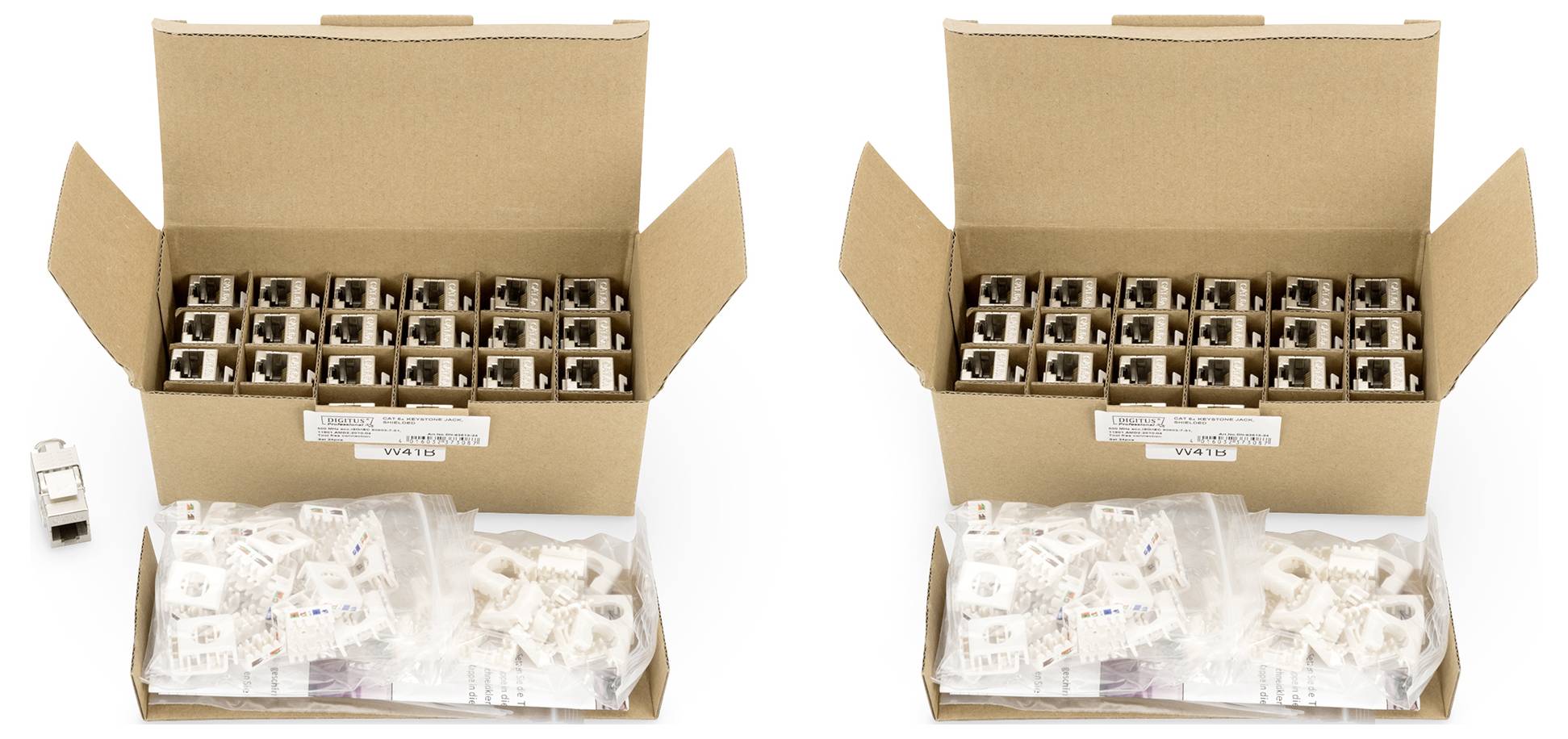

Digitus CAT 6A Keystone module, shielded, tool-free mounting - 48 pcs.
- 360° shield contacting
- Suitable for field assembly (tool-free installation)
- Designed - suitable for junction box and junction box mounting
- CAT 6A with LSA-terminals
- Dust cover for RJ45 socket
- GHMT certified
- Supports PoE standards IEEE 802.3 AF/at/bt (PoE, PoE+ & 4PPoE)
Technical specifications
- Operating temperature: -20°C to +70 °C
- Plug-in power: Max. 30 N (acc IEC 60603-7-51
- Holding force: 7.7 kg between socket and plug
- PLUG-IN CYCLES ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
- Diameter of copper conductor: AWG (26/7 – 22/1), wires and solid wire
- Voltage resistance 1000 VDC (contact/contact), 1500 VDC (contact/earth)
- Weight 19.5 g
- Dimensions (HxWxD) 21.0 x 14.5 x 34.5 mm
- Number of items per set: 48
- Compatible with
Keystone
- Product type
RJ45 module
CAT 6A
- Tool-free installation
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3333831 Digitus DN-93615-48 RJ45 module Keystone CAT 6A 48 pc(s)
User & Safety Instructions
User & Safety Instructions 3333831 Digitus DN-93615-48 RJ45 module Keystone CAT 6A 48 pc(s)
Conformity certificate
Conformity certificate 3333831 Digitus DN-93615-48 RJ45 module Keystone CAT 6A 48 pc(s)
Description

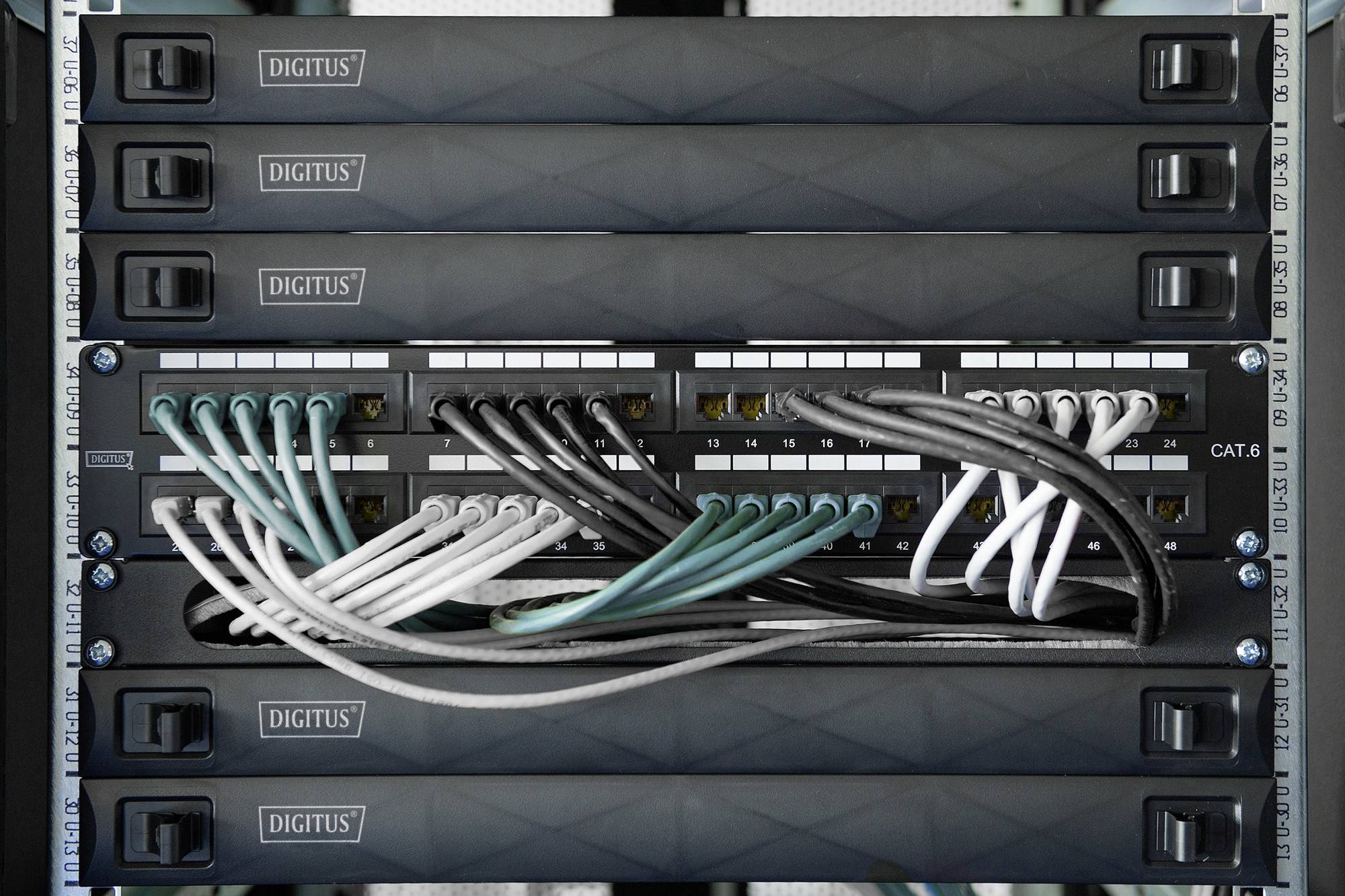

The shielded CAT 6A Keystone module set DN-93615 from Digitus® convinces with future-oriented standards and high-end quality for your network. The compact design permits a series installation in 483 mm (19") 1HE Panel. Tool-free installation takes place via LSA strips, color coded according to EIA/TIA 568 A&B. The compact design of the module also fits into modular junction boxes compatible with design.
This text is machine translated.
This text is machine translated.
Features
- Category: 6A, 10GBASE-T, 500 MHz
- ISO/IEC 11801 3rd Edition, EN 50173-1
- Suitable for PoE/PoE+/4-pin (IEEE 802.3af, 802.3at, 802.3at)
- Suitable for junction box and junction box mounting

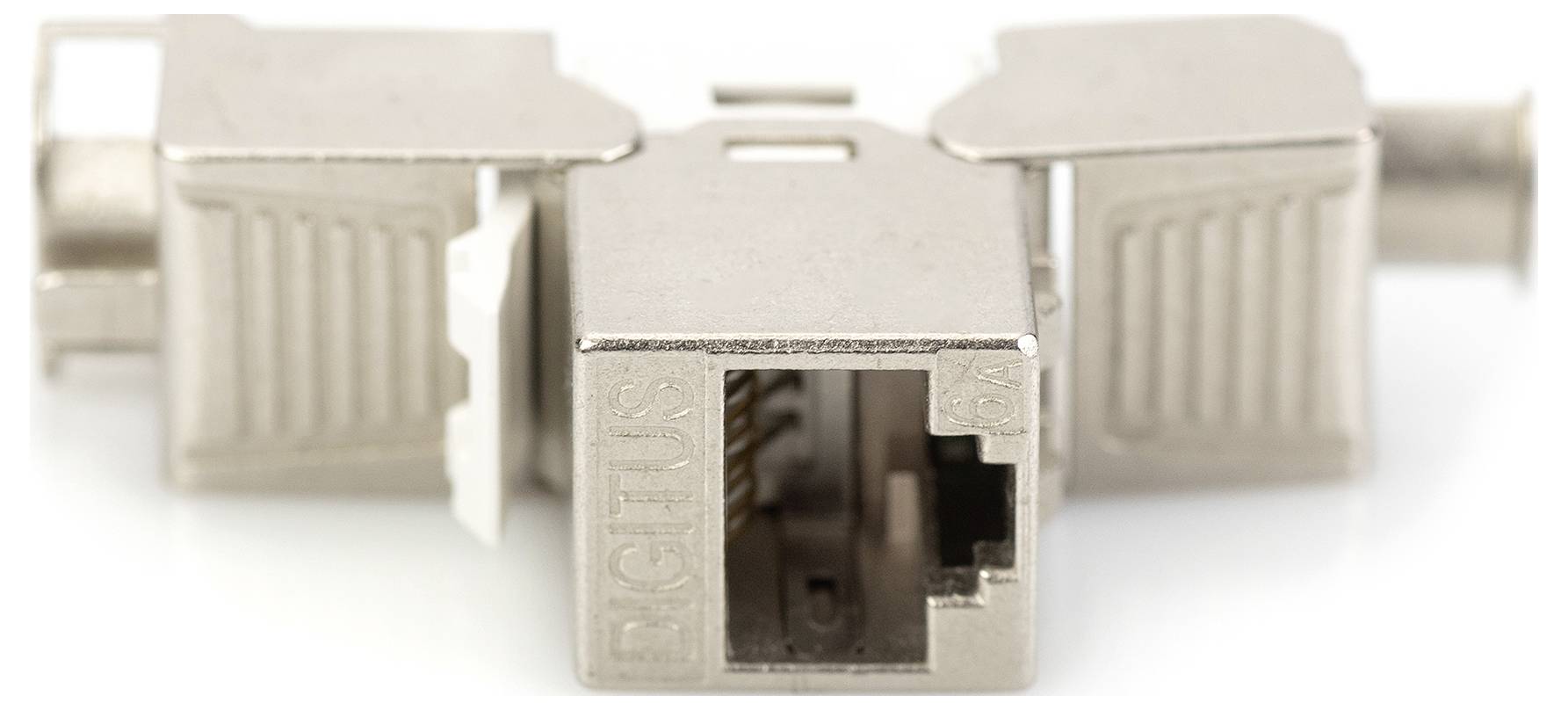

- RJ45-socket 8P8C
- Cable installation via insulation displacement terminals, color coded according to EIA / TIA 568 A & B.

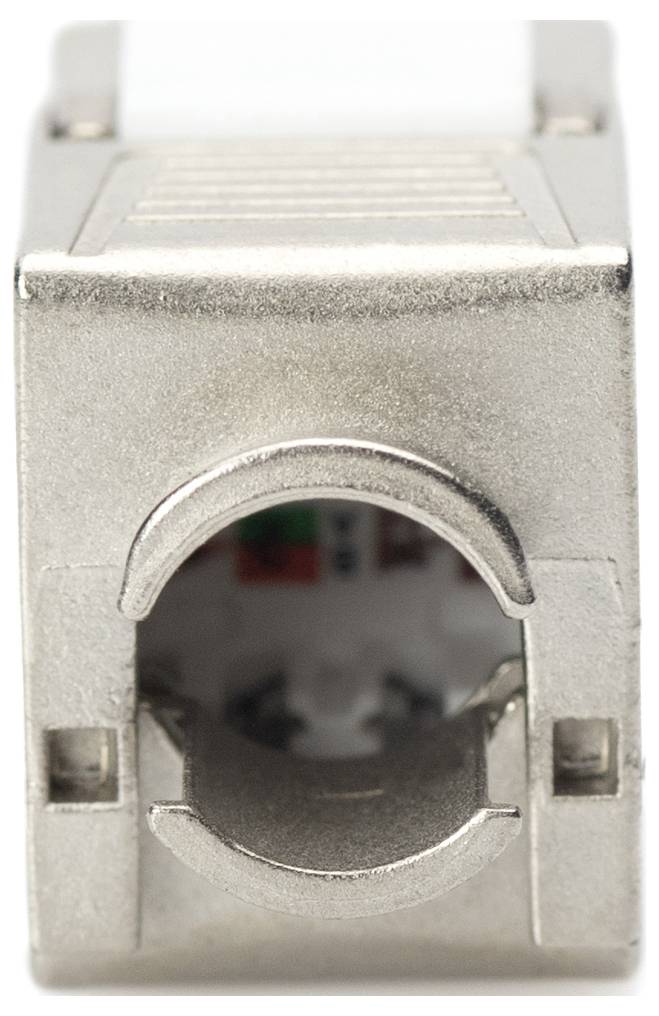

- Strain relief and cable fixing with the help of cable ties
- Tool-free installation
- 360°-Shield contact
- Material housing: Zinc die-cast - nickel-plated
- Contact material: Phosphorbronze
- Coating contacts: Nickel, gold-plated 0.5 μ
- Plug-in power: Max. 30N (acc. IEC 60603-7-51
- Holding force: 7.7 kg between socket and plug
- OPERATING TEMPERATURE -20 °C TO +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
- PLUG-IN CYCLES ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
- Diameter of copper conductor: AWG (26/7 – 22/1), wires and solid wire
- Tested with AWG 22/1 solid installation cable (Digitus® DK-174X-A-VH-X; AWG 22/1 CAT.7A laying cable)
- Voltage resistance 1000 VDC (contact/contact), 1500 VDC (contact/earth)

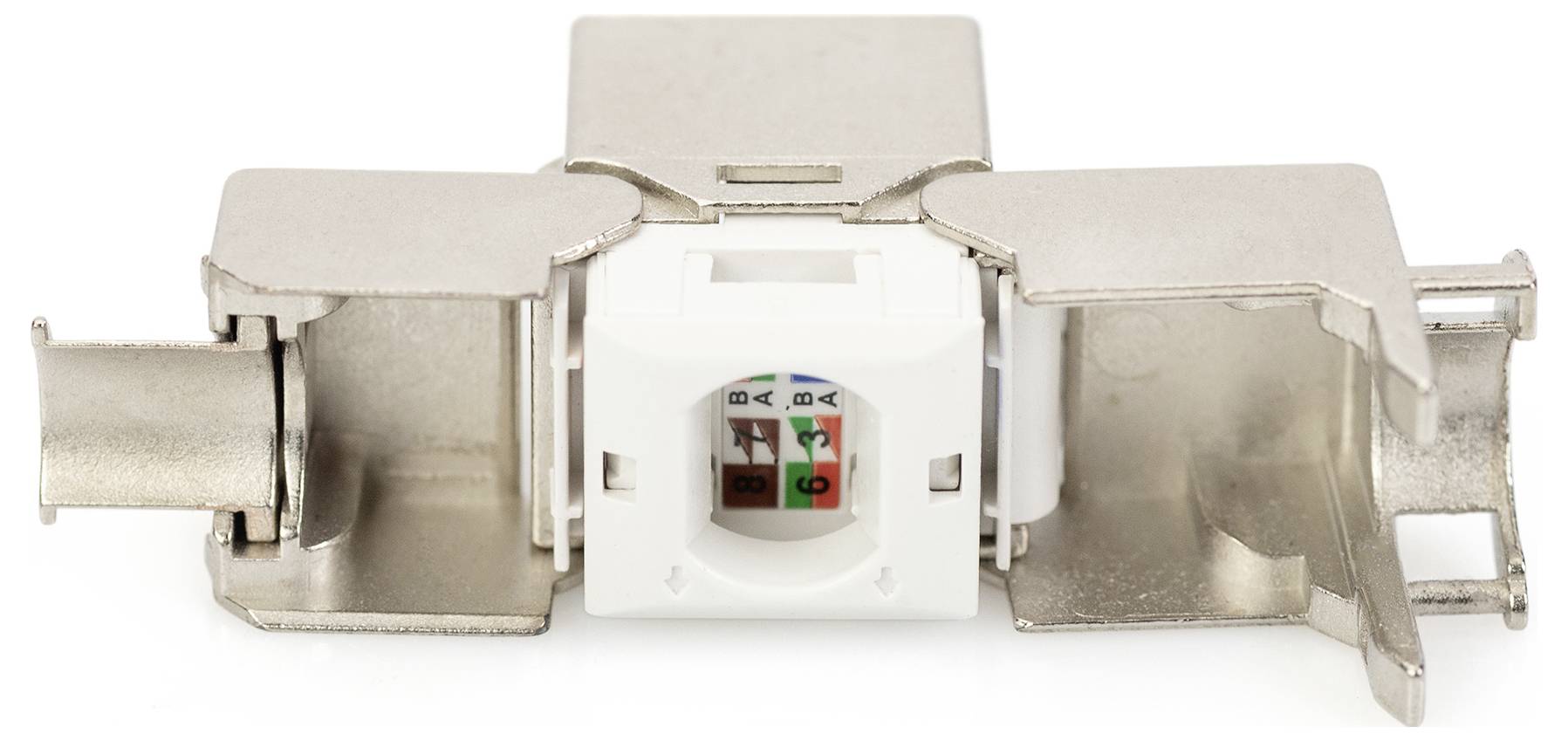

- Tool-free installation by means of LSA insulation displacement terminals, color-coded according to norm EIA/TIA 568 A & B
- Intelligent cable manager (resealable)
- Category: CAT 6A
