Name: Digitus DN-95140 DN-95140 19" switch box 8 + 2 ports 10 / 100 / 1000 MBit/s PoE
Brand: Digitus
SKU: 2349980

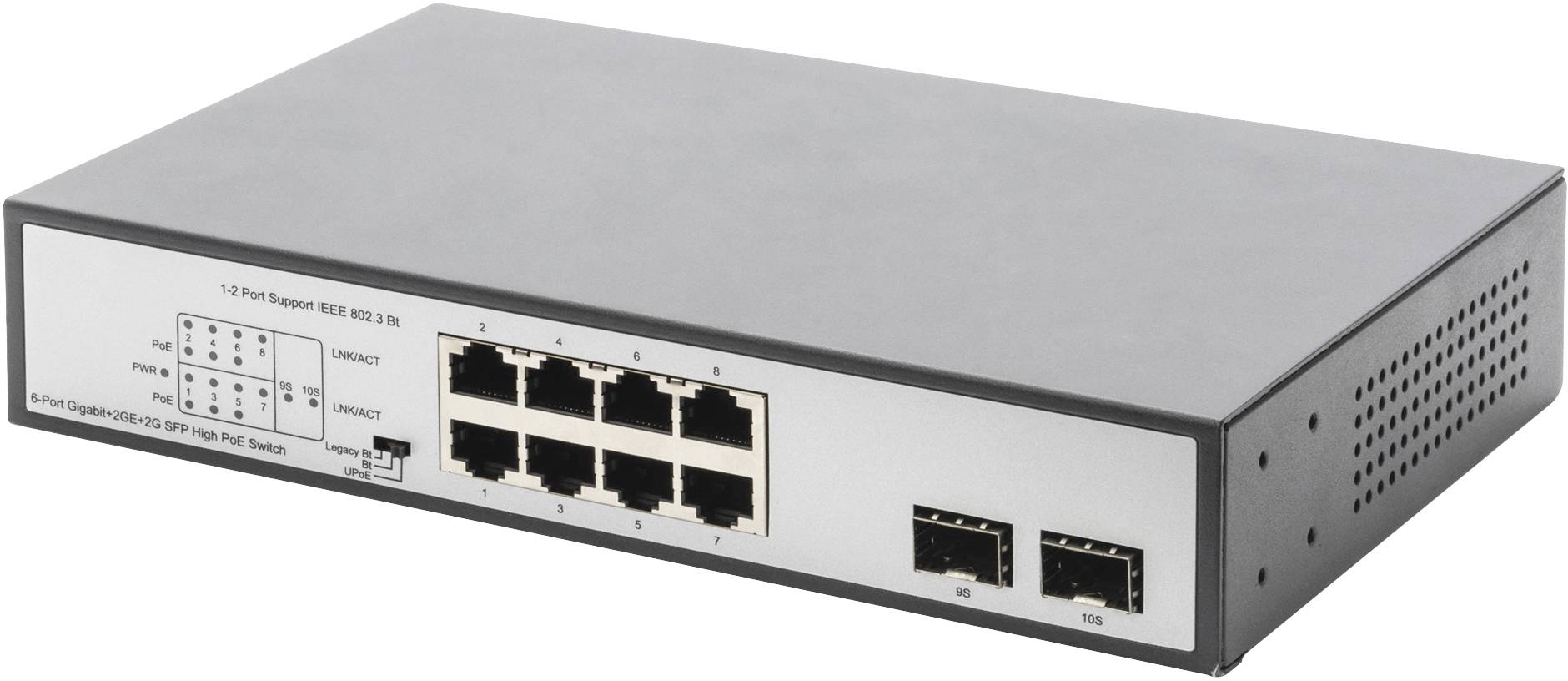

Network switch with eight Ethernet ports and two additional SFP ports on the front panel, suitable for IT infrastructure.

Black, rectangular power supply box with ventilation slots and power connection on the rear, suitable for 100–240V AC.

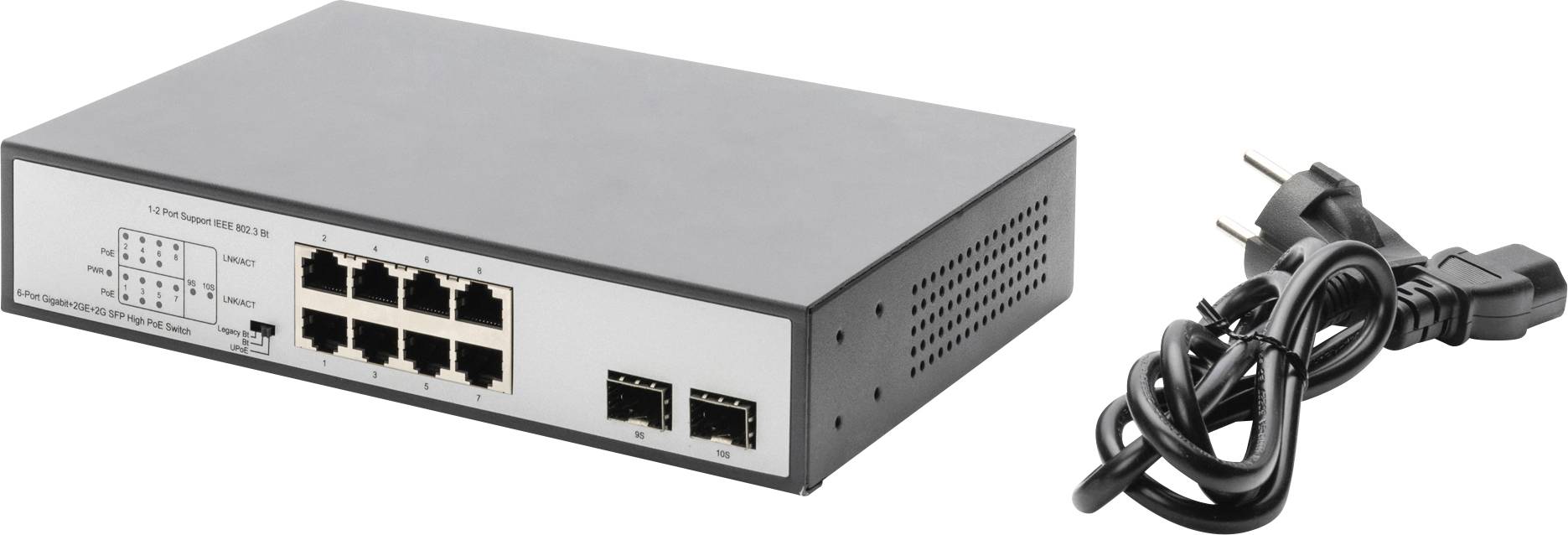

Network switch with eight Ethernet ports and two fibre optic ports, next to a black power cable.

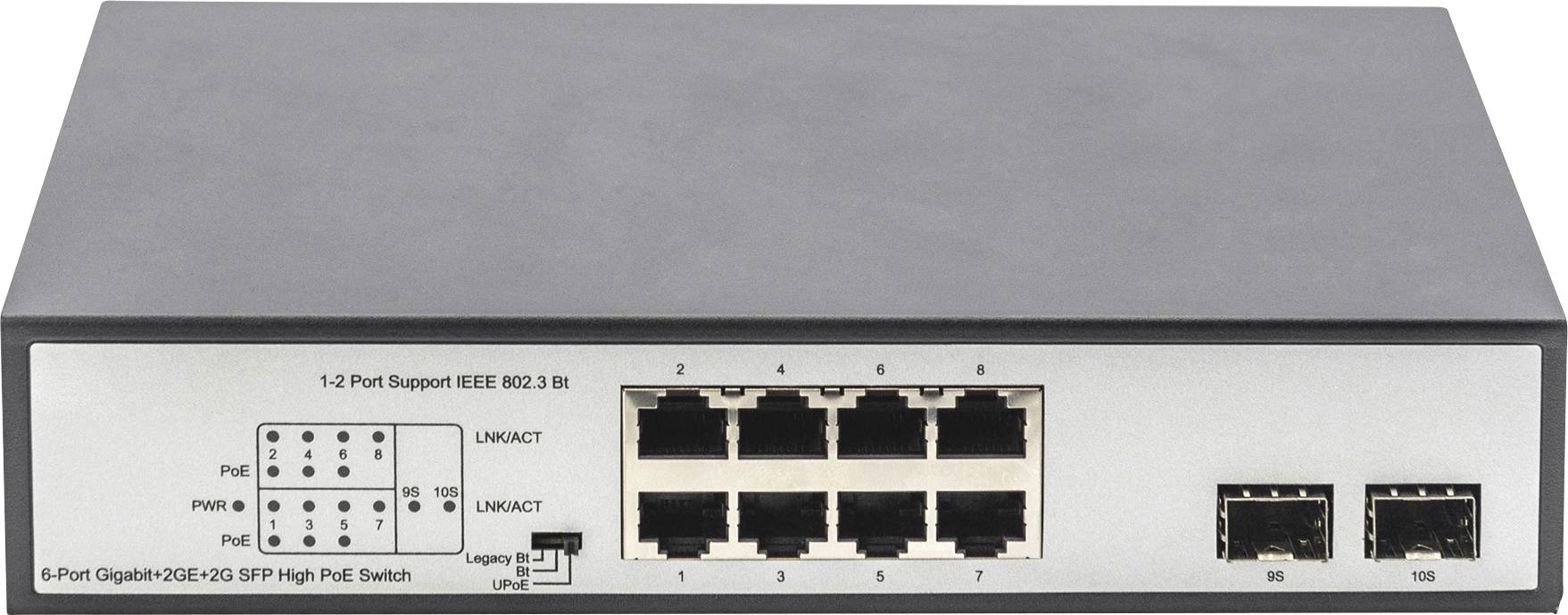

An 8-port Gigabit Ethernet switch with two SFP ports, Model '5-Port-Gigabit-802.3bt'. Front view showing port LEDs and labels.

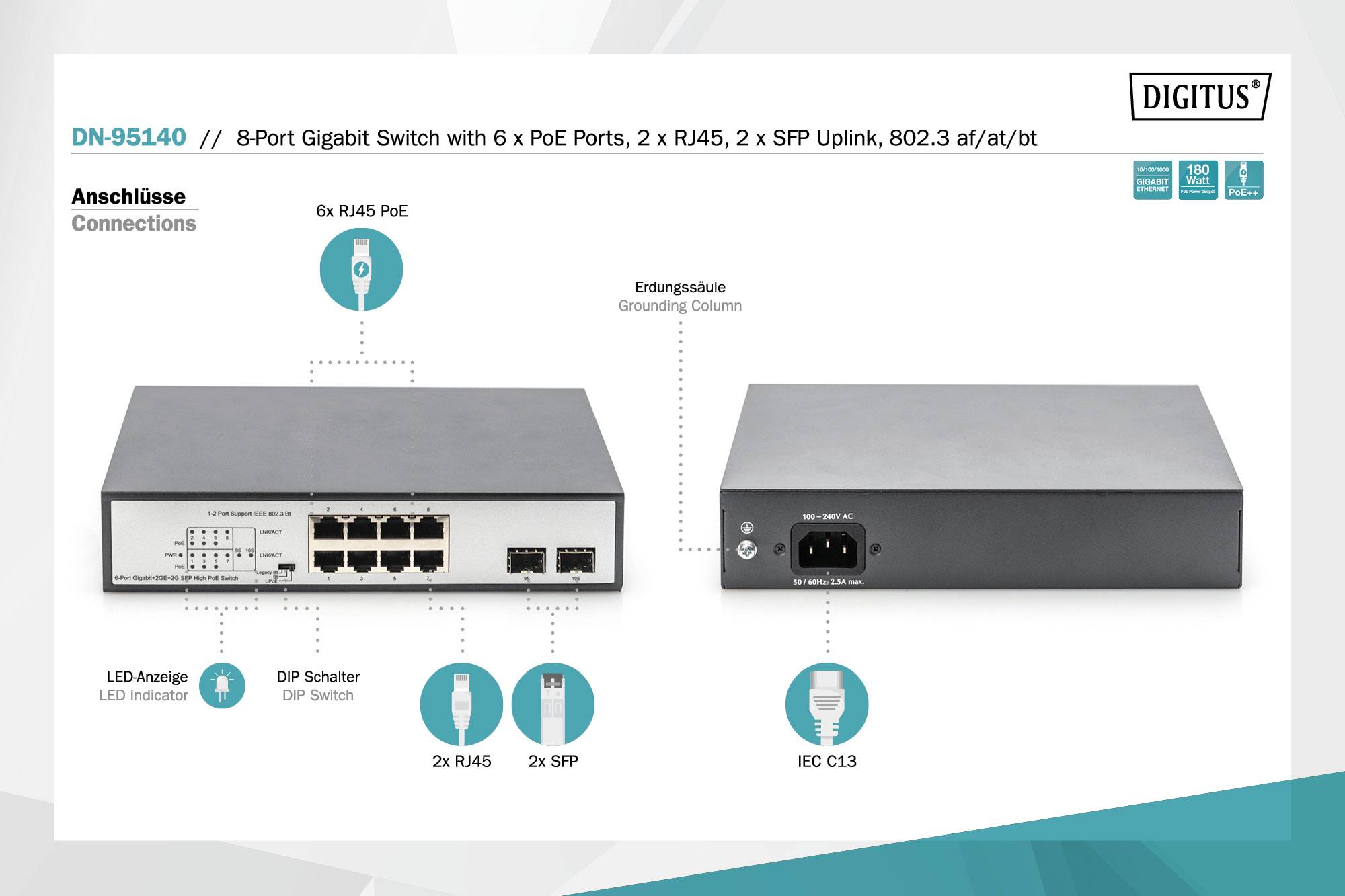

'DN-95140' Gigabit Switch with 8 Ports, 6x PoE Ports, 2x RJ45, 2x SFP Uplink. Rear view shows ports and earth connection.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus 8-Port Gigabit Switch 8xRJ45 (6xPoE)+ 2G SFP 180W support 802.3 af/at/bt standard

Automatic detection of PoE devices - can also be used for non-PoE devices
LED status displays on the front panel
Entire PoE-Buget of 180 W - supports PoE++
Supports legacy BT, BT and UPoE modes
Supported Ethernet standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3x
Supported PoE standards: IEEE 802.3af , IEEE 802.3at , IEEE 802.3bt

Technical specifications

Supported modes: Legacy Bt/BT/UPoE
Transfer mode: Store-and-forward
Backplane: 20g (Switching Capacity)
MAC address list: 4K, auto-learning, auto-aging
Jumbo frames: 92,216 bytes
Packet buffer: 1.5 Mbit
Packet forwarding rate: 13.39 Mpps
Total power consumption 190 W
PoE budget 180W
Operating temperature: 0 °C ~ 40°C
Operating humidity: 10% - 90% RH (non-condensing)
Storage temperature -40°C ~ 70°C.
Storage humidity: 5% ~ 90% RH (non-condensing)
Ventilation: Active fan installed
Mains voltage: AC 100 - 240 V / 50/60 Hz
Overvoltage protection: Differential mode: +/- 4kV - Common mode: +/- 6kV
Electrostatic standard: Contact: +/- 6kV - Air: +/- 8kV
Energy saving IEEE802.3az (EEE)
PoE Power Budget 180W
PoE standard: IEEE802.3bt (PoE++)
Ethernet speed: Gigabit
Number of ports (uplink): 2
Mounting type: Desktop, wall, 19 inch
power over Ethernet (PoE): Yes
Uplink port connection: SFP

Product type: 19" switch box

LAN transfer rate: 1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Unmanaged switch

PoE ports: 8

SFP ports: 2 x

10/100/1000 Mbps ports: 8 x

Port type: RJ45

Auto-uplink at each port: Yes

Jumbo frames: Yes

Router features: PoE

Power supply (LOV): mains-powered

Weight: 1340 g

Width: 220 mm

Height: 44 mm

Depth: 150 mm

Type: DN-95140

Interfaces: Gigabit LAN (1 Gbps)
SFP

: IP20

Factory colour: Black/grey

Operating voltage: 230 V AC

Current consumption: 190 W

Max. ambient temperature: 40 °C

Min. ambient temperature: 0 °C

Port: 8 + 2 ports

Length: 150 cm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2349980 Digitus DN-95140 DN-95140 19" switch box 8 + 2 ports 10 / 100 / 1000 MBit/s PoE

Description

Digitus DIGITUS® 8-Port Gigabit PoE Switch provides a multifunction switch for many application scenarios. You can use all 8 ports for conventional network devices without PoE supply. 6 ports can be used for PoE-enabled network devices, two of these ports even with 90 watt each (IEEE 802.3bt) per port. The remaining 4 ports support IEEE 802.3at/af devices up to 30 watt power. In addition, two SFP uplink ports are integrated, which you can equip with SFP modules for fiber or copper technology. Furthermore, the Gigabit standards are supported with data transfer rates of up to 1000 Mbps, auto MDI/MDIX and auto negotiation for the RJ45 ports. In addition, the switch has 3 different modes: Legacy BT, BT and UPoE, which can be set via a DIP switch on the front side. With this Gigabit PoE switch you can realize conventional network applications and also supply power to power-intensive network devices such as POS systems, access control systems, monitoring or parking system - a total budget of 180 W is provided here for PoE devices.
