Name: Digitus DN-95317-1 Ethernet switch 8 ports
Brand: Digitus
SKU: 3763177

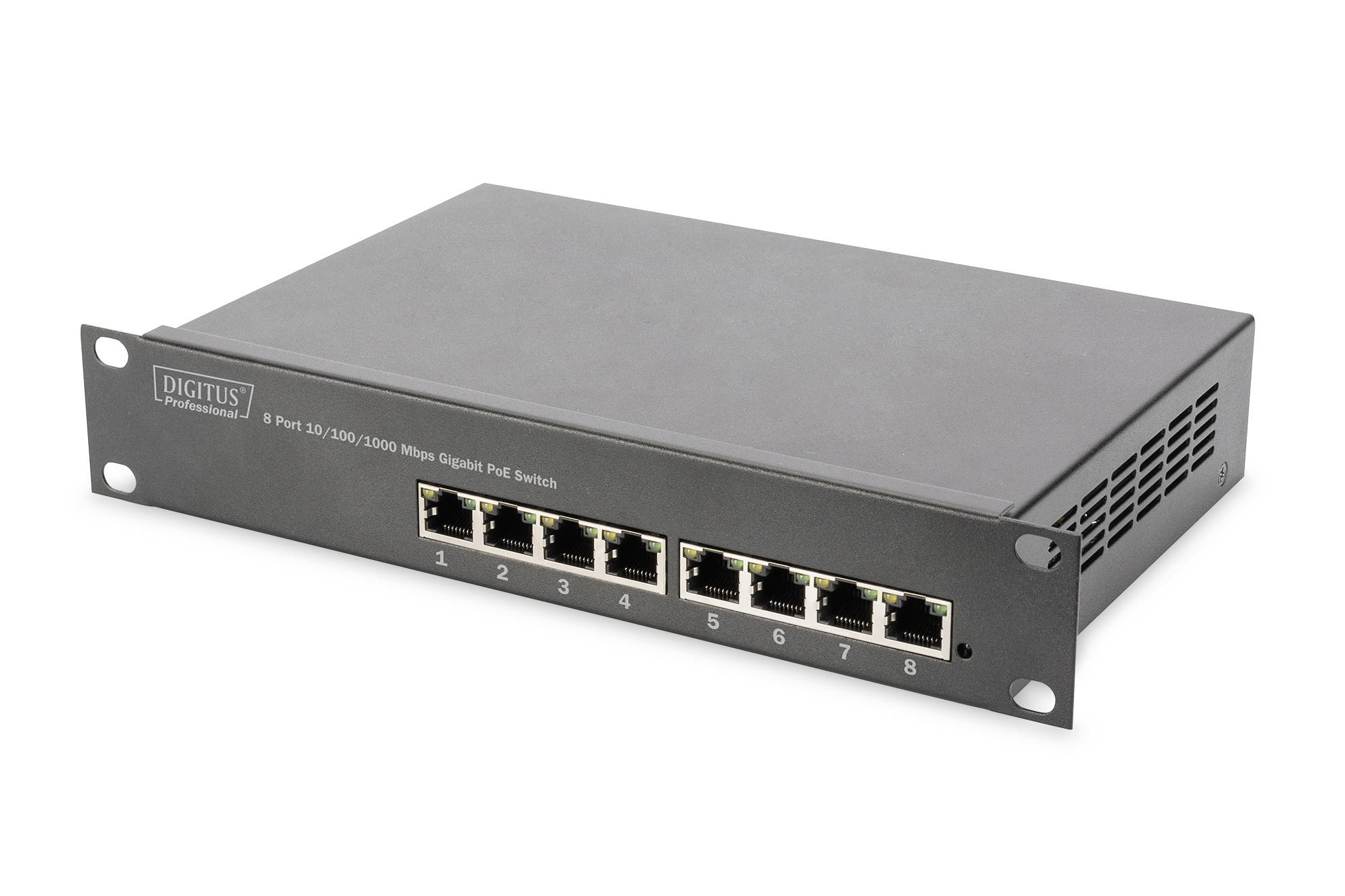

Black 8-port network switch with front Ethernet ports and rack-mount ears, shown on a white background.

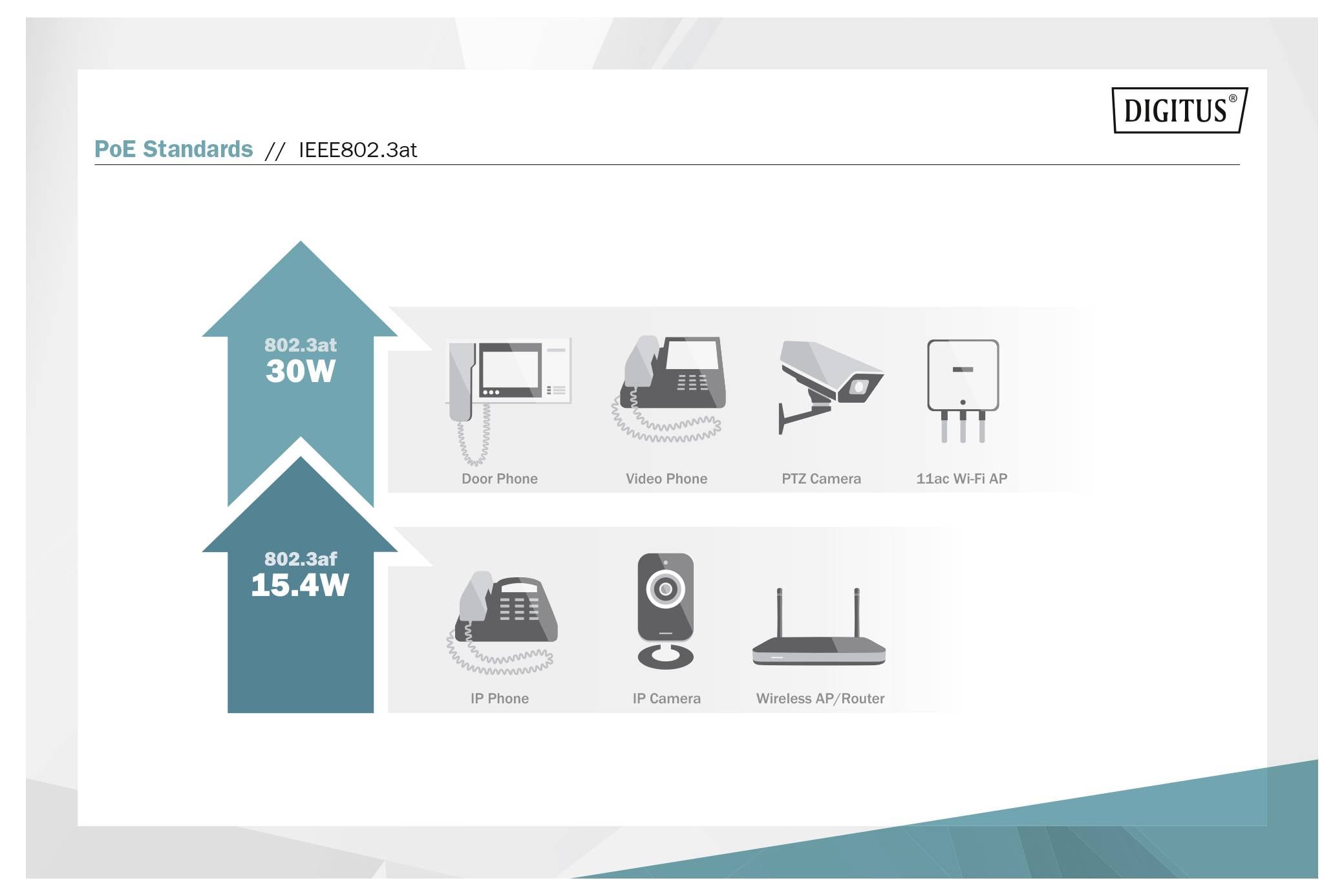

Infographic of PoE standards showing 802.3at 30W and 802.3af 15.4W, with supported devices: door phone, video phone, PTZ camera, 1.1ac WiFi AP, IP phone, IP camera, and wireless AP/router.

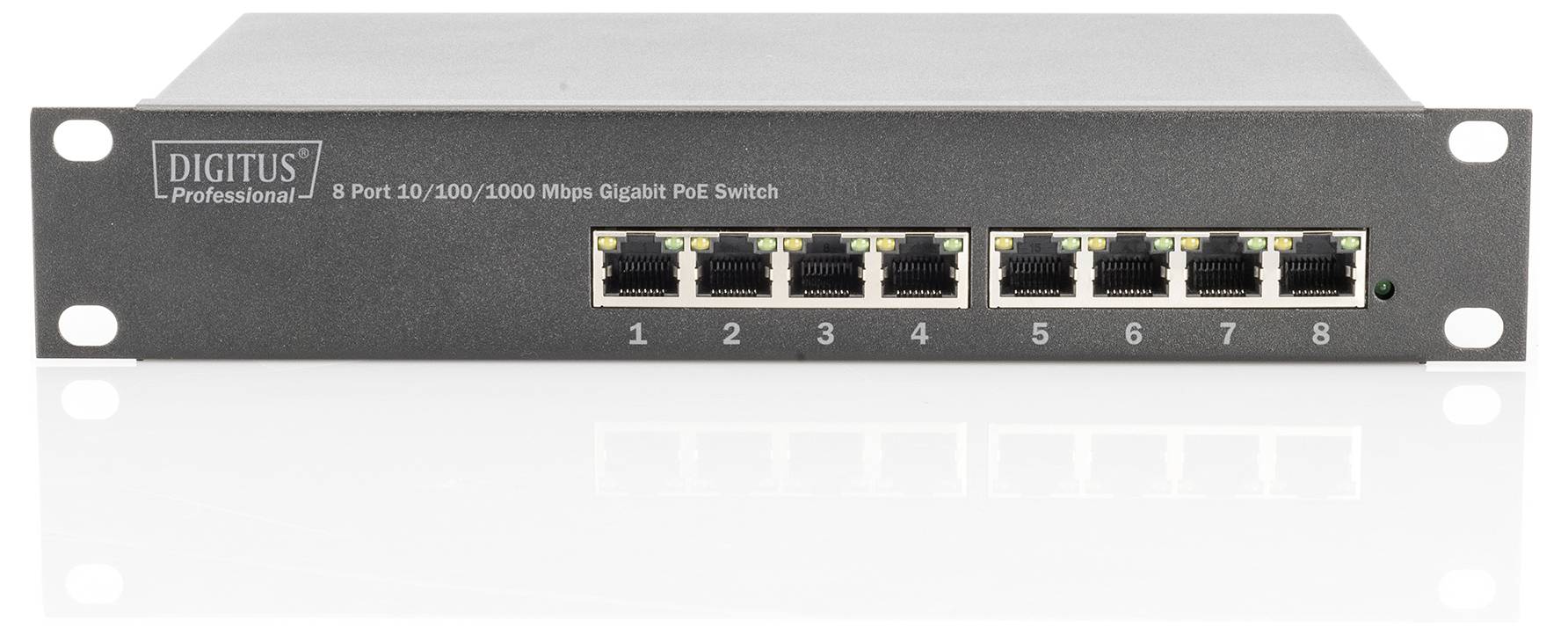

Front view of a DIGITUS Professional 8-port gigabit PoE switch, with eight numbered Ethernet ports and status LED on a rack-mount faceplate.

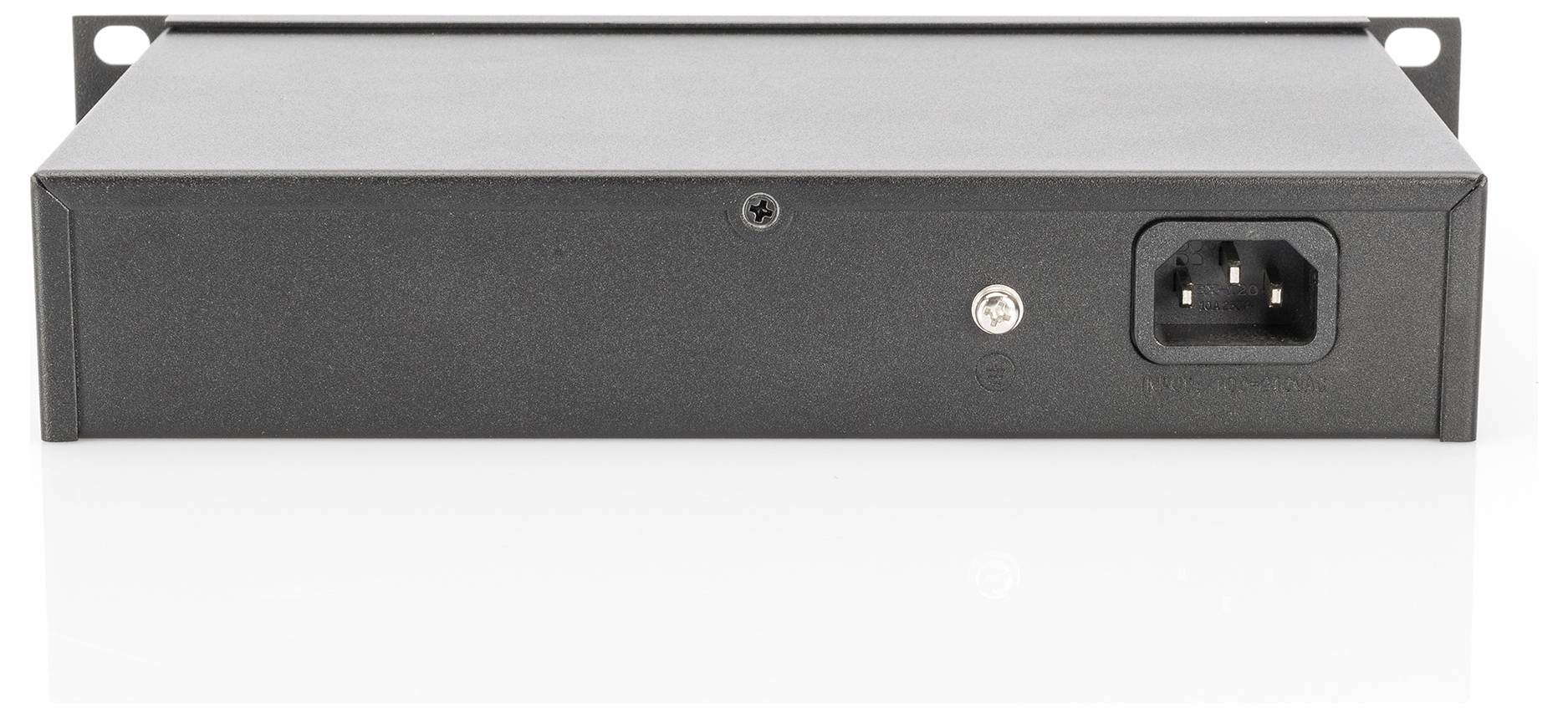

Black metal equipment box with IEC power inlet, small status light, and mounting ears.

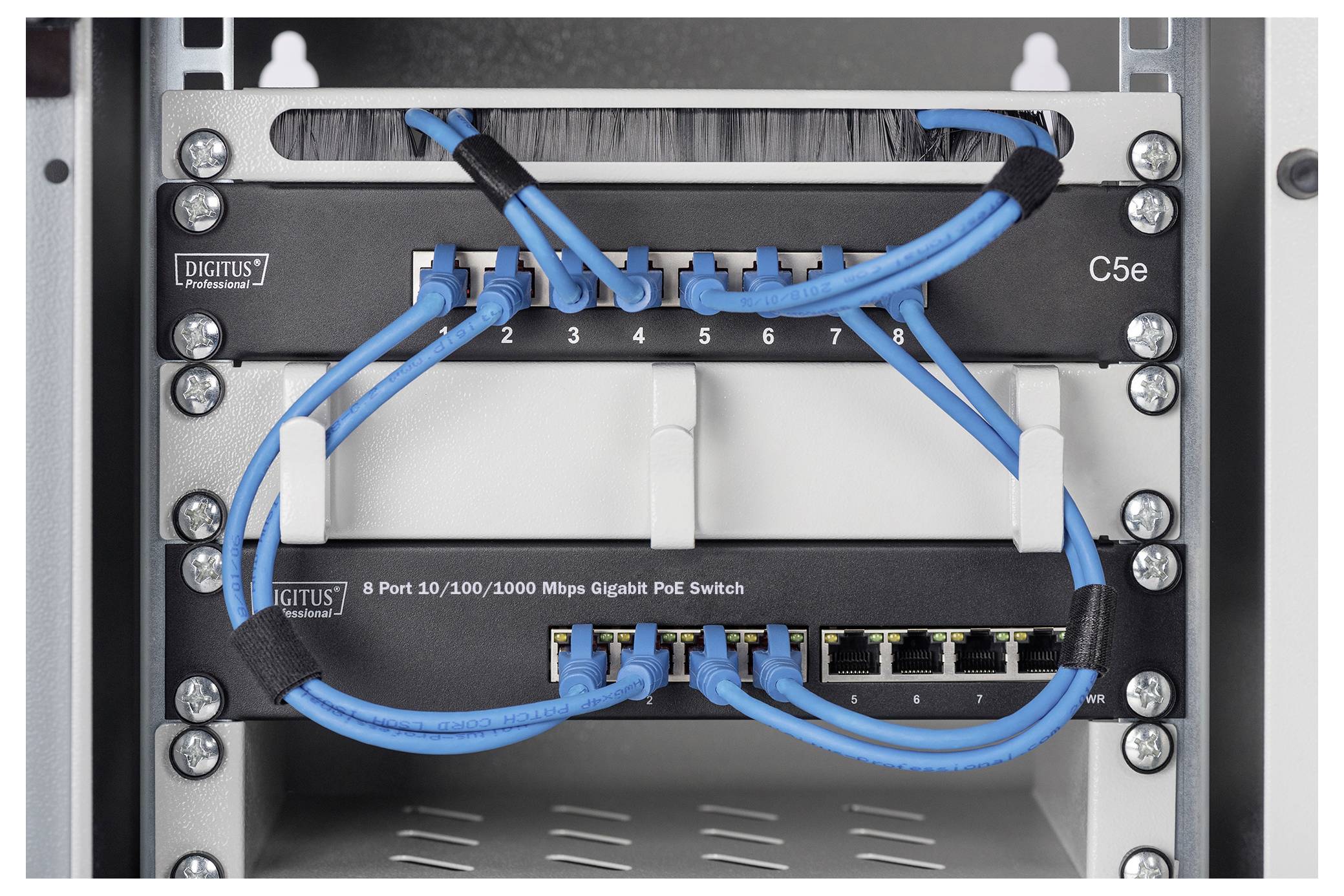

Network rack with blue Ethernet cables connected to a DIGITUS 8-port gigabit PoE switch and a C5e patch panel.<br>

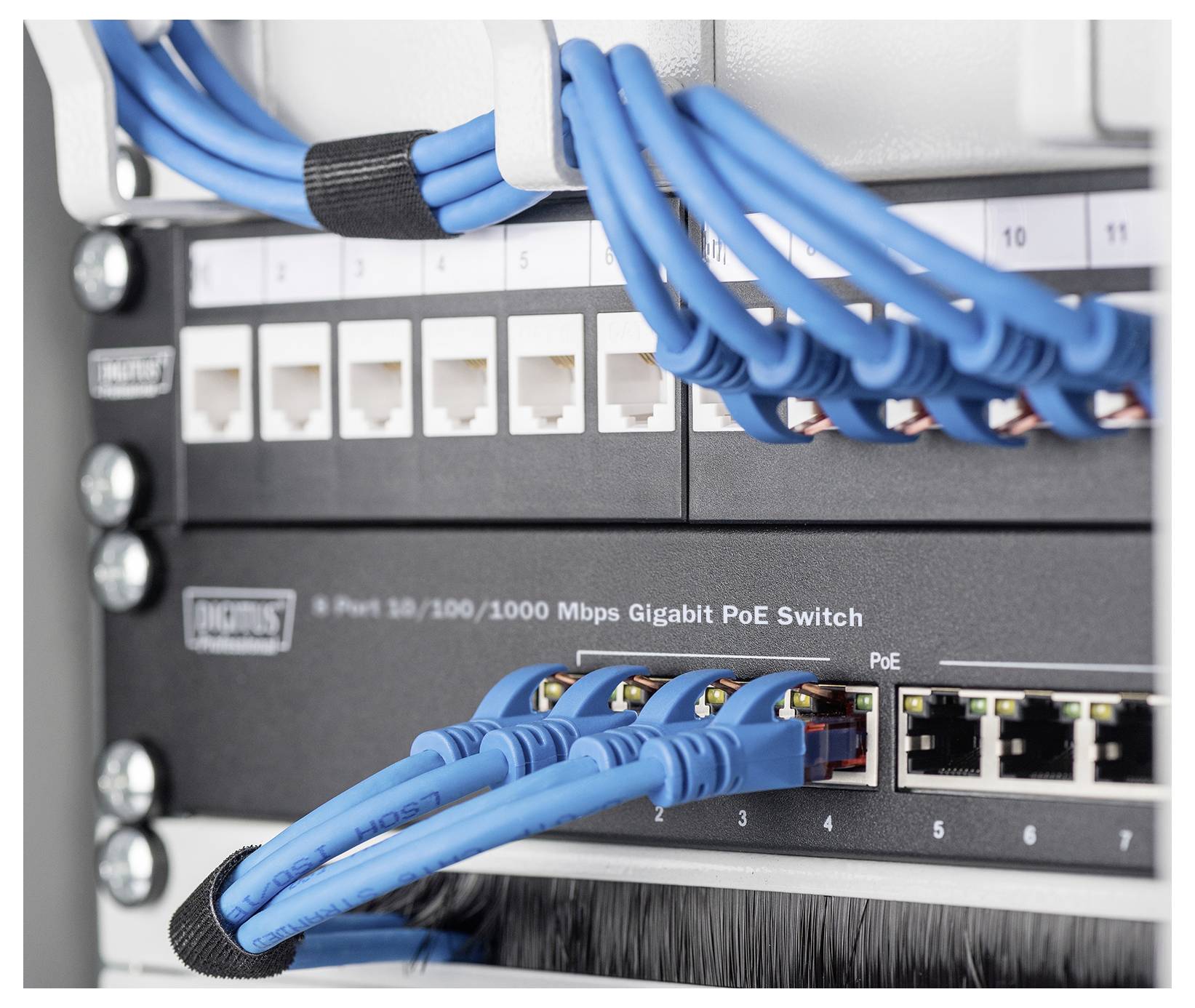

Close-up of a network switch with many blue Ethernet cables plugged into ports in a rack-mounted server cabinet.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus Gigabit Ethernet PoE switch, 8-port PoE+, 10", up to 80 W PoE budget

Eight gigabit RJ45 ports with PoE+ support for access points, IP cameras and VoIP phones
Supports PoE according to IEEE 802.3af/at with up to 30 W per port
Compact 10" design – perfect for small network cabinets or wall distributor
Fanless design for absolutely silent operation
Non-blocking Gigabit-Switching for stable and loss-free data transmission
Central power supply for PoE devices reduces installation effort and costs
Robust metal casing for professional permanent use
Auto MDI/MDI-X for simple wiring without crossover cables
Plug and Play - no configuration required
Reliable 24/7-operation for safety-critical applications

Technical specifications

8 × 10/100/1000 Mbps RJ45 ports
PoE standards IEEE 802.3af / IEEE 802.3at (PoE+)
Max. PoE performance per port: Up to 30 W
Total PoE budget: Up to 80 W.
Auto MDI/MDI-X, Non-Blocking Gigabit Switching
Store-and-forward switching technology, auto-negotiation
Fanless design – noiseless operation
Heavy duty metal casing
Suitable for 10" network cabinets
Compact design (approx. 250 × 150 × 42 mm)
Internal power supply, input voltage 100–240 VAC
Operating temperature: 0 – 40 °C, storage temperature: –10 – 70 °C, humidity: 5 – 95 % (non-condensing)

Product type: Ethernet switch

Working principle: Unmanaged switch

Ethernet ports: 8

Port type: RJ45 ports

Auto-uplink at each port: Yes

Jumbo frames: Yes

Power supply (LOV): via PSU

Weight: 1.65

Type: DN-95317-1

Rack size: 254 mm (10")

Interfaces: RJ45

: IP20

Factory colour: Black

Operating voltage: 240 V AC

Max. ambient temperature: 40 °C

Min. ambient temperature: 0 °C

Port: 8 ports

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3763177 Digitus DN-95317-1 Ethernet switch 8 ports

Description

The Digitus DN-95317 is a compact 10" Gigabit PoE+ switch with eight RJ45 ports, which makes possible a reliable power and data supply for modern IP-based network devices. Thanks to support for the PoE standards IEEE 802.3af and 802.3at (PoE+), the switch supplies connected devices such as access points, IP cameras, VoIP telephones or IoT systems directly via the network cable - no need for additional power supplies to the devices. Through its 10"-compatible design the switch is especially suitable for compact network cabinets, small server racks or decentralized installations in offices, retail trade, residential systems or technical side rooms. The fan-less design enables a completely noiseless operation and makes the switch Ideal for noise-sensitive environments. The Gigabit Ethernet ports provide fast data transfers and stable network connections for demanding PoE applications. With functions like non-blocking switching, auto-negotiation and store-and-forward technology the switch ensures a reliable network performance - completely without the configuration effort.

This text is machine translated.
