Digitus DN-95343 DN-95343 Network switch 24 + 2 ports 10 / 100 MBit/s
EAN:
Part number:
Item no:
Highlights & Details

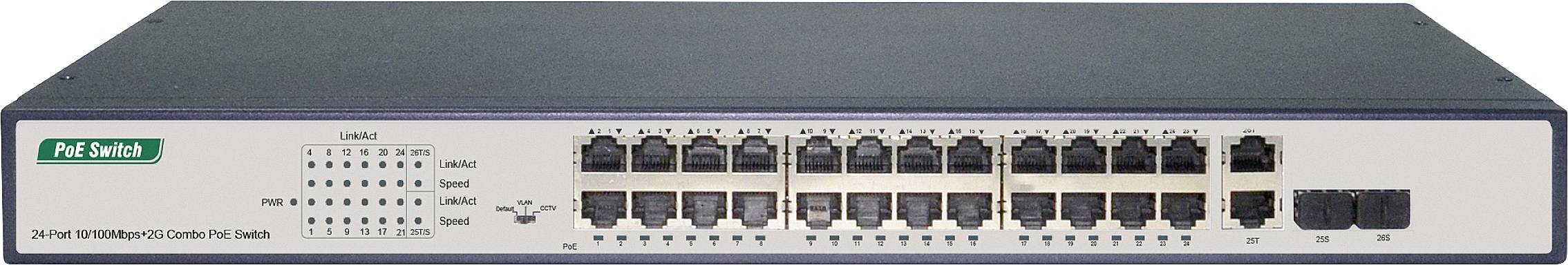

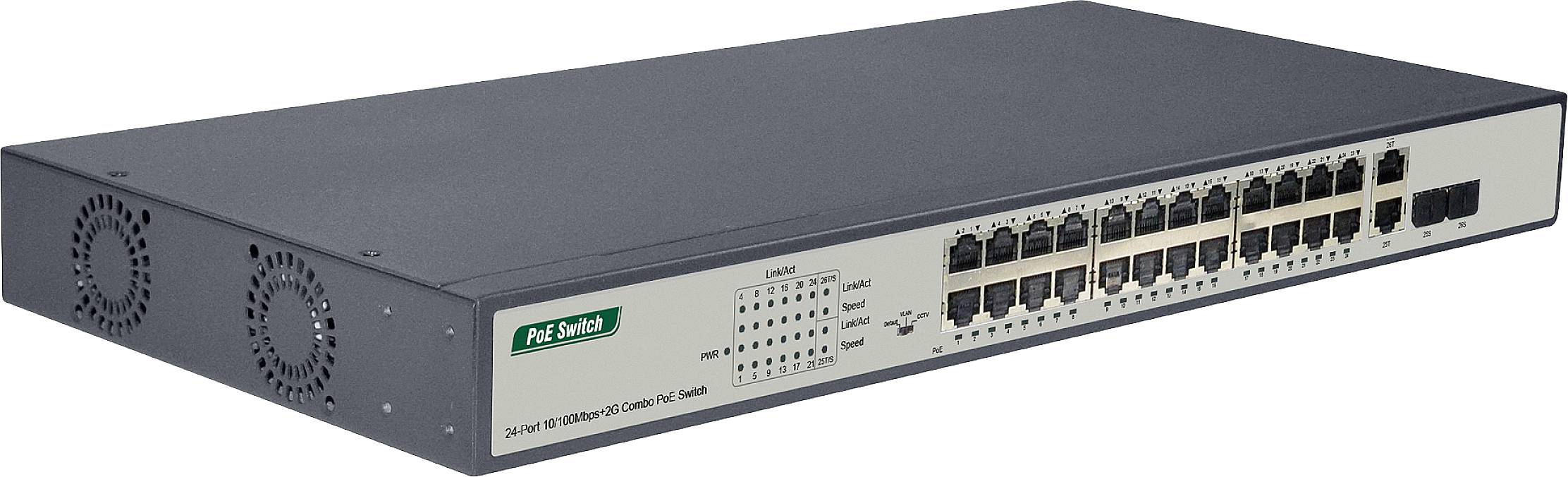

Digitus DN-95343 24-Port Fast Ethernet PoE Switch, unmanaged, 2-Port Combo TP/SFP
- 24 port 10/100Base-TX with PoE support
- 2-Port Combo Gigabit TP/SFP Uplink
- Meets the network standards IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at
- PoE power output 55V DC voltage, max. 30 W per port
Technical specifications
- Power consumption 390 Watt
- Maximum PoE output power 370 watts
- Number of ports: 24
- PoE Power Budget 370W

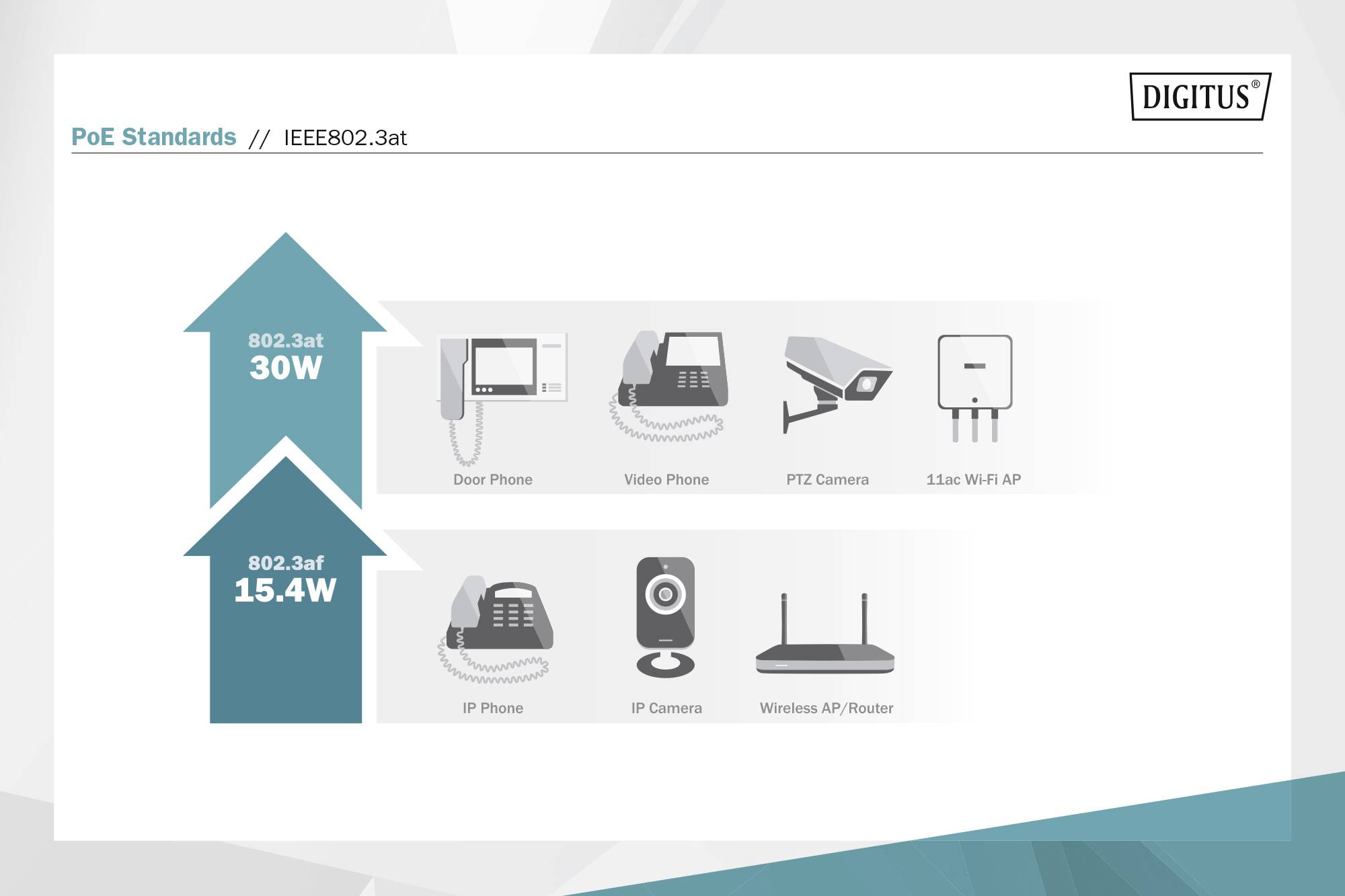

- PoE standard IEEE802.3at (PoE+)
- Ethernet speed: Fast Ethernet
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
10 / 100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
26
- IEEE 802.3af PoE
24
- PoE ports
24
- SFP ports
2 x
- 10/100 Mbps ports
24 x
- 10/100/1000 Mbps ports
2 x
- Port type
RJ45/SFP
- Auto-uplink at each port
Yes
- Power supply (LOV)
mains-powered
- Weight
3600 g
- Width
440 mm
- Height
40 mm
- Depth
270 mm
- Type
DN-95343
- Interfaces
Gigabit LAN (1 Gbps)
Gigabit LAN (1 Gbps)
RJ45
SFP
- Factory colour
Black
Grey
Black
- Operating voltage
230 V AC
- Port
24 + 2 ports
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2259013 Digitus DN-95343 DN-95343 Network switch 24 + 2 ports 10 / 100 MBit/s
Description
Digitus DIGITUS® Fast Ethernet PoE Switches are designed for medium to large network systems. The PoE-function and the 19'' size make an easy integration in your network possible. The switches are a great choice for improving the performance and efficiency of your network.
This text is machine translated.
This text is machine translated.
Features
- PoE power supply mode A, PIN 1/2(+), 3/6(-)
- supports non-blocking, non-head-of-line forwarding
- Store-and-forward technology for an optimized data transfer
- Automatic speed and half/full duplex recognition/setting
- Auto MDI/MDI-X function
- 16K MAC addresses

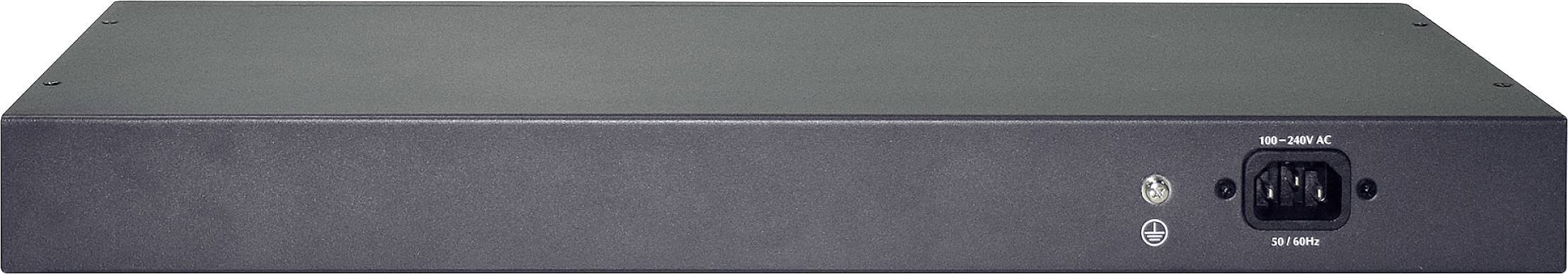

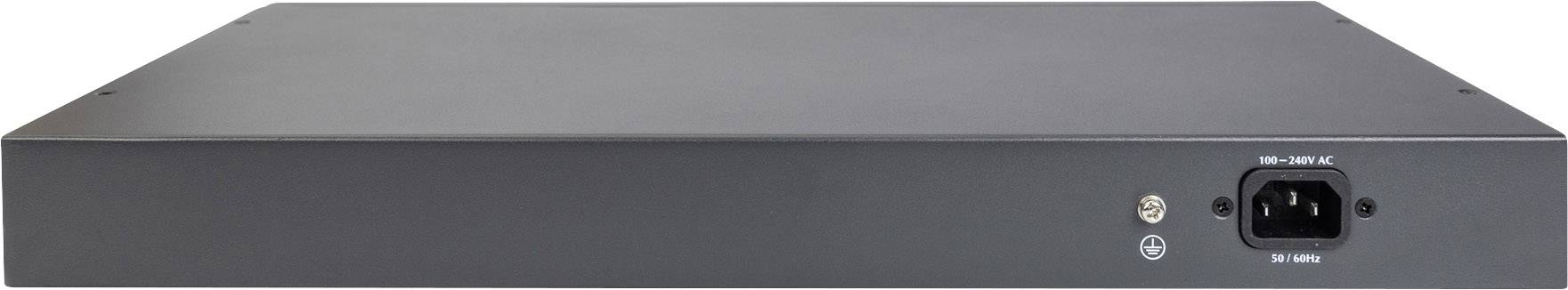

- Integrated power supply

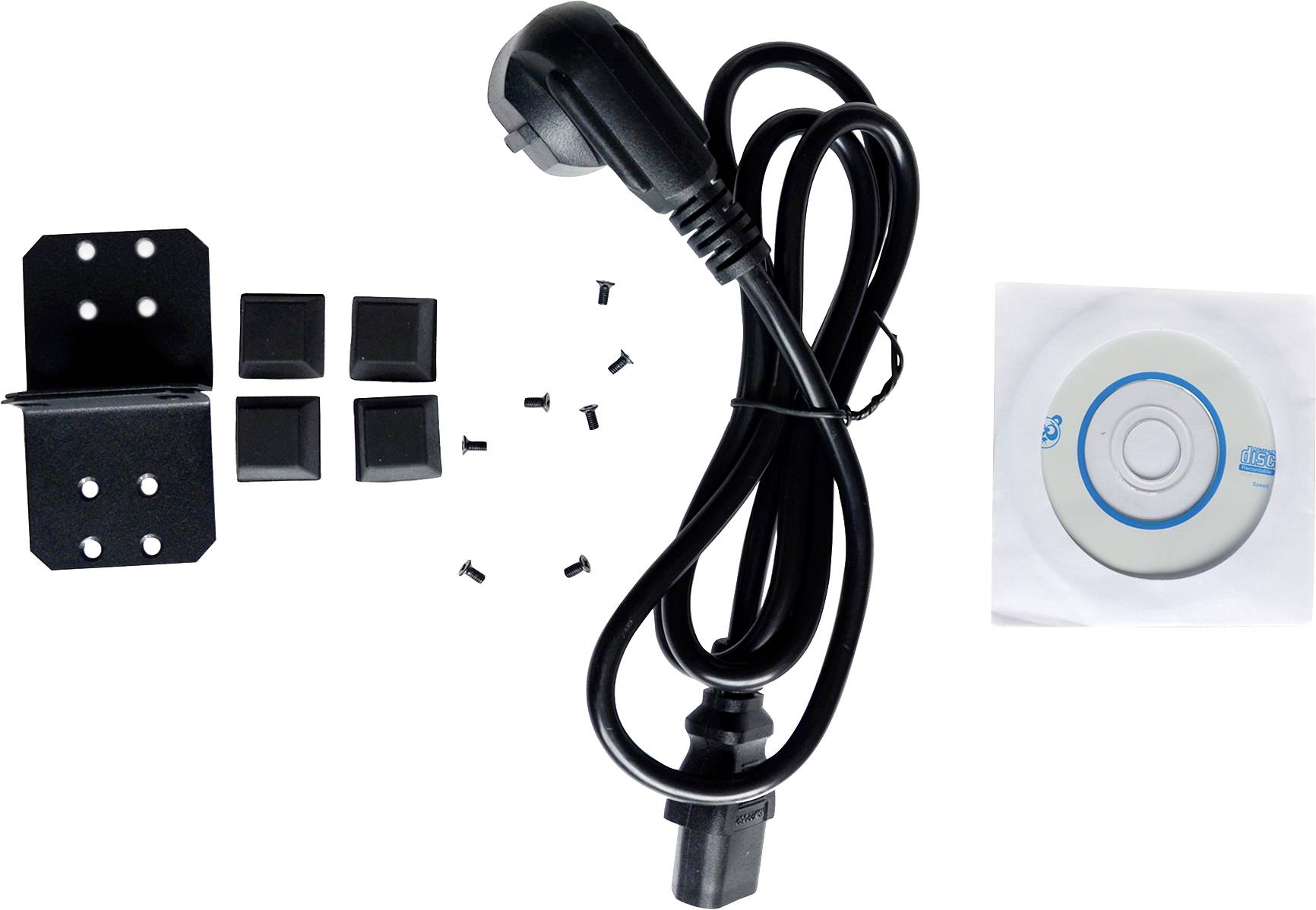

Scope of delivery
- 24-port Fast Ethernet PoE switch
- Quick start guide
- Power Cables
- Mounting accessories
