Name: Digitus DN-95348-2 DN-95348-2 19" switch box 24 + 2 ports 10 / 100 / 1000 MBit/s PoE
Brand: Digitus
SKU: 3333865

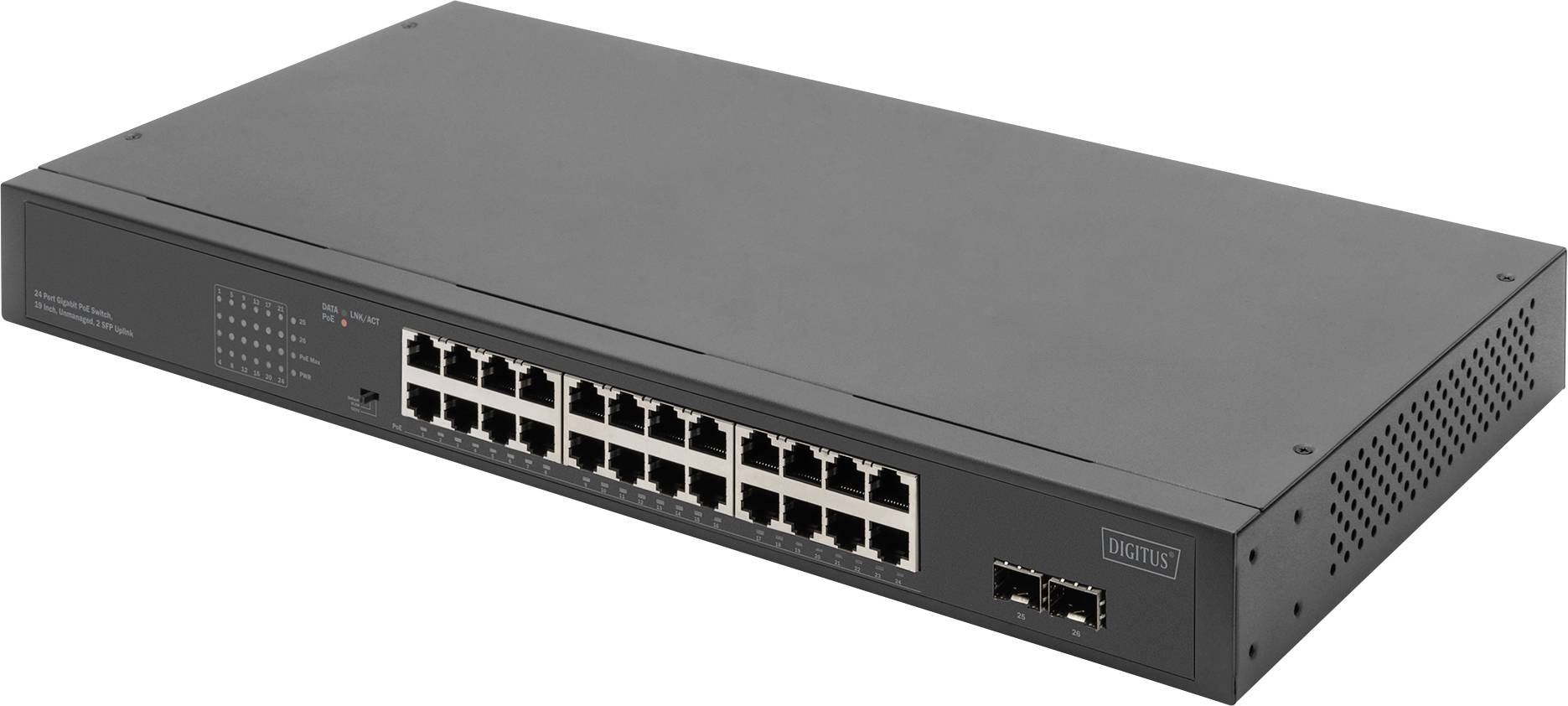

Black Ethernet switch with 24 ports and 2 SFP slots, suitable for use in networks for data transmission.

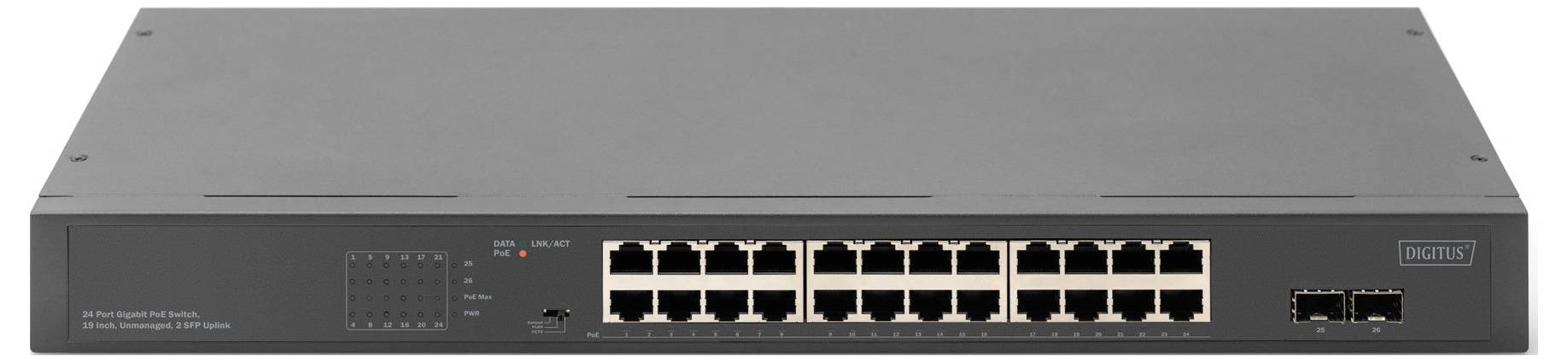

24-port network switch with two additional SFP ports on the front, suitable for distributing network connections.

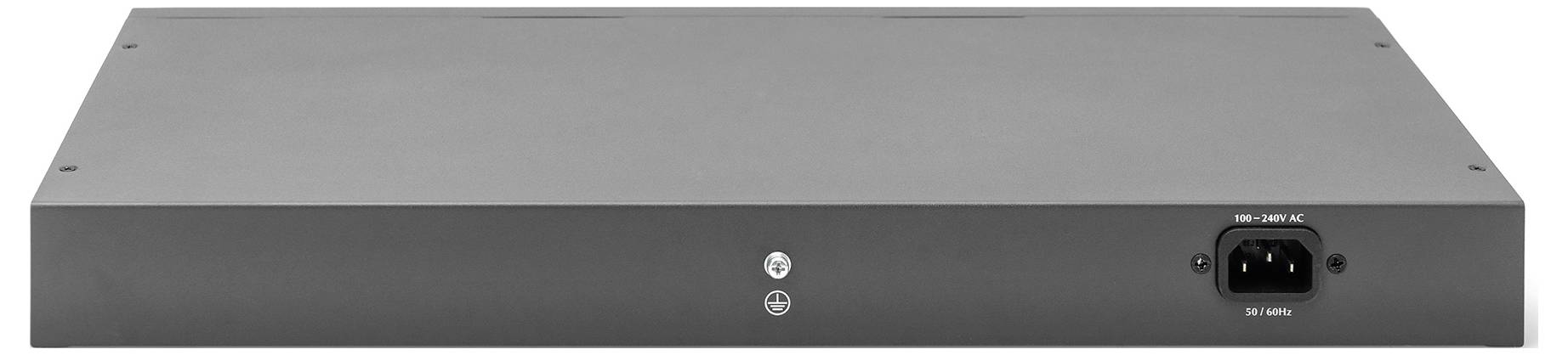

A flat, rectangular, grey electronic device with a power socket on the right-hand side.

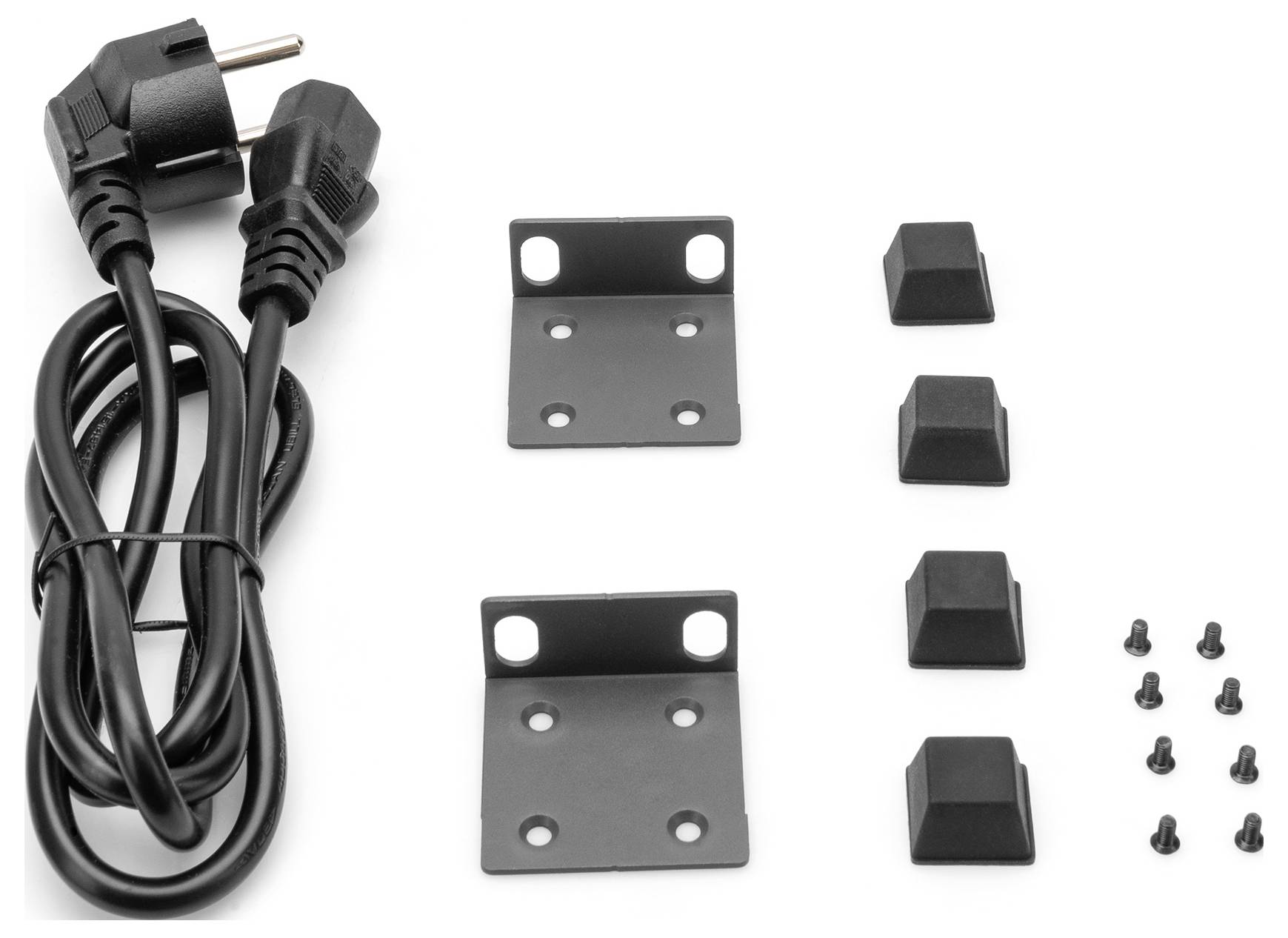

'Pictured are a black power cable, two mounting brackets, four rubber feet and eight screws, all packaged together.'

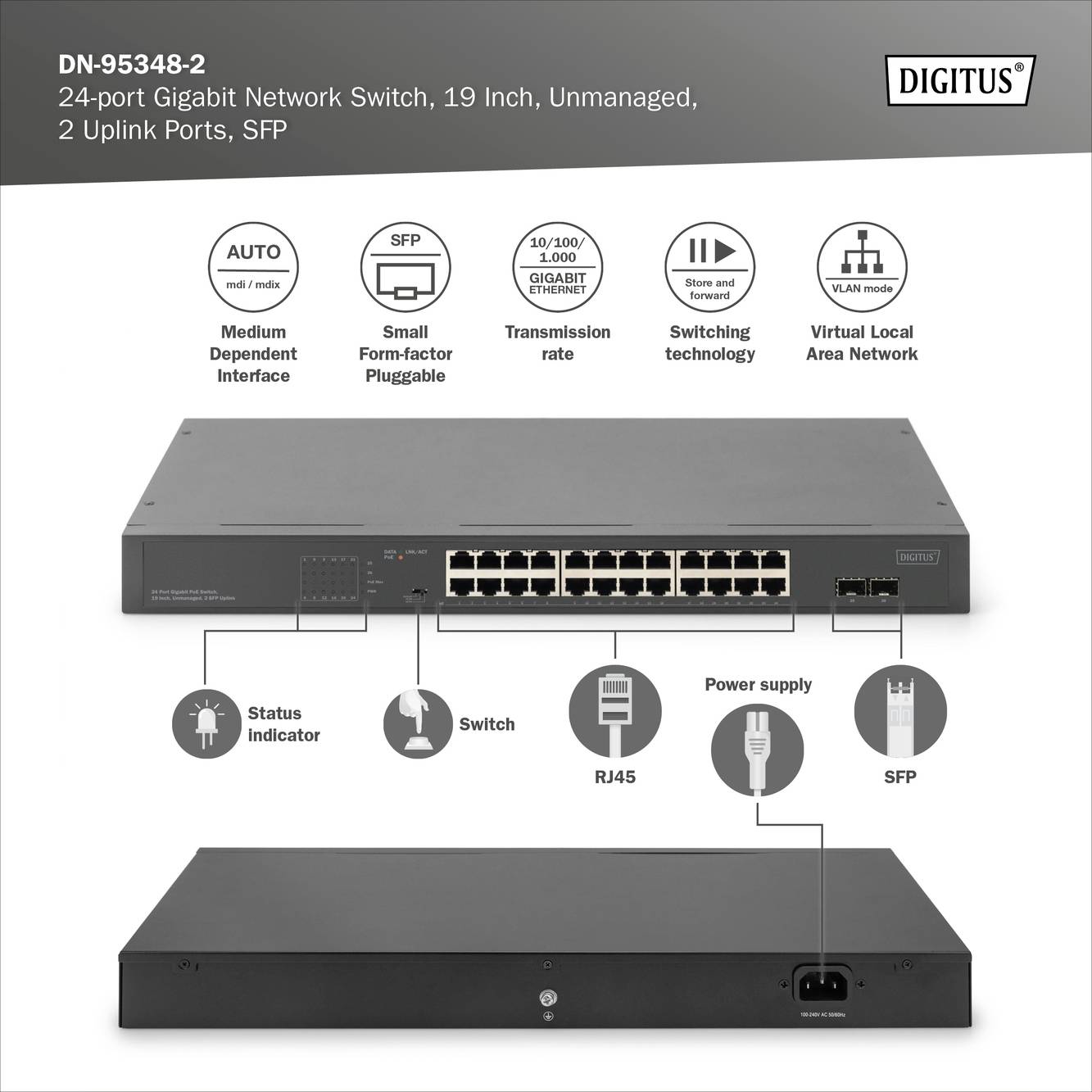

'Digitus DN-95348-2' Network Switch with 24 Gigabit Ports, 19-inch, Unmanaged, 2 Uplink Ports, SFP, Status and Power Indicators, RJ45 Connections.

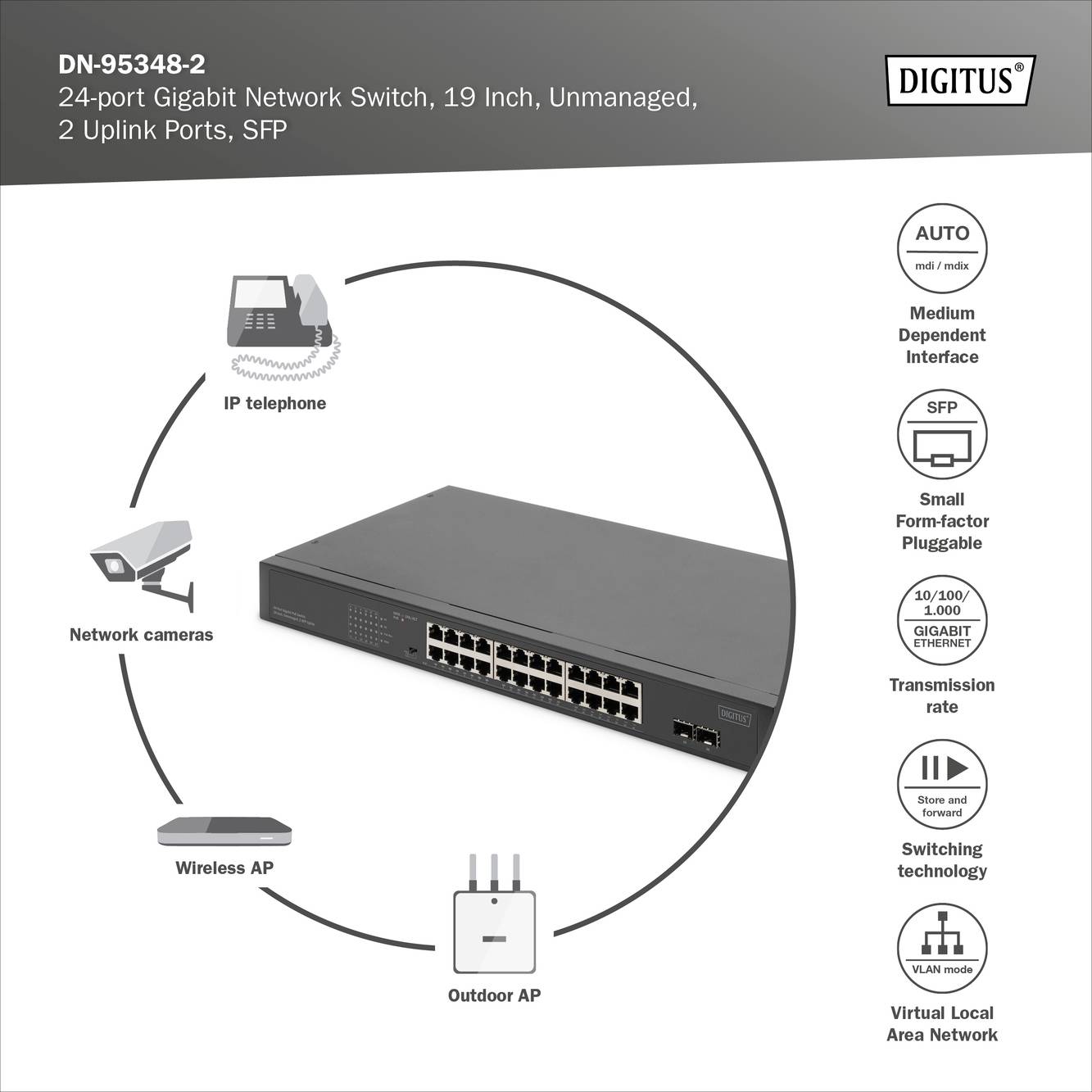

Network switch, 24 ports, 19-inch, unmanaged, with 2 uplink ports, SFP. Connection to IP telephones, cameras, wireless access points, outdoor access points.

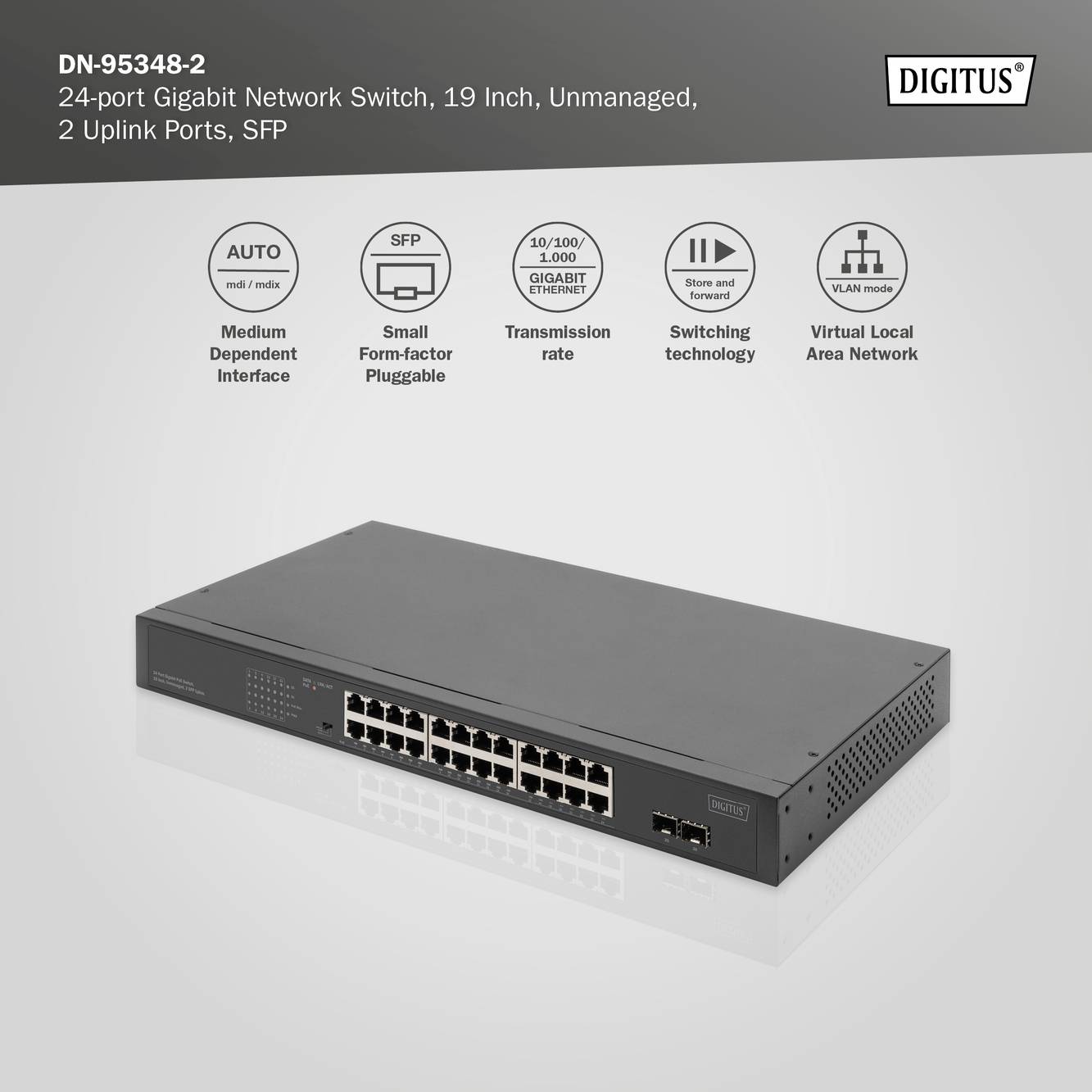

'Digitus DN-95348-2' Network Switch, 24-Port, Gigabit Transmission, 19-inch, Unmanaged, 2 Uplink Ports, SFP Support.

1/7

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus 24-port gigabit network switch, 19", unmanaged, 2 uplink ports, SFP

Supports IEEE802.3af/at standard
Single port output power up to 30 W
Automatic detection and identification of standard PoE receivers, intelligent power supplies, no combustion of non-standard PoE receivers or conventional devices
Supports the prioritization of the port power supply, guarantees the continuous power supply to the most important nodes
Panel displays monitor the work status and assist in fault analysis
Supports VLAN and CCTV-function
Flow control for full-duplex operation and backpressure for half-duplex operation
Supports the Power Efficient Ethernet (EEE) feature (IEEE802.3az)

Technical specifications

Single port output power up to 30 W
PoE port output voltage: 55V DC 30W Max
PoE power budget: 370W
Power supply 400W
Input power supply: 100 – 240 V AC, 50 Hz
Switching capacity 52 Gbps
MAC address table: 8K, Auto-Learning, Auto-Aging
Jumbo frames: 9216 bytes
Package buffer 4.1 Mbit
Transfer rate: 38.69 Mpps
Operating temperature: 0°C ~ 40°C
Storage temperature: -40°C…70°C
Operating humidity: 10%~90% RH non-condensing
Humidity during storage: 5%~90% RH, non-condensing
Dimensions (LBH) 44020744 mm
Fans Number: 2

Product type: 19" switch box

LAN transfer rate: 1000 MBit/s
10 MBit/s
100 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 24

IEEE 802.3af PoE: 24

PoE ports: 24

SFP ports: 2 x

10/100/1000 Mbps ports: 26 x

Fibre-optic ports: 2

Port type: SFP

Auto-uplink at each port: Yes

Jumbo frames: Yes

Router features: PoE

Power supply (LOV): via mains outlet

MAC addresses: 8000

Weight: 3.581

Type: DN-95348-2

Rack size: 483 mm (19")

Interfaces: RJ45
Gigabit LAN (1 Gbps)
Gigabit LAN (1 Gbps)
SFP

Factory colour: Black

Current consumption: AC 100~240V 50/60Hz

Max. ambient temperature: 40 °C

Min. ambient temperature: 0 °C

Port: 24 + 2 ports

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3333865 Digitus DN-95348-2 DN-95348-2 19" switch box 24 + 2 ports 10 / 100 / 1000 MBit/s PoE

Description

The DN-95348-2 PoE-switch offers an excellent solution for the efficient power supply of network components, which support the IEEE802.3af/at standard. With an impressive single port output power of up to 30W, it enables the reliable supply of PoE-enabled devices. Automatic detection and identification of standard PoE receivers make power smart and prevent potential damage from non-standard or conventional devices. By prioritization of the port power supply the module ensures a continuous power supply for critical network node points. The panel displays provide convenient monitoring of the work status and support in fault analysis. The module also supports VLAN and CCTV features to maximize flexibility in network applications. With the flow control for full-duplex operation and backpressure for half-duplex operation the module optimizes the data transmission efficiency. In all, the DN-95348-2 PoE-switch offers a powerful, intelligent and reliable solution for the power supply of network components, which justifies the today's requirements on modern network infrastructures.

This text is machine translated.

Features

Supports IEEE802.3af/at standard
Automatic detection and identification of standard PoE receivers, intelligent power supplies, no combustion of non-standard PoE receivers or conventional devices
Supports the prioritization of the port power supply, guarantees the continuous power supply to the most important nodes
Panel displays monitor the work status and assist in fault analysis
Supports VLAN and CCTV-function
Flow control for full-duplex operation and backpressure for half-duplex operation
Supports energy-efficient Ethernet (EEE) function (IEEE802.3az)
Mainboard, Power supply, PoE (three in one)
The most important supply: CCTV&VLAN
Forwarding mode: Storage and forwarding
Industrial use: No.

Scope of delivery

Power cable;
Rack holder
Fixing screws
Pedestals
