Digitus DN-95359 DN-95359 19" switch box 24 + 2 ports 10 / 100 / 1000 MBit/s PoE
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Digitus 24-port gigabit PoE network switch,19", L2 managed,2 uplink ports, SFP, 430 W, af/at
- Provides 24 10/100/1000 base-TX ports + 2 Gigabit SFP ports, with 24 PoE injectors
- Built-in power supply, 450W, high backplane bandwidth 52Gbps
- Supports ICMPv6, IPv6 Neighbor Discovery, MLD Snooping, IPv6 Telnet, standard IP/ Extend IP / MAC IP / ARP ACL, IGMP snooping for multi-media applications
- Supports port mirror and bandwidth control, IEEE802.3x flow control
- Support of port based VLAN / 802.1Q tag VLAN, IEEE802.3ad port trunk with LACP
- Support of the spanning-tree protocol IEEE802.1d/802.1w/802.11n
- Support of IEEE 802.1p class of service, IEEE 802.1x user authentication
- Supports broadcast storm filter, system event log, command line interface management
- Management via Web / SNMP / SSH / Telnet (IPv6-capable) / console
Technical specifications
- Product type
19" switch box
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- Working principle
Managed switch
- Ethernet ports
24
- IEEE 802.3af PoE
0
- PoE ports
24
- QSFP+ ports
0 x
- SFP+ ports
0 x
- SFP ports
2 x
- No. of 100 Mbps/1Gbps/10Gbps ports
0 x
- 10/100/1000 Mbps ports
24 x
- Fibre-optic ports
0
- RS232 console ports
0 x
- Auto-uplink at each port
No
- Jumbo frames
Yes
- Router features
PoE
- Power supply (LOV)
via PSU
via mains outlet
mains-powered
- MAC addresses
8000
- Weight
3620 g
- Width
200 mm
- Height
440 cm
- Depth
44 mm
- Type
DN-95359
- Rack size
483 mm (19")
- Interfaces
RJ45
SFP
Gigabit LAN (1 Gbps)
LAN (10/100 Mbps)
Gigabit LAN (1 Gbps)
RJ45 management port
- Factory colour
Black
Black (matt)
- Operating voltage
240 V AC
- Max. ambient temperature
70 °C
- Min. ambient temperature
-10 °C
- Port
24 + 2 ports
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3129081 Digitus DN-95359 DN-95359 19" switch box 24 + 2 ports 10 / 100 / 1000 MBit/s PoE
User & Safety Instructions
User & Safety Instructions 3129081 Digitus DN-95359 DN-95359 19" switch box 24 + 2 ports 10 / 100 / 1000 MBit/s PoE
Description

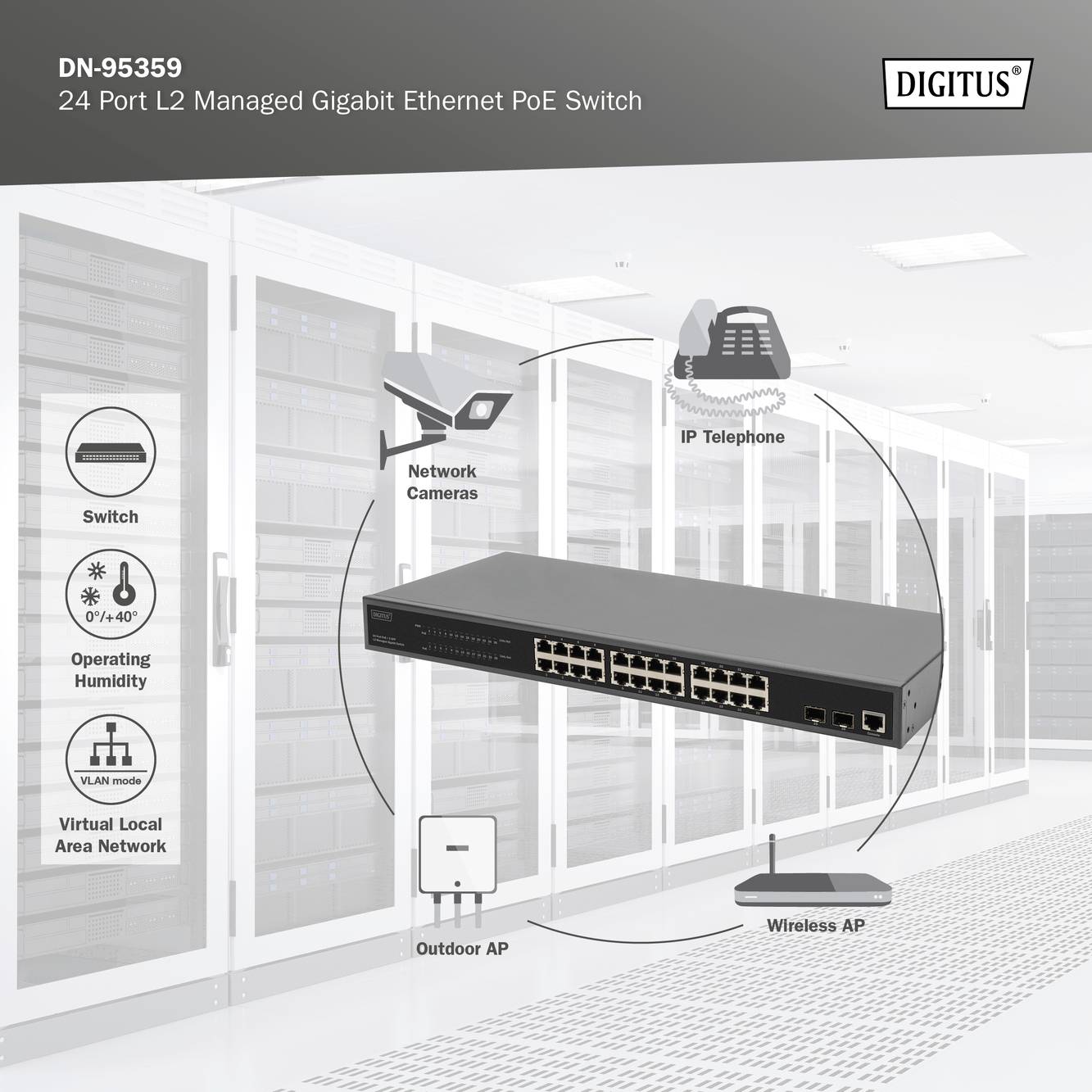

The DN-95359 is a manageable 24 +2 port PoE switch with L2 features. It is mainly used in the structural LAN area. With a total of 430 watt PoE power budget, the DN-95359 supplies up to 24 connected PoE devices such as, IP-security cameras or VoIP-telephones with up to 30W per port. Due to the large backplane bandwidth of 52 Gbps, data can be processed and forwarded quickly. It also supports features such as ICMPv6, IGMP & MLD Snooping, Port Mirroring, Broadcast storm filter and many more.
This text is machine translated.
This text is machine translated.
Features

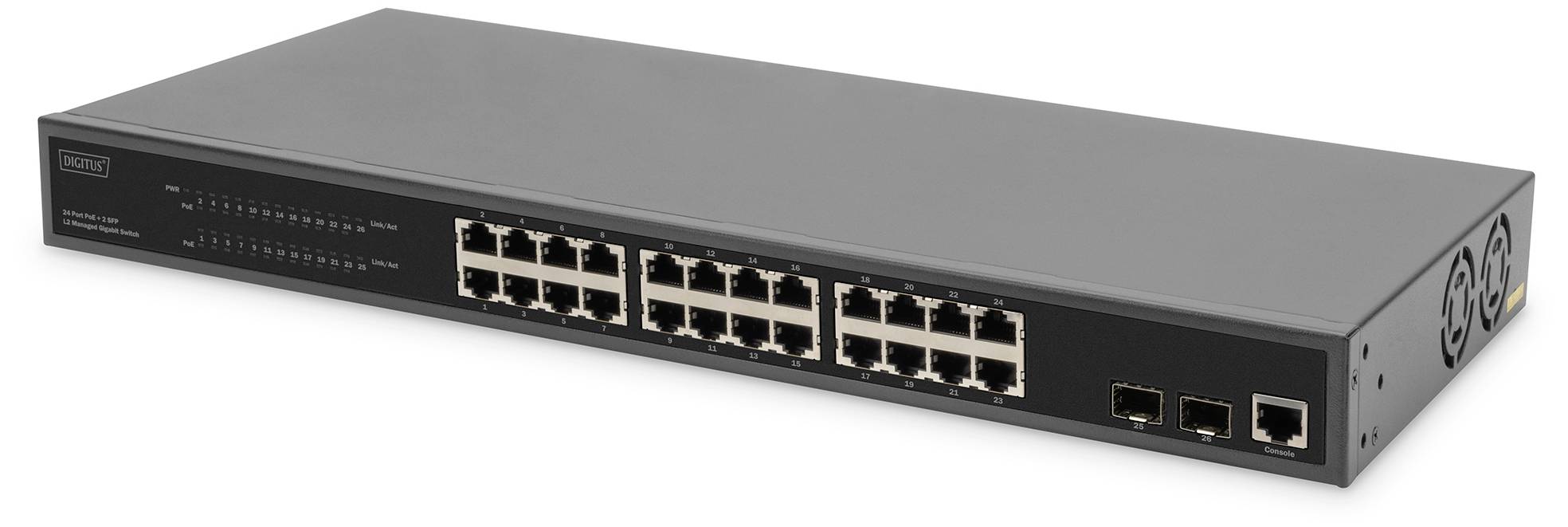

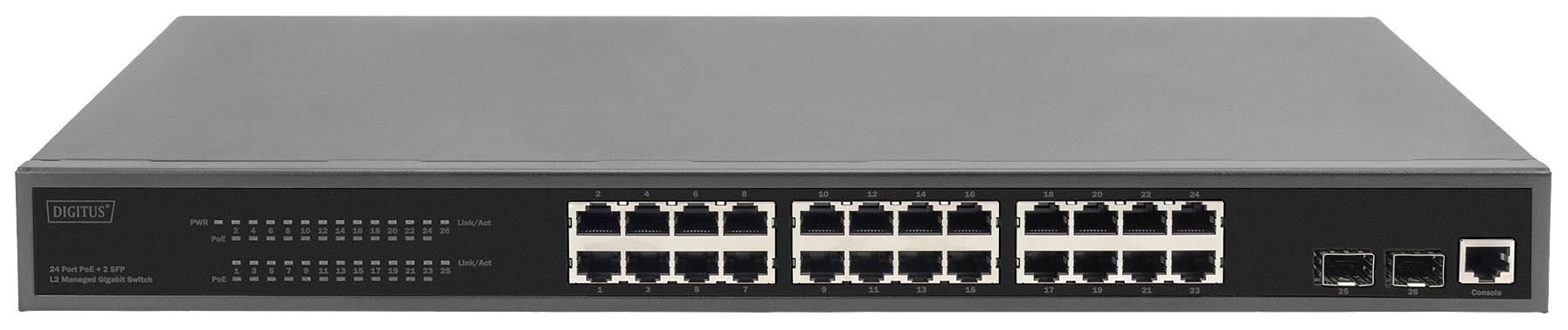

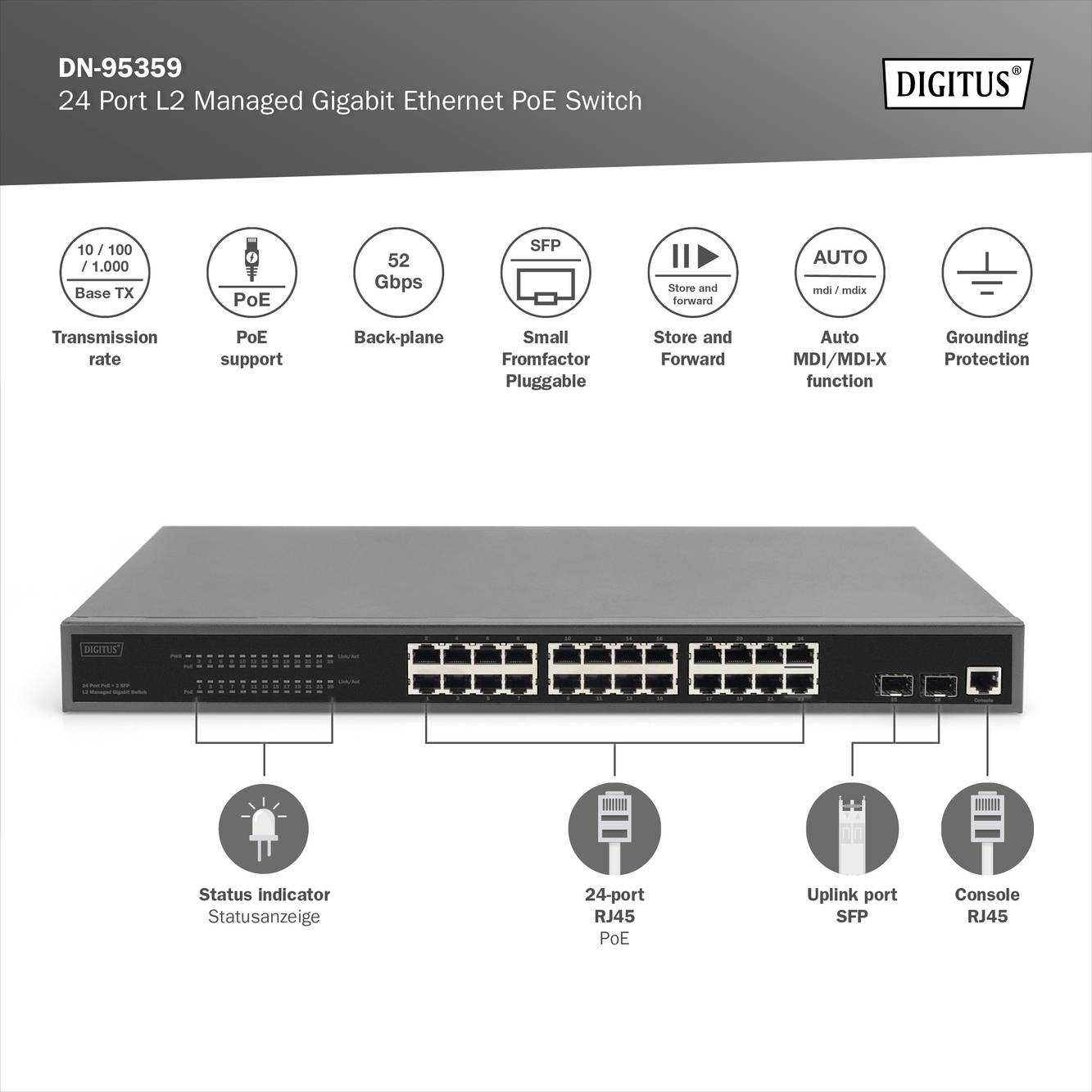

- Provides 24 10/100/1000 Base-TX ports + 2 Gigabit SFP ports
- Provides 24 PoE injectors
- Built-in power supplies, 450W
- High backplane bandwidth 52 Gbps
- Supports ICMPv6
- Supports IPv6 Neighbour Discovery
- Supports MLD snooping
- Support for IPv6 Telnet
- Supports standard IP/ extend IP / MAC IP / ARP ACL
- Support of IGMP snooping for multi-media applications
- Support of port mirror and bandwidth control
- Supports IEEE802.3x current control
- Supports port based VLAN / 802.1Q tag VLAN
- Support of IEEE802.3ad Port Trunk with LACP
- Support of the spanning tree protocol IEEE802.1d/802.1w/802.11n
- Support of IEEE 802.1p service classes
- Supports IEEE 802.1x user authentication
- Broadcast Storm Filter support
- Support of the system event log
- Support management through the command line interface
- Management via Web / SNMP / SSH / Telnet (IPv6-capable) / console
- Management via Web / SNMP / SSH / Telnet (IPv6-capable) / console
- Switching capacity 52 Gbps
- Forwarding capacity: 38.7 Mpps
- Forwarding mode: Save and forward
- Packet buffer memory 4.1 Mbit
- RAM for CPU 1 Gbit
- Flash memory 128 Mbit
- MAC address table 8K
- Max. Jumbo frame size: 16K
- VLAN number: 4K
- ACL table: 512
- L3-interface 32
- Port queues: 8
- Dimensions 440 x 200 x 44 mm
- Operating temperature: -0 to + 40°C.
- Storage temperature: -10 to 70℃
- Operating humidity: 5 to 95% non-condensing
- Power supply method: 100-240VAC, 50/60Hz
- Max. Power consumption including PoE output: 450W
- Number of ports: 26
- PoE power budget: 330 W
- PoE standard; IEEE802.3at (PoE+)
- Ethernet speed: Gigabit
- 24 W power output
- Industrial use: No.

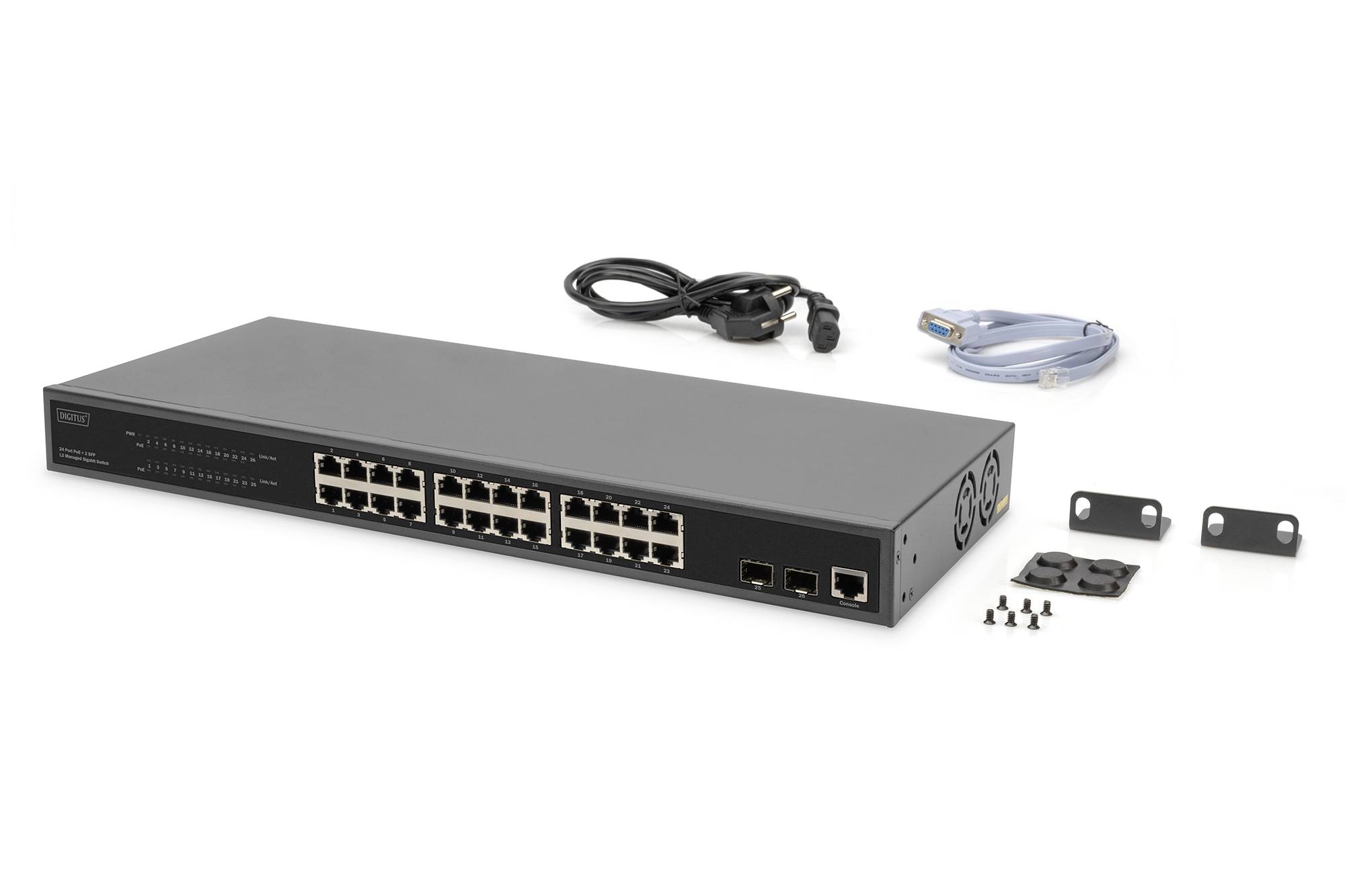

Scope of delivery
- User manual
- Power cable;
- DB9 to RJ45 cable
- Rack mounting kit
- 4x Rubber foots
