Name: Digitus DS-55317 Wireless HDMI (set) 50 m 1920 x 1080 Pixel
Brand: Digitus
SKU: 2618002

Wireless HDMI presentation system with two receiver units, one transmitter, HDMI cables, USB power cables, and table mounting bracket.

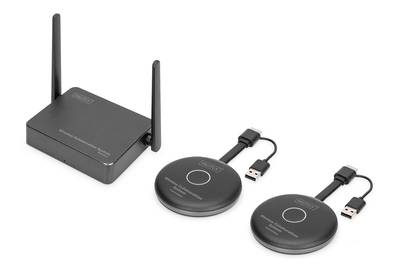

Digitus DS-55317 Wireless HDMI (set) 50 m 1920 x 1080 Pixel-1

Digitus DS-55317 Wireless HDMI (set) 50 m 1920 x 1080 Pixel-2

Digitus DS-55317 Wireless HDMI (set) 50 m 1920 x 1080 Pixel-3

A person is using a smartphone in front of a television displaying a website. A router in the image indicates a Wi-Fi connection.

A person is operating a tablet displaying a webpage with technology solutions. A large screen is visible in the background.

A person is using a smartphone to control a smart TV displaying an image of space. A symbol indicates a Wi-Fi connection to the router.

People in a conference room are examining diagrams on tablets and laptops, while a large screen displays graphics.

A man is giving a presentation in a conference room. Various diagrams and graphs are displayed on the screen. Four people are listening.

'Three images: 1. Person looking at laptop with graphic. 2. Hand pressing button on device. 3. Two people viewing presentation on screen.'

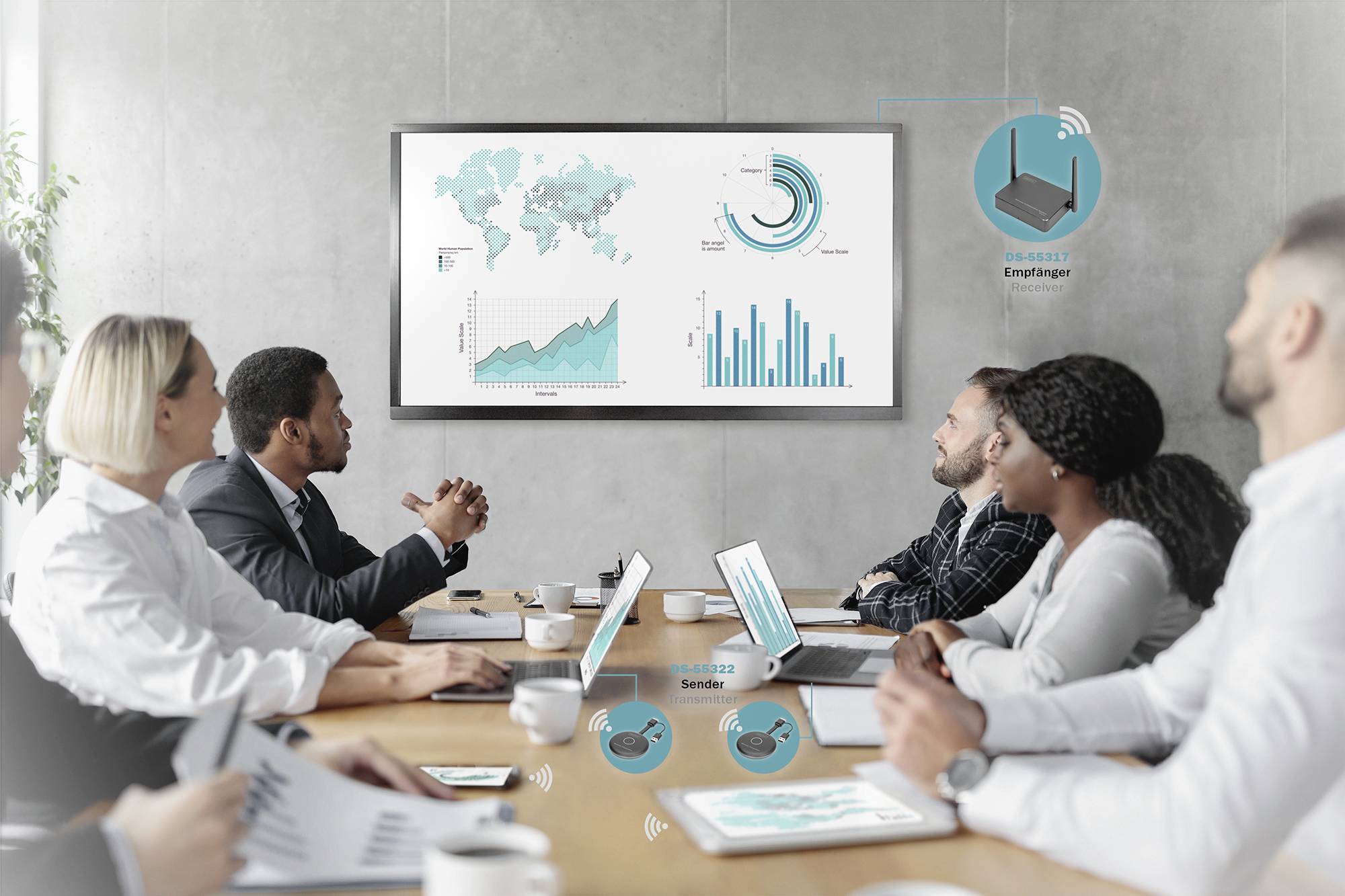

People in a meeting room are looking at a screen with diagrams and charts. Discussion about data analysis.

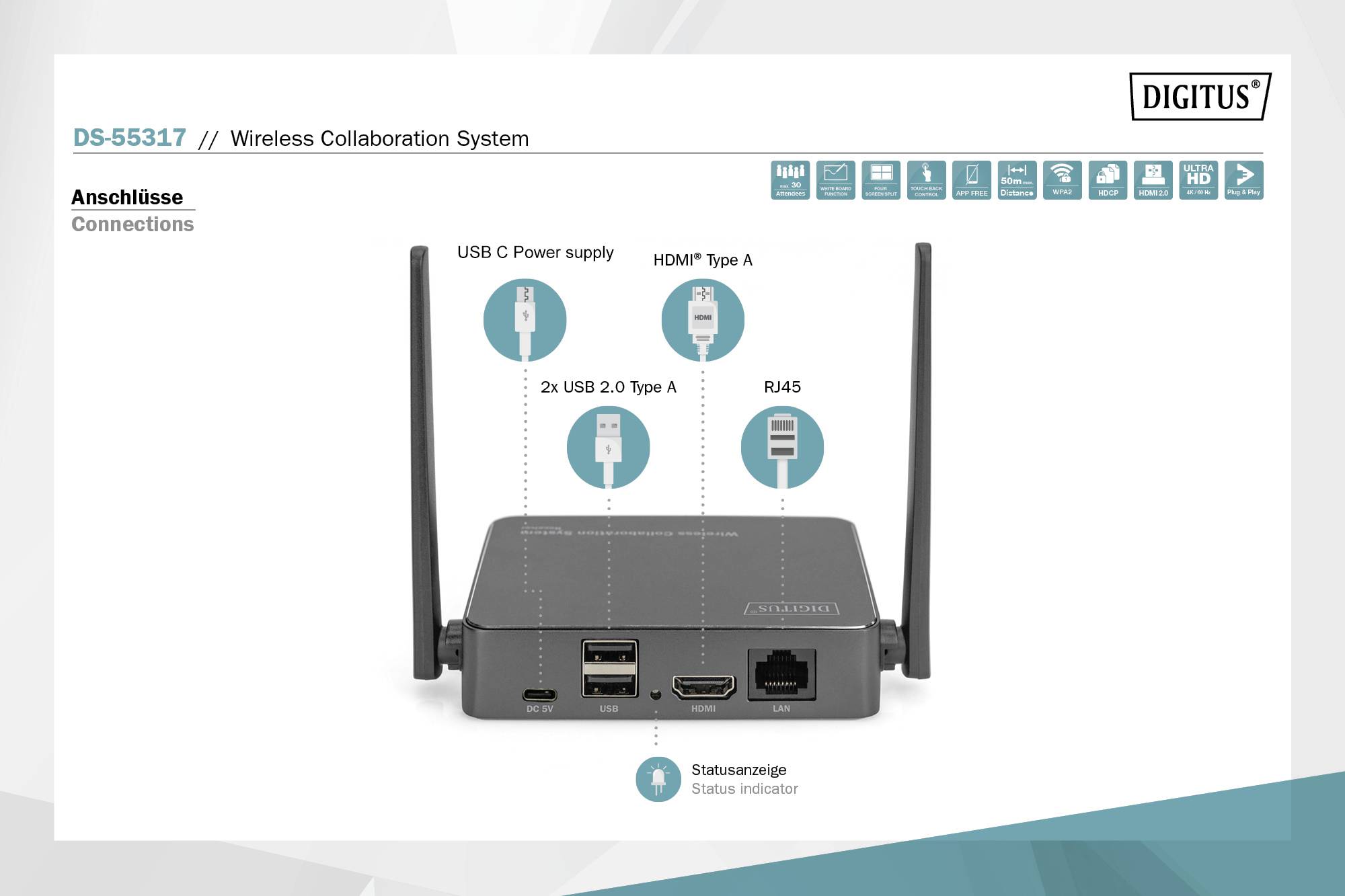

'DS-55317 Wireless Collaboration System'. Pictured are the connections: USB-C, USB 2.0, HDMI Type A, RJ45, and status indicator.

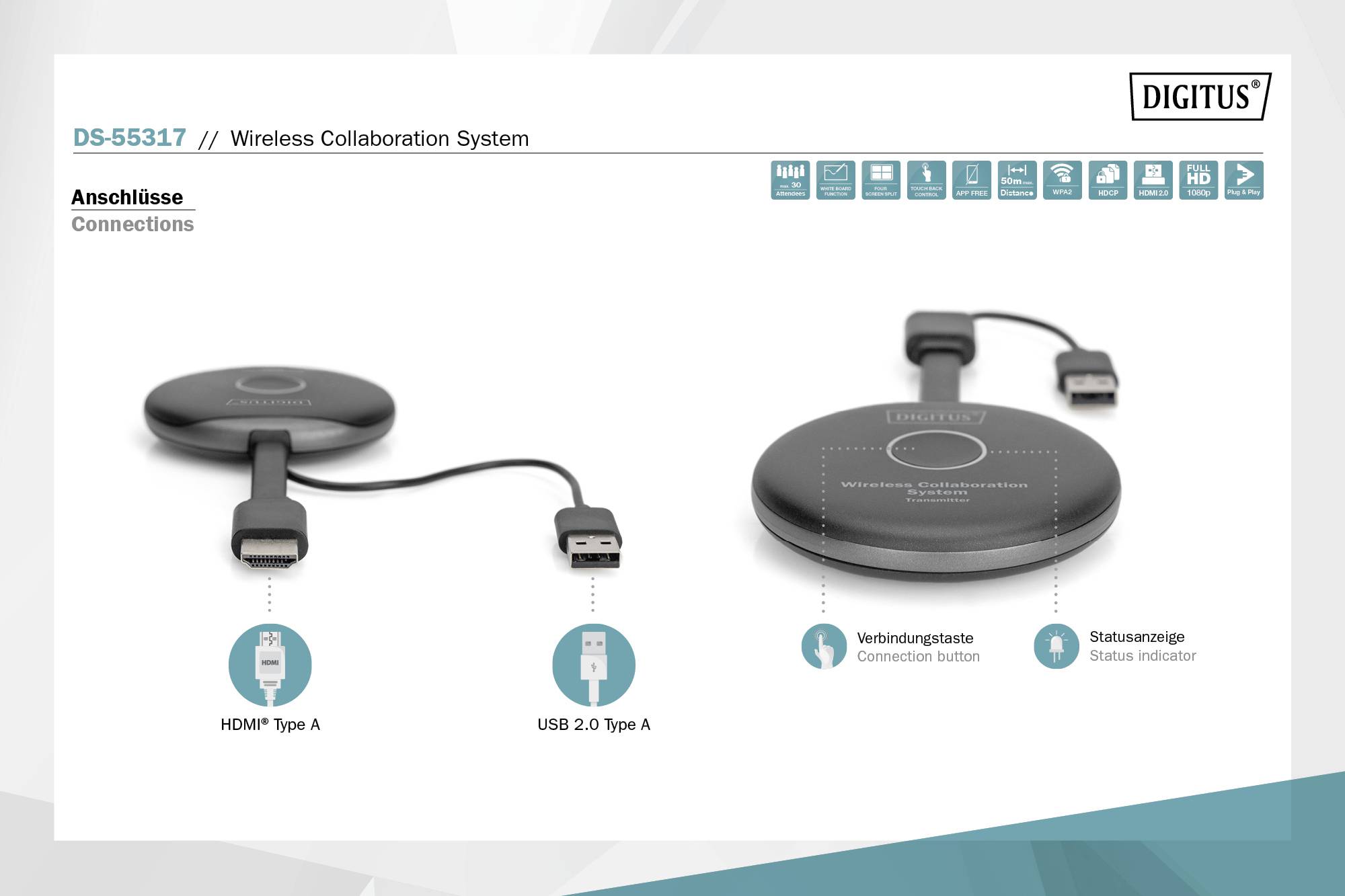

'Digitus Wireless Collaboration System DS-55317' with HDMI Type A and USB 2.0 Type A ports. Connection button and status indicator.

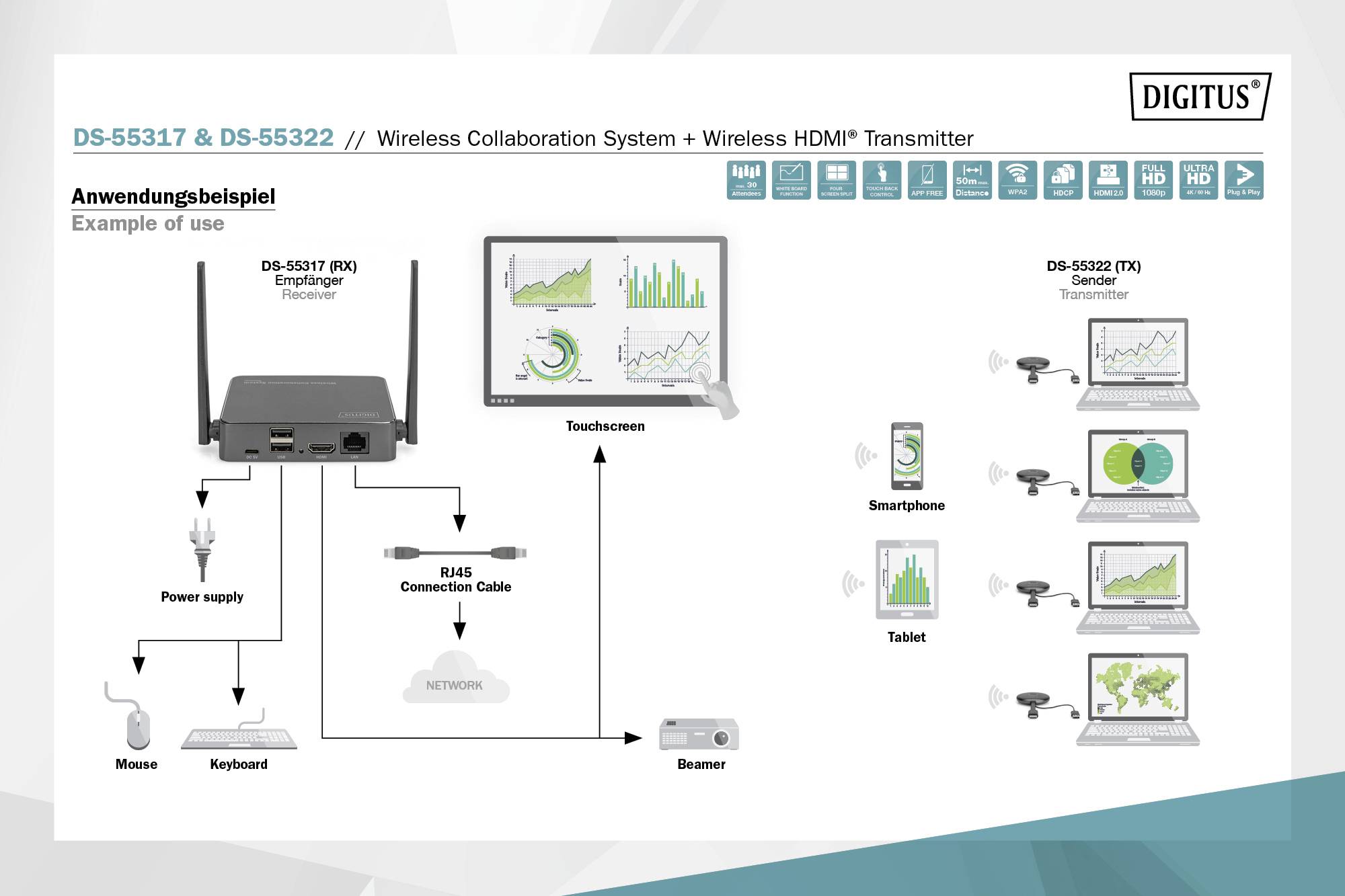

Example of a wireless collaboration system: Receiver connects wirelessly to touchscreen and devices such as smartphone, tablet.

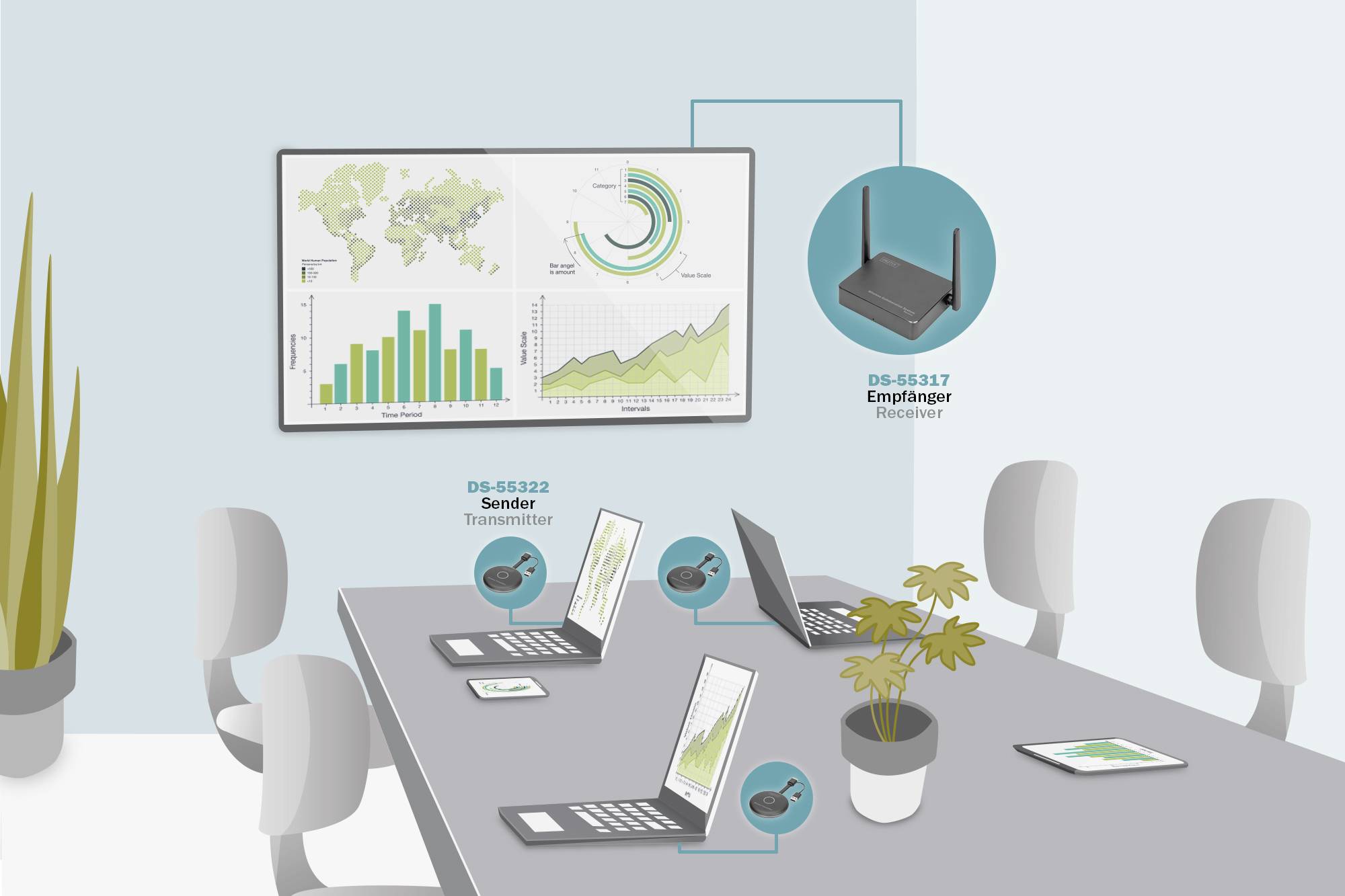

Conference room with a table and four laptops displaying data visualisations. A screen with diagrams hangs on the wall. Router and receiver positions are marked.

1/15

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus DS-55317 wireless collaboration/presentation system - present from notebook, tablet or smartphone

Share, present & collaborate: The Wireless Presentation & Collaboration System wirelessly connects notebooks and mobile devices to a screen or projector (compatible with Windows, MacOS, iOS, Android)No app or software installation required: Share from computer via HDMI transmitter / tablet & smartphone via WLAN and share via screen synchronization of the mobile deviceSplit-screen mode: Up to 4 subscribers can simultaneously transfer and display their screen contents on the main monitor (compatible with HDMI dongle, Windows, MacOS, iOS)

Technical specifications

Wireless standard : IEEE 802.11 b/g/n/ac, 2.4G/5GHz, 2T2RAES 128-bit encryptionWPA2/WPA-PSK/WPA2-PSK AUTHENTICATIONLatency: Approx. 100 msCasing: Transmitter - ABS / Receiver - AluminumDimensions : Transmitter L 8.0 x W 8.0 x H 1.4 cm / Receiver L 8.5 x 10.4 x 2.3 cmKVM : no.power over Ethernet (PoE) : no.

Product type: Wireless HDMI (set)

Interfaces (input): HDMI™

Interfaces (output): HDMI™

Video resolution: 1920 x 1080 Pixel

Range (max.): 50 m

Factory colour: Black

Weight: 1.61 kg

Width: 100 mm

Height: 100 mm

Dim: (W x H x D) 100 x 100 x 250 mm

Depth: 250 mm

Power supply (LOV): via USB

Type A: HDMI plug

Type B: HDMI plug

Connection type: HDMI

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2618002 Digitus DS-55317 Wireless HDMI (set) 50 m 1920 x 1080 Pixel

User & Safety Instructions

User & Safety Instructions 2618002 Digitus DS-55317 Wireless HDMI (set) 50 m 1920 x 1080 Pixel

Description

The Digitus DIGITAL® Wireless Collaboration System brings together all your devices (notebook, tablet, smartphone) and offers a hardware-based presentation solution for wireless transfer of meeting/conference screen content. Up to 30 subscribers can be connected to the receiver. Up to 4 participants can present/collaborate simultaneously in the split screen. Notebooks can be connected with the HDMI transmitter, the set can be extended by further transmitters (DS-55322). Content from the tablet/smartphone can be easily shared via the sharing/cast function (iOS, iPadOS/Android) of your mobile device. To do this, connect your mobile device to the receiver (SSID) via WLAN. The setup of the system has been simplified as far as possible - no additional Sotware/Apps are required. Increase the efficiency of your meetings, save time and achieve optimized results. Share - present - collaborate.

This text is machine translated.

Features

Touch Panel Back Control: As an alternative to mouse & keyboard, a touch screen can be connected to the receiver via USB, in order to operate connected notebooks directly via gesture control via the touch panelIntegrated Whiteboard: The Whiteboard mode transforms any touch screen into a digital whiteboard, allowing you to enter and save notes and drawings directly on the screenUser interface: For configuration and administration, the collaboration system has a user-friendly user interface with integrated subscriber overview and tips for successful connection establishmentMulti-user support: Up to 30 subscribers can be connected to the receiver at the same time and start the screen transmission alternately (additional HDMI transmitters can be purchased separately)Multicast and group mode: Several systems can be operated in parallel in the same network without any problems / alternatively, a transmitter can stream its video signal to 2 or more receivers simultaneouslyApplication examples: Business applications (meeting, conference, & meeting room, office, trade fair stand, Meeting room) / Education (schools, colleges, universities, class rooms, seminar room, Auditorium)Device requirements: All devices with HDMI interface / PC operating systems (compatible with: Windows, MacOS) / Smartphone & Tablet (compatible with: Android 5.0 or higher, iPhone & iPad with iOS 9.0 or higher)

Scope of delivery

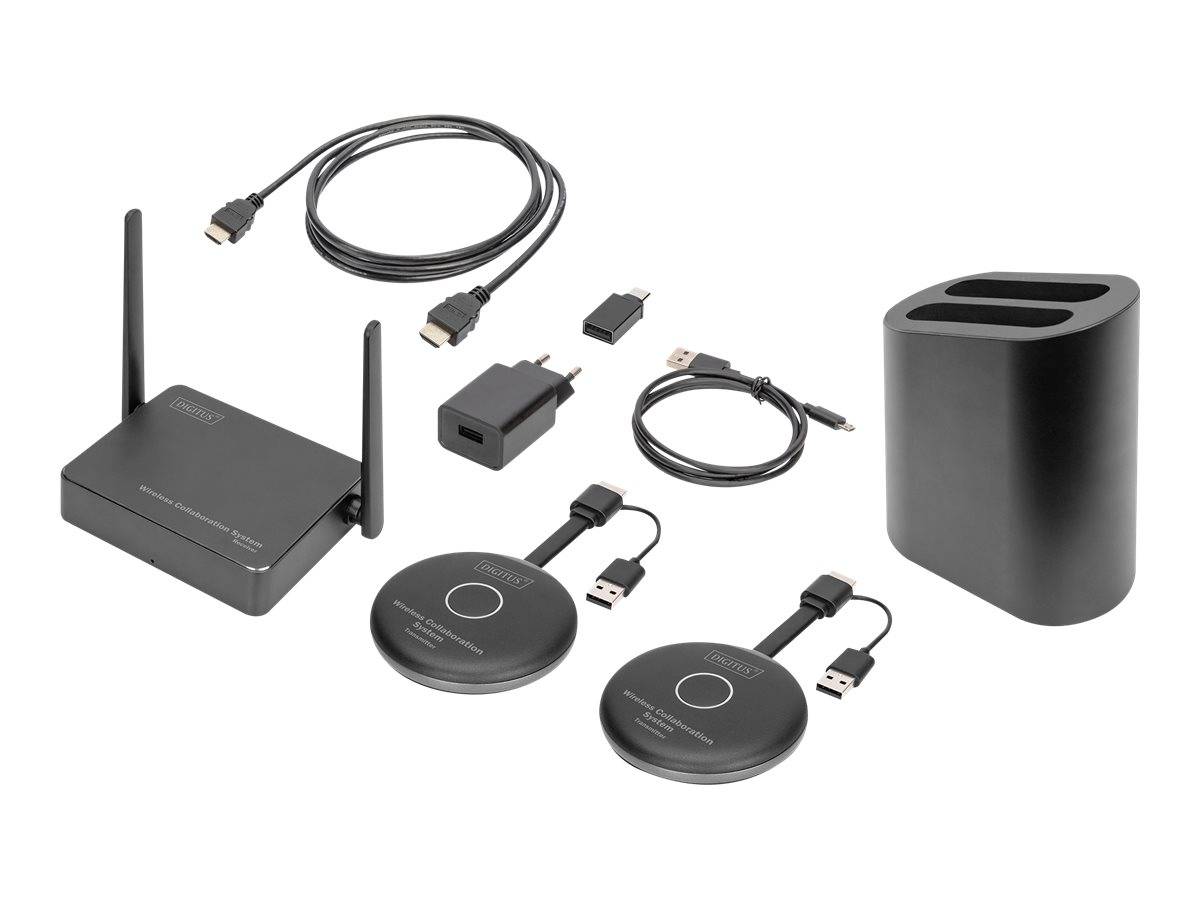

1x receiver unit2x HDMI transmitter1x USB charging adapter (10W, 5V/2A)1x storage tray for HDMI transmitter1x Micro USB cable, 1.5 m1x HDMI cable, 1.5 m1x USB adapter (USB-A, socket - USB-C™, plug)1x user manual

Hints

Notes: The transmission distance in case of reduced visibility cannot be determined on a flat-rate basis and depends on the conditions on site. Walls, glass, etc. shorten the signal coverage or cause signal loss
