Digitus DS-55321 Wireless HDMI (set) 50 m 5 GHz 1920 x 1080 Pixel
EAN:
Part number:
Item no:
Highlights & Details
Digitus DS-55321 Wireless HDMI KVM Extender Set 200 m, Full HD
- Wireless HDMI signal transmission up to 200 m (with clear view)Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)Supports broadcast resolutions up to Full HD (1080p / 60Hz)
Technical specifications

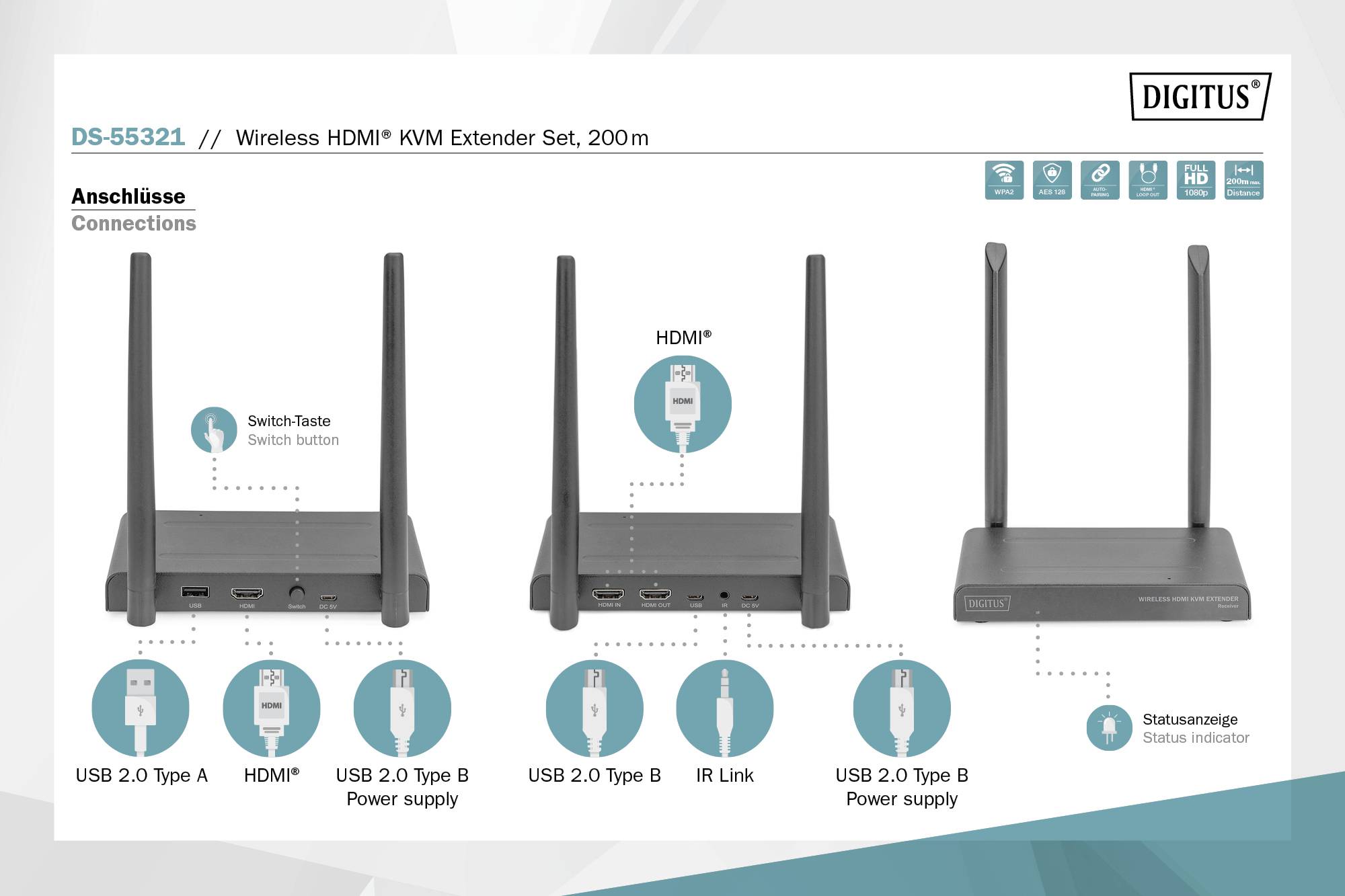

- Supports transmitter solutions up to 1920x1080pRadio channel : IEEE 802.11ac, 5 GHz, 2T2RAuthentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)Connections transmitter unit: 1x HDMI input (signal source, 4K/60Hz); 1x HDMI loop-out / output; 1x Micro USB input (power supply, DC 5V/1A); 1x IR input - connection of IR transmitter for controlling the output monitor; 1x Micro USB input - data connection of the source for using KVM functionConnections Receiver unit: 1x HDMI output (output device, 1080p/60Hz); 1x USB-A input (connection of mouse/keyboard); 1x Micro USB input (power supply, DC 5V/1A); 1x Reset buttonPower consumption: 2.5W.Operating temperature 0-40°C.KVM : no.power over Ethernet (PoE) : no.
- Product type
Wireless HDMI (set)
- Frequency
5 GHz
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Video resolution
1920 x 1080 Pixel
- Range (max.)
50 m
- Factory colour
Black
- Weight
326 g
- Length
155 mm
- Width
79 mm
- Height
20 mm
- Dim
(L x W x H) 155 x 79 x 20 mm
- Power supply (LOV)
via PSU
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2618003 Digitus DS-55321 Wireless HDMI (set) 50 m 5 GHz 1920 x 1080 Pixel
Description

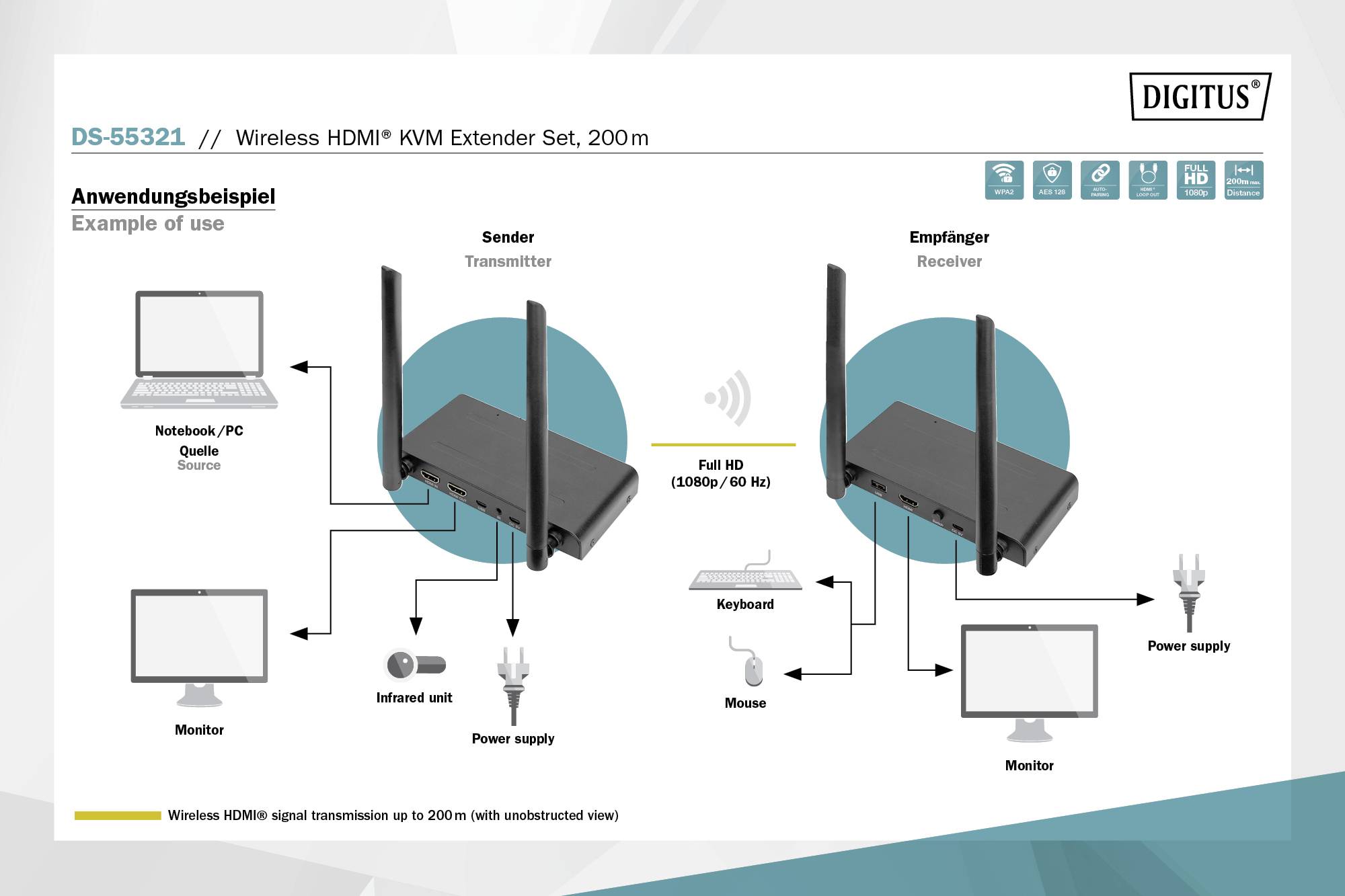

The Wireless HDMI KVM Extender Set transmits your HDMI video and audio signals in full HD resolution wirelessly over a distance of up to 200 m (unrestricted view). Thanks to KVM functionality, the mouse/keyboard can be connected to the receiver unit, which enables the control of the signal source directly at the output device. A local monitor can be connected to the transmitter via the HDMI loop out to control the output on the receiver. The auto-pairing function promises a simple installation.
This text is machine translated.
This text is machine translated.
Features
- KVM functionality for connecting mouse and keyboardTouch screen back control - supports touch screen panels (via USB connection at the receiver)Supports input signals with up to 4K/60HzHDMI loop-out for connecting a local monitor to the transmitter unitAuto-pairing function - no configuration necessaryAES 128-bit encryptionWPA2 protocol
Scope of delivery

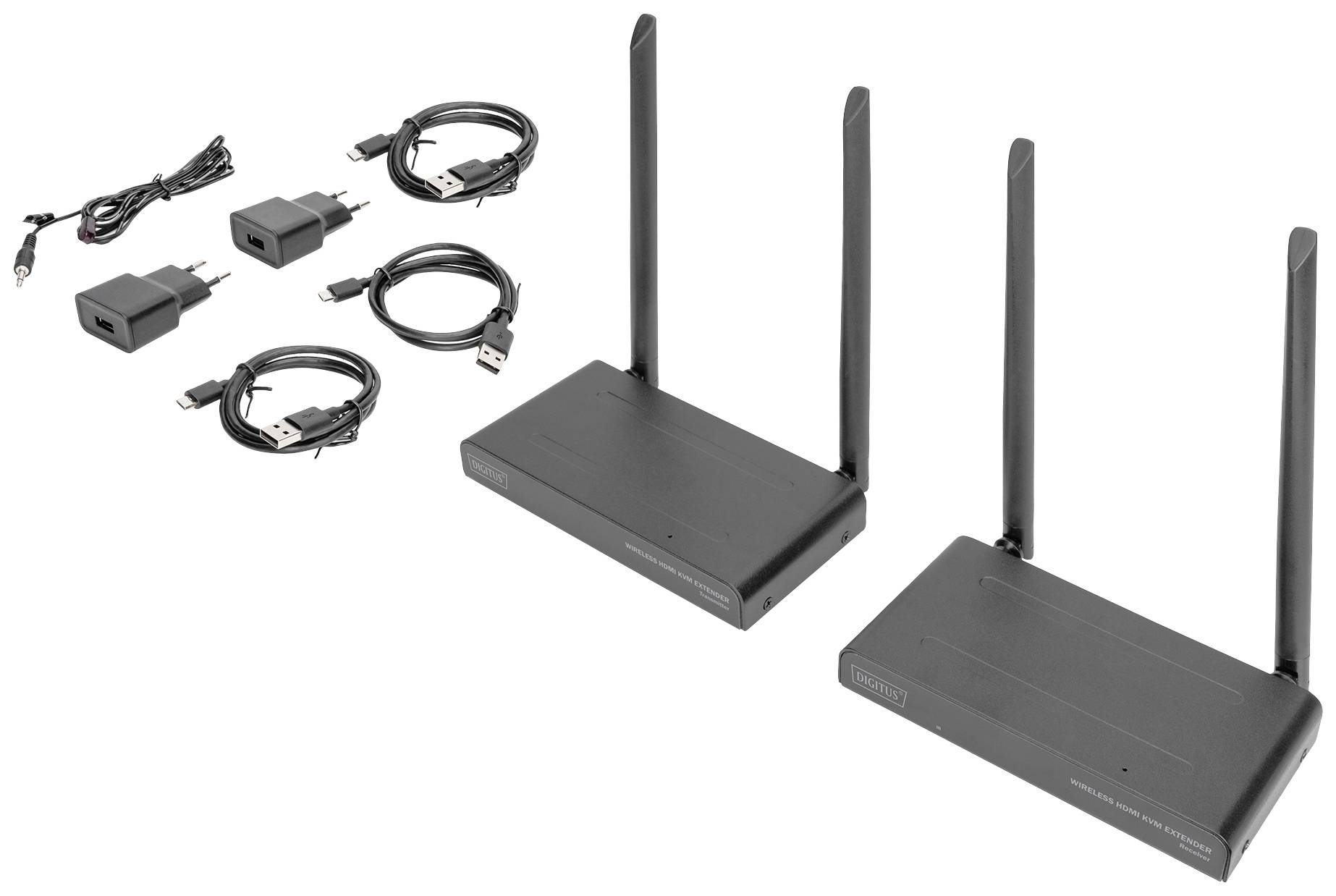

- 1x transmitter unit1x receiver unit2x power supply (DC 5V/1A, 0.75 m)1x IR transmitter (1.5 m)3x Micro USB - USB-A cable (0.5 m)1x user manual2x HDMI-Cable 1.5m
Hints
Notes: The transmission distance in case of reduced visibility cannot be determined on a flat-rate basis and depends on the conditions on site. Walls, glass, etc. shorten the signal coverage or cause signal loss
