Digitus DS-55358 HDMI™, HDMI® input, USB C® HDMI extender via data cable 10 m
EAN:
Part number:
Item no:
Number
Total (€ 172.26 / piece)
€
Highlights & Details
Digitus video wall controller, 4 displays, 4K/30Hz
- Input signal via HDMI (DMI 2.0) or USB-C (DP 1.2a) with a maximum resolution of 4K/60Hz

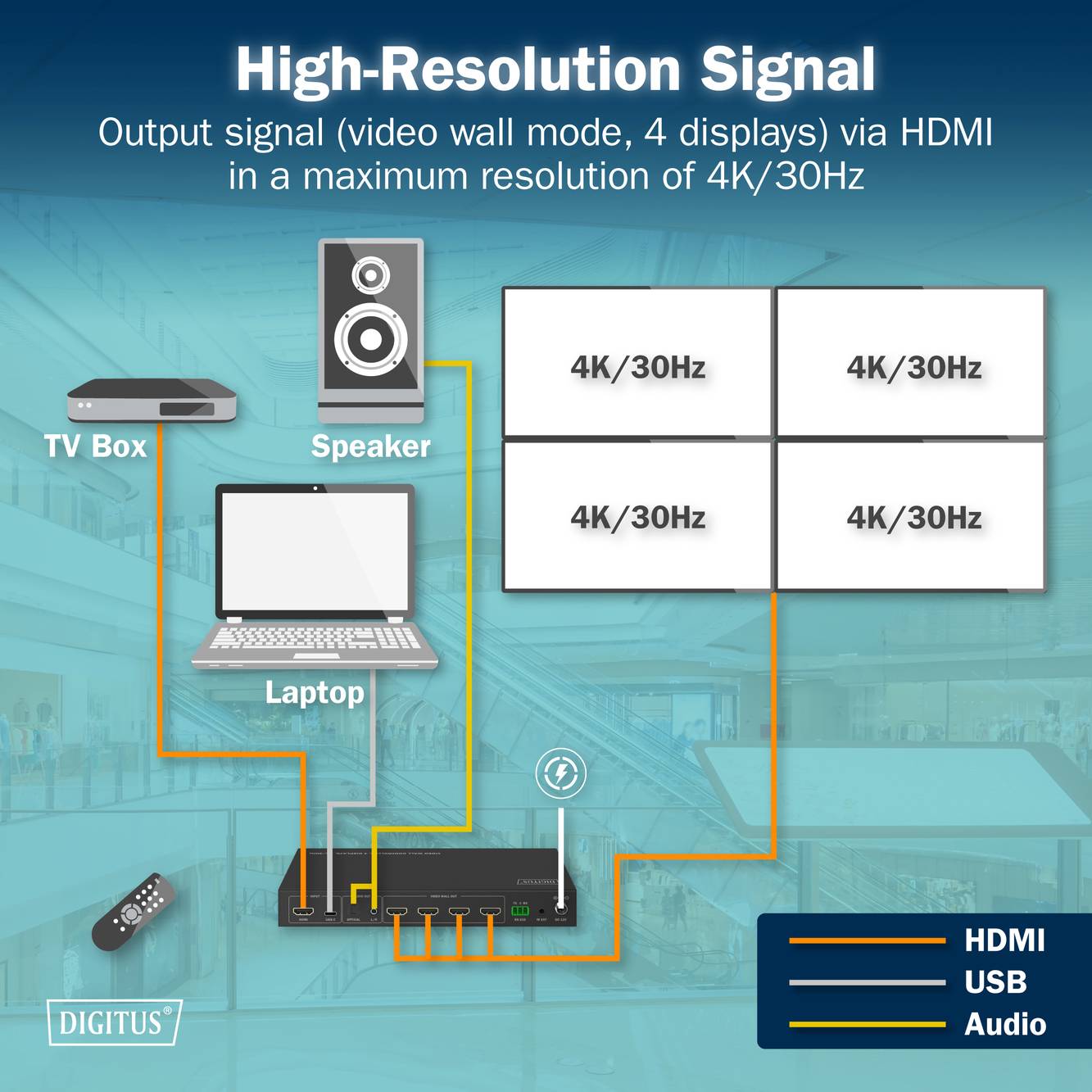

- Output signal (Video Wall Mode, 4 displays) via HDMI at a maximum resolution of 4K/30Hz

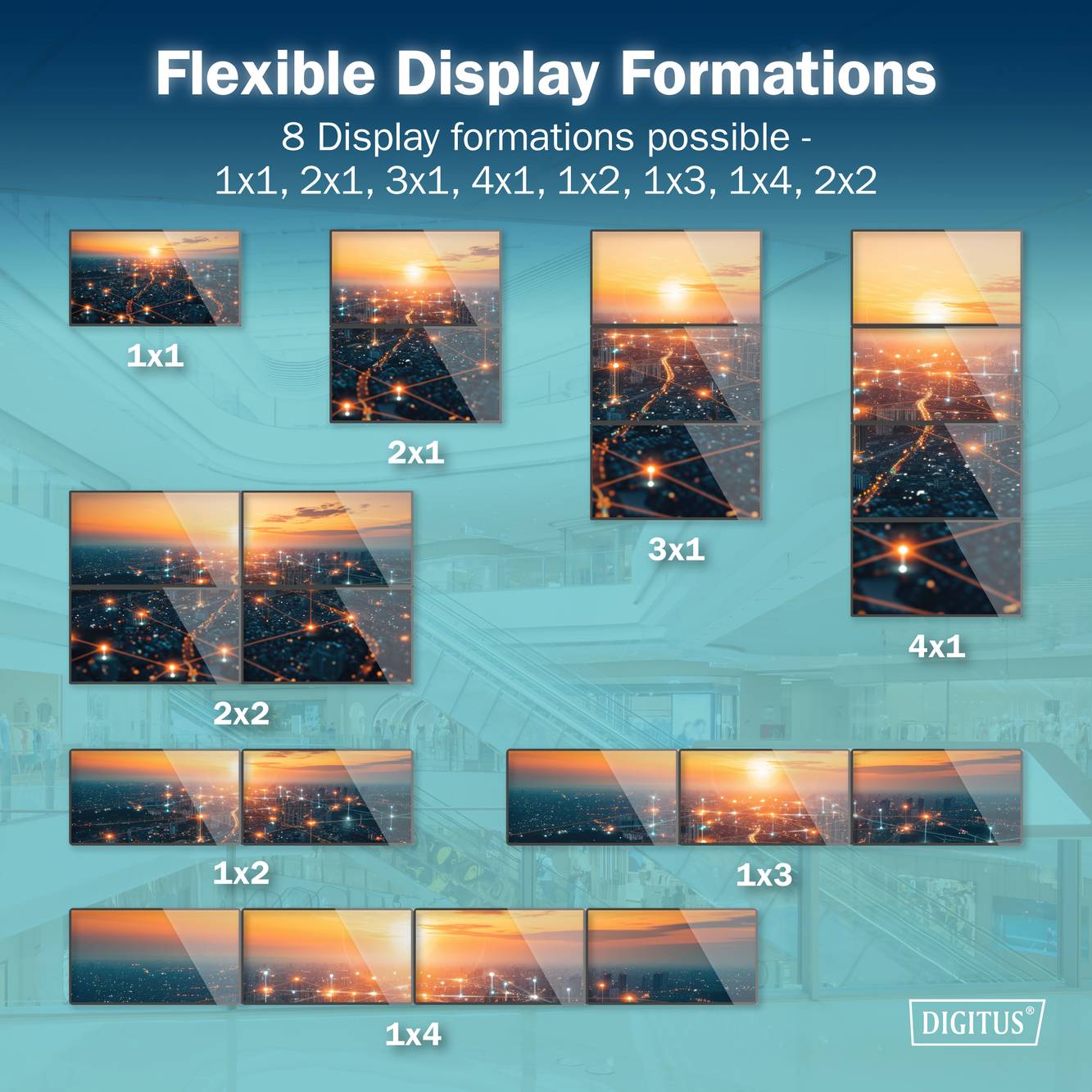

- 8 display formats possible - 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2
- Audio extractor - enables coupling of the audio signal, playback via separate loudspeaker via analogue 3.5 mm stereo or digital S/PDIF
- Supports 180° image rotation (easy switching via remote control) - perfect e.g. for ceiling installations

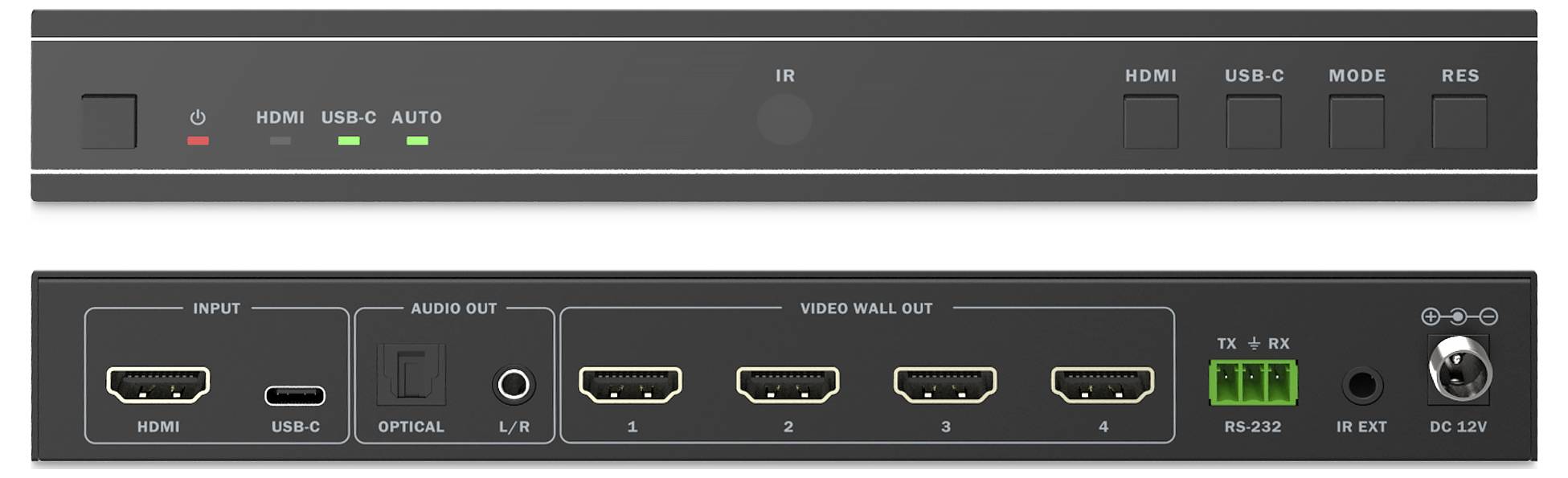

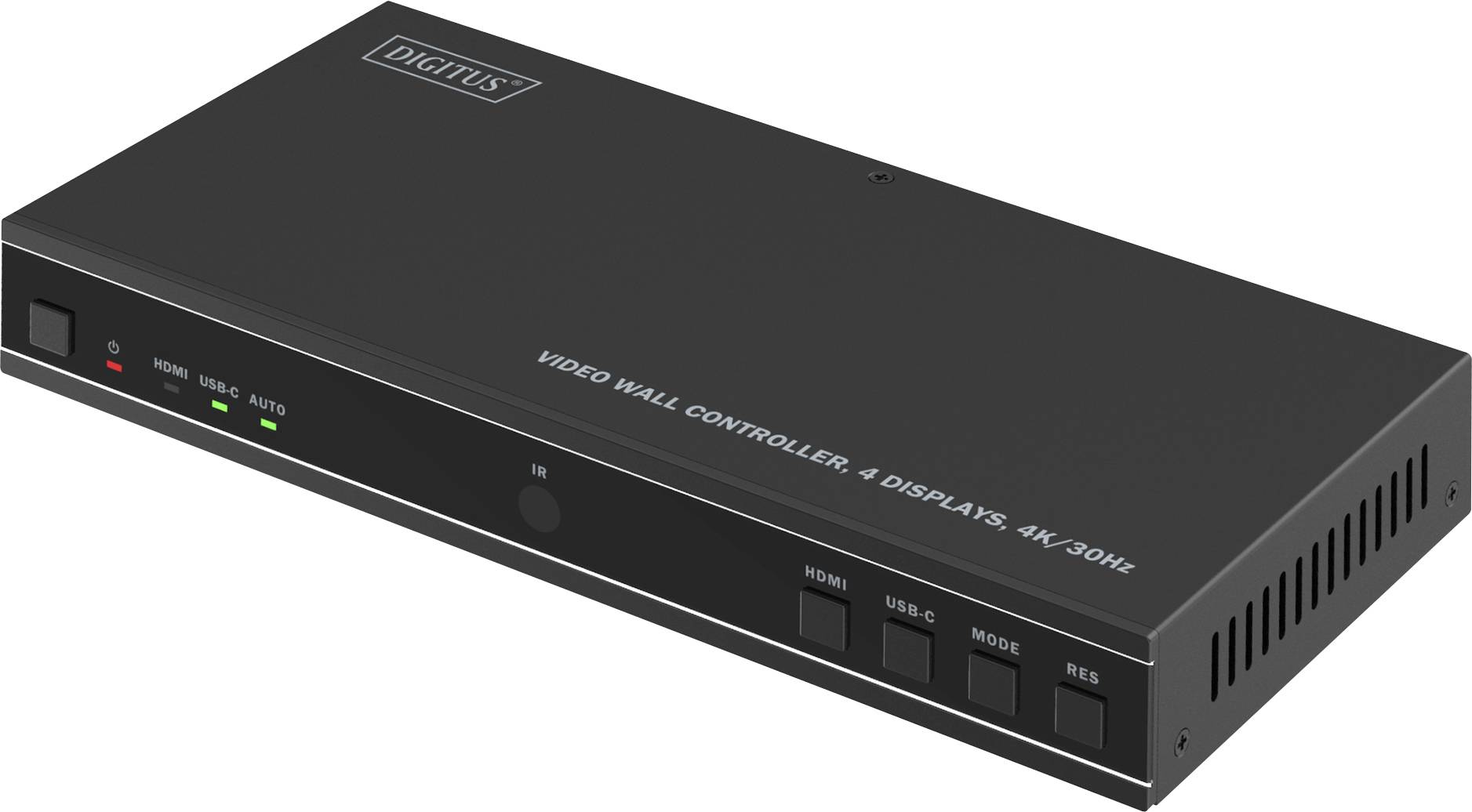

- Convenient control options - Control via remote control, on the device (front panel buttons) itself or via RS232
- Comfortable changing of the resolutions of the 4 output displays on the device and via remote control
- Frame (bezel) adjustment - changing the picture edge in video wall mode comfortably via remote control
- Suitable for wall mounting
Technical specifications
- Maximum resolution input signal: 4K/60Hz
- Maximum resolution output signal (video wall mode): 4K/30Hz
- Video bandwidth 18 Gbps
- Max. HDMI cable length:
- 4K/60Hz → 8 m
- 4K/30Hz → 10 m.
- 1080p/60Hz → 15 m
- Operating temperature: 0° to 40° C
- Power consumption: Approx. 5.5 W
- Dimensions 10.0 × 22.0 × 3.0 cm
- Weight: 590 g
- Product type
HDMI extender
- Transfer type
via data cable

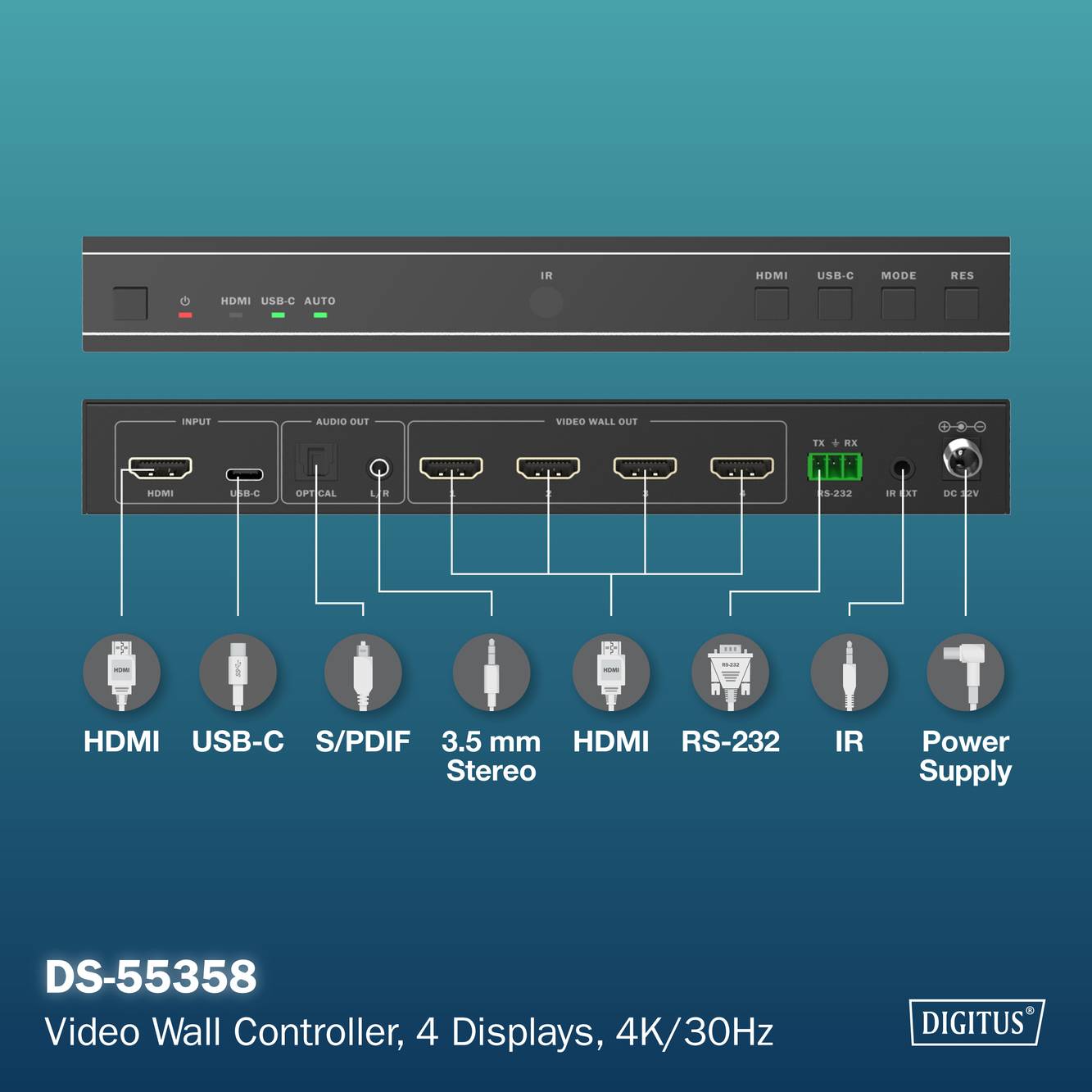

- Interfaces (input)
HDMI™
HDMI® input
USB C®

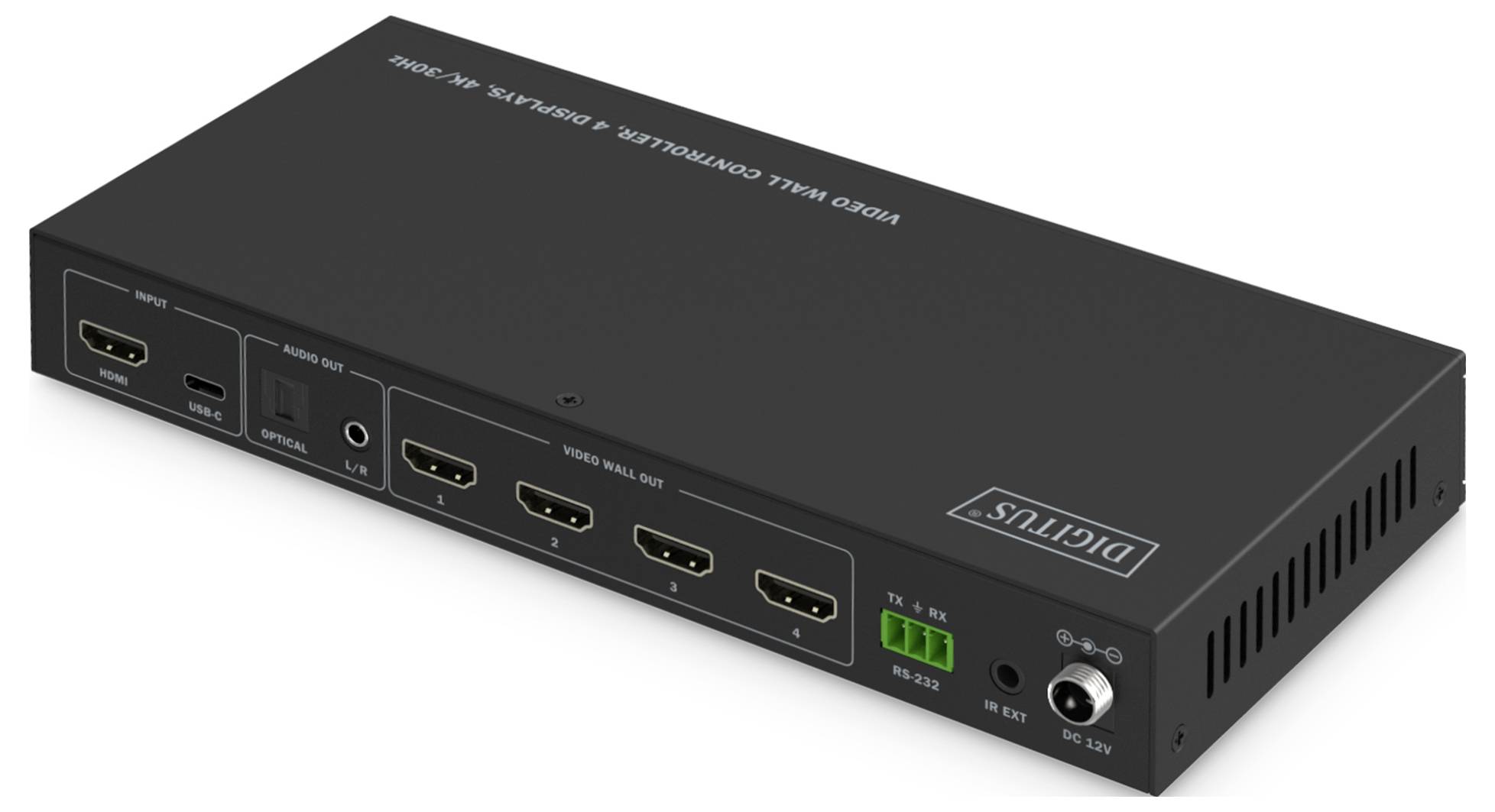

- Interfaces (output)
S/PDIF
Headphone jack (3.5 mm)
HDMI™
RS232
PSU connector
- Features
built-in LED display
- Resolution (max.)
3840 x 2160 p
- Range (max.)
10 m
- Factory colour
Black
- Weight
1.05 kg
- No. of outputs
4 x
- No. of inputs
1 x
- Supported monitors
4
- Power supply (LOV)
via PSU
- Version
Cable
- Type A
HDMI plug
- Type B
HDMI plug
- Cable use
USB-C®
- Connection type
USB-C®
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3462080 Digitus DS-55358 HDMI™, HDMI® input, USB C® HDMI extender via data cable 10 m
User & Safety Instructions 3462080 Digitus DS-55358 HDMI™, HDMI® input, USB C® HDMI extender via data cable 10 m
User & Safety Instructions 3462080 Digitus DS-55358 HDMI™, HDMI® input, USB C® HDMI extender via data cable 10 m
Description
The Video Wall Controller enables the impressive display of a video wall from up to four 4K UHD displays. Thanks to the flexible display formats (1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4, 2x2) you can customize your setup - Ideal for professional presentations, advertising displays or monitoring applications. High resolution signal processing provides a maximum input resolution of 4K/60Hz via HDMI (DMI 2.0) or USB-C (DP 1.2a). The video wall is output in 4K/30Hz via HDMI, ensuring razor sharp images. An integrated audio extractor enables separate output of the audio signal via 3.5 mm analogue stereo or digital S/PDIF – perfect for external speakers. Thanks to 180° image rotation, the video wall can also be used for ceiling installations, while the intuitive control by remote control, directly on the device or via RS232 interface offers highest operating comfort. In addition, the resolutions of the display can be changed comfortably. The compact design and the possibility of wall mounting make the controller the ideal solution for versatile applications in the professional field.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x video wall controller
- 1x remote control (CR2025 button cell included)
- 1x power supply, EU plug (12V/1A, 1.2 m)
- 1x IR extension cable (1.5 m)
- 1 x RS232 terminal Block
- 1x mounting material
- 1x user manual
