Dimplex 378210 Underfloor heating DCF160-260W-1,6m2 260 W 1.6 m²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

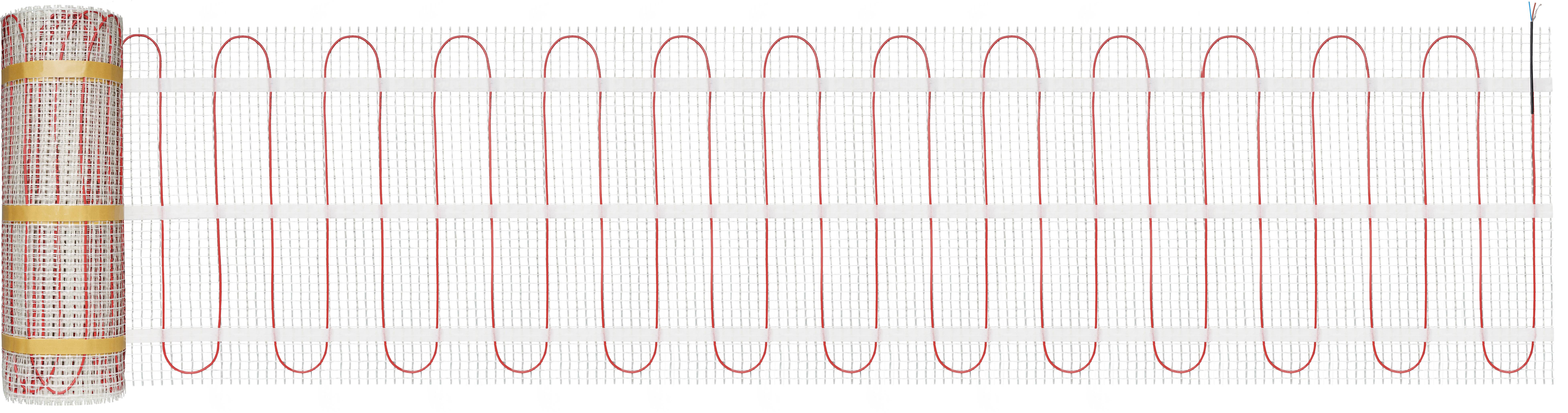

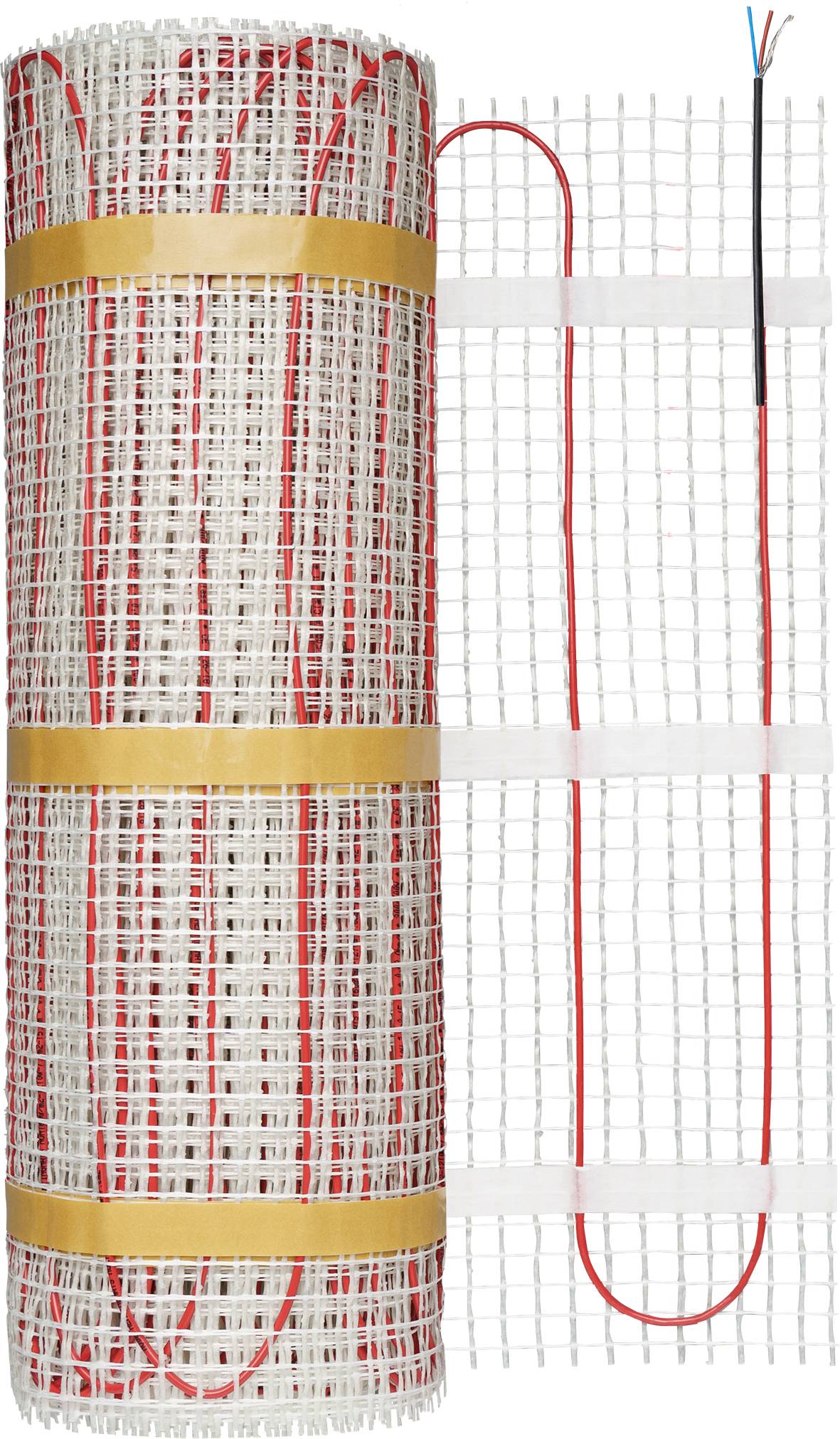

Dimplex DCF160-260W-1.6sqm thin bed heating mat
- Additional heating mats for setFor extending existing floor heatingBalanced temperature distributionAvailable in various sizes
Technical specifications
- Product type
Underfloor heating
- Operating voltage
230 V
- Heating area
1.6 m²
- Heating power (W / BTU/h)
260 W
- Heating power
260 W
- W/m
80 W
- Lead length
3 m
- Compatible with
Underfloor heating
- Mounting height
3.5 mm
IP67
- Protection class
I
- Width
500 mm
Documents & Downloads
Datasheet
Datasheet 2613911 Dimplex 378210 Underfloor heating DCF160-260W-1,6m2 260 W 1.6 m²
User & Safety Instructions
User & Safety Instructions 2613911 Dimplex 378210 Underfloor heating DCF160-260W-1,6m2 260 W 1.6 m²
Description
For larger rooms, additional thin-bed heating mats are available for THE COMFORT FLOOR SET with the smart climate THERMOSTAT as supplementary mats, which can be connected quickly and easily to the existing mats (and thus also the thermostat), in order to extend the underfloor heating.A warm floor is no longer a luxury product thanks to attractive prices from Dimplex: If you want to upgrade your home with this cozy type of heating, you can do this with the Comfort FLOOR heating mats – they are mounted on a carrier braid and are simply laid in the tile adhesive or leveling filler, even in the bathroom or in the kitchen thanks to the protective cover for connection to the FI circuit breaker.The heated floor is integrated into the smart climate system via the smart climate THERMOSTAT and can be controlled via the Energy Control app on the smartphone or tablet.
This text is machine translated.
This text is machine translated.
Features
- Area-related recording 160 W/sqmWith protective cover for connection to FI-circuit breaker for use in damp roomsSingle-sided cold cable 3.0 m for simplified installationSpreading width 0.5 mEspecially flat: Mounting height only 3.5 mmConnection voltage 1/N/PE ~230 V, 50 Hz
Scope of delivery
- Dimplex DCF160-260W-1.6sqm thin bed heating mat
