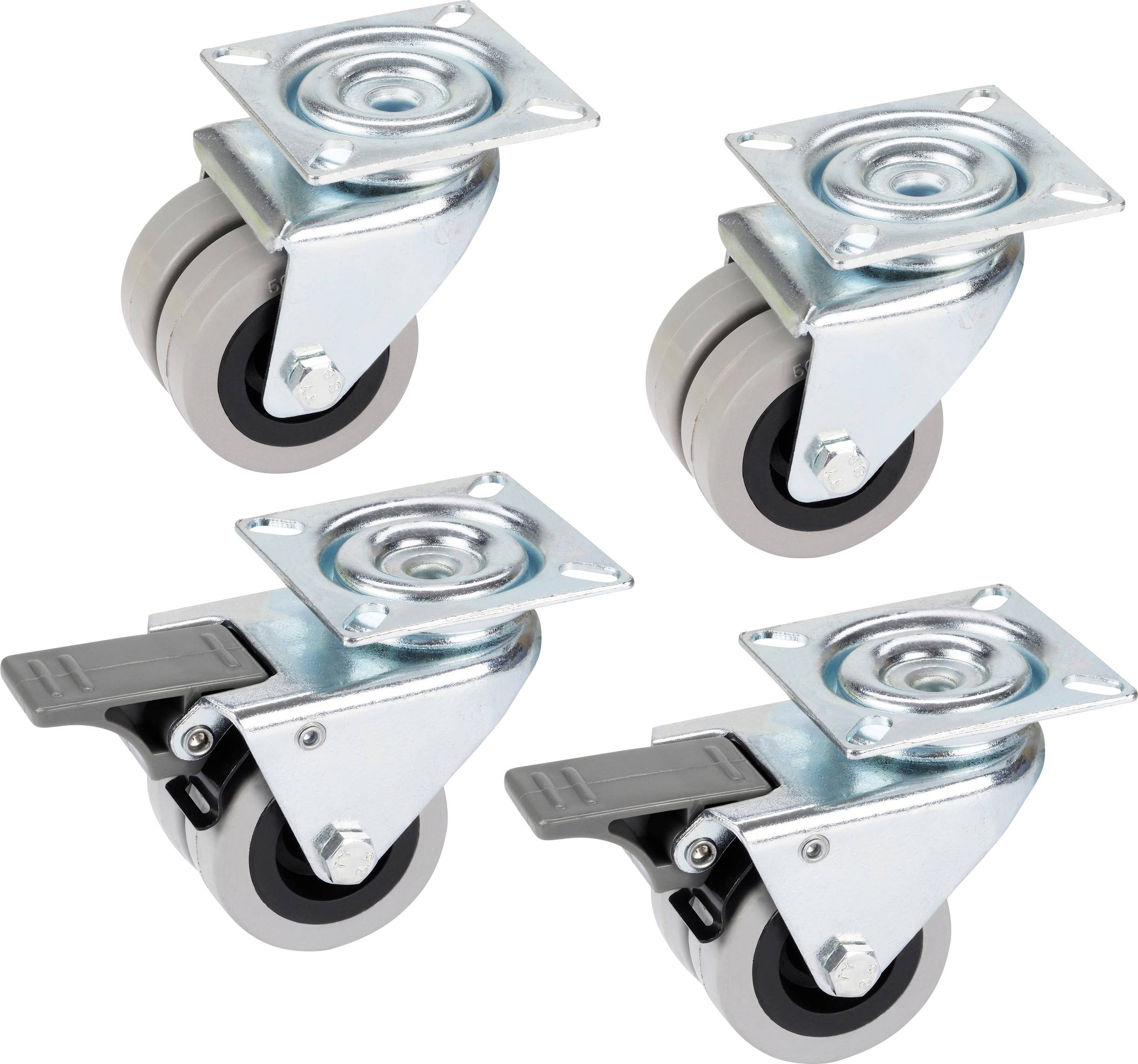

dörner + helmer 450105 Double swivel wheel Wheel diameter: 50 mm Load capacity (max.): 80 kg 4 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 4 pc(s))
Total (€ 23.99 / piece)
€ 23.99
incl. VAT
14-day return policy included
Highlights & Details
Double swivel wheel
- Beach basket roll set with 4 equipment rolls with rubber tires and plain bearing, of which 2 with total catch, for indoors and outdoors; with a wide range of applications, for example, the tool box or beach basket is mobile, for private and professional use; 4 double guide rollers rotatable by 360°, of which 2 with total lock, made of blue-gray rubber have low rolling resistance and are suitable even for sensitive types of ground; easy operation thanks to double ball bearings in rotating assembly; the total catch prevents accidental rolling away
Technical specifications
- Product type
Double swivel wheel
- Wheel Ø
50 mm
- Load capacity (max.)
80 kg
- Features
Mount
- Total height
73 mm
- Size
60 x 60 mm
- Wheel width
19 mm
- Bearing type
Plain bearing
- Material
Steel (galvanized)
Plastic
Rubber
- Content
4 pc(s)
- Hole distance
46 x 46 mm
Documents & Downloads
Datasheet
Datasheet 3428347 dörner + helmer 450105 Double swivel wheel Wheel diameter: 50 mm Load capacity (max.): 80 kg 4 pc(s)
User & Safety Instructions
User & Safety Instructions 3428347 dörner + helmer 450105 Double swivel wheel Wheel diameter: 50 mm Load capacity (max.): 80 kg 4 pc(s)
Description
The set of double castors (incl. 16 wood screws 5 x 20 mm) with high-quality rubber wheels is a universal partner with a wide range of applications. It makes the beach basket, the tool box or other furniture mobile indoors and outdoors. The strong set has a very high load capacity and consists of 2 swivel castor with plate, as well as 2 steering rollers with plate and total locking device. The casing is made of galvanized steel plate with double ball-bearing in the rotating collar.
This text is machine translated.
This text is machine translated.
Features
- 4-pack Roller-Set with 16 wood screws
Hints
Please check soil compatibility before use. For soft wood, cork or similar flooring, all rolls can leave wells or strips.
