Name: DRAKA 60011535 Electrical wiring CAT 5e F/UTP Grey 1 pc(s)
Brand: DRAKA
SKU: 3797725

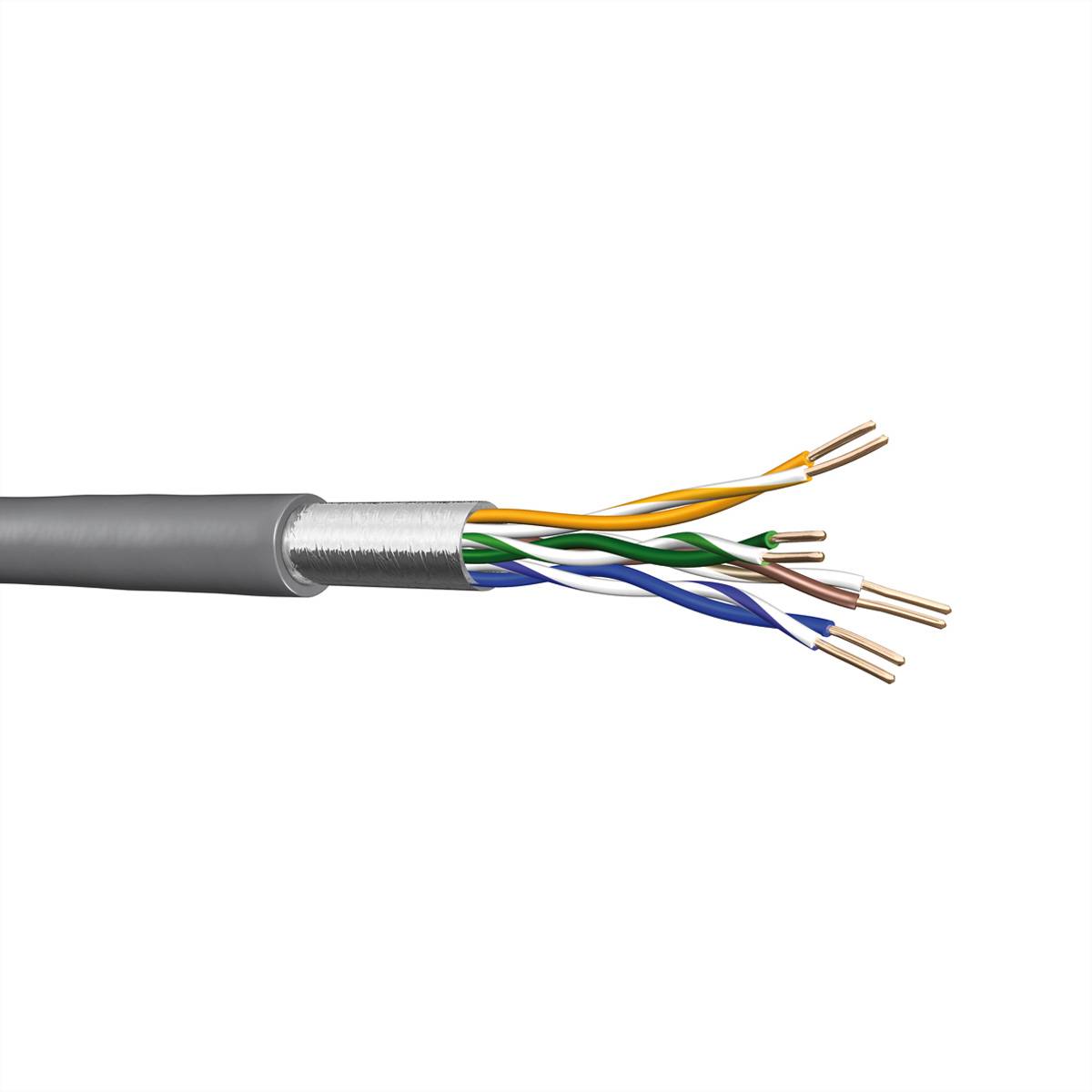

DRAKA 60011535 Electrical wiring CAT 5e F/UTP Grey 1 pc(s)-0

DRAKA 60011535 Electrical wiring CAT 5e F/UTP Grey 1 pc(s)-1

DRAKA 60011535 Electrical wiring CAT 5e F/UTP Grey 1 pc(s)-2

1/3

Product type

Electrical wiring

Specification

CAT 5e

Shielding

F/UTP

Cable features

Halogen-free

Flame-retardant

Factory colour

Grey

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Data cable for Cat. 5e cabling...

Data cable for Cat. 5e cables
Aluminium-coated plastic composite film
Protection sheath: FRNC, gray RAL 7032

Technical specifications

Product group: Twisted pair cable
Product type: Installation cable
Colour: grey
Length: 1000 m
Content 1000 m
Shielding type F/UTP
Transmission quality Cat5e/Class D
Impedance 100 Ohm
Number of wires 8
Wire cross-section (AWG) AWG 24
Wire type: Solid wire
Bending radius: Min. 50 mm with tensile load
Outer Ø cable 5.9 mm
Cable LSOH: Yes
Material outer sheath cable: FRNC
Technical features: Skew at 100 MHz (guide value): 20 ns/100m
Fire protection class ECA
RAL color: RAL 7032 pebble gray
Packaging height 440 mm
Package width 400 mm
Packaging depth 400 mm
Package weight: 39 kg
Gross weight: 39

Product type: Electrical wiring

: CAT 5e

: F/UTP

Cable features: Halogen-free
Flame-retardant

Factory colour: Grey

Content: 1 pc(s)

Manufacturer part #: 60011535

Type: DRAKA UC300 S24 F/UTP H AWG 24 grau, 100

Halogen-free: Yes

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3797725 DRAKA 60011535 Electrical wiring CAT 5e F/UTP Grey 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3797725 DRAKA 60011535 Electrical wiring CAT 5e F/UTP Grey 1 pc(s)

Description

Data cable for Cat. 5e cables design. Conductor: Copper wire, plain Ø 0.51 mm (AWG24). Insulation: Polyethylene, Ø 1.0 mm. Versioning: 2 wires to pair. Versioning: 4 pairs to the soul. Overall screen: Aluminium-coated plastic composite film, AWG26 add-on wire tin-plated. Protection sheath: FRNC, gray RAL 7032 . Electrical properties at 20°C±5°C. Loop impedance <= 190 Ohm/km Resistance unbalance <= 2%. Insulation resistance (500 V) >= 2000 MOhm*km. Capacity at 800 Hz (target value) 48 nF/km Unbalance of capacity (pair / earth) <= 1500 pF/km. Relative propagation speed approx. 67 %. Signal duration <= 535 ns/100m. Time difference <= 20 ns/100m. Testing voltage (DC, 1 min) wire/wire and wire/shield: 1000 V . Coupling resistance at 1 MHz <= 50 mOhm / m. Coupling resistance at 10 MHz <= 100 mOhm / m. Coupling resistance at 30 MHz <= 200 mOhm / m.

This text is machine translated.
