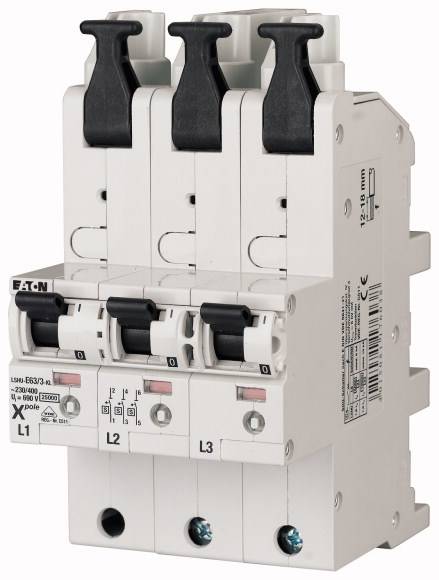

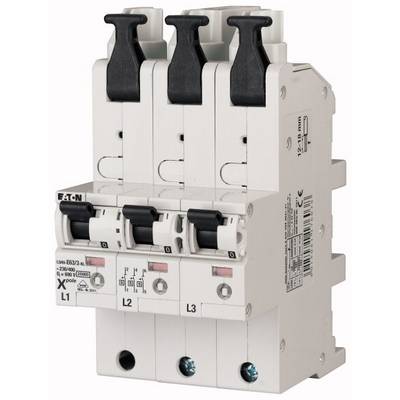

Eaton 119715 LSHU-E35/3-KL Main RCCB 35 A 230 V, 400 V
Product type
Main RCCB
Number of pins
3
Release characteristics
E
Nominal current - rounded value
35 A
Nominal current
35 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 124.99 / piece)
€ 124.99
incl. VAT
14-day return policy included
Technical specifications
- Screwless outgoing terminals
- Product type
Main RCCB
- Number of pins
3
- Release characteristics
E
- Nominal current - rounded value
35 A
- Nominal current
35 A
- Factory colour
White
- Dim
(W x H x D) 81 x 151.30 x 99.50 mm
- Content
1 pc(s)
- Switch-off capacity
25 kA
- Operating voltage
440 V
- Nominal voltage
230 V
400 V
- Compatible with (details)
Busbar mounting
- Width
81 mm
- Height
151.30 mm
- Depth
99.50 mm
- Type
LSHU-E35/3-KL
- Weight
0
Busbar
50 Hz
35 A
400 V
E
690 V
3
25 kA
4
3
6 kV
IP40
FALSE
6
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2234784 Eaton 119715 LSHU-E35/3-KL Main RCCB 35 A 230 V, 400 V
User & Safety Instructions
User & Safety Instructions 2234784 Eaton 119715 LSHU-E35/3-KL Main RCCB 35 A 230 V, 400 V
Description
Selectivity
In the main power supply system, the new TAB also requires the distribution system operators as well as current DIN standards. A selective overcurrent protection device is now an indispensable part of a comfortable and safe electrical installation.
Super-fast installation
An innovative switching concept and the comfortable connection technology form the basis for compact design and space-saving installation. All necessary functions of the main circuit breaker are integrated and can be implemented without accessories. Feeding the external conductors directly via the LSHU-KL without additional busbar terminals saves material and space.
Special locking
The new device design of the LSHU-KL main circuit breaker now includes convenient blocking functions. This makes it possible to simply lock a customer system. The end customer is also able to prevent unintentional or unauthorized switching off via the integrated locking slide.
This text is machine translated.
In the main power supply system, the new TAB also requires the distribution system operators as well as current DIN standards. A selective overcurrent protection device is now an indispensable part of a comfortable and safe electrical installation.
Super-fast installation
An innovative switching concept and the comfortable connection technology form the basis for compact design and space-saving installation. All necessary functions of the main circuit breaker are integrated and can be implemented without accessories. Feeding the external conductors directly via the LSHU-KL without additional busbar terminals saves material and space.
Special locking
The new device design of the LSHU-KL main circuit breaker now includes convenient blocking functions. This makes it possible to simply lock a customer system. The end customer is also able to prevent unintentional or unauthorized switching off via the integrated locking slide.
This text is machine translated.
