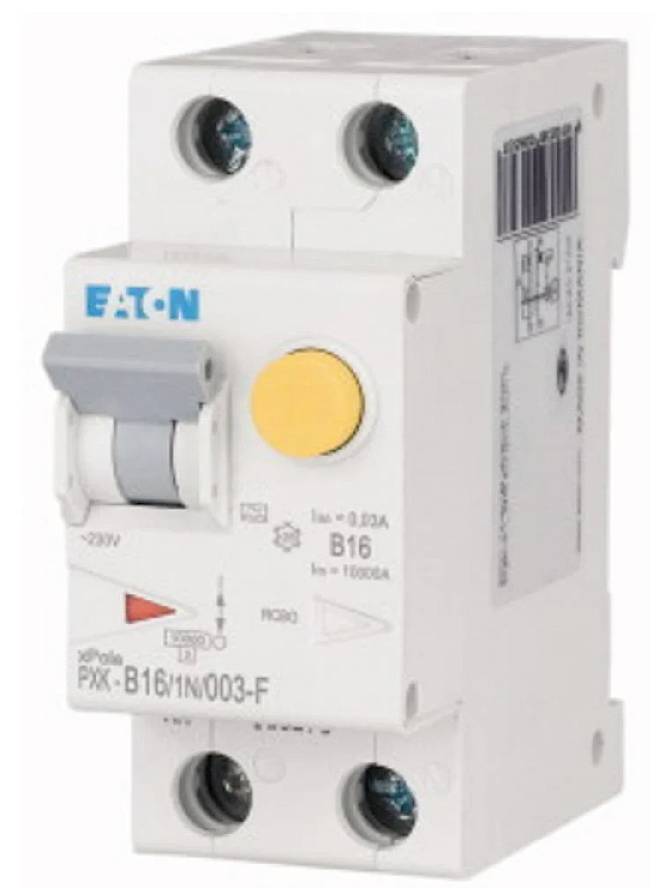

Eaton 193528 RCBO 2-pin 16 A 0.03 A 415 V AC
Product type
RCBO
Number of pins
2
Release characteristics
B
Differential current rating
0.03 A
Nominal current - rounded value
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 77.99 / piece)
€ 77.99
incl. VAT
Only 4 Piece(s) available
Highlights & Details
Eaton FI/Line Protection Switch
- Person/line and short circuit protection in one deviceIdeal for subsequent protection of 230V single-circuit circuits.
Technical specifications
- Type
1-pole + N
- Product type
RCBO
- Number of pins
2
- Release characteristics
B
- Differential current rating
0.03 A
- RoHS-compliant
Yes
- Factory colour
Multicolour
- Dim
(L x W x H) 150 cm x 50 mm x 100 mm
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Switch-off capacity
6 kA
- Nominal voltage
415 V AC
- Width
50 mm
- Height
100 mm
- Length
150 cm
- Depth
75.5 mm
AC
75.5 mm
16 A
240 V
B
440 V
0.03 A
F
3 kA
3
3
2
2
50 Hz
IP20
1
TRUE
0 kA
1-25 mm²
1-25 mm²
FALSE
-25-40 °C
FALSE
2
TRUE
4 kV
10 kA
Undelayed
10 kA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2498676 Eaton 193528 RCBO 2-pin 16 A 0.03 A 415 V AC
Description
FI/LS combination switch type "F" for modern, converter-controlled equipment, such as B. Dryer, washing machine and food processor.Person/line and short circuit protection in one device / suitable, also for 2-pole applications Frequency converter application, because mix frequency sensitive / Ideal for the subsequent protection of 230V single circuit.
This text is machine translated.
This text is machine translated.
Features
- Pulsing fault currents with DC components up to 10 mA and mixing frequencies up to 1 kHz. This allows extended protection in systems with electronic loads. Recommended for all circuits with speed-controlled drives.
