Buy Eaton 278876 FAZ-C32/3 Circuit breaker 32 A 400 V AC

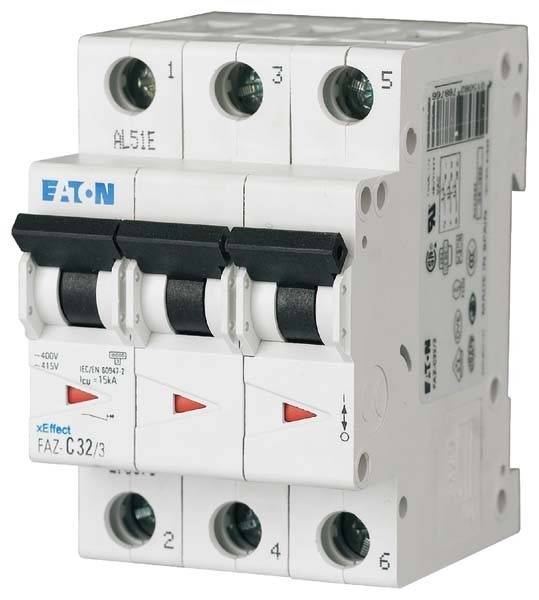

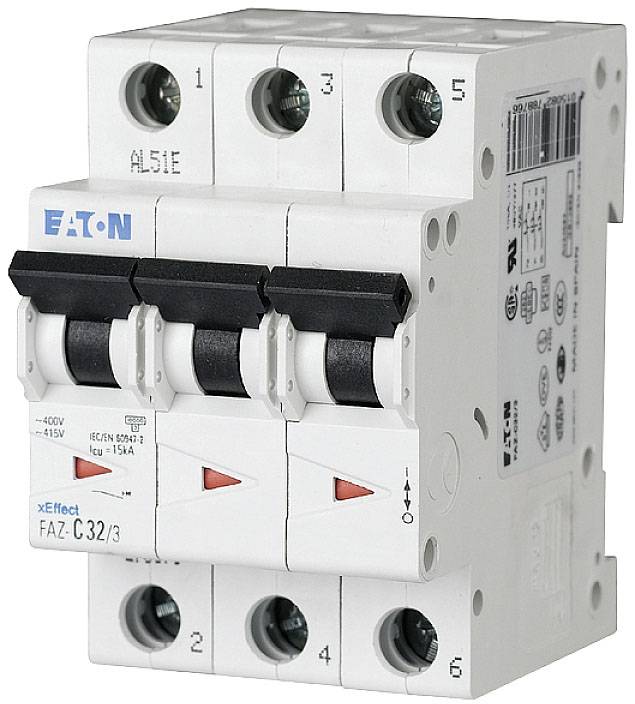

A three-pole circuit breaker with the marking 'EATON' and 'FAZ-C32/3', suitable for electrical circuits up to 415V, 32A.

Image similar

Product type

Circuit breaker

Number of pins

Release characteristics

Nominal current - rounded value

32 A

RoHS-compliant

Yes

Datasheet (PDF)

Fast track dispatch on Wed, 16 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 138.65 / piece)

€ 138.65

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Technical specifications

Connectable conductor cross-section single-wired: 1 - 25 mm²
connectable conductor cross-section multi-wired: 1 - 25 mm²
Number of fused poles: 3
Rated insulation voltage UI: 440 V
Width in division units: 3
Mounting depth: 70.5 mm
Energy limitation class: 3
Frequency: 50 - 60 Hz
Protection class (IP): IP20
Overvoltage category: 3
Ambient temperature during operation: -25 °C - +75 °C
Pollution degree: 2
additional devices possible: Yes

Product type: Circuit breaker

Number of pins: 3

Release characteristics: C

RoHS-compliant: Yes

Nominal current - rounded value: 32 A

Nominal current: 32 A

Content: 1 pc(s)

Switch-off capacity: 15 kA

Nominal voltage: 400 V AC

Weight: 0

: AC

: 70.5 mm

: 32 A

: 400 V

: 50-60 Hz

: C

: 440 V

: 3

: 3

: 2

: 3

: FALSE

: 11.5 W

: IP20

: 3

: FALSE

: 1-25 mm²

: 1-25 mm²

: -25-75 °C

: FALSE

: TRUE

: 3

: 10 kA

: 10 kA

: 15 kA

: 15 kA

: 4 kV

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2306876 Eaton 278876 FAZ-C32/3 Circuit breaker 32 A 400 V AC

User & Safety Instructions

User & Safety Instructions 2306876 Eaton 278876 FAZ-C32/3 Circuit breaker 32 A 400 V AC

Eaton 278876 FAZ-C32/3 Circuit breaker 32 A 400 V AC
