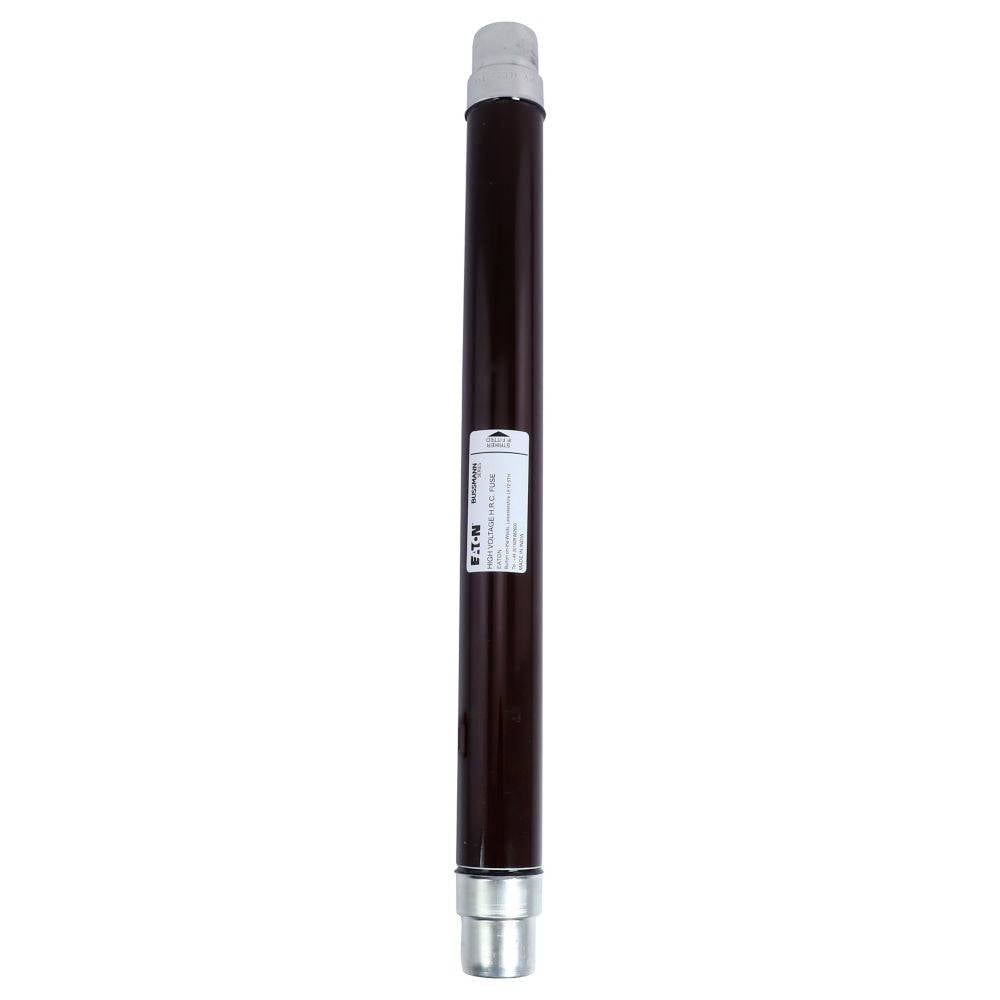

Eaton 36TDQSJ16 Fuse holder inset 16 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse holder inset
Nominal current - rounded value
16 A
Dim
(Ø x L) 51 mm x 537 mm
Content
1 pc(s)
Nominal current
16 A
Technical specifications
- Rated current 16 A
- Rated voltage: 36 kV
- Voltage type AC
- Rated frequency 50 Hz
- Switch-off capacity 35.5 kA
- Operating class according to IEC 60269: Other
- Application: Primary side transformer protection
- Length: 537 mm
- Diameter 51 mm
- Performance category according to IEC 60282-1: Subrange
- With percussion detector: Yes
- DIN standard
- Trigger specs: Other
- Installation technology: Air
- Product type
Fuse holder inset
- Dim
(Ø x L) 51 mm x 537 mm
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Switch-off capacity
35.5 kA
- Length
537 mm
- (Ø)
51 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795746 Eaton 36TDQSJ16 Fuse holder inset 16 A 1 pc(s)
Description
Fuse, fuse link, medium voltage, 16 A, AC 36 kV, 2 in., 51 x 537 mm, buffer, DIN, with impact detector, transformer protection, For indoor or outdoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, breaking capacity 35.5 kA
