EBM Papst 9392715008 Cross flow fan Motor on the left-hand side 24 V
EAN:
Part number:
Item no:
Product type
Cross flow fan
Nominal voltage
24 V

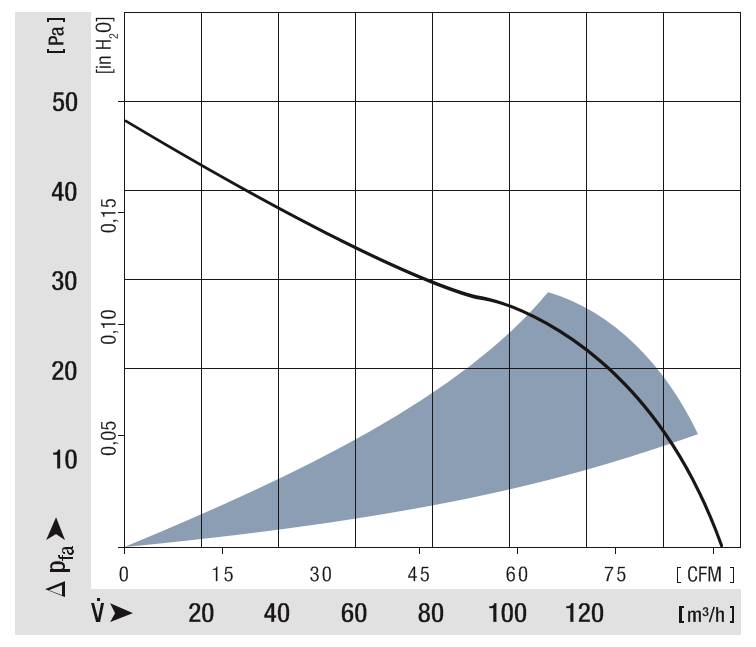

Air flow rate
155 m³/h
Type
QG 030-353/14
Max. current consumption
400 mA
Datasheet (PDF)
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Cross-flow fan Pope QG 030-353/14
- Robust design.
- Supported by ball bearings
- Burn-in paint
Technical specifications
- Product type
Cross flow fan
- Type
QG 030-353/14
- Nominal voltage
24 V
- Max. current consumption
400 mA
- Type
Motor on the left-hand side
- Air flow rate
155 m³/h
- Rotational speed
3800 U/min
- Noise emission (max.)
48 dB
- Material
Metal
Plastic

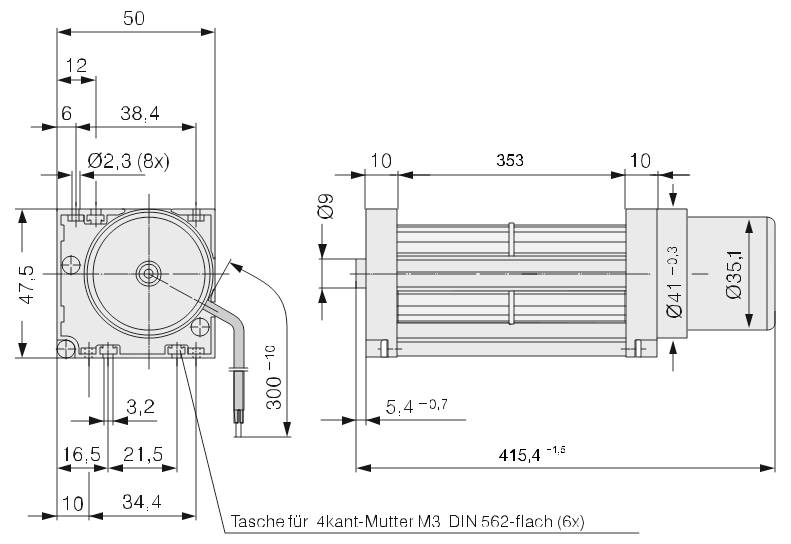

- Length
415.5 mm
- Width
47.5 mm
- Height
50 mm
- Dim
(L x W x H) 415.5 x 47.5 x 50 mm
Documents & Downloads
Datasheet
Datasheet 1926430 EBM Papst 9392715008 Cross flow fan Motor on the left-hand side 24 V
User & Safety Instructions
User & Safety Instructions 1926430 EBM Papst 9392715008 Cross flow fan Motor on the left-hand side 24 V
Description
Cross-flow fan of the DC cross-flow fan series QG 030 from EBM Papst for the universal use in the electrical sector.
This text is machine translated.
This text is machine translated.
Scope of delivery
- ebm Papst cross-flow fan
- This text is machine translated.
